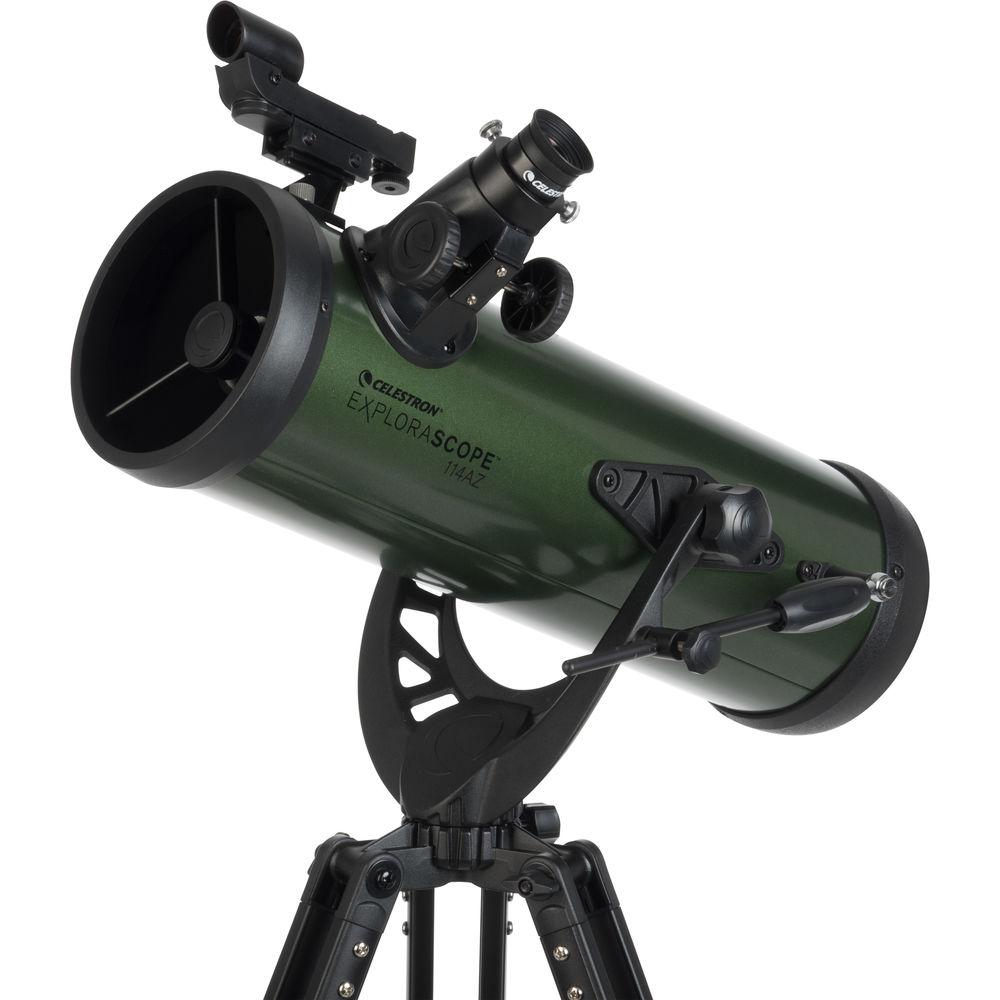

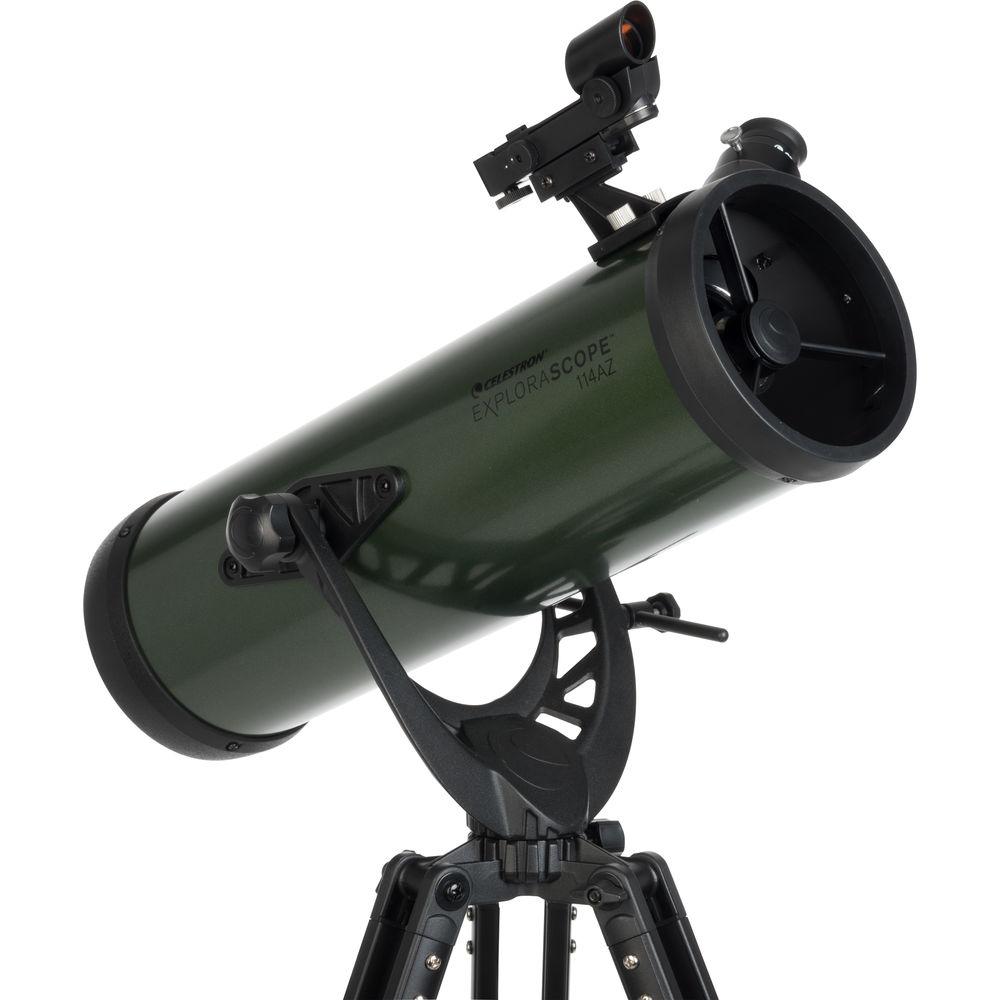

User Manual for Celestron ExploraScope 114AZ 4.5" f 8.8 Alt-Az Reflector Telescope Click to enlarge the picture
Contents of the user manual for the Celestron ExploraScope 114AZ 4.5" f 8.8
- Product category: Reflectors Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Reflectors
 |
User manual for the Celestron ExploraScope 114AZ 4.5" f 8.8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description Designed and built for beginner astronomers, the Celestron ExploraScope 114AZ 4.5" f/8.8 Alt-Az Reflector Telescope offers a complete set-up for viewing the Moon, planets, meteor showers, and bright deep-sky objects. The optics are fully multicoated with anti-reflection coatings to reduce light loss and produce brighter and clearer images with more accurate colors versus non-coated systems.The scope features a manual alt-azimuth mount with an altitude adjustment rod that allows users to track objects as they move across the night sky. Two eyepieces are included with a 3x Barlow lens that effectively triples the magnification of each eyepiece. The 20mm erect-image eyepiece produces 50x magnification and corrects images horizontally and vertically to enable the scope to be used for terrestrial viewing as well. For astronomical viewing, the 4mm eyepiece has no visual correction and produces a powerful 250x magnification. Its adjustable-height aluminum tripod provides a stable observation platform, and its maximum height of 52" allows for comfortable viewing by most users. - Optical Performance
-
- 4.5" (114mm) aperture
- f/8.8 focal ratio
- 1000mm focal length
- Newtonian reflector optical design
- Anti-reflection fully multicoated optics

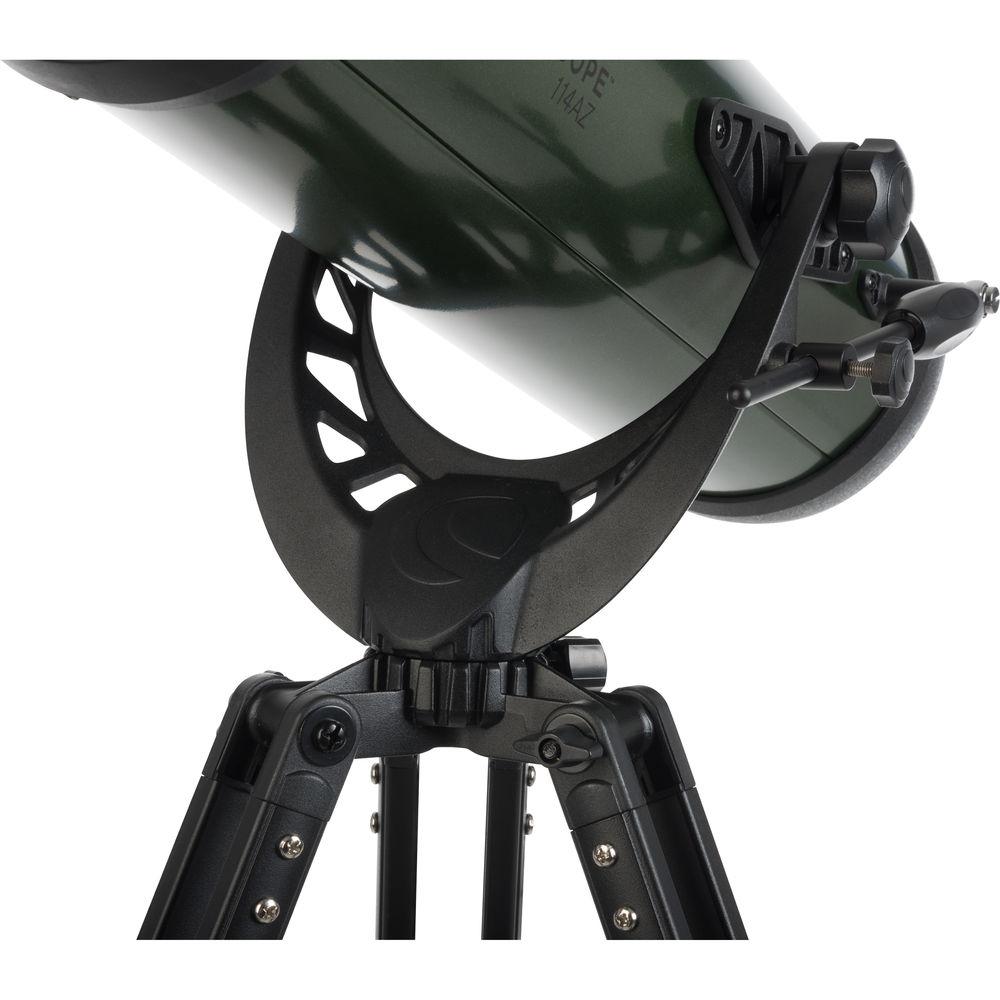

- Mount
-
- Manual alt-azimuth yoke mount

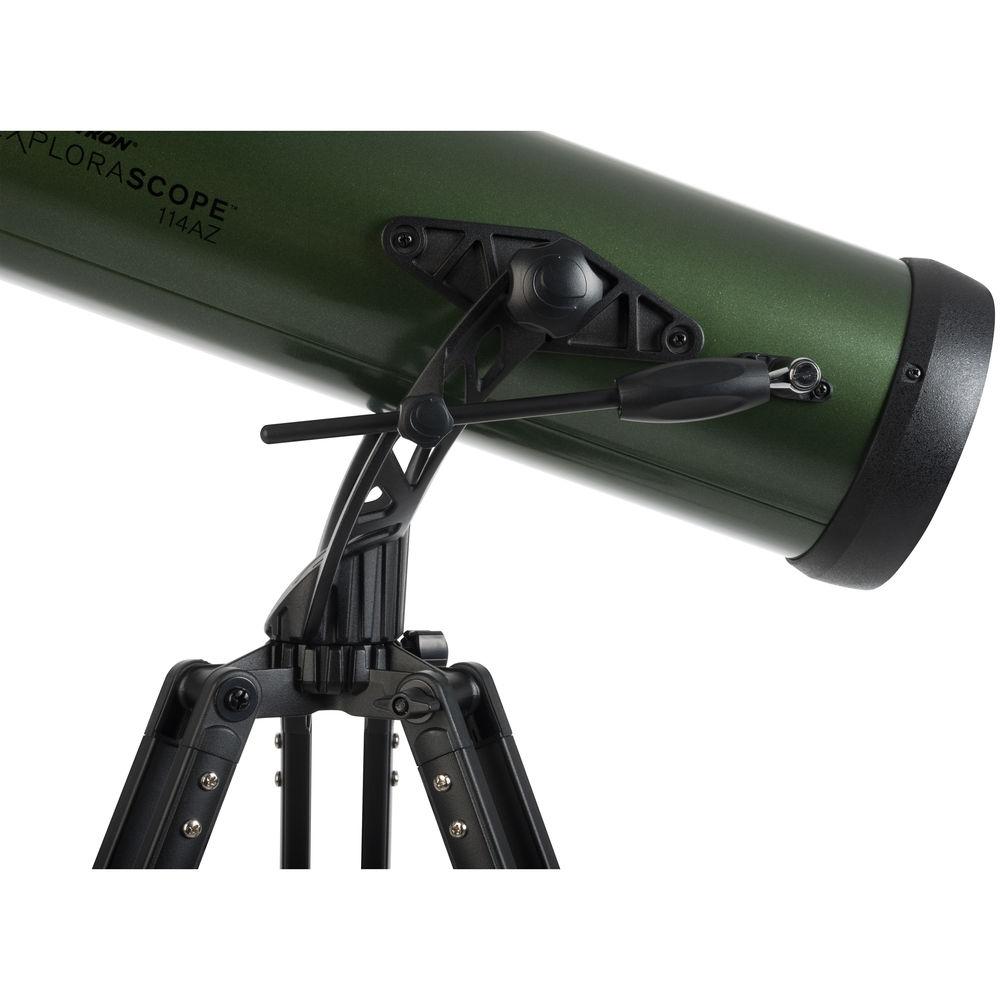

- Slow-motion altitude control rod to make minute adjustments

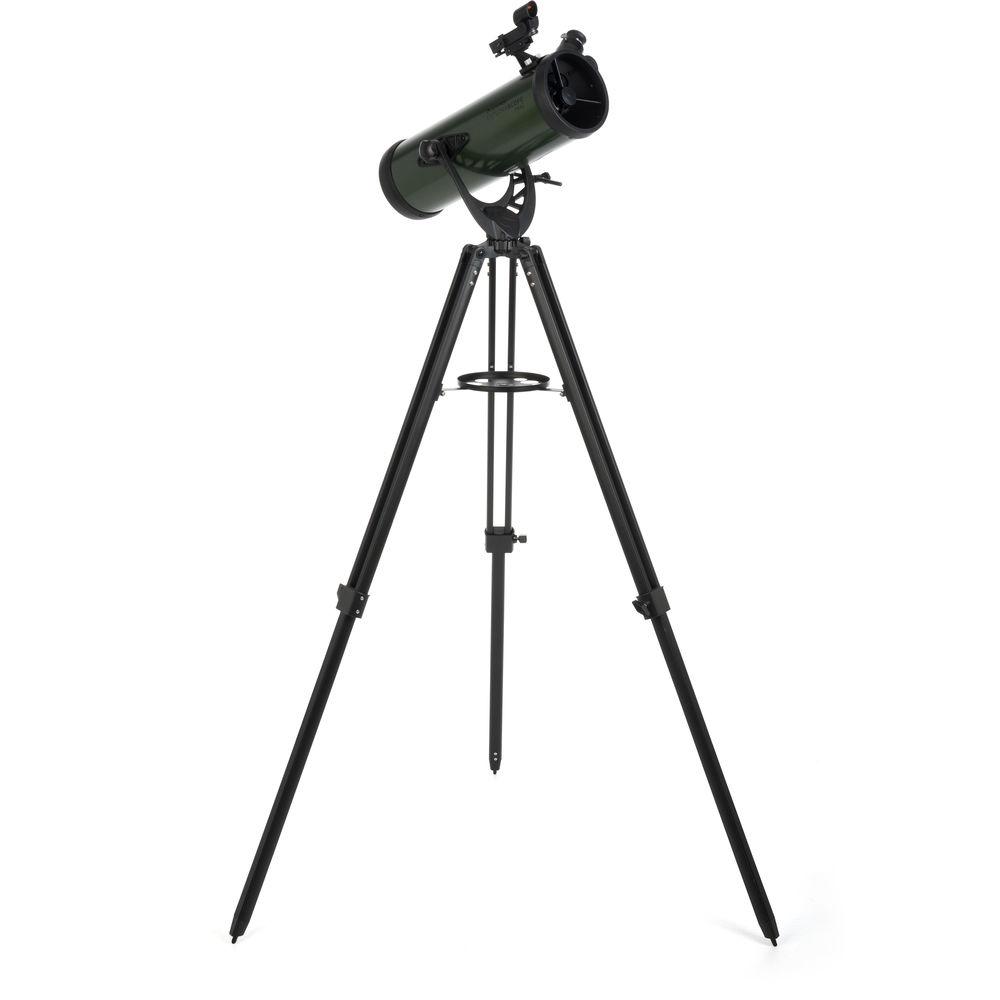

- Tripod
-
- Aluminum legs with black finish
- Two-section, adjustable height
- Max height: 52"
- Accessory tray with eyepiece holders
- Eyepieces
-
- 1.25" diameter barrels
- 4mm standard eyepiece yields 250x magnification
- 20mm erect-image eyepiece yields 50x power
- 20mm eyepiece corrects images for terrestrial viewing
- Accessories
-
- 3x Barlow lens effectively triples the magnification of each eyepiece

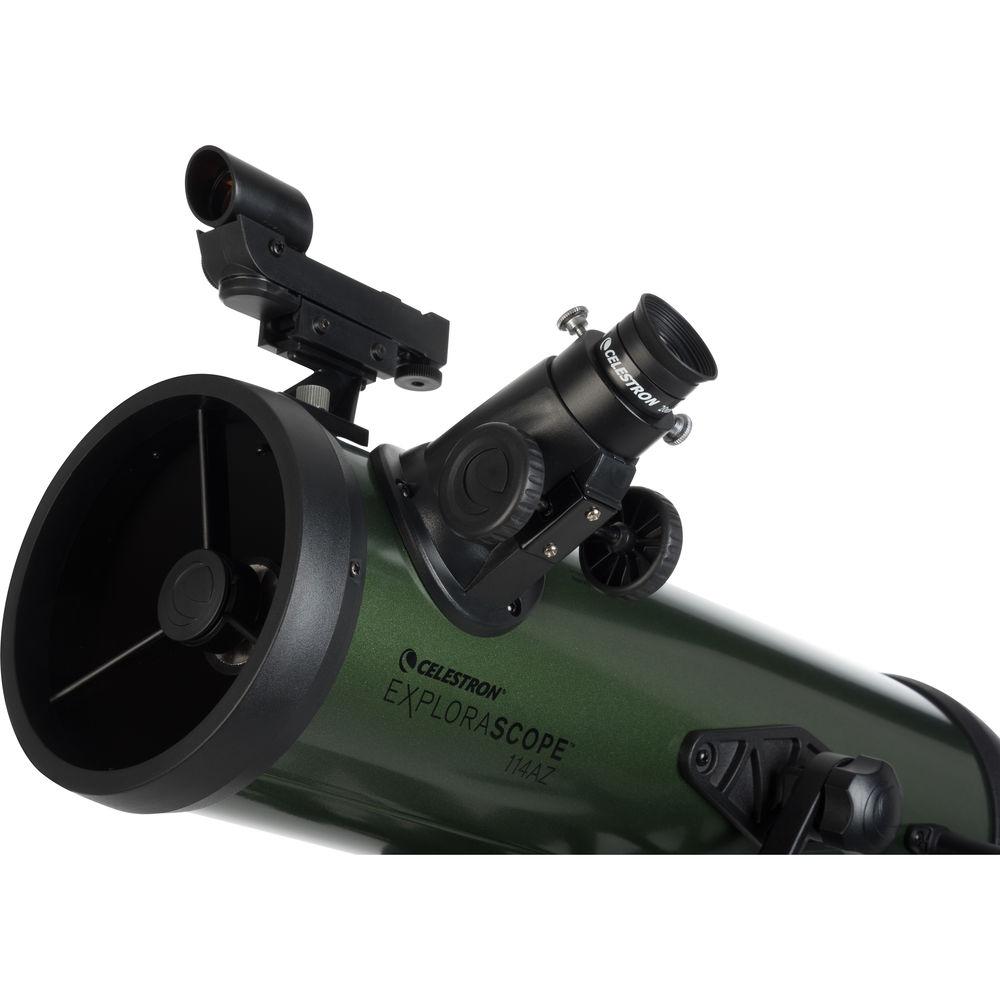

- Red-dot StarPointer finderscope
UPC: 050234221030 In the Box Celestron ExploraScope 114AZ 4.5" f/8.8 Alt-Az Reflector Telescope 3x Barlow Lens 4mm Standard Eyepiece 20mm Erect-Image Eyepiece Front Aperture Cap StarPointer Finderscope Aluminum Tripod with Accessory Tray TheSkyX DVD-ROM Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron ExploraScope 114AZ 4.5" f 8.8 Alt-Az Reflector Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 22103 Specs | Optical Design | Newtonian reflector | | Aperture | 4.5" / 114mm | | Focal Length | 1000mm | | Focal Ratio | f/8.8 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | None | | Finderscope | StarPointer red-dot | | Tripod | Two-stage aluminum
Adjustable, 31 - 52" / 78.7 - 132.1 cm | | Mount Type | Alt-Az | | Power Source | None | | Optical Tube Dimensions | Length: 24" / 61 cm | | Weight | 6.7 lb / 3.0 kg | | | | Package Weight | 17.2 lb | | Box Dimensions (LxWxH) | 35.5 x 19.0 x 9.1" |
