User Manual for Celestron ExploraScope 60AZ 60mm f 12 Alt-Az Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Celestron ExploraScope 60AZ 60mm f 12
- Product category: Refractors Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Refractors
 |
User manual for the Celestron ExploraScope 60AZ 60mm f 12 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

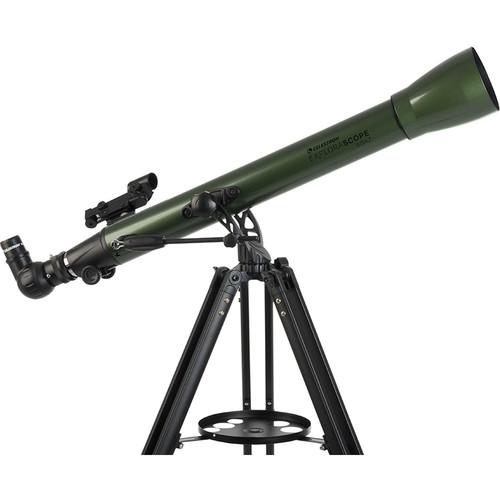

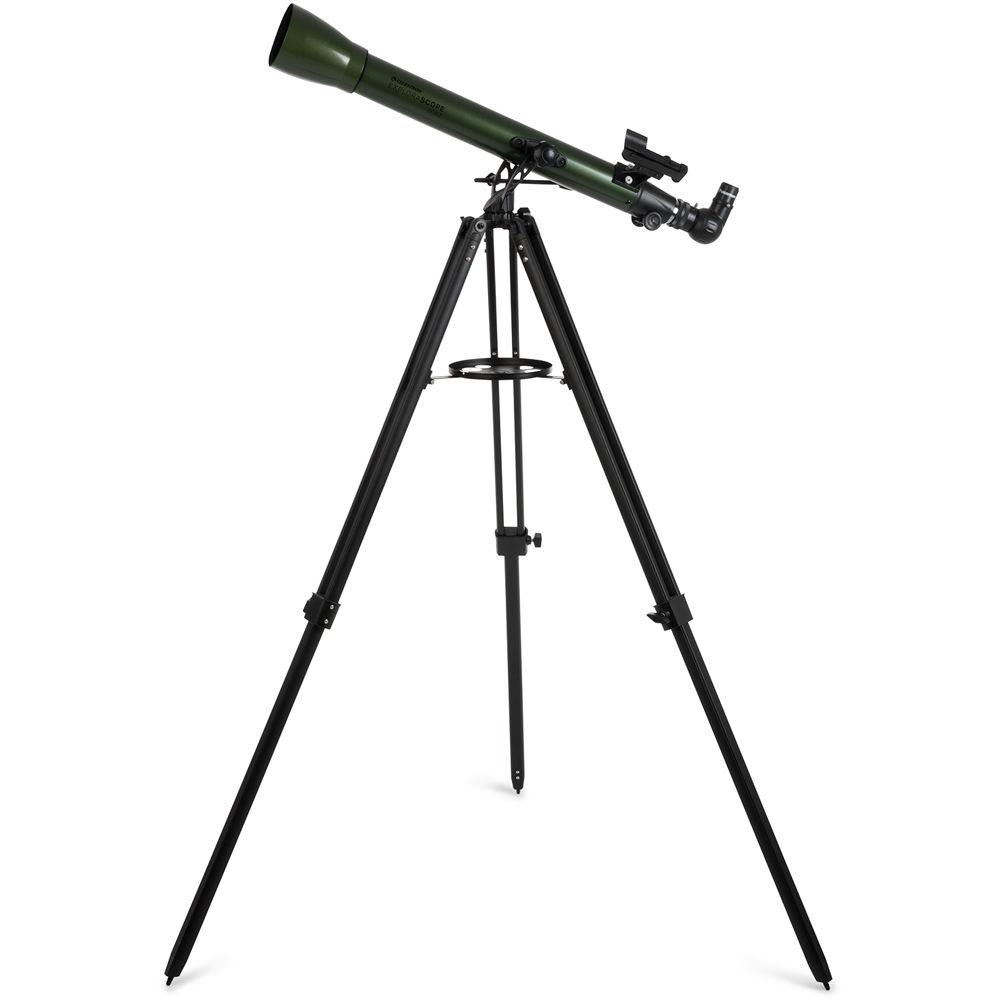

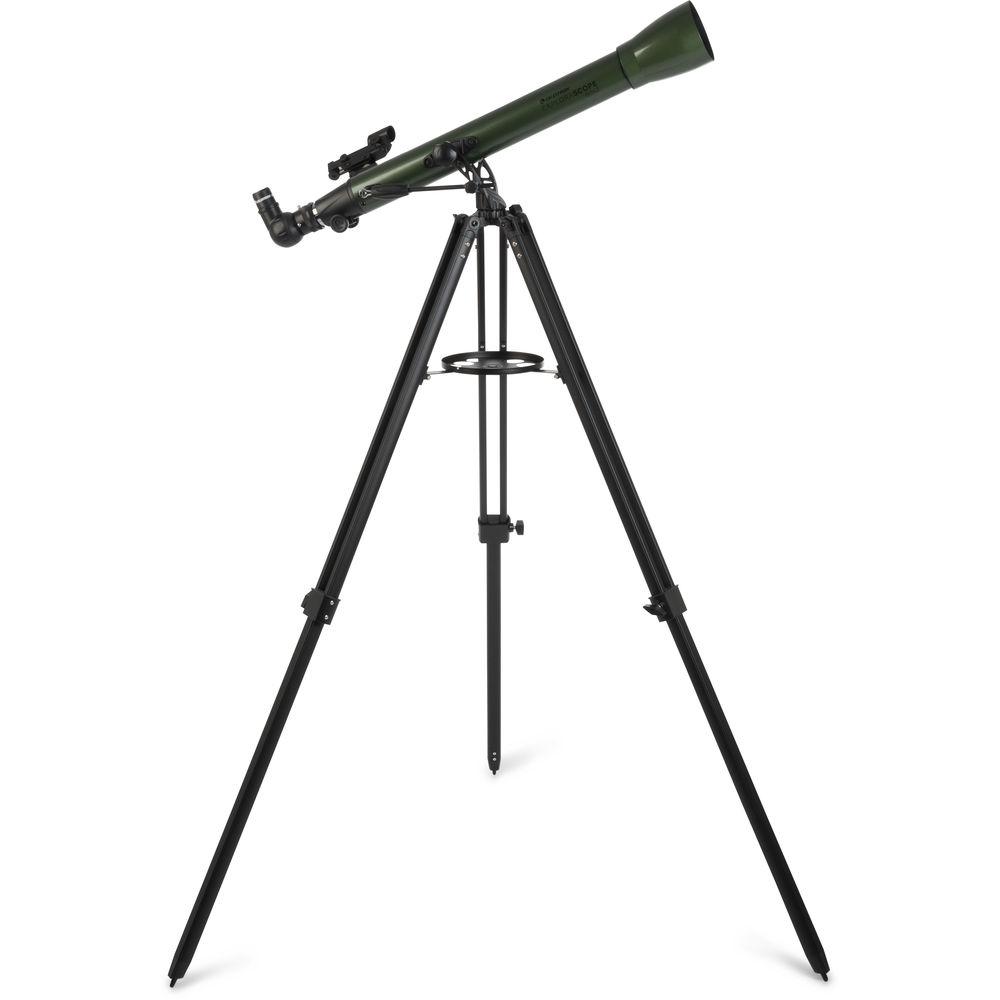

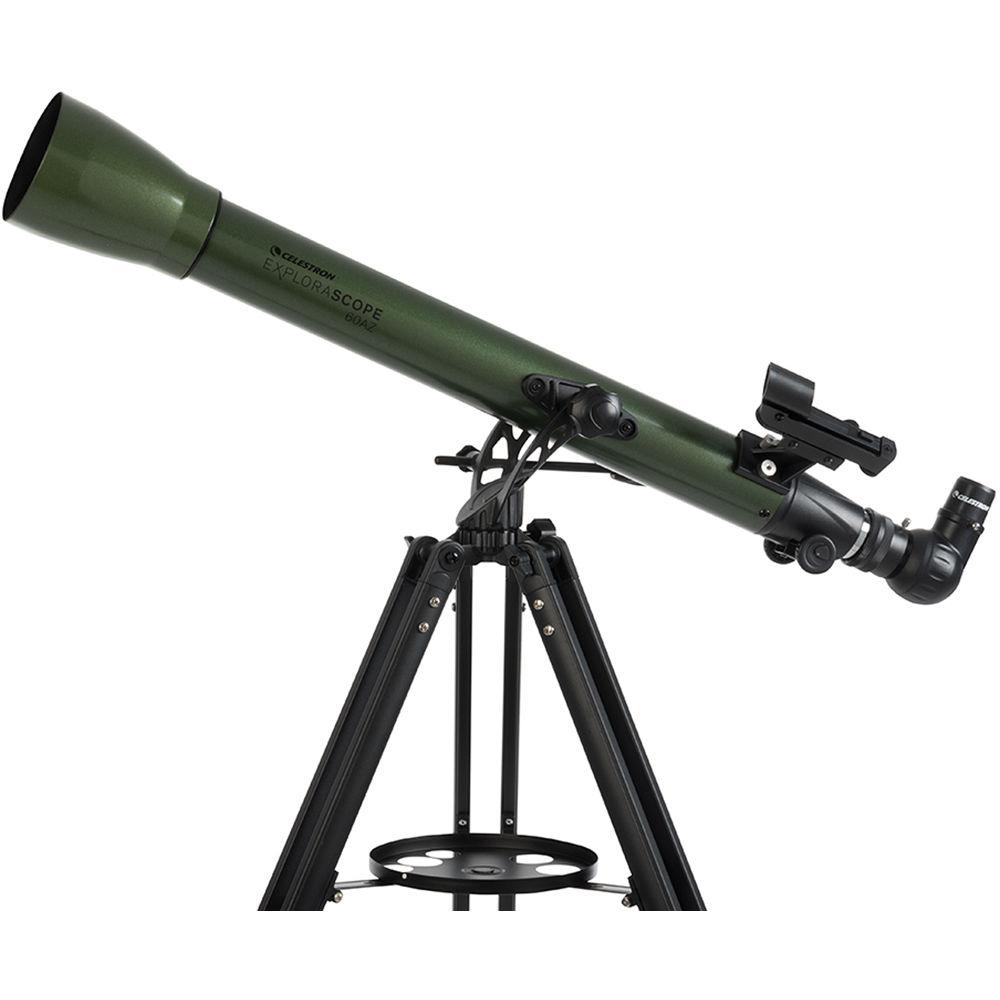

Product description Designed and built for beginners, the Celestron ExploraScope 60AZ 60mm f/12 Alt-Az Refractor Telescope offers a complete set-up for viewing the Moon, planets, meteor showers, and satellites. The optics are fully multi-coated with anti-reflection coatings to reduce light loss and produce brighter and clearer images with improved contrast.The scope features a manual alt-azimuth mount with an altitude adjustment rod that allows users to track objects as they move across the night sky with a simple twist of the handle. Two eyepieces are included to produce 35x and 175x, with a 3x Barlow lens that effectively triples the magnification of each eyepiece. A 90° diagonal is also provided to put the user in a more comfortable viewing position, and it has an erector prism to correct the image orientation horizontally and vertically to enable the scope to be used for terrestrial viewing as a conventional spotting scope. Its aluminum tripod provides a stable observation platform, and has an adjustable height from 31 to 52" allowing for comfortable viewing by most users. With a total weight of only 5.2 pounds, the ExploraScope easy to transport and handle by most people. - Optical Tube
-
- 60mm aperture
- f/12 focal ratio
- 700mm focal length
- Classic refractor-style optical design
- Anti-reflection fully coated optics improves light transmission and contrast
- Resolution: 2.32 arc sec, Rayleigh; 1.93 arc sec, Dawes
- Rack-and-pinion focuser with 1.25" drawtube
- Mount and Tripod
-

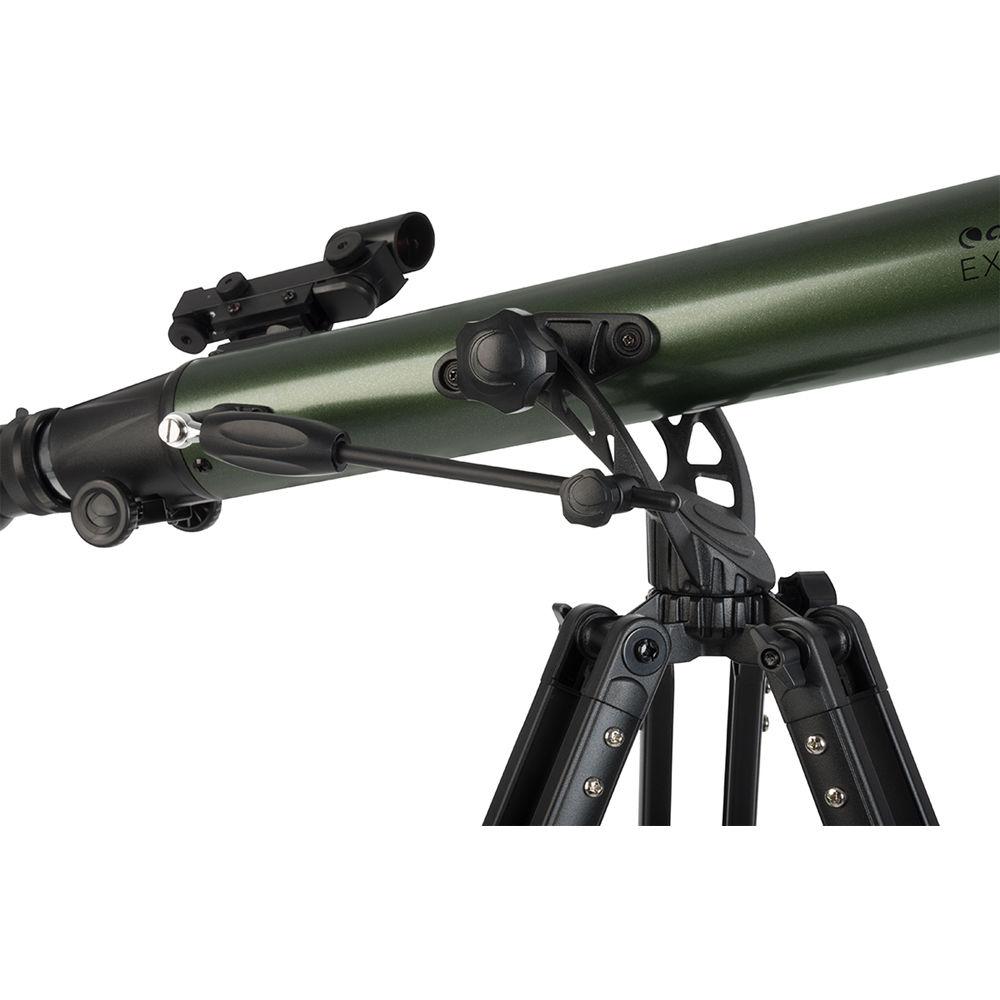

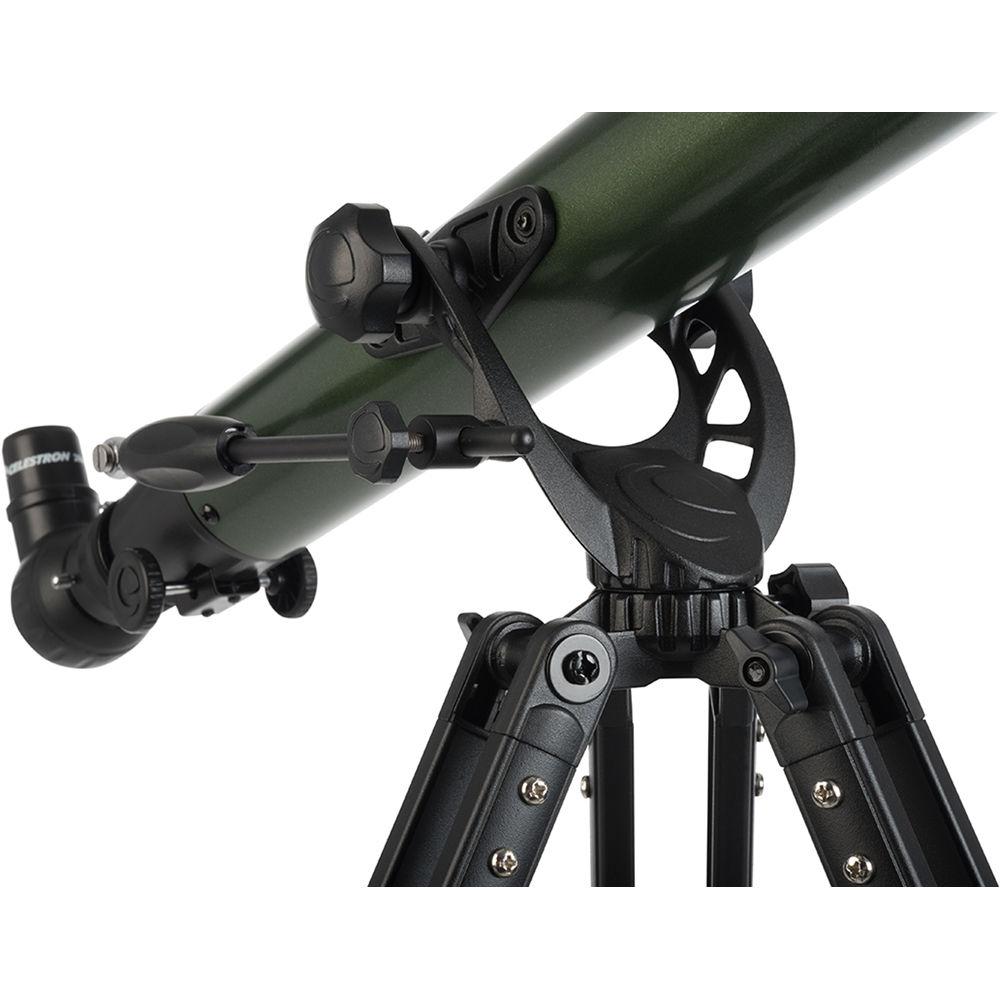

Mount- Manual alt-azimuth yoke-style
- Slow-motion altitude control rod to make minute adjustments
Tripod:- Aluminum legs with black finish
- Two-section, adjustable height
- 31-52" adjustment range
- Accessory tray with eyepiece holders
- Eyepieces and Accessories
-

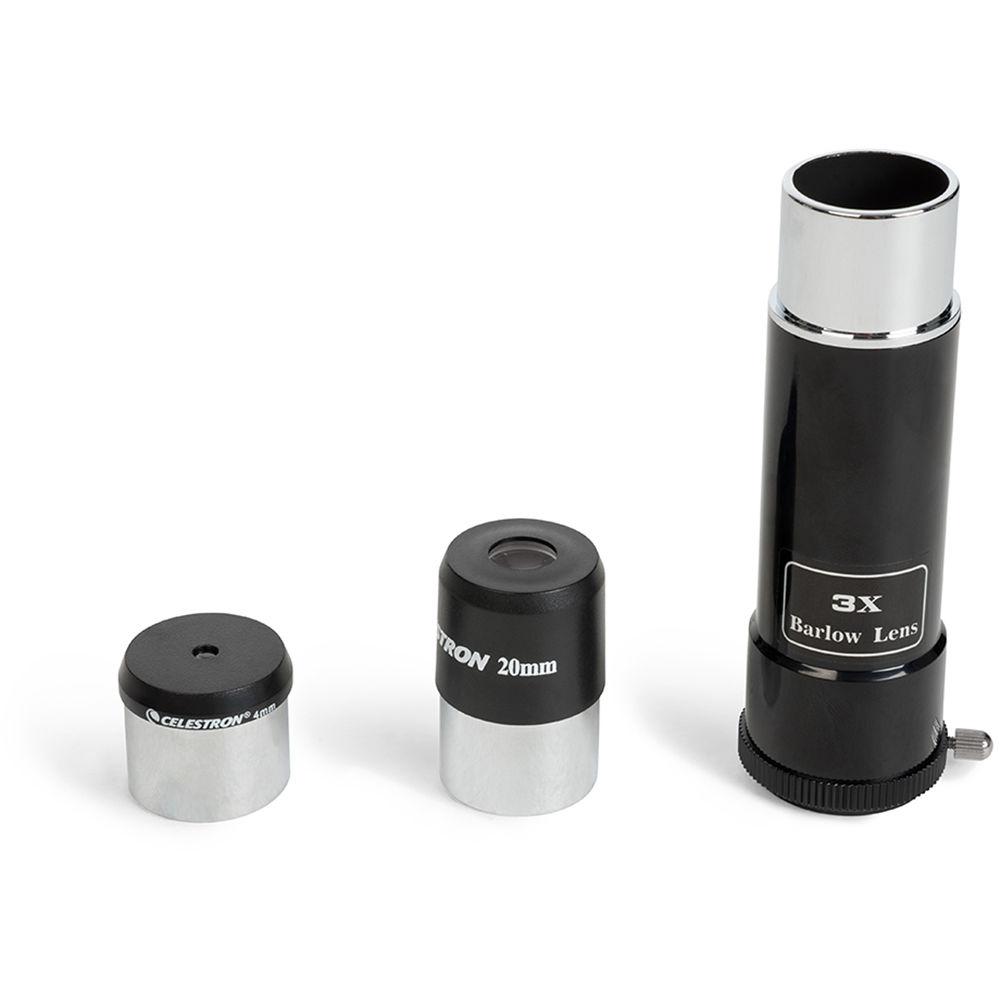

Eyepieces:- 1.25" diameter barrel
- Accepts most 1.25" eyepiece filters
- 4mm eyepiece yields 175x magnification
- 20mm eyepiece yields 35x power
Diagonal:- 90° angle puts user's head in a comfortable viewing position
- Erect-image prism corrects view for terrestrial viewing
Barlow Lens: - 3x magnification effectively triples the power of each eyepiece

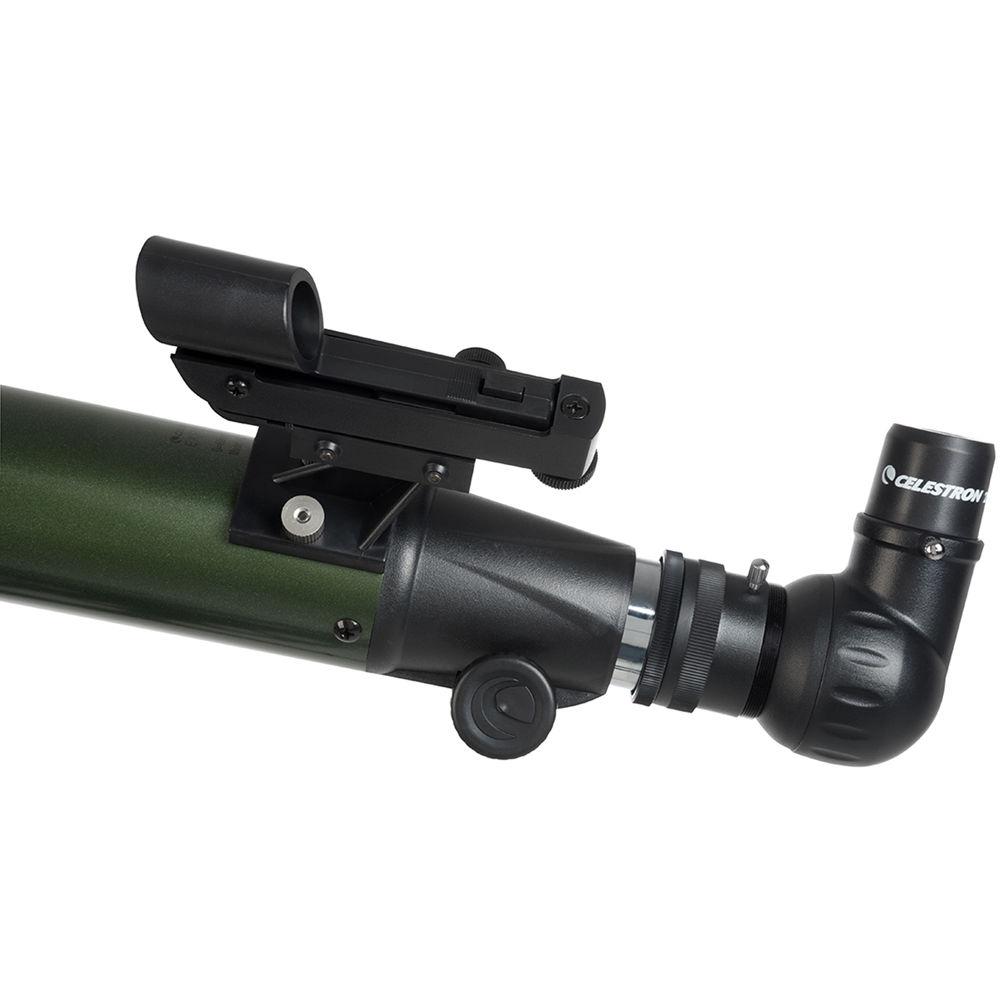

Finder:- Red-dot StarPointer
- Wide, unmagnified view to find subjects easily makes star-hopping navigation faster
UPC: 050234221009 In the Box Celestron ExploraScope 60AZ 60mm f/12 Alt-Az Refractor Telescope 3x Barlow Lens 4mm Eyepiece 20mm Eyepiece Front Aperture Cap 90° Erect-Image Prism StarPointer Finderscope Aluminum Tripod with Accessory Tray Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron ExploraScope 60AZ 60mm f 12 Alt-Az Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 22100 Specs | Optical Design | Refractor | | Aperture | 60 mm | | Focal Length | 700mm | | Focal Ratio | f/12 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90° erect-image | | Finderscope | StarPointer red-dot | | Tripod | Two-stage aluminum
Adjustable, 31.0 - 52.0" / 78.7 - 132.1 cm | | Mount Type | Manual alt-az | | Power Source | None | | Optical Tube Dimensions | 32.0" / 81.3 cm | | Weight | 5.2 lb / 2.4 kg | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 34.4 x 13.6 x 9.3" |
