Product description Celestron put together this 2" Eyepiece and Filter Kit for Schmidt-Cassegrain and refractor-style telescopes to give users the essentials for planetary observation. All of the accessories are made to fit and accept larger 2" accessories. This kit includes three Plossl eyepieces that provide a wide range of magnifications on any given telescope, five of the most popular colored planetary filters to enhance the views, and a 2x Barlow lens which essential doubles the magnification of any eyepiece used with it. This kit also includes a 90° star diagonal that puts the user's head in a comfortable viewing position when the scope is aimed high in the sky. The diagonal is outfitted with a standard SCT visual-back thread for easy direct-connection, plus an adapter to allow its use on refractor-style focuser drawtubes. An included hard aluminum carrying case protects the accessories while custom die-cut foam on the inside cushions them. - Eyepieces
-
- 2" diameter barrels
- Accepts most standard 2" eyepiece filters
- Anti-reflection multi-coated optics improves light transmission, color rendition, and contrast
- 26mm E-Lux offers highest magnification potential
- 32mm produces a mid-range magnification
- 40mm has the lowest magnification potential with the longest eye relief and highest light transmittance
- Filters
-
- Fits standard 2" eyepieces
#80A Blue:- Most popular for the study of detail on Jupiter and Saturn
- Enhances the contrast on Jupiter's cloud belts
- Enhances details of the Great Red Spot
- Brings out detail in Saturn's belts and polar features
- Also very useful for lunar observing
#58 Green:- Rejects red and blue wavelengths
- Increases the contrast on the lighter parts of the surface of Jupiter
- Useful for enhancing the cloud belts and polar regions on Saturn
- Increases the contrast in Mars polar ice caps
- Increases the contrast of atmospheric features on Venus
#25 Red:- Blocks the transmission of blue and green wavelengths
- Sharply defines the contrast between the cloud formations and the lighter-toned surface features on Jupiter
- Useful for definition of the Martian polar ice caps and maria
#21 Orange:- Reduces transmission of blue and green wavelengths
- Increases the contrast between these blue/green areas and red/yellow/orange areas
- Sharpens the boundaries between these areas on the Martian surface
- Sharpen the contrast in Jupiter's belts and to bring out the Great Red Spot
- Slightly increases surface details on Saturn
#12 Deep Yellow:- Enhances red and orange features on Jupiter and Saturn, while blocking blue and green wavelengths
- Lightens the red and orange features on Mars, while reducing, or blocking, the transmission of blue and green areas - increasing the contrast between the two
- Enhances the blue clouds in the Martian atmosphere
- Barlow Lens
-
- 2" diameter barrel and eyepiece holder
- 2x magnification doubles the magnification of any eyepiece used
- Increases magnification while preserving eyepiece's native eye relief for easier viewing at high magnifications

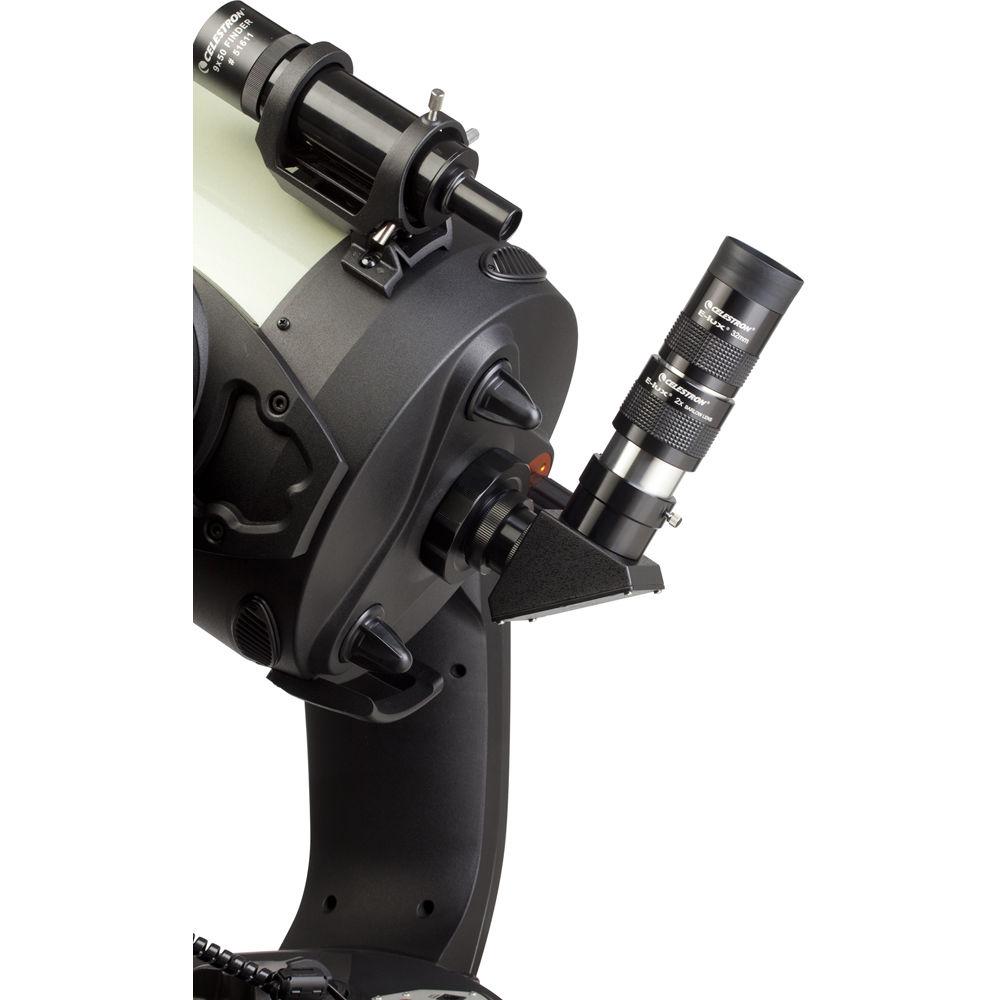

- Diagonal
-
- 2" eyepiece holder
- 90° angle places head in comfortable viewing position when scope is aimed at or near the zenith
- Star diagonal corrects image horizontally, but image is reversed
- Equipped with standard Schmidt-Cassegrain visual back threads for direct-connection
- Included adapter allows it to be mounted in standard refractor OTA 2" focuser drawtubes
- Case
-
- Hard aluminum case with reinforced corners and edges
- Dual latch-locks
- Hinge carrying handle
- Custom interior die-cut foam protects and cushions accessories

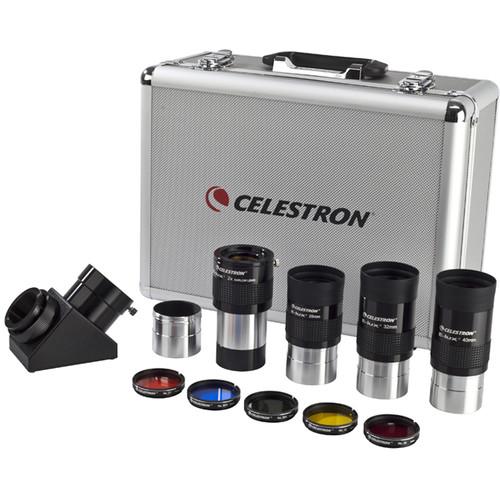

UPC: 050234943055 In the Box Celestron Eyepiece and Filter Kit (2") 26mm Eyepiece 32mm Eyepiece 40mm Eyepiece 2x Barlow Lens #80A Blue Filter #58 Green Filter #25 Red Filter #21 Orange Filter #12 Deep Yellow Filter 90° Star Diagonal 2" Diagonal Adapter for Refractor OTAs Padded Aluminum Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron Eyepiece and Filter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 94305 Specs | | | Package Weight | 8.005 lb | | Box Dimensions (LxWxH) | 14.25 x 12.0 x 6.5" |
