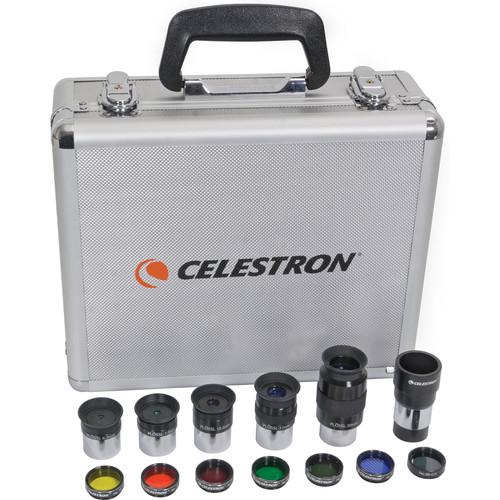

User Manual for Celestron Eyepiece and Filter Kit Click to enlarge the picture
Contents of the user manual for the Celestron Eyepiece and Filter Kit
- Product category: Eyepieces Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Eyepieces
|
User manual for the Celestron Eyepiece and Filter Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description Celestron put together this 1.25" Eyepiece and Filter Kit to give users essential accessories for planetary observation. This kit includes five Plossl eyepieces that provide a wide range of magnifications on any given telescope, six of the most popular colored planetary filters to enhance the views, a Moon filter that reduces glare from the lunar surface while enhancing contrast, and a 2x Barlow lens which essentially doubles the magnification of any eyepiece used with it. An included hard aluminum carrying case protects the accessories while custom die-cut foam on the inside cushions them. - Eyepieces
-
- 1.25" diameter barrels
- Accepts most standard 1.25" eyepiece filters
- Anti-reflection multi-coated optics improves light transmission, color rendition, and contrast
- 52° apparent angle of view
- 6mm offers highest magnification potential
- 8mm produces a high magnification, but with a slightly longer eye relief than the 6mm
- 13mm produces a comfortable mid-range magnification
- 17mm offers a higher magnification potential than the 32mm without sacrificing brightness
- 32mm has the lowest magnification potential with the longest eye relief and highest light transmittance
- Filters
-
- Fits standard 1.25" eyepieces
#80A Blue:- Most popular for the study of detail on Jupiter and Saturn
- Enhances the contrast on Jupiter's cloud belts
- Enhances details of the Great Red Spot
- Brings out detail in Saturn's belts and polar features
- Also very useful for lunar observing
#58 Green:- Rejects red and blue wavelengths
- Increases the contrast on the lighter parts of the surface of Jupiter
- Useful for enhancing the cloud belts and polar regions on Saturn
- Increases the contrast in Mars polar ice caps
- Increases the contrast of atmospheric features on Venus
#56 Light Green:- Excellent for the observation of Martian polar ice caps and for the yellow tinted dust storms on the planet's surface
- Increases the contrast of the red and blue regions in Jupiter's atmosphere and cloud belts
- Great for lunar observing
#25 Red:- Blocks the transmission of blue and green wavelengths
- Sharply defines the contrast between the cloud formations and the lighter-toned surface features on Jupiter
- Useful for definition of the Martian polar ice caps and maria
#21 Orange:- Reduces transmission of blue and green wavelengths
- Increases the contrast between these blue/green areas and red/yellow/orange areas
- Sharpens the boundaries between these areas on the Martian surface
- Sharpen the contrast in Jupiter's belts and to bring out the Great Red Spot
- Slightly increases surface details on Saturn
#12 Deep Yellow:- Enhances red and orange features on Jupiter and Saturn, while blocking blue and green wavelengths
- Lightens the red and orange features on Mars, while reducing, or blocking, the transmission of blue and green areas - increasing the contrast between the two
- Enhances the blue clouds in the Martian atmosphere
Moon:- Makes viewing the Moon safe when at or near full phase
- Reduces glare to bring out more surface detail and improve contrast
- Also useful to bring out surface details on Venus
- Barlow Lens
-
- 1.25" diameter barrel and eyepiece holder
- 2x magnification doubles the magnification of any eyepiece used
- Increases magnification while preserving eyepiece's native eye relief for easier viewing at high magnifications
- Case
-
- Hard aluminum case with reinforced corners and edges
- Dual latch-locks
- Hinge carrying handle
- Custom interior die-cut foam protects and cushions accessories
- Extra room for additional accessories - simply pluck foam for a custom-fit space
UPC: 050234943031 In the Box Celestron Eyepiece and Filter Kit (1.25") 32mm Eyepiece 17mm Eyepiece 13mm Eyepiece 8mm Eyepiece 6mm Eyepiece 2x Barlow Lens #80A Blue Filter #58A Green Filter #56 Light-Green Filter #25 Red Filter #21 Orange Filter #12 Deep Yellow Filter Neutral Density Moon Filter Padded Aluminum Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron Eyepiece and Filter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 94303 Specs | | | Package Weight | 4.22 lb | | Box Dimensions (LxWxH) | 12.8 x 11.55 x 5.2" |
