User Manual for Celestron Focus Motor for SCT and EdgeHD OTAs Click to enlarge the picture
Contents of the user manual for the Celestron Focus Motor for SCT and
- Product category: Focusers Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Focusers
 |
User manual for the Celestron Focus Motor for SCT and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

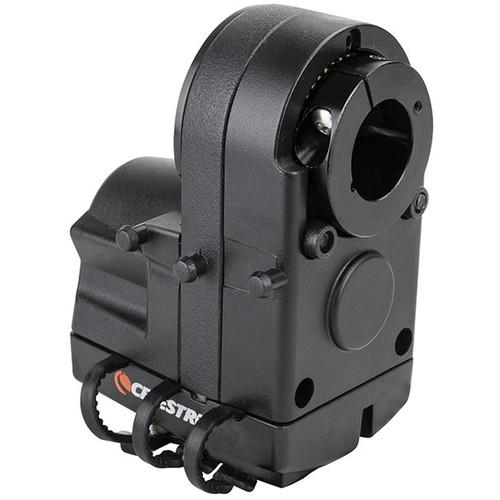

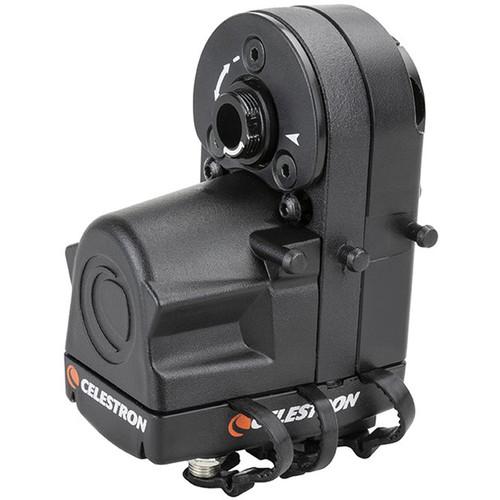

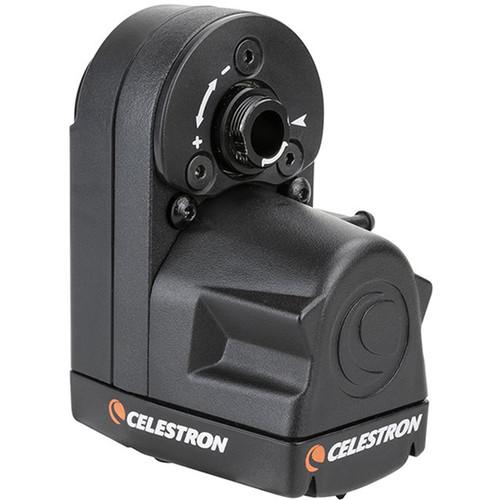

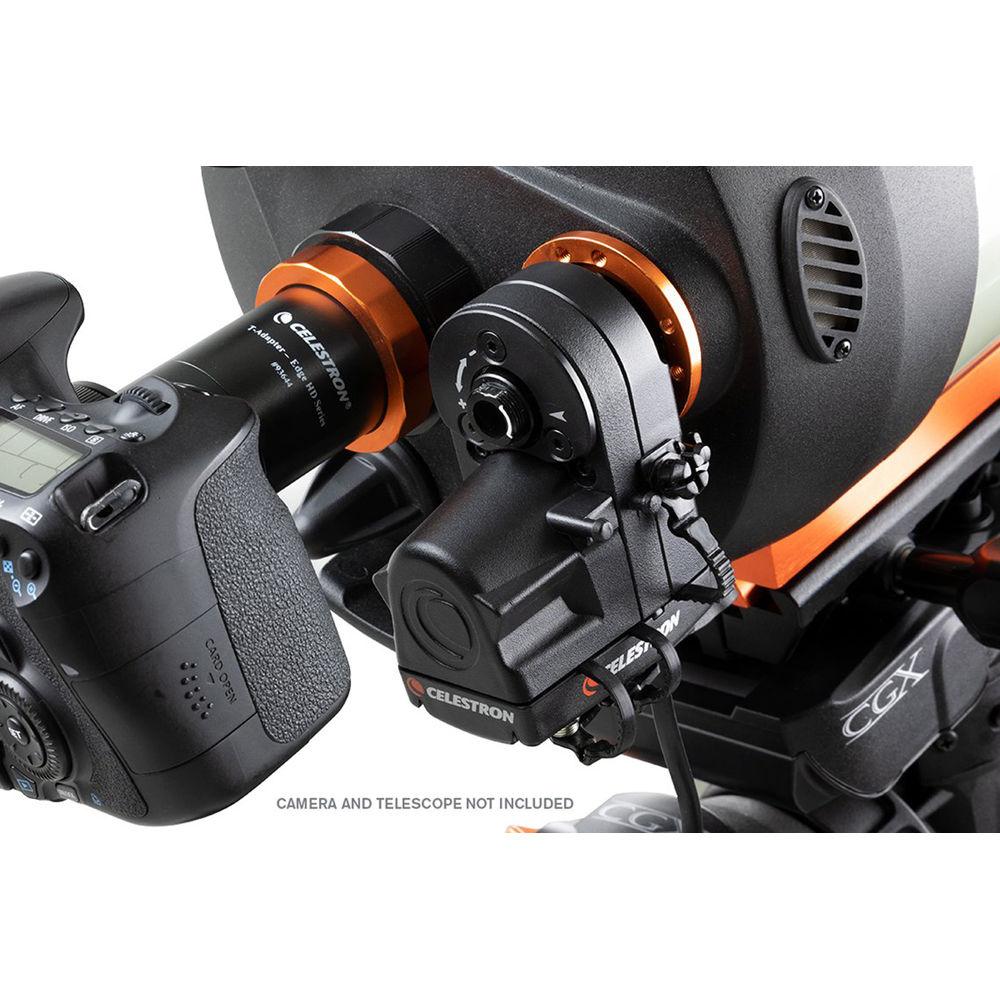

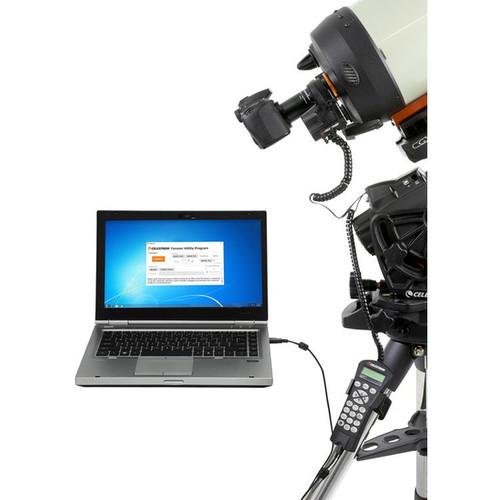

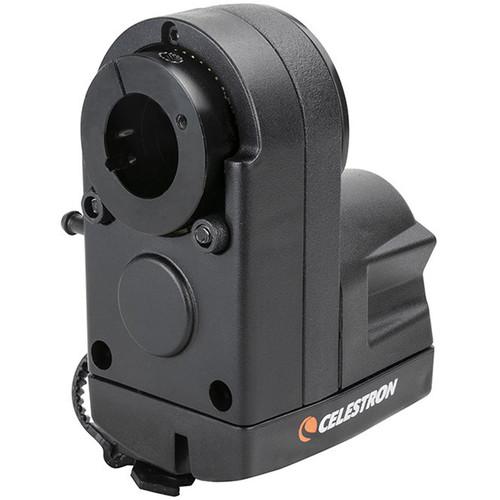

Product description Eliminate vibrations and achieve finer and more precise focusing on your compatible Schmidt-Cassegrain telescope (SCT) or Rowe-Ackermann Schmidt Astrograph (RASA) with Celestron's Focus Motor. Once installed on the optical tube assembly (OTA), the unit plugs into the auxiliary port on your Celestron mount for power, allowing it to be controlled using its NexStar+ or StarSense computer hand controller running the current firmware version. If your mount isn't compatible with it, you can opt to control the focus motor from a laptop with the addition of an optional USB cable or 12 VDC power adapter.Helpful for visual observation and indispensable for astrophotography, a precise DC servo motor delivers three speeds—low 8°/sec, medium 32°/sec, high 128°/sec—without vibration or noise. Using an electric focuser eliminates the need to touch knobs, which cause vibration, and allows a level of precision that hand focusing is usually unable to achieve.You can use many types of astronomy telescope control software that have focuser control by using the Celestron Unified ASCOM mount driver that is available as a free download. Celestron also offers a free download for Windows that will enable direct control of the focus motor without the need for an ASCOM driver. - Compatible Optical Tubes
-
- All 6-14" Celestron Schmidt-Cassegrains (SCTs) produced after 2006 (exceptions: 5" SCT)
- All Edge HD telescopes
- RASA 8", RASA 36cm
- 7" Maksutov-Cassegrain (MAK) telescopes
- Can be used with the 11" RASA, but requires the optional Focuser Retrofit Kit

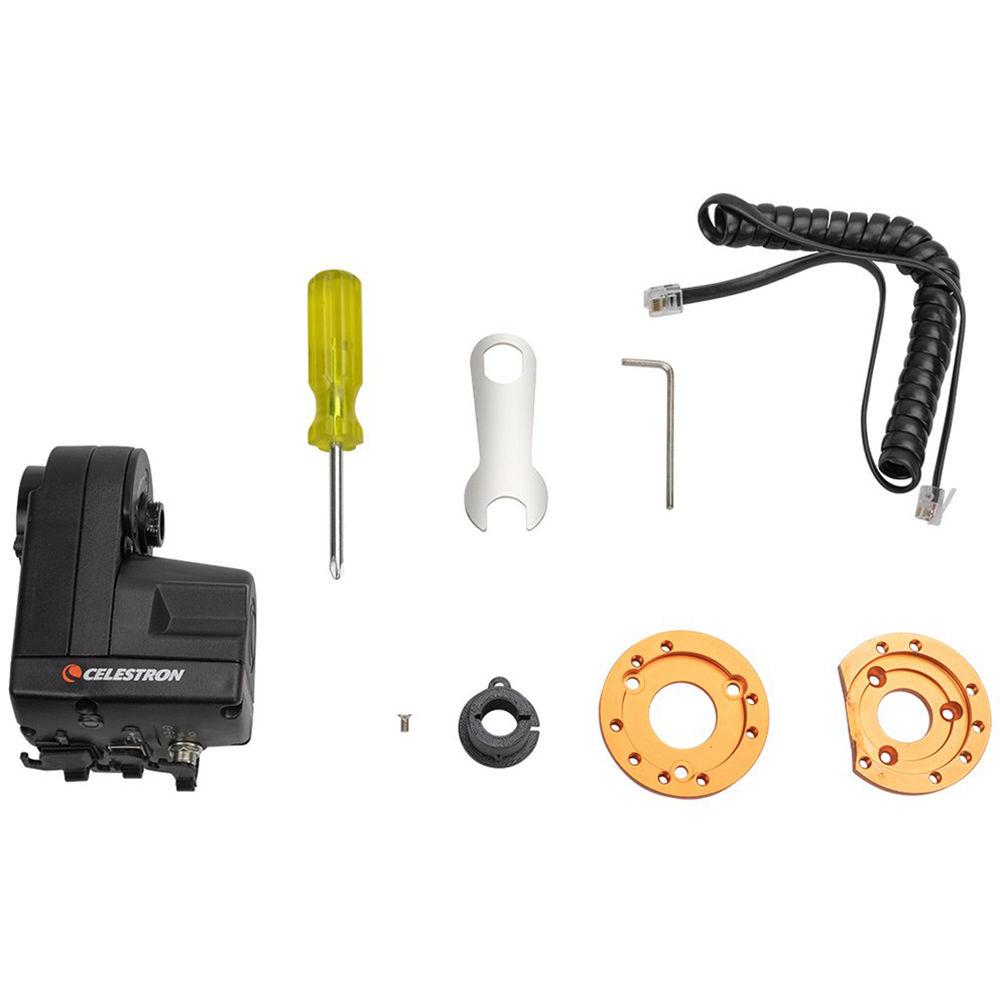

UPC: 050234941556 In the Box Celestron Focus Motor for SCT and EdgeHD OTAs Screwdriver Wrench Allen Wrench 2 x Mounting Plates Coiled Cable for Handcontroller Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron Focus Motor for SCT and EdgeHD OTAs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

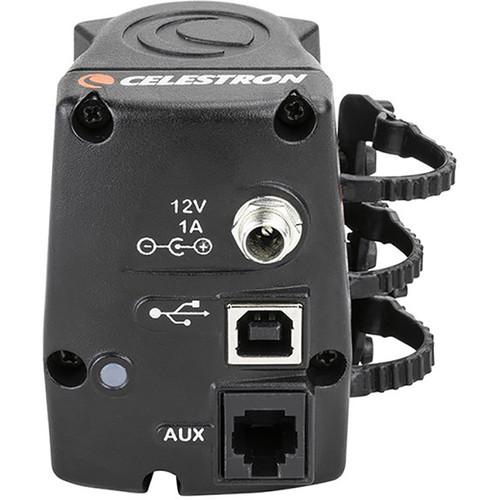

Technical parametersCelestron 94155 Specs | Motor | DC servo motor | | Gear | Brass,38mm diameter, 45 teeth | | Ports | 1 x USB
1 x 12 VDC
RJ12 Auxiliary | | Power | 12 VDC, 1A | | | | Package Weight | 1.445 lb | | Box Dimensions (LxWxH) | 6.2 x 5.5 x 4.3" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
