User Manual for Celestron HD Pro Wedge Click to enlarge the picture
Contents of the user manual for the Celestron HD Pro Wedge
- Product category: Mount Accessories Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Mount Accessories
 |
User manual for the Celestron HD Pro Wedge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

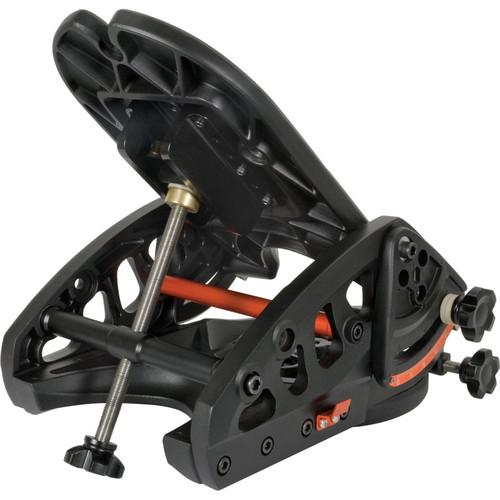

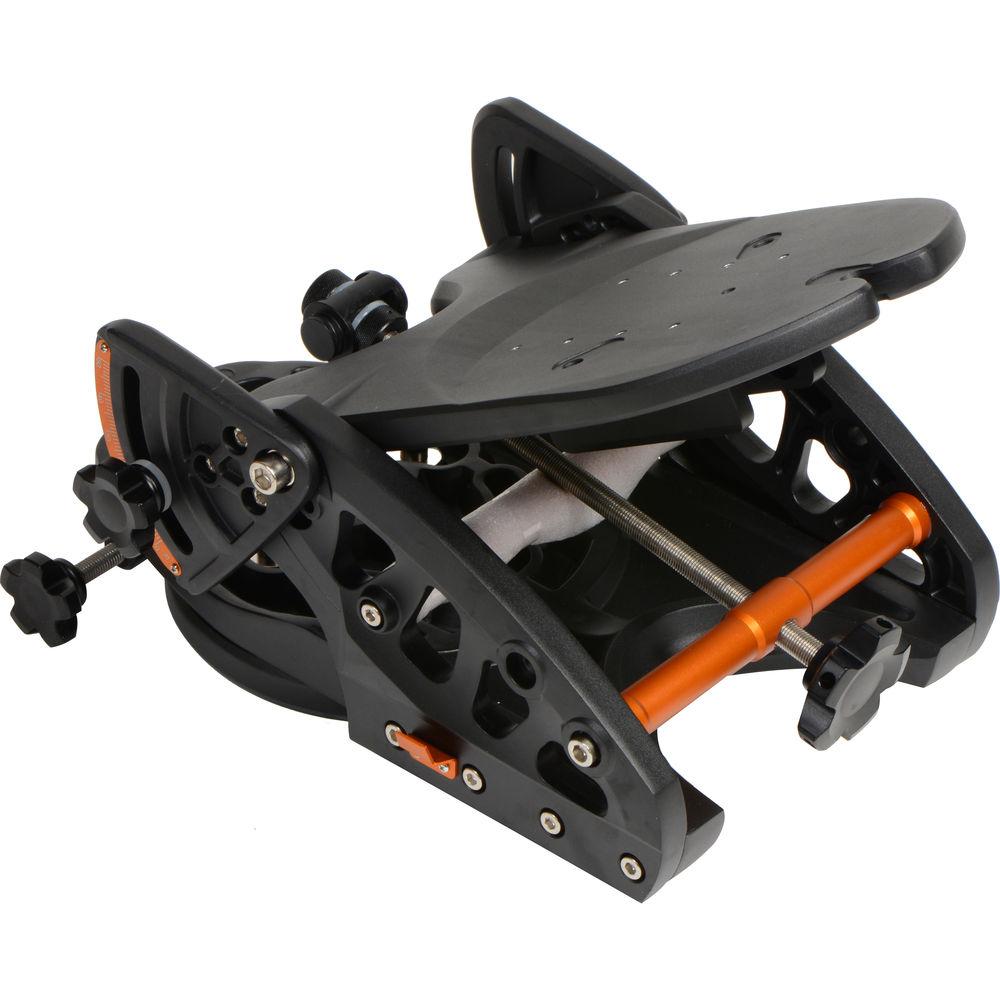

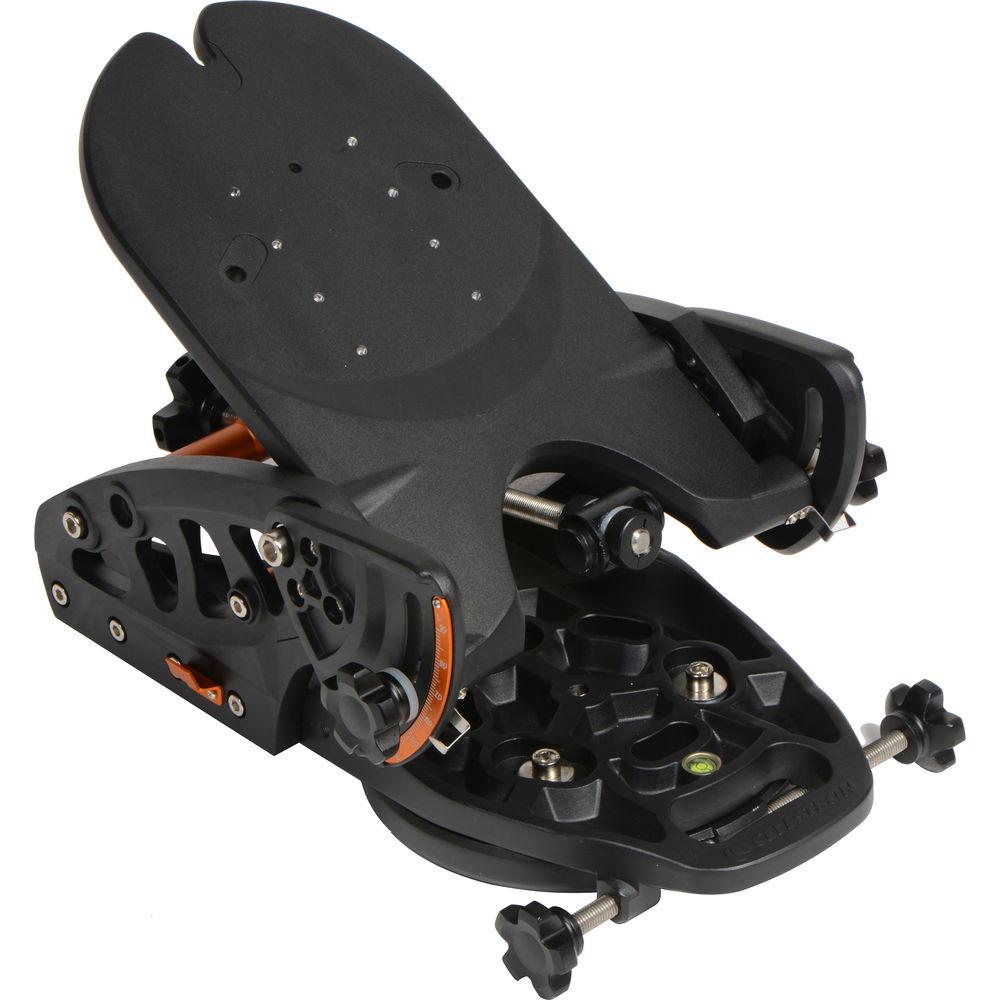

Product description The HD Pro Wedge from Celestron is designed for fork-mounted Celestron Schmidt Cassegrain Telescopes up to 11". The wedge provides a stable and heavy-duty platform that minimizes vibrations during astro-imaging. As the telescope's motor drive tracks the stars across the sky from east to west, the HD Pro Wedge tilts the telescope's R.A. into polar alignment allowing the motor drive to track an arc around the polar axis as the stars move across the celestial sphere. The wedge comes pre-assembled but some adjustment will be necessary. Functional for use at the equator, the HD Pro Wedge can be configured for either a latitude range of 0-50° or 40-90°, depending on your location. The center of gravity can be adjusted for maximum stability. There are over-sized adjustment knobs for both altitude and azimuth for easy polar alignment. A holder for the hand control can be placed on the wedge or the fork arm. The tilt plate allows the telescope to be easily mounted onto the wedge and a large 14 mm diameter latitude adjustment screw adds to the stability of the HD Pro Wedge. - Low altitude range of 0-90° allows use at the equator
- Latitude adjustment screw of 14 mm diameter contributes strength and stability
- Built-in hand control holder can be placed on the wedge or the fork arm. The hand control is designed not to fall off when the fork arm is angled towards the ground
- Tilt plate has recesses to fit the base of the telescope so that the base of scope drops into place just by rotating it
- Heavy-duty side plates are more rigid providing less vibration while imaging
UPC: 050234936644 In the Box Celestron HD Pro Wedge Celestron Accessories Two Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron HD Pro Wedge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 93664 Specs | | | Package Weight | 38.0 lb | | Box Dimensions (LxWxH) | 25.1 x 17.0 x 12.9" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
