CELESTRON LABS CB2000C Compound Binocular Microscope

Search your instruction manual in PDF to download

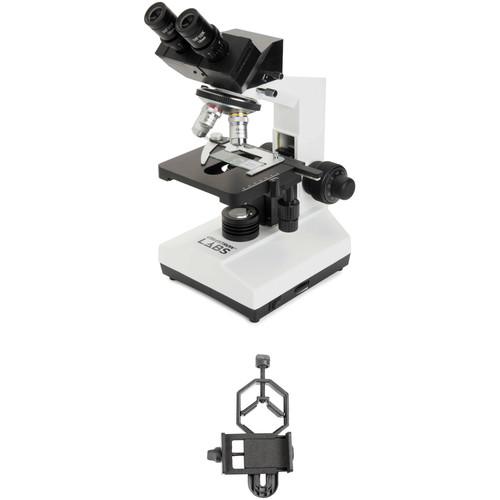

User Manual for CELESTRON LABS CB2000C Compound Binocular Microscope Digiscoping Kit

Click to enlarge the picture
CELESTRON LABS CB2000C Compound Binocular Microscope Digiscoping Kit Contents of the user manual for the CELESTRON LABS CB2000C Compound Binocular Microscope
  • Product category: Microscopes CELESTRON LABS
  • Brand: CELESTRON LABS
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for CELESTRON LABS Microscopes

User manual for the CELESTRON LABS CB2000C Compound Binocular Microscope contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any CELESTRON LABS product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official CELESTRON LABS user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a CELESTRON LABS product will considerably shorten its lifespan!



Product description

B&H assembled this Celestron Labs CB2000C Compound Binocular Microscope Digiscoping Kit to give you the capability to comfortably view and easily capture photos or video of your microscopy specimens. The kit includes Celestron's powerful microscope outfitted with a large mechanical stage and their basic smartphone digiscoping adapter that fits over one of the eyepieces.
  • CELESTRON LABS CB2000C Compound Binocular Microscope with 5.5 x 5.5" Mechanical Stage
    • Celestron Labs Tour
    Celestron Lab's CB2000C Compound Binocular Microscope is ideally suited for the classroom and lab environments with a comfortable binocular head design and broad magnification range. Dual eyepieces preserve stereoscopic vision which renders images in three dimensions, as opposed to a flat field common in single-ocular microscopes. Its four-objective turret holds the 4x, 10x, 40x, 100x achromatic objectives and the instrument comes with two sets of eyepieces that produce magnifications from a practical 40x to a powerful 2000x. One of each size eyepiece features an integrated pointer. A port on the front of the head accepts the included trinocular attachment that will allow a third eyepiece to be used, or to mount imaging equipment.

    The 5.5 x 5.5" stage is articulated on the X and Y axes and a limit-stop lock prevents the objectives from striking the specimen/slides as well as providing the optimal working distance. An adjustable-intensity halogen bulb under the stage provides the necessary illumination and the manually adjustable iris and Abbe condenser ensures the perfect amount of light and beam spread to illuminate the specimen without washing it out. Use the dual coarse/fine coaxial focus knobs with the right-eye dioptric adjustment to bring all specimens into sharp, clean focus.
      Optical System
      • Two 20x wide field eyepieces
      • Two 10x wide field eyepieces, one with pointer
      • 4x, 10x, 40x, and 100x achromatic objectives
      • 100x objective requires immersion oil for maximum resolution
      • Dual eyepieces preserve stereoscopic vision which renders images in three dimensions
      • Four-position click-stop turret
      • 40x, 100x, 400x, and 1000x magnification with 10x eyepieces
      • 80x, 200x, 800x, and 2000x magnification with 20x eyepieces
      Lighting
      • 1.25 NA Abbe condenser with three color filters
      • Removable blue, yellow, green filters
      • Lower halogen illumination, adjustable intensity
      • Manual mechanical iris adjustment
      Focusing
      • Coaxial coarse and fine focus knobs
      • Left and right focus knobs for left and right-handed use
      • Sliding Interpupillary adjustment to accommodate a wide range of users
      • Right-eye dioptric adjustment
      • Limit-stop lock prevents the objectives from striking the specimen/slides
      Stage
      • 5.5 x 5.5" mechanical square stage
      • Limit-stop lock prevents the objectives from striking the specimen/slides
      • Adjustable-width locking slide/specimen holder
      • Accepts 3 x 1" (76.2 x 25.4mm) specimen slides
      • X-Y right-handed stage adjustments
      • Integrated ruler on edge
    UPC: 050234441322
  • Celestron Basic Smartphone Digiscoping Adapter (1.25")
    • Celestron Labs Tour
    Capture still images and videos of celestial and terrestrial objects with virtually any smartphone through almost any 1.25" eyepiece with Celestron's Basic Smartphone Digiscoping Adapter. Ideal for telescopes, binoculars, spotting scopes, monoculars, microscopes, and any other type of optic with an eyepieces, the design allows it to be used on most oculars with outside diameters between 29mm (1.14") and 45mm (1.77"). The rigid frame is made of sturdy and lightweight aluminum with non-slip padding on clamping points to secure it to your eyepiece and mount your smartphone without marking or marring its surfaces. A clamping system holds the adapter securely on the eyepiece and locks in place, while an adjustment system allows for precise phone camera alignment. UPC: 050234810357
In the Box
  • CB2000C Compound Binocular Microscope with 5.5 x 5.5" Mechanical Stage vtvfdawrutztwwwevurvvtredtts
  • 4 x Objective Lenses
  • 2 x 10x Wide-Field Eyepieces
  • 2 x 20x Wide-Field Eyepieces
  • 10 x Prepared Slides
  • 3 x Colored Filters
  • Immersion Oil
  • Power Cord
  • Trinocular Eyepiece Tube
  • Limited 2-Year Warranty
  • Celestron - Basic Smartphone Digiscoping Adapter (1.25")
Table of Contents




Upload User Manual

Have you got an user manual for the CELESTRON LABS CB2000C Compound Binocular Microscope Digiscoping Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • CELESTRON LABS CB2000C Compound Binocular Microscope with 5.5 x 5.5" Mechanical Stage
    Microscope Type Compound
    Head 45

    Rating

    70% users recommend this product to others. And what about you?
    Rating: 3.5 of 5

    This product has already been rated by 81 owners. Add your rating and experience with the product.
