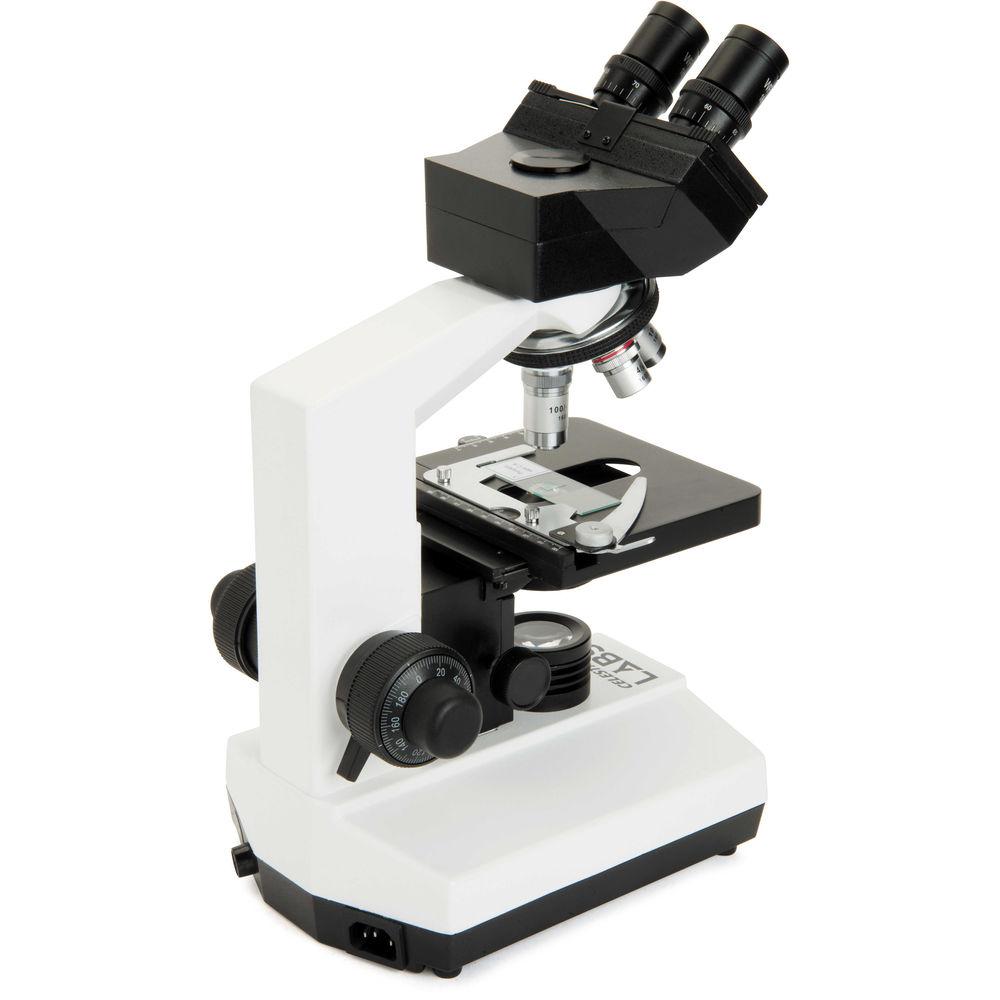

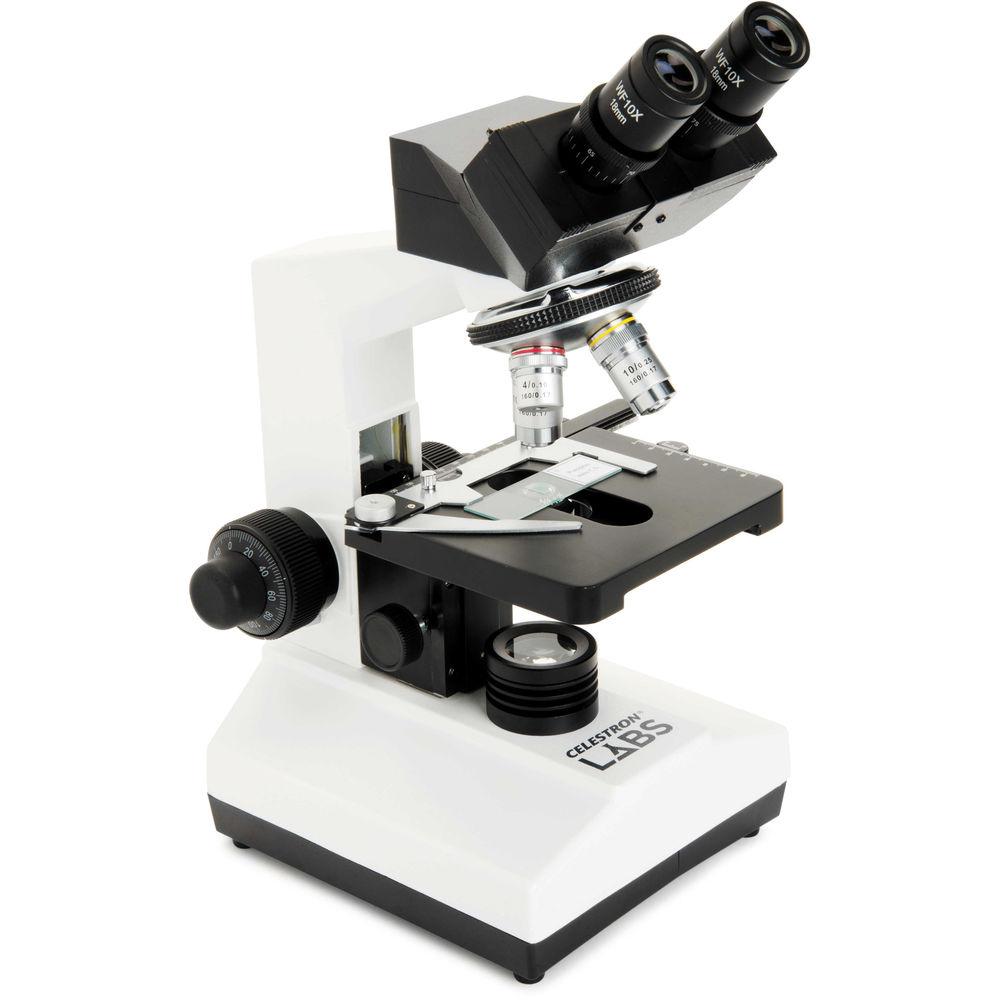

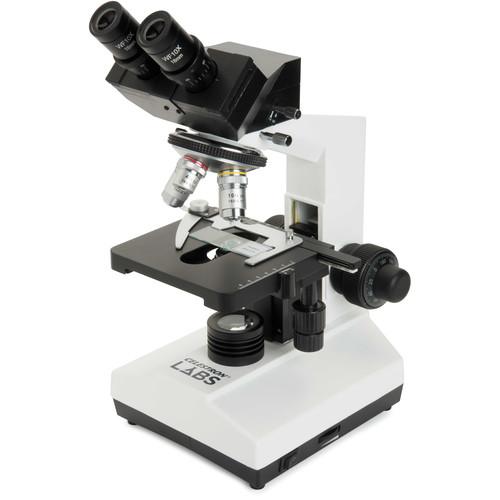

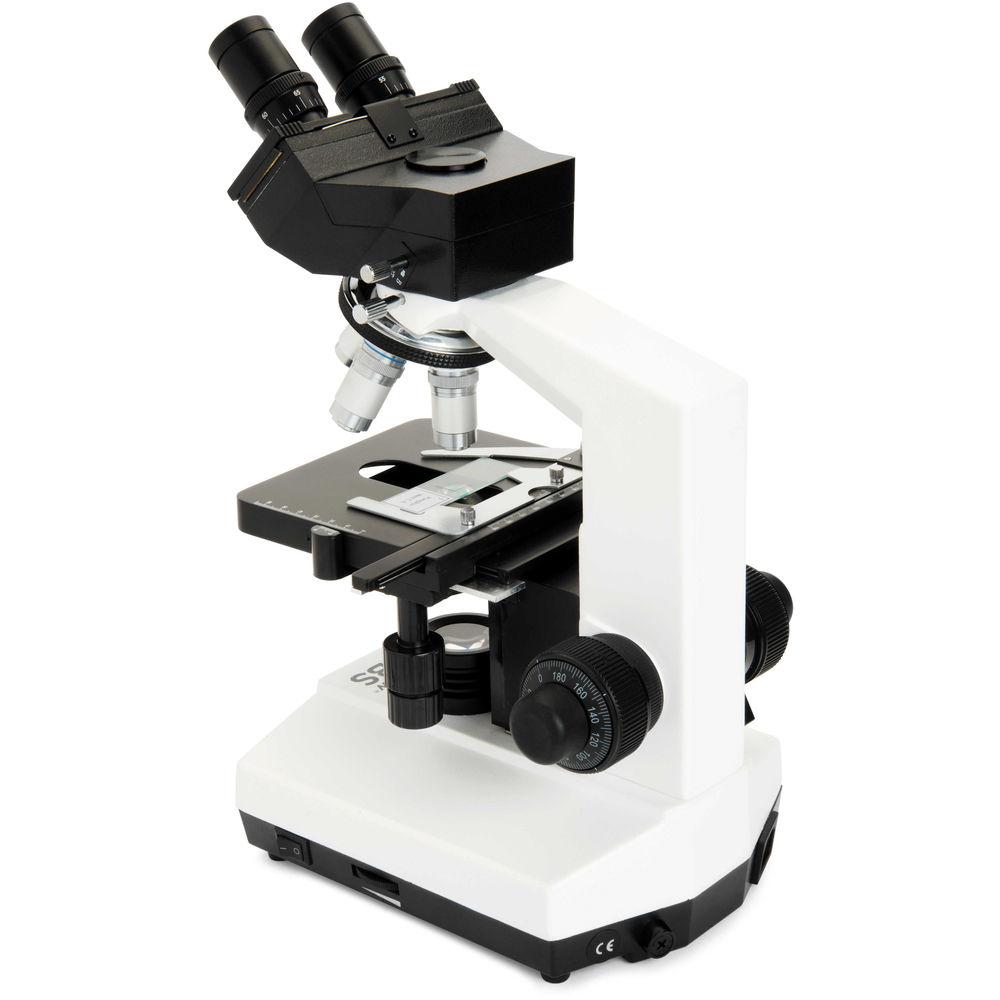

Product description Celestron Lab's CB2000C Compound Binocular Microscope is ideally suited for the classroom and lab environments with a comfortable binocular head design and broad magnification range. Dual eyepieces preserve stereoscopic vision which renders images in three dimensions, as opposed to a flat field common in single-ocular microscopes. Its four-objective turret holds the 4x, 10x, 40x, 100x achromatic objectives and the instrument comes with two sets of eyepieces that produce magnifications from a practical 40x to a powerful 2000x. One of each size eyepiece features an integrated pointer. A port on the front of the head accepts the included trinocular attachment that will allow a third eyepiece to be used, or to mount imaging equipment.
The 5.5 x 5.5" stage is articulated on the X and Y axes and a limit-stop lock prevents the objectives from striking the specimen/slides as well as providing the optimal working distance. An adjustable-intensity halogen bulb under the stage provides the necessary illumination and the manually adjustable iris and Abbe condenser ensures the perfect amount of light and beam spread to illuminate the specimen without washing it out. Use the dual coarse/fine coaxial focus knobs with the right-eye dioptric adjustment to bring all specimens into sharp, clean focus. - Optical System
-
- Two 20x wide field eyepieces
- Two 10x wide field eyepieces, one with pointer

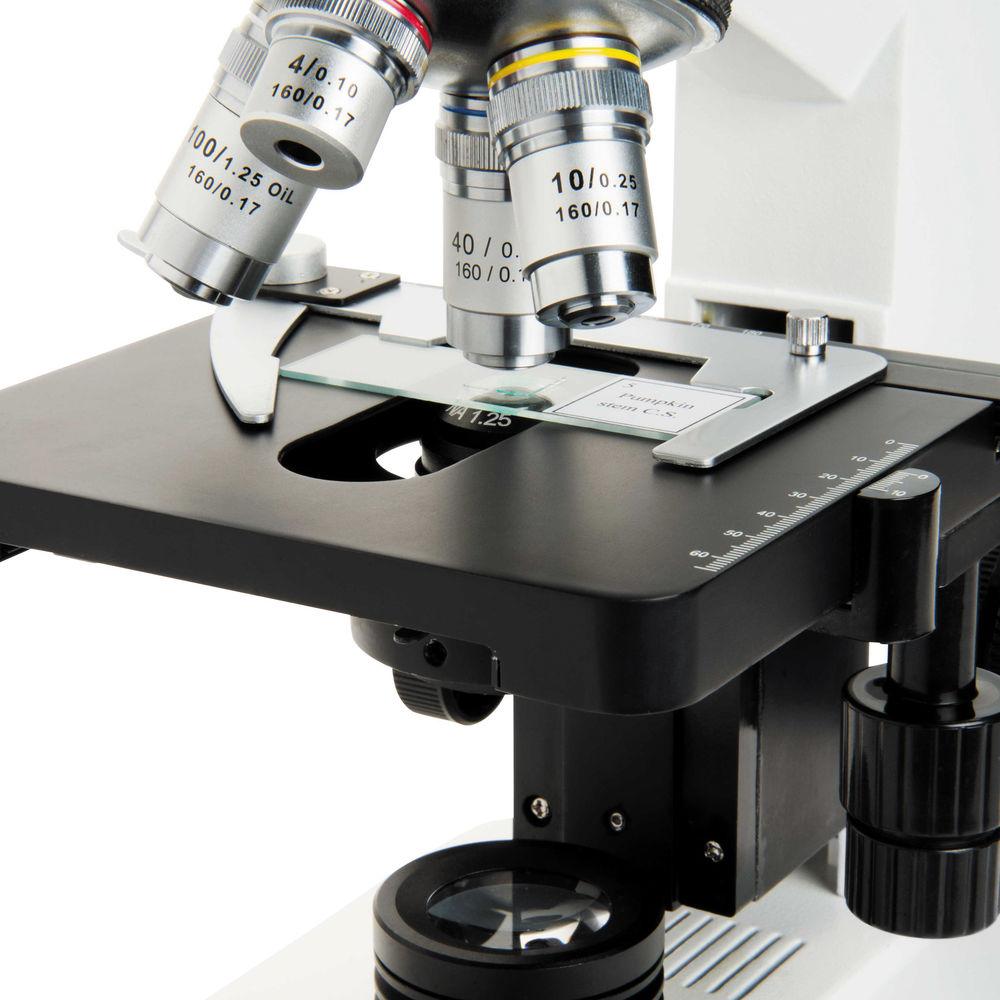

- 4x, 10x, 40x, and 100x achromatic objectives
- 100x objective requires immersion oil for maximum resolution
- Dual eyepieces preserve stereoscopic vision which renders images in three dimensions
- Four-position click-stop turret
- 40x, 100x, 400x, and 1000x magnification with 10x eyepieces
- 80x, 200x, 800x, and 2000x magnification with 20x eyepieces
- Lighting
-
- 1.25 NA Abbe condenser with three color filters
- Removable blue, yellow, green filters
- Lower halogen illumination, adjustable intensity
- Manual mechanical iris adjustment
- Focusing
-

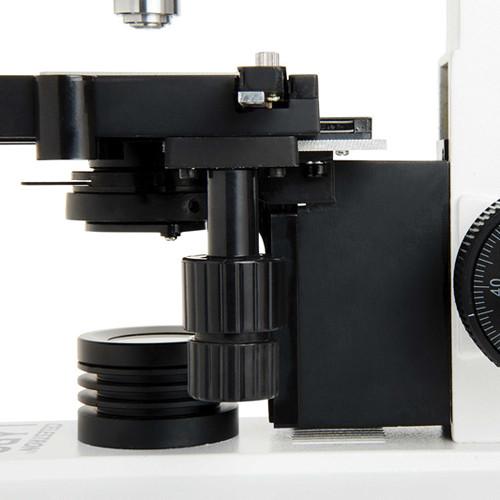

- Coaxial coarse and fine focus knobs
- Left and right focus knobs for left and right-handed use
- Sliding Interpupillary adjustment to accommodate a wide range of users
- Right-eye dioptric adjustment
- Limit-stop lock prevents the objectives from striking the specimen/slides
- Stage
-
- 5.5 x 5.5" mechanical square stage
- Limit-stop lock prevents the objectives from striking the specimen/slides
- Adjustable-width locking slide/specimen holder
- Accepts 3 x 1" (76.2 x 25.4mm) specimen slides
- X-Y right-handed stage adjustments
- Integrated ruler on edge

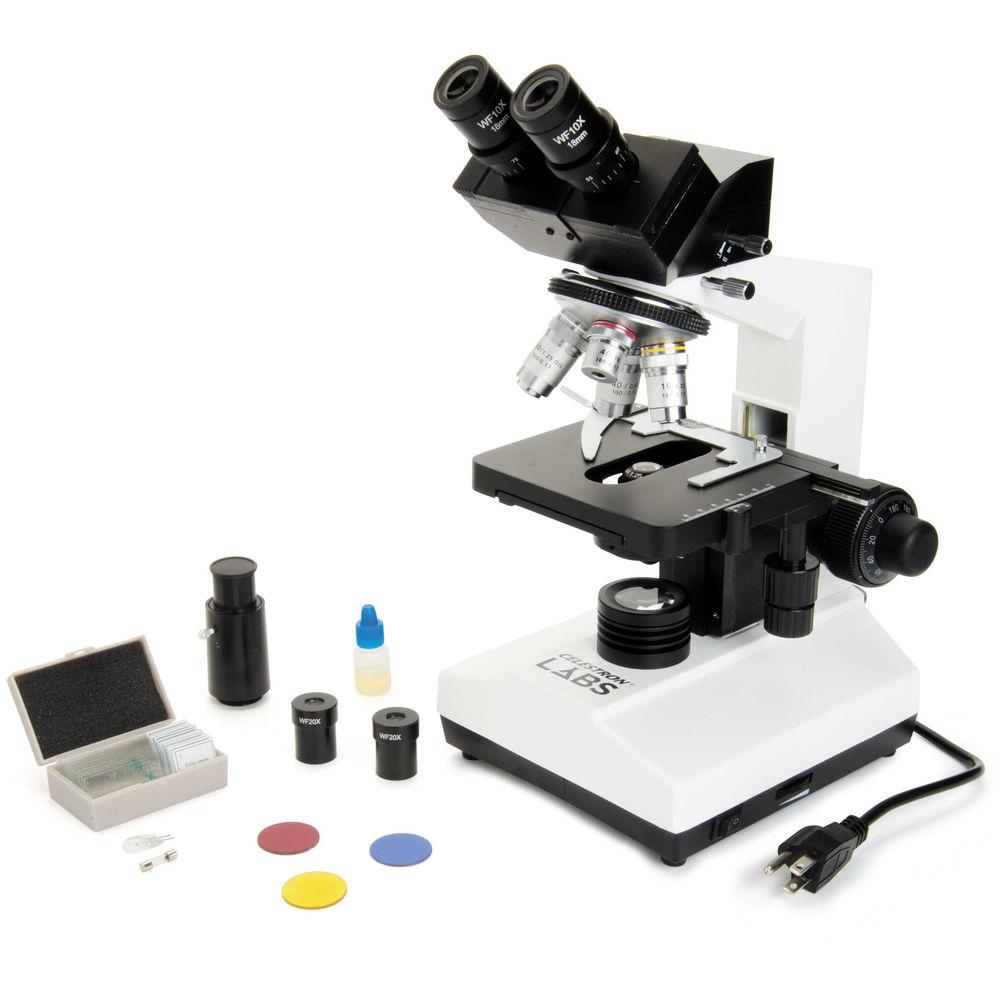

UPC: 050234441322 In the Box CELESTRON LABS CB2000C Compound Binocular Microscope with 5.5 x 5.5" Mechanical Stage 4 x Objective Lenses 2 x 10x Wide-Field Eyepieces 2 x 20x Wide-Field Eyepieces 10 x Prepared Slides 3 x Colored Filters Immersion Oil Power Cord Trinocular Eyepiece Tube Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CELESTRON LABS CB2000C Compound Binocular Microscope with 5.5 x 5.5" Mechanical Stage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCELESTRON LABS CB2000C Specs | Microscope Type | Compound | | Head | 45
