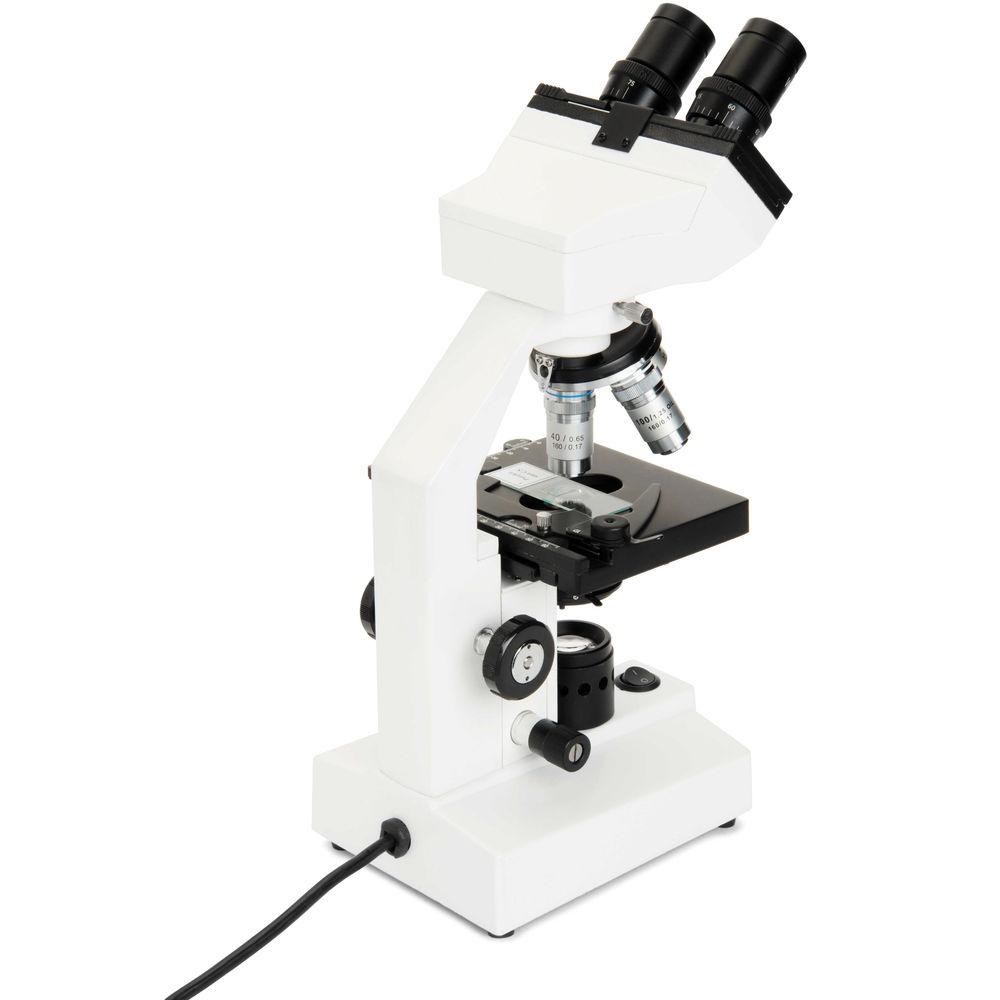

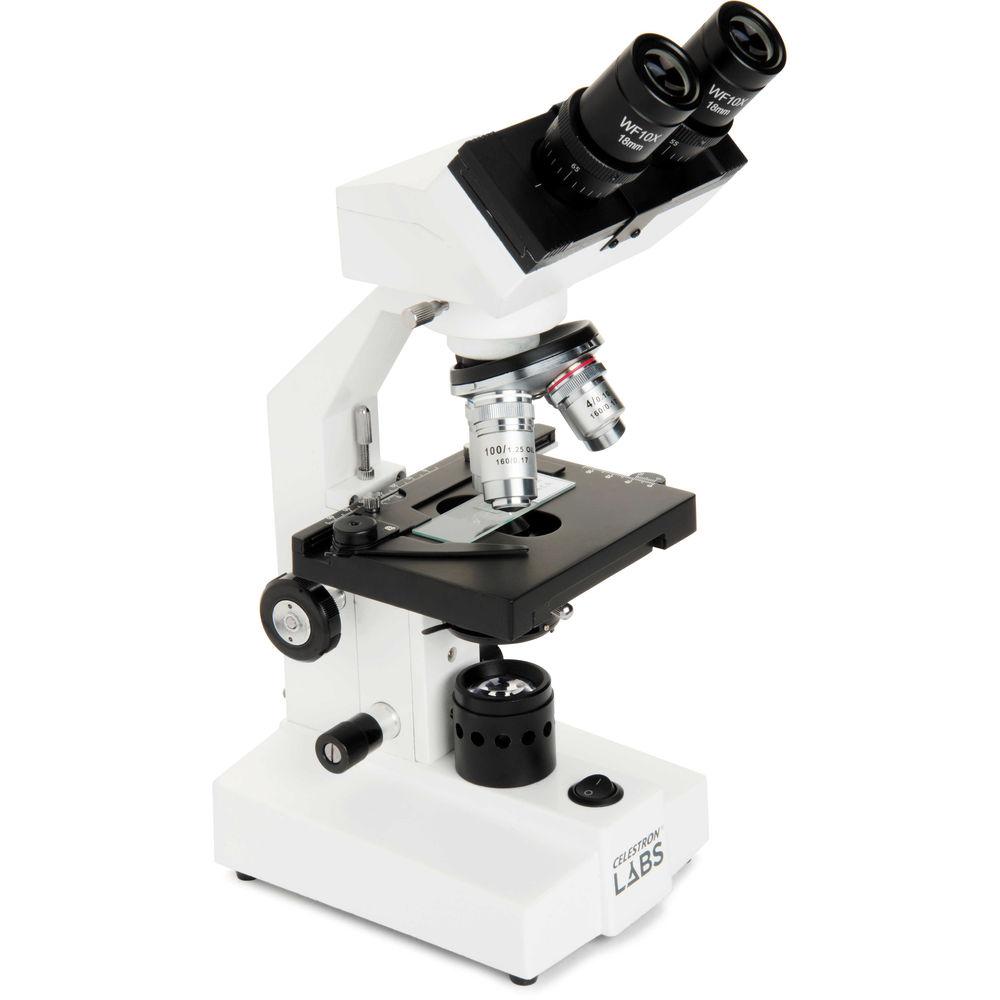

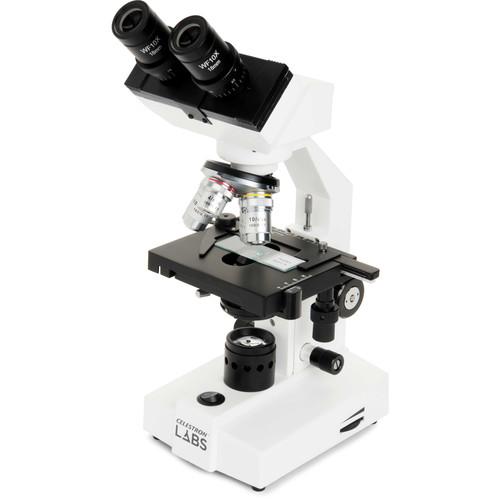

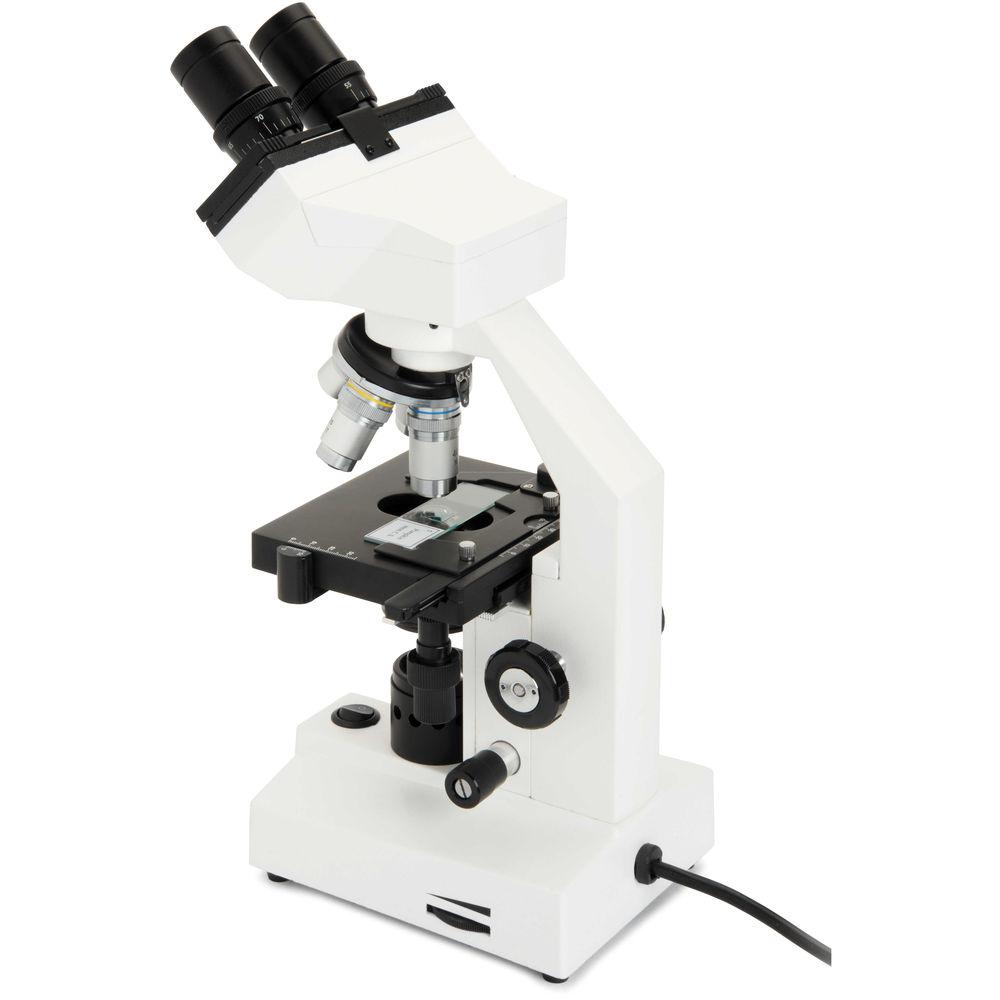

User Manual for CELESTRON LABS CB2000CF Compound Binocular Microscope with 4.3 x 4.7" Mechanical Stage Click to enlarge the picture
Contents of the user manual for the CELESTRON LABS CB2000CF Compound Binocular Microscope
- Product category: Microscopes CELESTRON LABS
- Brand: CELESTRON LABS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CELESTRON LABS Microscopes
 |
User manual for the CELESTRON LABS CB2000CF Compound Binocular Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CELESTRON LABS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CELESTRON LABS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CELESTRON LABS product will considerably shorten its lifespan!
|
Product description Celestron Lab's CB2000CF Compound Binocular Microscope is ideally suited for students and hobbyists with its comfortable binocular head design and broad magnification range. Dual eyepieces preserve stereoscopic vision which renders images in three dimensions, as opposed to a flat field common in single-ocular microscopes. Its four-objective click-stop turret holds the 4x, 10x, 40x, 100x achromatic objectives and the instrument comes with two sets of eyepieces that produce magnifications from a practical 40x to a powerful 2000x.
The 4.3x4.7" stage is articulated on the X and Y axes to place the exact area of interest precisely in the center of the stage. An adjustable-intensity halogen bulb under the stage provides the necessary illumination and the manually adjustable iris and Abbe condenser ensures the perfect amount of light and beam spread to illuminate the specimen without washing it out. Use the coarse and fine focus knobs, and the right-eye dioptric adjustment, to bring all specimens into sharp, clean focus. - Optical System
-
- Two 20x wide field eyepieces
- Two 10x wide field eyepieces, one with pointer

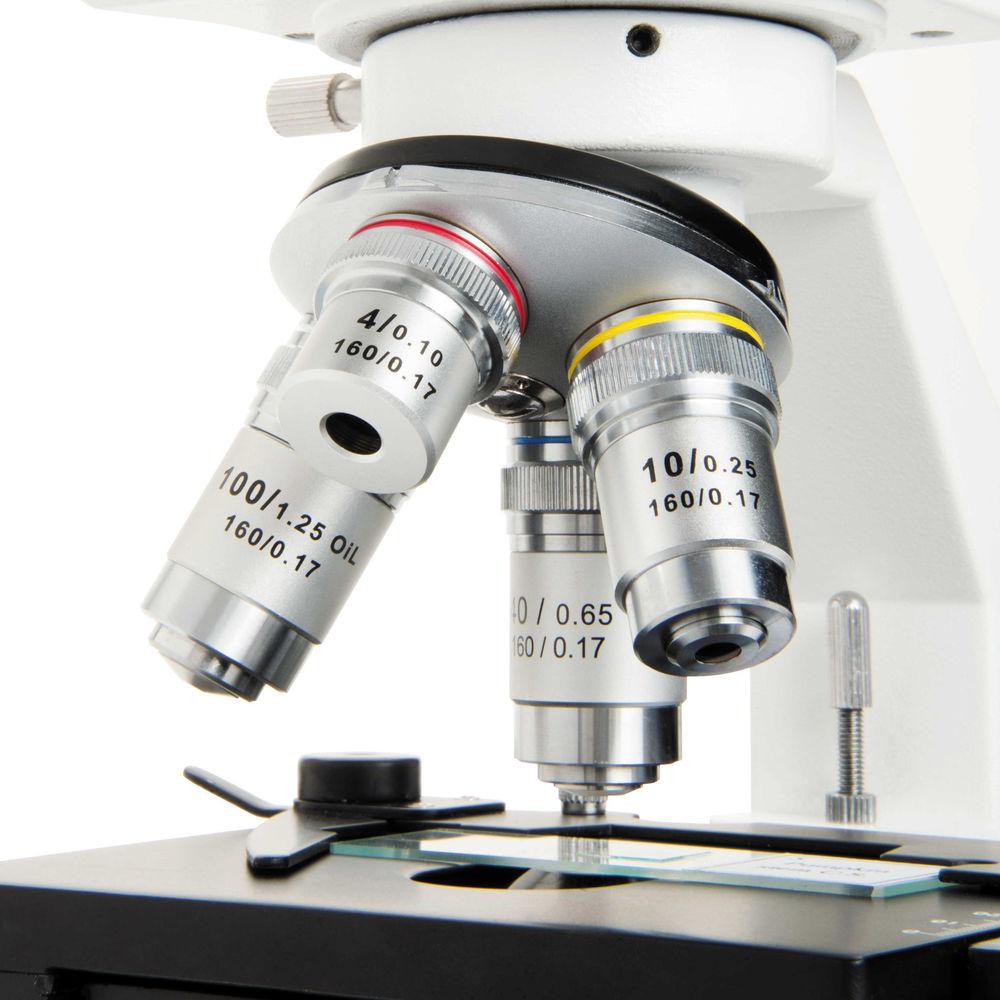

- 4x, 10x, 40x, and 100x achromatic objectives
- 100x objective requires immersion oil for maximum resolution
- Dual eyepieces preserve stereoscopic vision which renders images in three dimensions
- Four-position click-stop turret
- 40x, 100x, 400x, and 1000x magnification with 10x eyepieces
- 80x, 200x, 800x, and 2000x magnification with 20x eyepieces
- Lighting
-

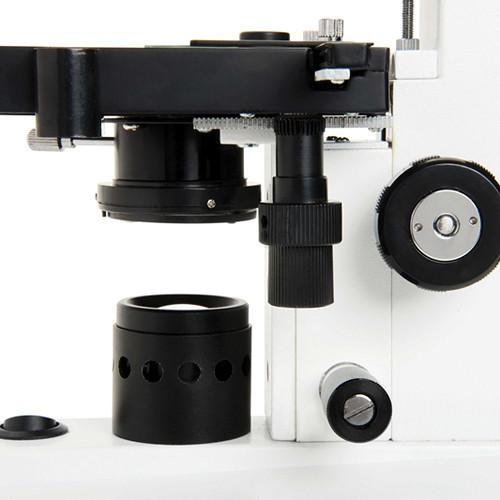

- 1.25 NA Abbe condenser with three color filters
- Removable blue, yellow, green filters
- Lower halogen illumination, adjustable intensity
- Manual mechanical iris adjustment
- Focusing
-
- Separate coarse and fine focus knobs

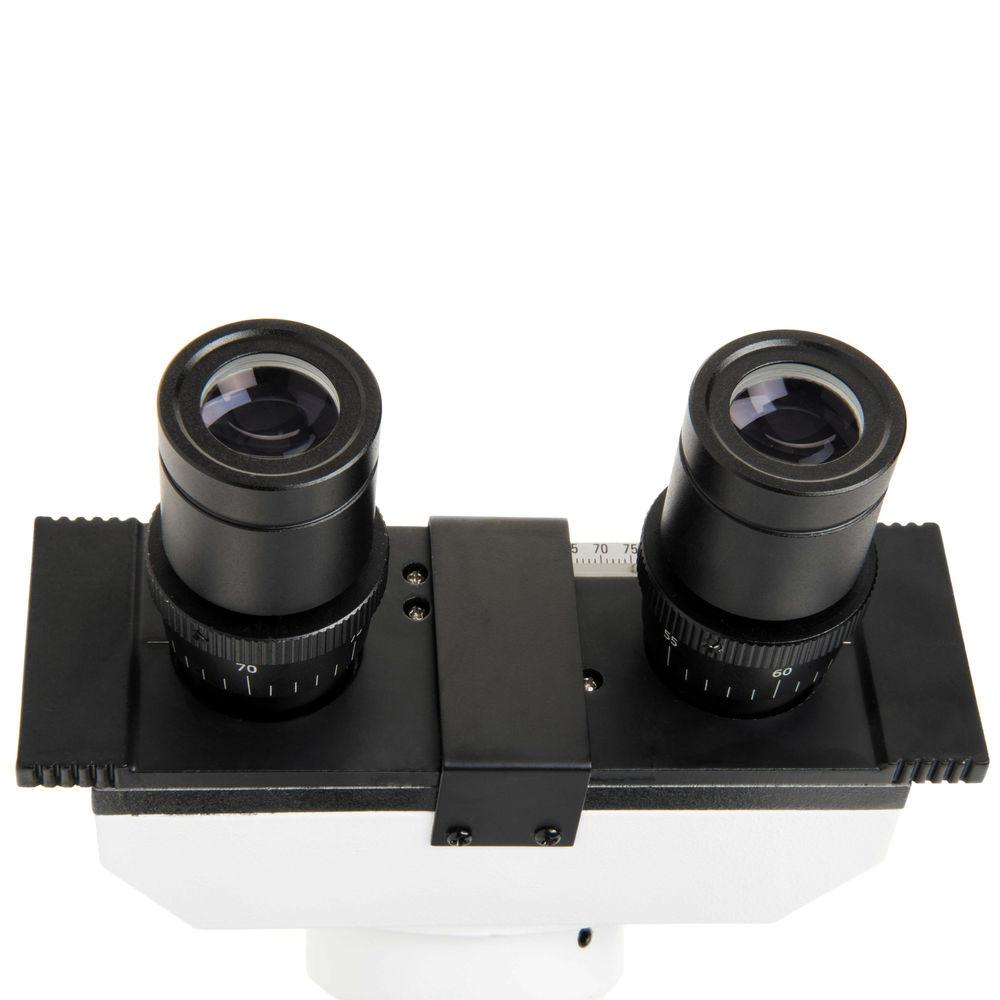

- Sliding Interpupillary adjustment to accommodate a wide range of users
- Right-eye dioptric adjustment
- Stage
-

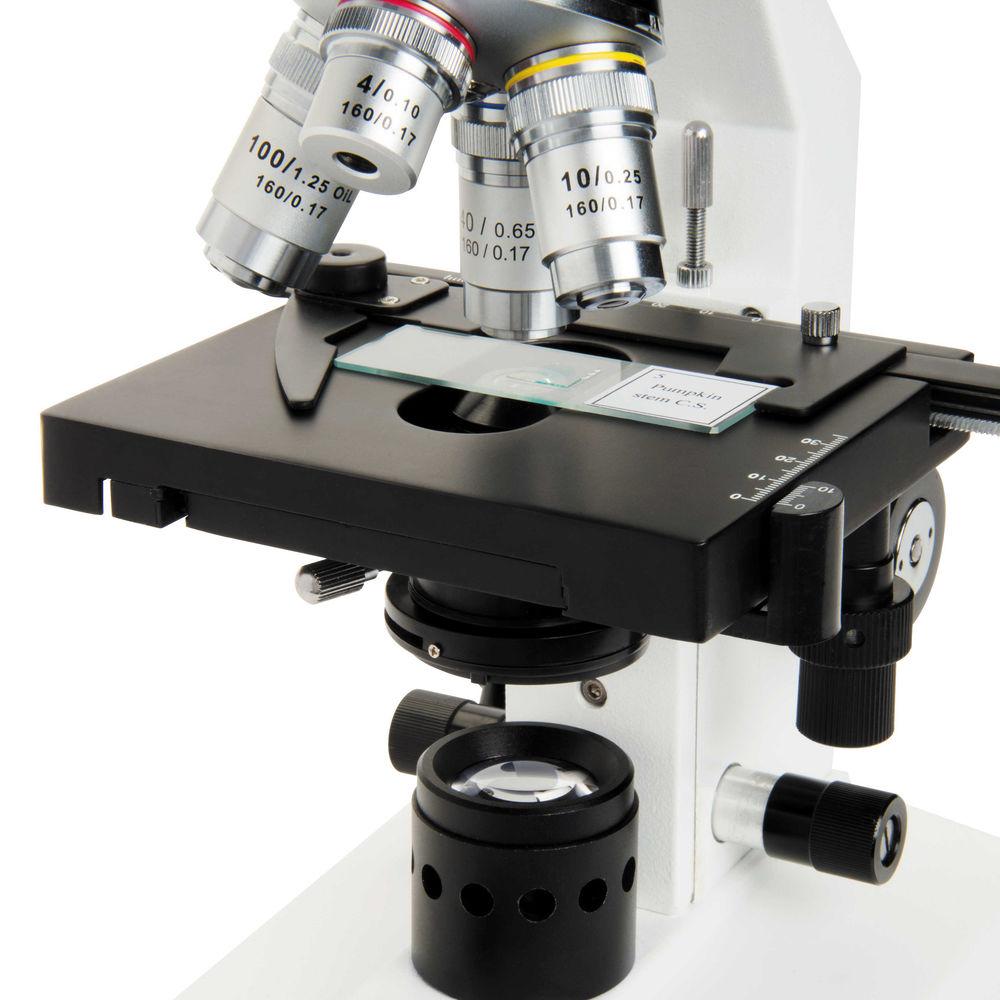

- 4.3 x 4.7" mechanical rectangular stage
- Adjustable-width locking slide/specimen holder
- Accepts 3 x 1" (76.2 x 25.4mm) specimen slides
- X-Y right-handed stage adjustments
- Integrated ruler on edge

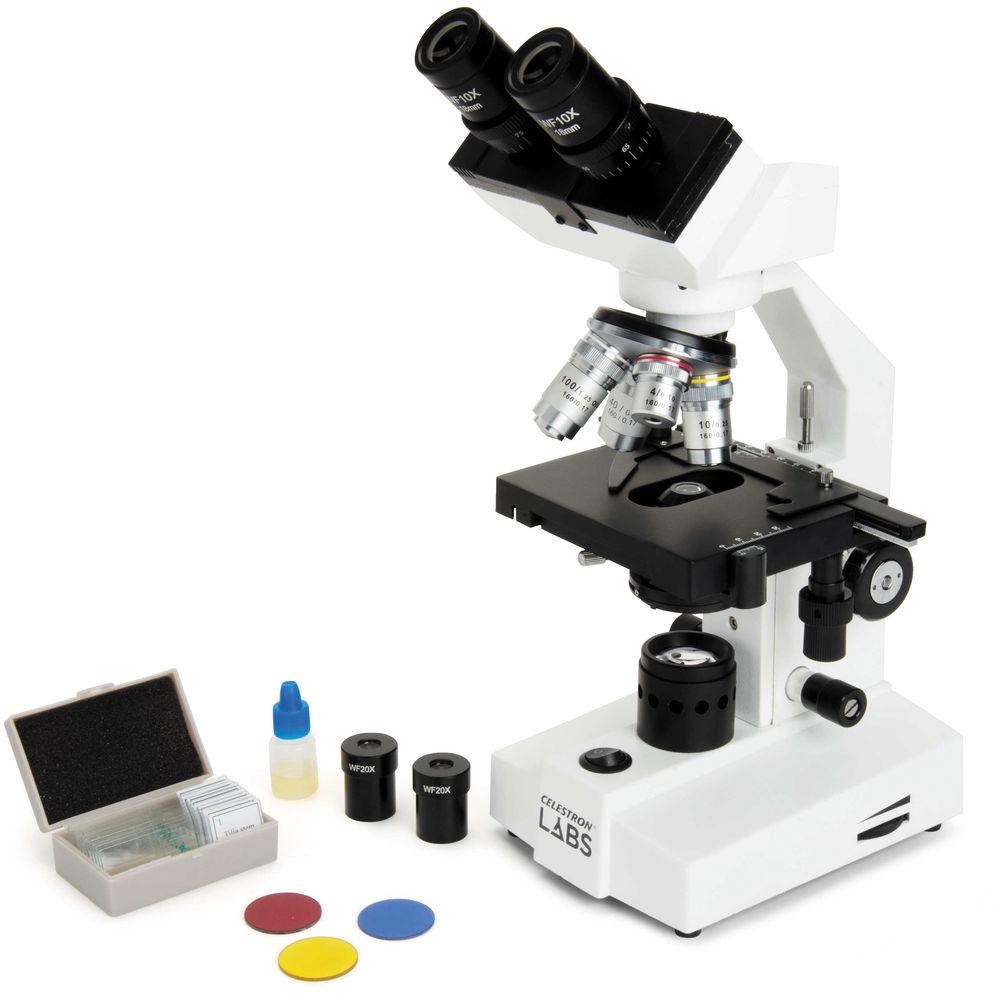

UPC: 050234441315 In the Box CELESTRON LABS CB2000CF Compound Binocular Microscope with 4.3 x 4.7" Mechanical Stage 4 x Objective Lenses 2 x 10x Wide-Field Eyepieces 2 x 20x Wide-Field Eyepieces 10 x Prepared Slides 3 x Colored Filters Immersion Oil Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CELESTRON LABS CB2000CF Compound Binocular Microscope with 4.3 x 4.7" Mechanical Stage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCELESTRON LABS CB2000CF Specs | Microscope Type | Compound | | Head | 45
