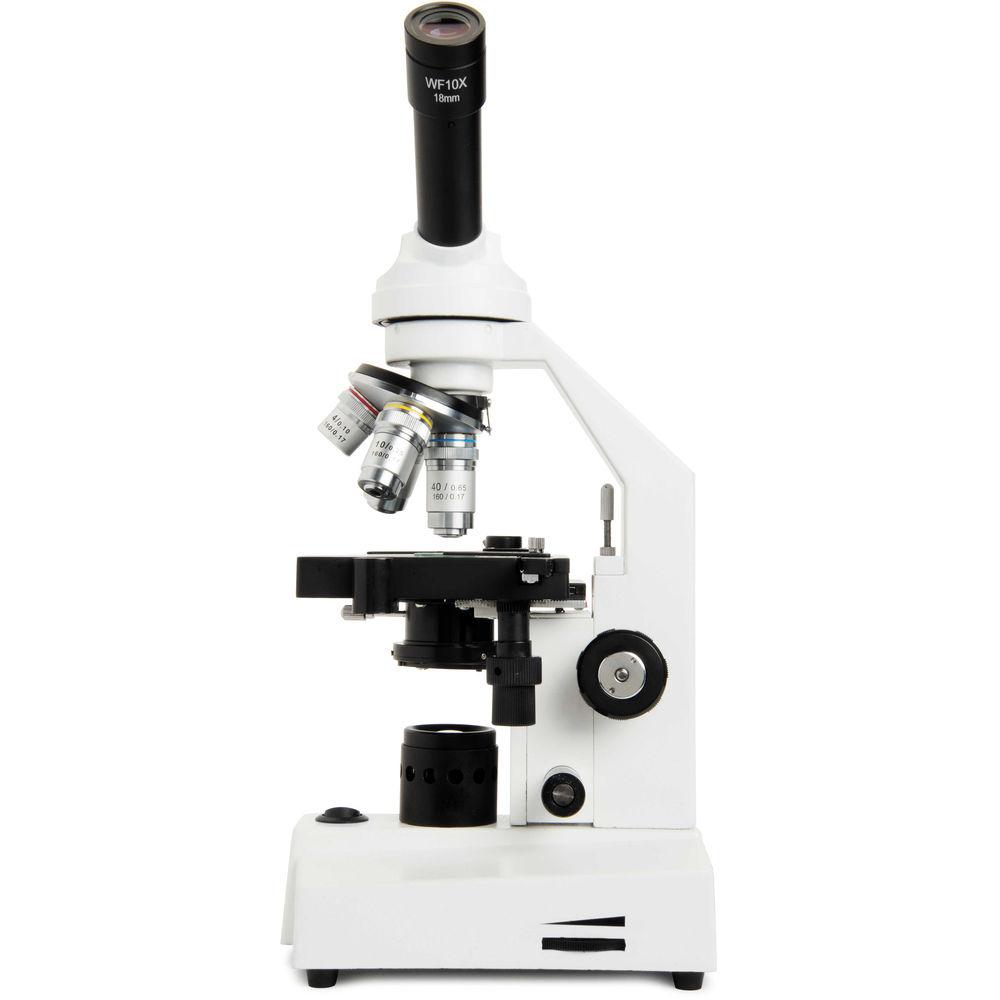

User Manual for CELESTRON LABS CM2000CF Compound Monocular Microscope Click to enlarge the picture
Contents of the user manual for the CELESTRON LABS CM2000CF Compound Monocular Microscope
- Product category: Microscopes CELESTRON LABS
- Brand: CELESTRON LABS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CELESTRON LABS Microscopes
 |
User manual for the CELESTRON LABS CM2000CF Compound Monocular Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CELESTRON LABS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CELESTRON LABS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CELESTRON LABS product will considerably shorten its lifespan!
|

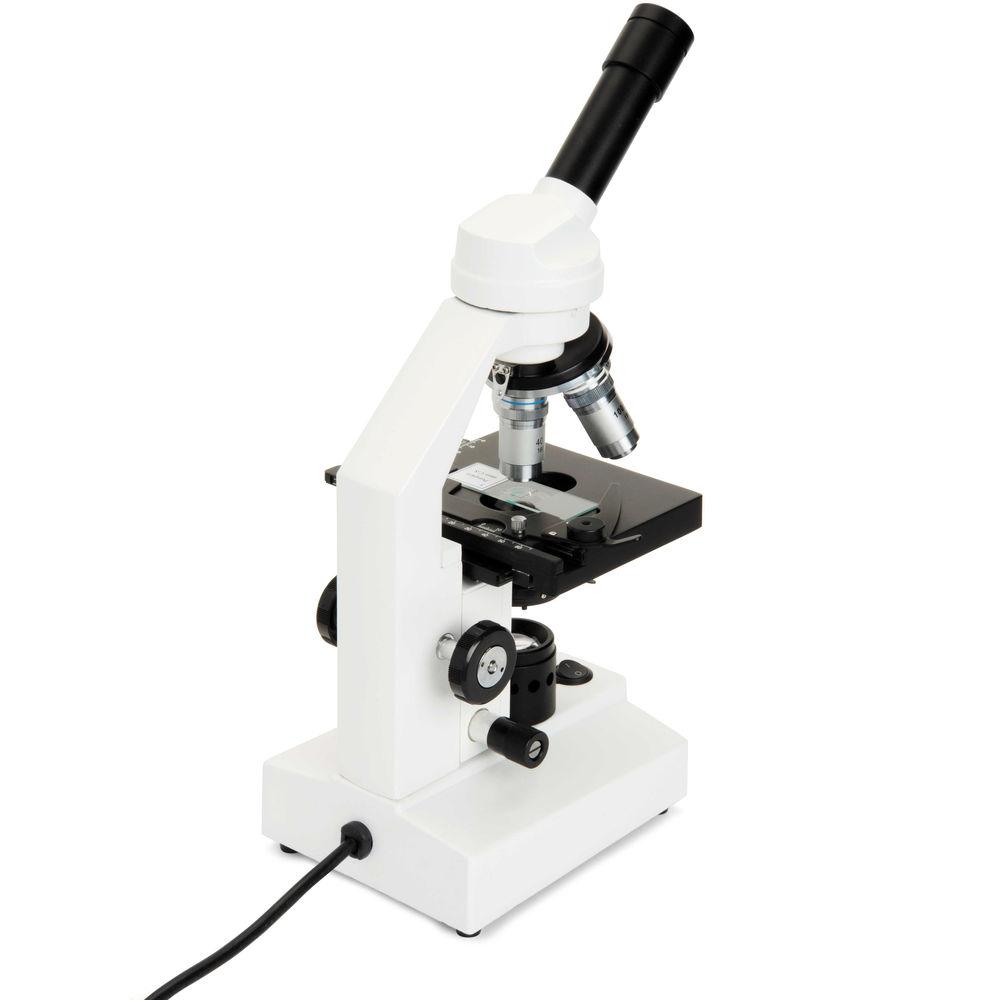

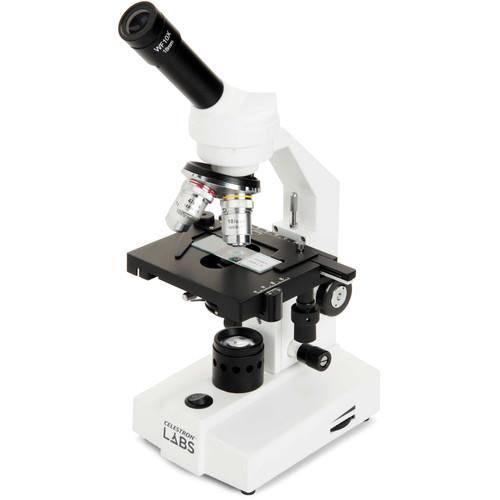

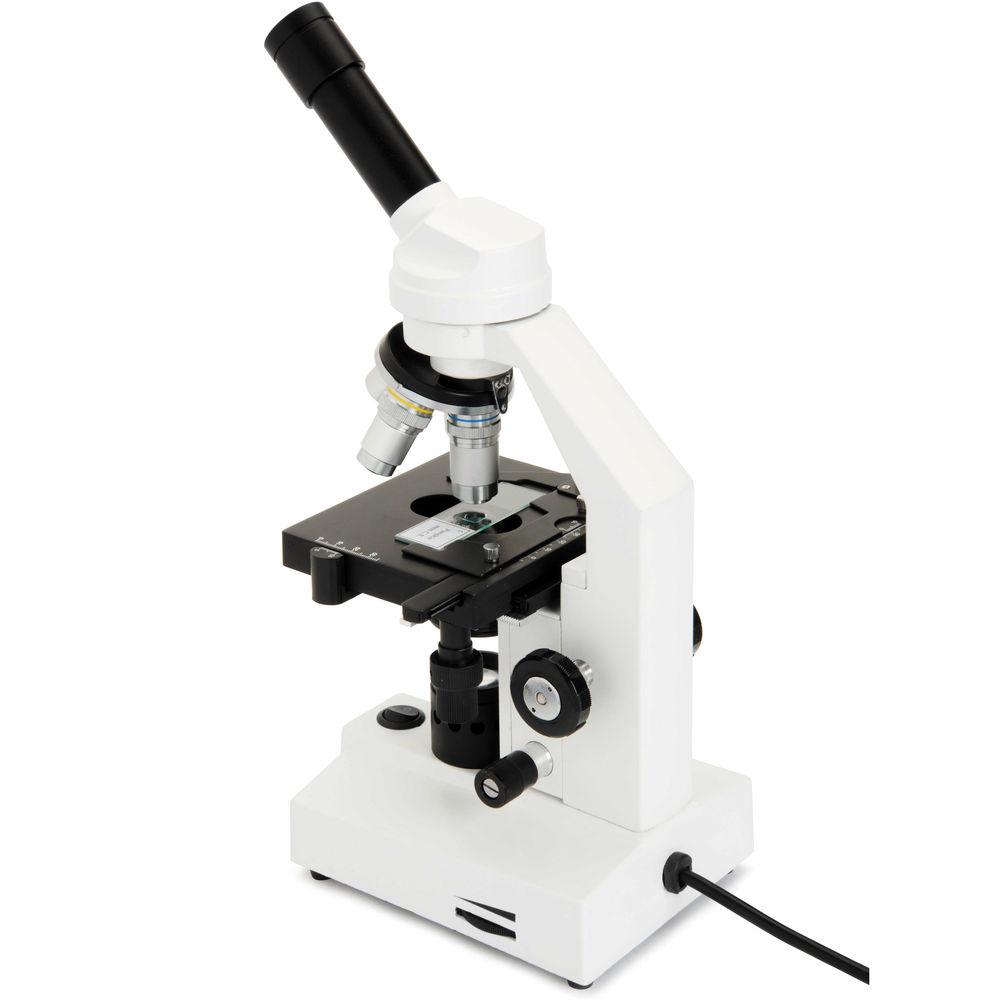

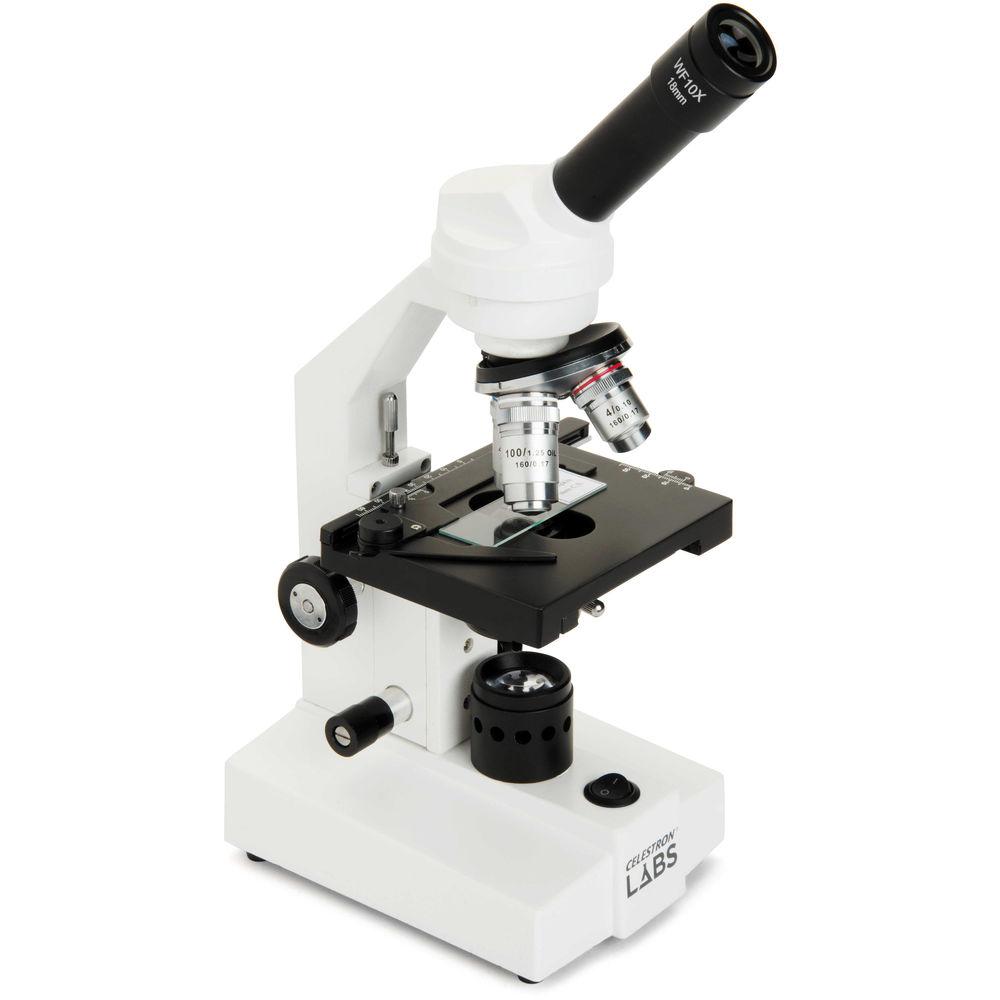

Product description Celestron Lab's CM2000CF Compound Monocular Microscope is ideally suited for students and hobbyists with its 360° rotating head for easy sharing, an eyepiece set at a comfortable 45° angle, and broad magnification range. Its four-position click-stop turret holds the 4x, 10x, 40x, 100x achromatic objectives and the instrument comes with two eyepieces that produce magnifications from a practical 40x to a powerful 2000x.The 4.3 x 4.9" stage is articulated on the X and Y axes to place the exact area of interest precisely in the center of the stage. An adjustable-intensity halogen bulb under the stage provides the necessary illumination, and the manually adjustable iris and Abbe condenser ensures the perfect amount of light and beam spread to illuminate the specimen without washing it out. Use the coarse and fine focus knobs to bring all specimens into sharp, clean focus. - Optical System
-
- 360° rotating head facilitates easy sharing
- 20x wide field eyepiece
- 10x wide field eyepiece with pointer

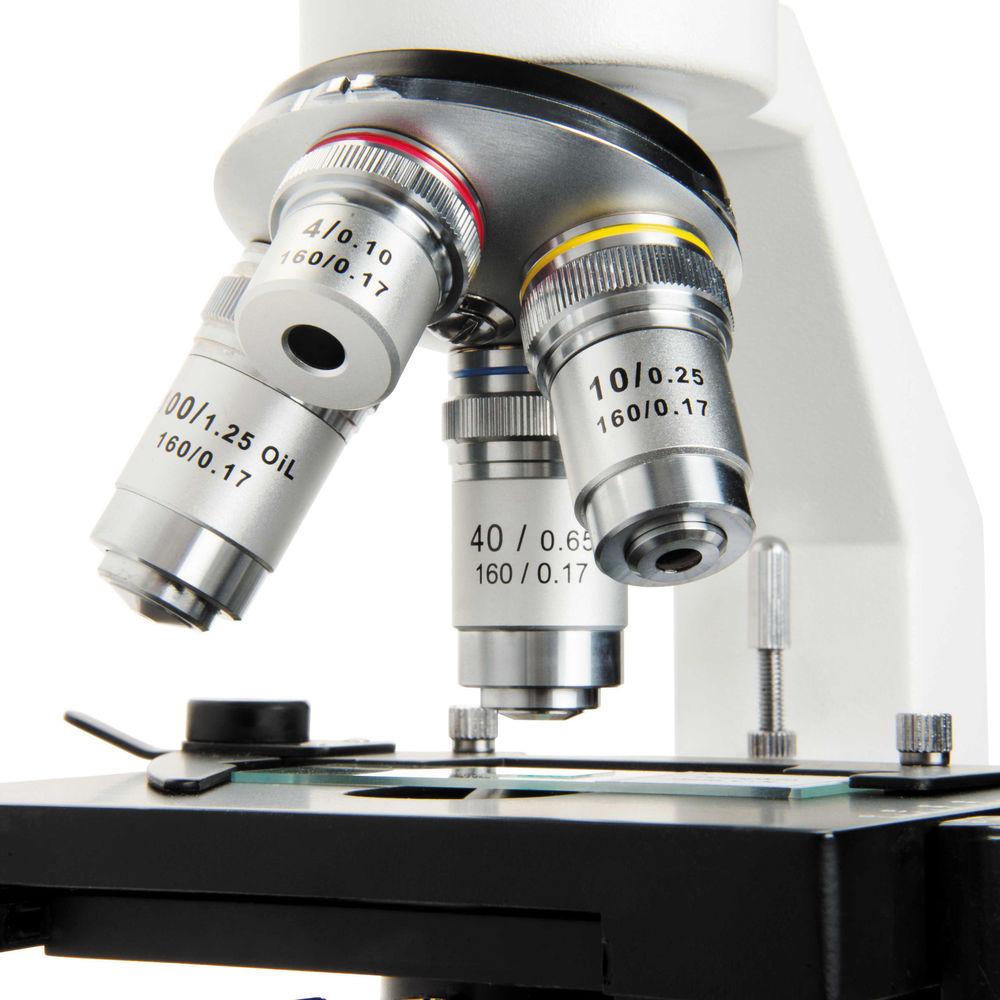

- 4x, 10x, 40x, and 100x achromatic objectives
- Four-position click-stop objective turret
- 40x, 100x, 400x, and 1000x magnification with 10x eyepiece
- 80x, 200x, 800x, and 2000x magnification with 20x eyepiece
- Lighting
-

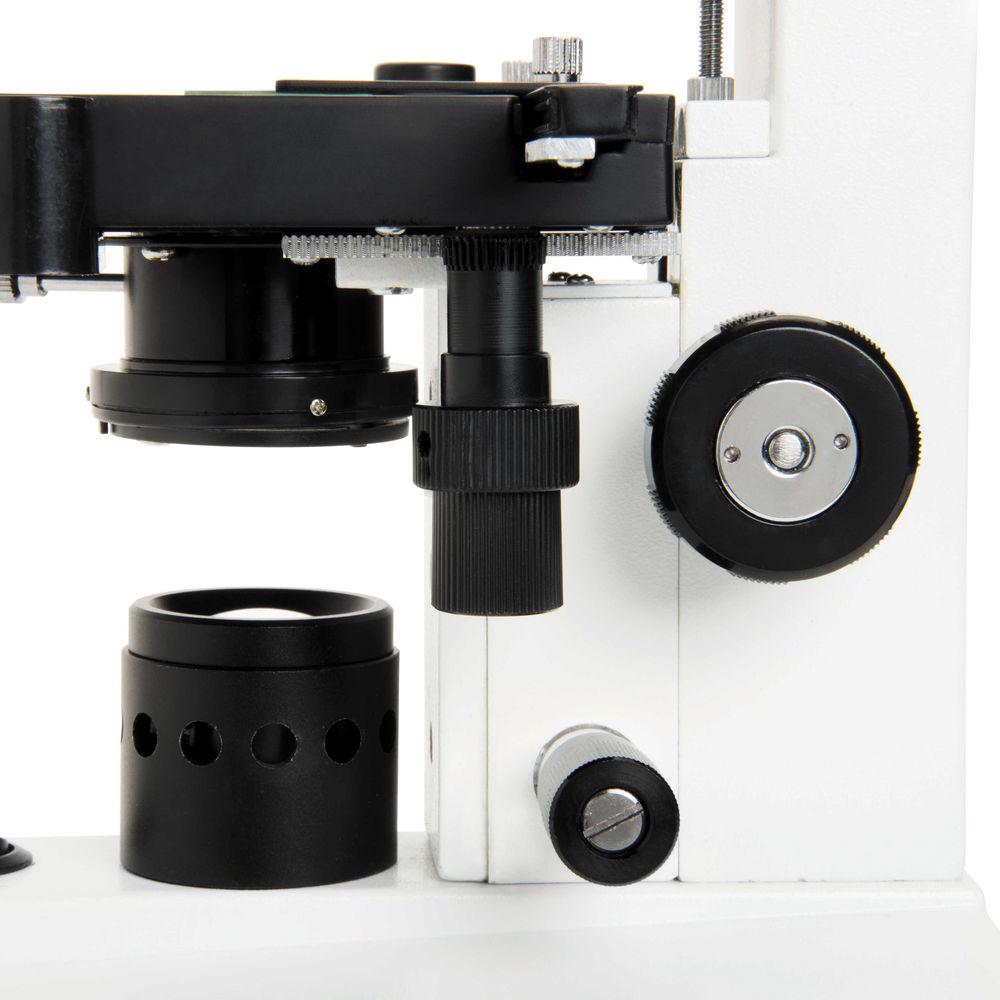

- 1.25 NA Abbe condenser with three color filters
- Removable blue, yellow, green filters
- Lower halogen illumination, adjustable intensity
- Manual mechanical iris adjustment
- Focusing
-
- Separate coarse and fine focus knobs
- Left and right focus knobs for left and right-handed use
- Stage
-

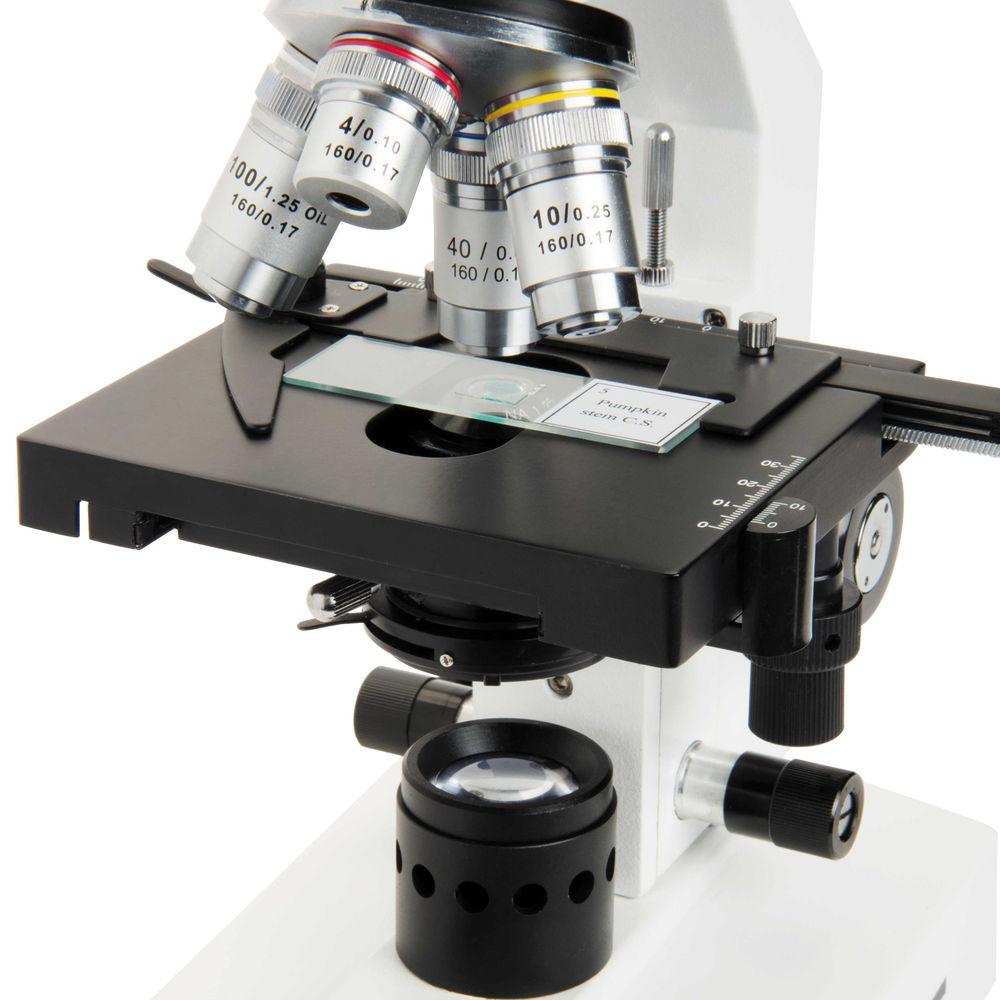

- 4.3 x 4.9" rectangular stage
- Adjustable-width locking slide/specimen holder
- Accepts 3 x 1" (76.2 x 25.4mm) specimen slides
- X-Y right-handed stage adjustments
- Integrated ruler on edge

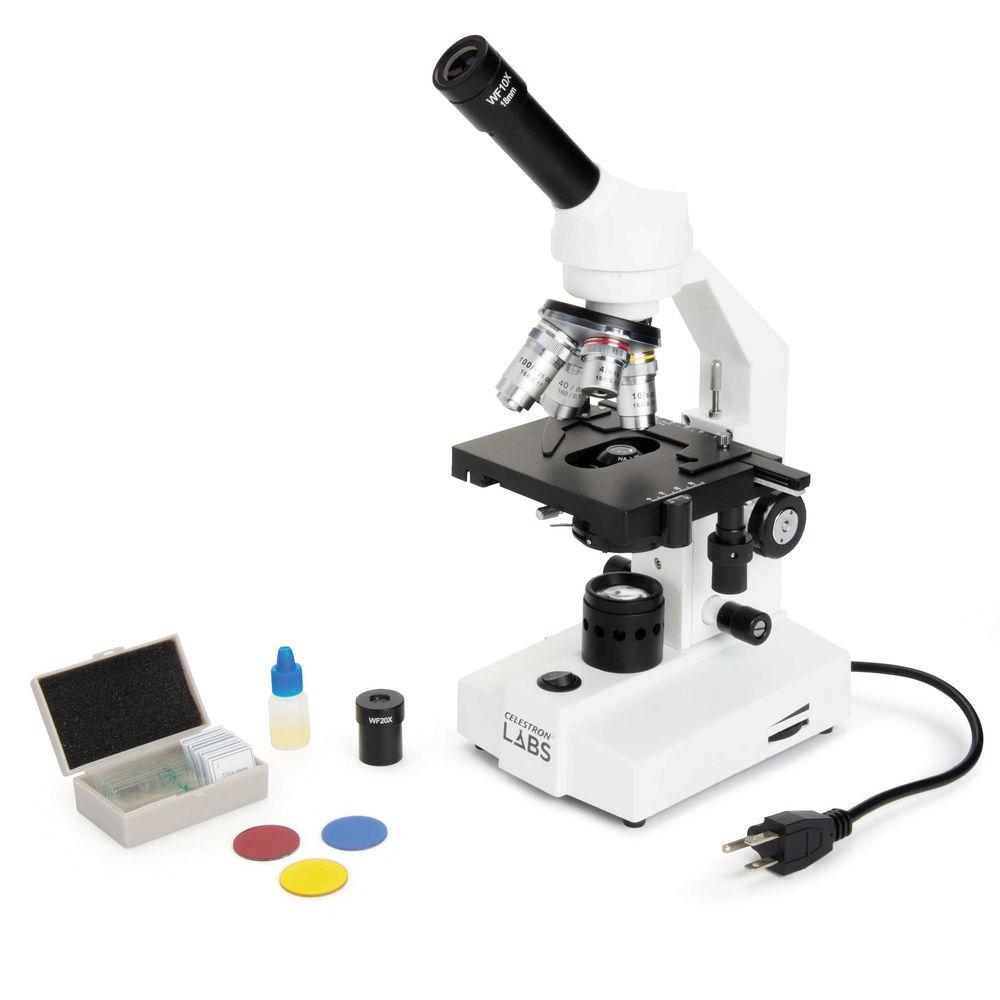

UPC: 050234441308 In the Box CELESTRON LABS CM2000CF Compound Monocular Microscope 4 x Objective Lenses 10x Wide-Field Eyepiece 20x Wide-Field Eyepiece 10 x Prepared Slides Immersion Oil 3 x Colored Filters Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CELESTRON LABS CM2000CF Compound Monocular Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCELESTRON LABS CM2000CF Specs | Microscope Type | Compound | | Body Type | Rigid one-piece | | Eyepiece | 10x power, one with pointer
20x power | | Nosepiece | Four position with click stops | | Objective(s) | 4x, 10x, 40x, 100x achromatic | | Head | 360° rotatable monocular, 45° incline | | Focuser | Individual coarse and fine focus knobs | | Light Source | Halogen, lower | | Power | 110 VAC | | Light Control | Adjustable-intensity, dial | | Specimen Stage | 4.3 x 4.9" (11.0 x 12.5 cm), mechanical | | Overall Dimensions | 15.1 x 7.3 x 5.5" (38.4 x 18.4 x 14.0 cm) | | Weight | 6.4 lb (2.9 kg) | | | | Package Weight | 8.2 lb | | Box Dimensions (LxWxH) | 18.9 x 11.4 x 8.0" |
