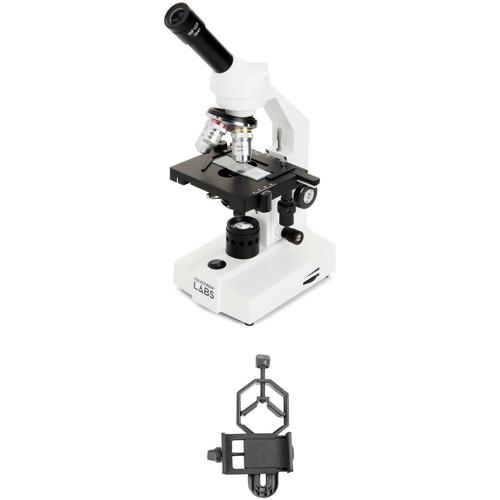

User Manual for CELESTRON LABS CM2000CF Compound Monocular Microscope Digiscoping Kit Click to enlarge the picture
Contents of the user manual for the CELESTRON LABS CM2000CF Compound Monocular Microscope
- Product category: Microscopes CELESTRON LABS
- Brand: CELESTRON LABS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CELESTRON LABS Microscopes
|
User manual for the CELESTRON LABS CM2000CF Compound Monocular Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CELESTRON LABS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CELESTRON LABS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CELESTRON LABS product will considerably shorten its lifespan!
|
Product description Capture and share the wonders of the microscopic world with the Celestron Labs CM2000CF Compound Monocular Microscope Digiscoping Kit from . This kit includes the powerful optic that has a magnification range from a low of 40x to a maximum of 2000x so you can make highly detailed microscopic observations normally hidden from sight. To help you document your discoveries, this kit comes with Celestron's basic smartphone adapter that allows you to take photos and videos of the magnified view through the eyepiece. - CELESTRON LABS CM2000CF Compound Monocular Microscope Celestron Lab's CM2000CF Compound Monocular Microscope is ideally suited for students and hobbyists with its 360° rotating head for easy sharing, an eyepiece set at a comfortable 45° angle, and broad magnification range. Its four-position click-stop turret holds the 4x, 10x, 40x, 100x achromatic objectives and the instrument comes with two eyepieces that produce magnifications from a practical 40x to a powerful 2000x.The 4.3 x 4.9" stage is articulated on the X and Y axes to place the exact area of interest precisely in the center of the stage. An adjustable-intensity halogen bulb under the stage provides the necessary illumination, and the manually adjustable iris and Abbe condenser ensures the perfect amount of light and beam spread to illuminate the specimen without washing it out. Use the coarse and fine focus knobs to bring all specimens into sharp, clean focus.
- Optical System
-
- 360° rotating head facilitates easy sharing
- 20x wide field eyepiece
- 10x wide field eyepiece with pointer
- 4x, 10x, 40x, and 100x achromatic objectives
- Four-position click-stop objective turret
- 40x, 100x, 400x, and 1000x magnification with 10x eyepiece
- 80x, 200x, 800x, and 2000x magnification with 20x eyepiece
- Lighting
-
- 1.25 NA Abbe condenser with three color filters
- Removable blue, yellow, green filters
- Lower halogen illumination, adjustable intensity
- Manual mechanical iris adjustment
- Focusing
-
- Separate coarse and fine focus knobs
- Left and right focus knobs for left and right-handed use
- Stage
-
- 4.3 x 4.9" rectangular stage
- Adjustable-width locking slide/specimen holder
- Accepts 3 x 1" (76.2 x 25.4mm) specimen slides
- X-Y right-handed stage adjustments
- Integrated ruler on edge
UPC: 050234441308 - Celestron Basic Smartphone Digiscoping Adapter (1.25") Capture still images and videos of celestial and terrestrial objects with virtually any smartphone through almost any 1.25" eyepiece with Celestron's Basic Smartphone Digiscoping Adapter. Ideal for telescopes, binoculars, spotting scopes, monoculars, microscopes, and any other type of optic with an eyepieces, the design allows it to be used on most oculars with outside diameters between 29mm (1.14") and 45mm (1.77"). The rigid frame is made of sturdy and lightweight aluminum with non-slip padding on clamping points to secure it to your eyepiece and mount your smartphone without marking or marring its surfaces. A clamping system holds the adapter securely on the eyepiece and locks in place, while an adjustment system allows for precise phone camera alignment. UPC: 050234810357
In the Box - CM2000CF Compound Monocular Microscope darzttbddcwavdytzdrtfcvdwwztfscqwsfa
- 4 x Objective Lenses
- 10x Wide-Field Eyepiece
- 20x Wide-Field Eyepiece
- 10 x Prepared Slides
- Immersion Oil
- 3 x Colored Filters
- Power Cord
- Limited 2-Year Warranty
- Celestron - Basic Smartphone Digiscoping Adapter (1.25") darzttbddcwavdytzdrtfcvdwwztfscqwsfa
Table of Contents
|
Upload User Manual
Have you got an user manual for the CELESTRON LABS CM2000CF Compound Monocular Microscope Digiscoping Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CELESTRON LABS CM2000CF Compound Monocular Microscope
| Microscope Type | Compound | | Body Type | Rigid one-piece | | Eyepiece | 10x power, one with pointer
20x power | | Nosepiece | Four position with click stops | | Objective(s) | 4x, 10x, 40x, 100x achromatic | | Head | 360° rotatable monocular, 45° incline | | Focuser | Individual coarse and fine focus knobs | | Light Source | Halogen, lower | | Power | 110 VAC | | Light Control | Adjustable-intensity, dial | | Specimen Stage | 4.3 x 4.9" (11.0 x 12.5 cm), mechanical | | Overall Dimensions | 15.1 x 7.3 x 5.5" (38.4 x 18.4 x 14.0 cm) | | Weight | 6.4 lb (2.9 kg) | | | | Box Dimensions (LxWxH) | 18.9 x 11.4 x 8.0" | - Celestron Basic Smartphone Digiscoping Adapter (1.25")
| Material of Construction | Aluminum Alloy | | Dimensions | 7.0 x 4.0 x 1.5" / 177.8 x 101.6 x 38.1 mm | | Weight | 6.0 oz / 170.7 g | | | | Box Dimensions (LxWxH) | 6.45 x 3.3 x 1.55" |
