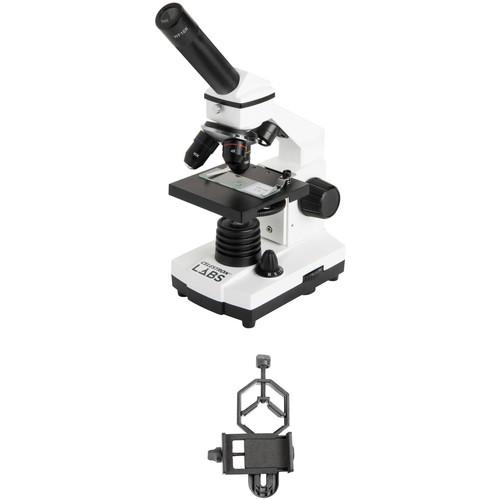

User Manual for CELESTRON LABS CM800 Cordless Monocular Microscope Digiscoping Kit Click to enlarge the picture
Contents of the user manual for the CELESTRON LABS CM800 Cordless Monocular Microscope
- Product category: Microscopes CELESTRON LABS
- Brand: CELESTRON LABS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CELESTRON LABS Microscopes
|
User manual for the CELESTRON LABS CM800 Cordless Monocular Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CELESTRON LABS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CELESTRON LABS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CELESTRON LABS product will considerably shorten its lifespan!
|
Product description With its rotating head for easy sharing and an eyepiece set at a comfortable angle, the Celestron Labs CM800 Cordless Monocular Microscope Digiscoping Kit from B&H gives you the capability to comfortably view and easily capture photos or video of your microscopy specimens. The kit includes the powerful and highly portable microscope and their basic smartphone digiscoping adapter that fits over one of the eyepieces. - CELESTRON LABS CM800 Cordless Monocular Microscope With an eyepiece set at a comfortable 45° angle and broad magnification range, Celestron Lab's CM800 Cordless Monocular Microscope is ideally suited for students and hobbyists alike. Its three-position turret holds the 4x, 10x, and 40x objectives and the instrument comes with two eyepieces that produce magnifications from a practical 40x to a more powerful 800x.The 3.5x3.5" stage has metal slide/specimen clips, and an adjustable-intensity LED emitter under the stage provides the necessary illumination. It is powered by either a US 110 VAC plug, or three included AA batteries for use in the field. The manually adjustable iris and condenser ensures the perfect amount of light and beam spread to illuminate the specimen without washing it out. Use the focus knob to bring all specimens into sharp, clear focus.
- Optical System
-
- Monocular head with eyepiece set at 45°
- One 10x wide field eyepiece
- One 20x wide field eyepiece
- 4x, 10x, and 40x objectives
- Three-position click-stop turret with grip ring
- 40x, 100x, and 400x magnification with 10x eyepiece
- 80x, 200x, and 800x magnification with 20x eyepiece
- Lighting
-
- 0.65 NA condenser
- Lower LED illumination, adjustable intensity
- Disc diaphragm with six apertures
- Focusing
-
- Coarse focus knobs
- Left and right focus knobs for left and right-handed use
- Stage
-
- 3.5 x 3.5" square stage
- Metal specimen/slide clips
UPC: 050234441285 - Celestron Basic Smartphone Digiscoping Adapter (1.25") Capture still images and videos of celestial and terrestrial objects with virtually any smartphone through almost any 1.25" eyepiece with Celestron's Basic Smartphone Digiscoping Adapter. Ideal for telescopes, binoculars, spotting scopes, monoculars, microscopes, and any other type of optic with an eyepieces, the design allows it to be used on most oculars with outside diameters between 29mm (1.14") and 45mm (1.77"). The rigid frame is made of sturdy and lightweight aluminum with non-slip padding on clamping points to secure it to your eyepiece and mount your smartphone without marking or marring its surfaces. A clamping system holds the adapter securely on the eyepiece and locks in place, while an adjustment system allows for precise phone camera alignment. UPC: 050234810357
In the Box - CM800 Cordless Monocular Microscope wbqetybbfxvrbsryfvrzdrsaecatuta
- 2 x Wide-Field Eyepieces
- 10 x Prepared Slides
- 3 x AA Batteries
- Power Cord
- Limited 2-Year Warranty
- Celestron - Basic Smartphone Digiscoping Adapter (1.25") wbqetybbfxvrbsryfvrzdrsaecatuta
Table of Contents
|
Upload User Manual
Have you got an user manual for the CELESTRON LABS CM800 Cordless Monocular Microscope Digiscoping Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CELESTRON LABS CM800 Cordless Monocular Microscope
| Microscope Type | Compound | | Head | 45
