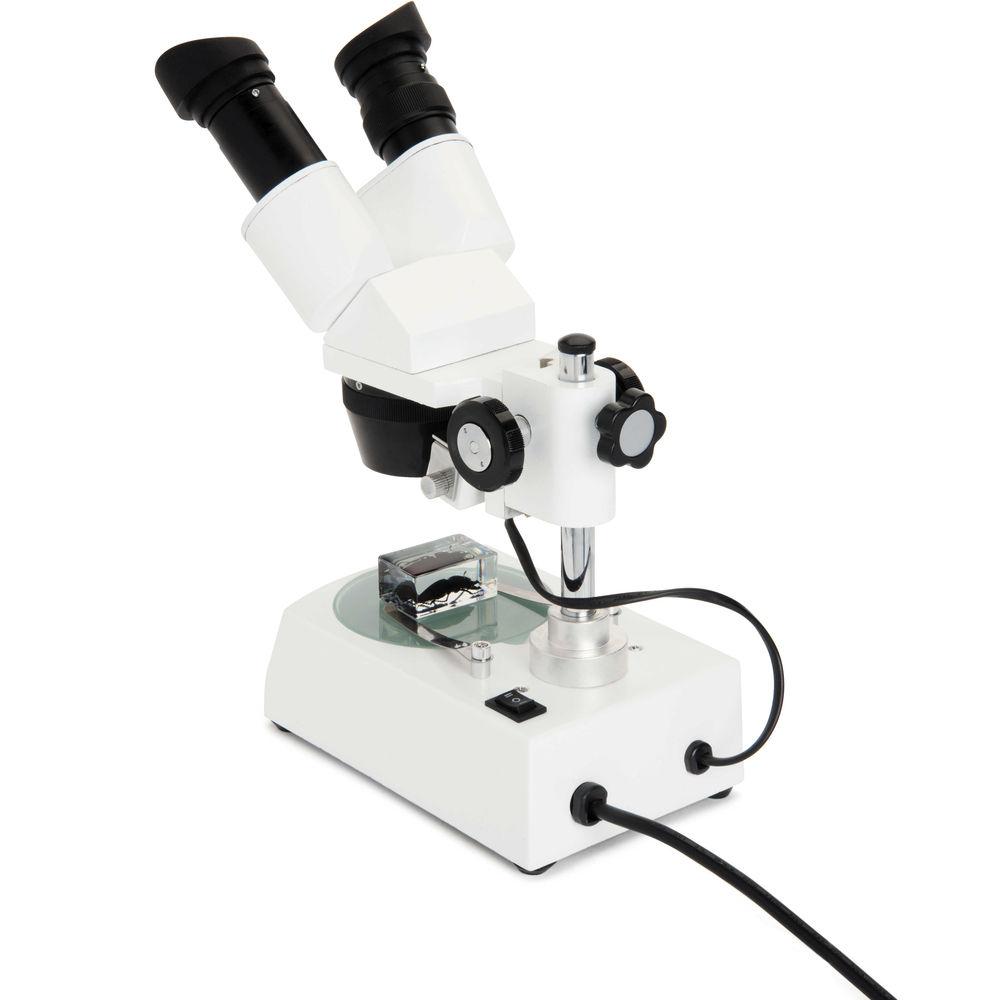

User Manual for CELESTRON LABS S10-60 Stereo Microscope Click to enlarge the picture
Contents of the user manual for the CELESTRON LABS S10-60 Stereo Microscope
- Product category: Microscopes CELESTRON LABS
- Brand: CELESTRON LABS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CELESTRON LABS Microscopes
 |
User manual for the CELESTRON LABS S10-60 Stereo Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CELESTRON LABS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CELESTRON LABS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CELESTRON LABS product will considerably shorten its lifespan!
|

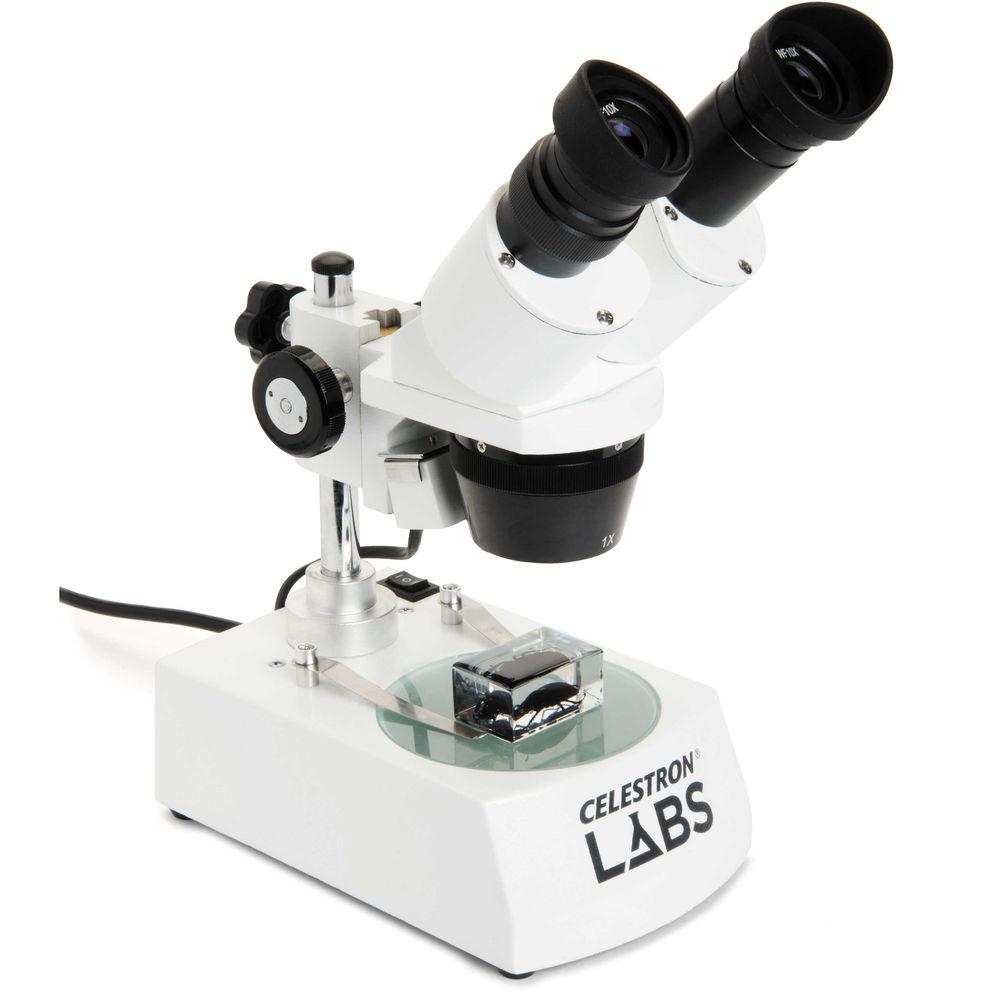

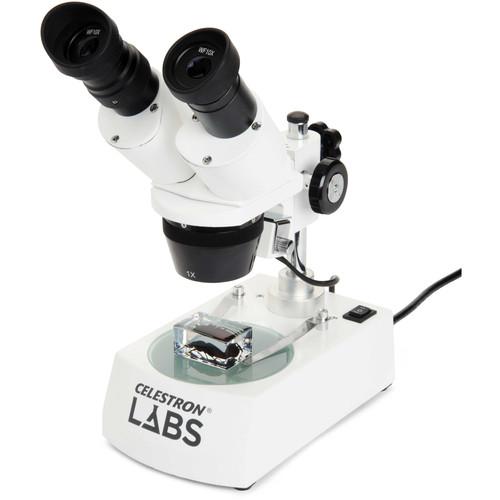

Product description Designed for students and hobbyists, Celestron Lab's S10-60 Stereo Microscope is a versatile instrument for making detailed 3D observations of a variety of subjects such as coins, minerals, insects, leaves, textiles and documents. Dual eyepieces preserve stereoscopic vision which renders images in three dimensions, as opposed to a flat field common in single-ocular microscopes. Stereo, or dissecting, microscopes traditionally have relatively low power and a large working distance for larger subjects. This instrument has a magnification range from 10x to 60x with a maximum working distance of 2.17". The head and nosepiece are attached to the microscopes' pillar and is easily adjustable to set the correct working distance to achieve the sharpest focus.The stage is built into the base to provide a large and stable area for specimens. Dual light sources above and below the stage and interchangeable stage plates enable users to optimize the light, depending on their subjects. Use the upper light and opaque plate to improve contrast on specimens for better viewing, and the lower light with the translucent plate to illuminate a specimen from below. - Optical System
-
- Two 10x wide field eyepieces
- Two 20x wide field eyepieces

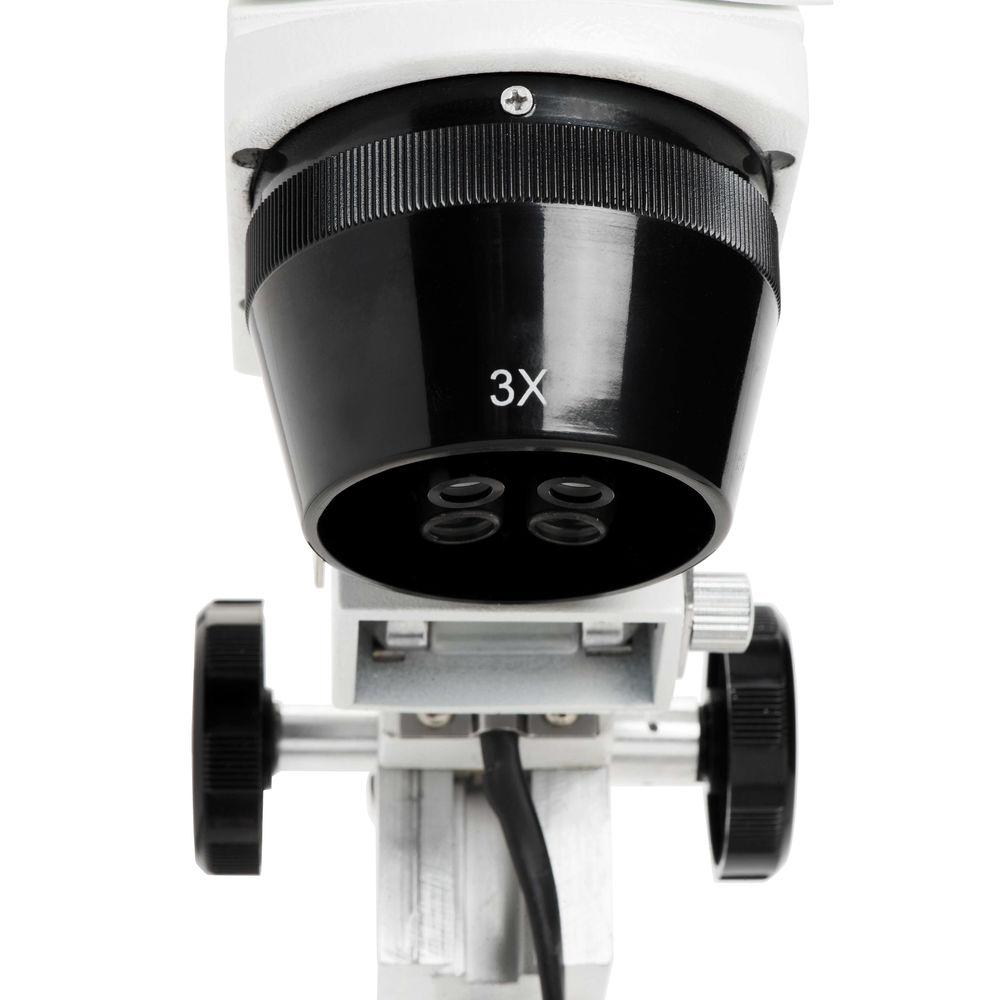

- Two objectives: 1x and 3x
- Two-position rotating turret
- 10x and 30x magnification with 10x eyepieces
- 20x and 60x magnification with 20x eyepieces
- Contoured eyecups block peripheral light
- Lighting
-

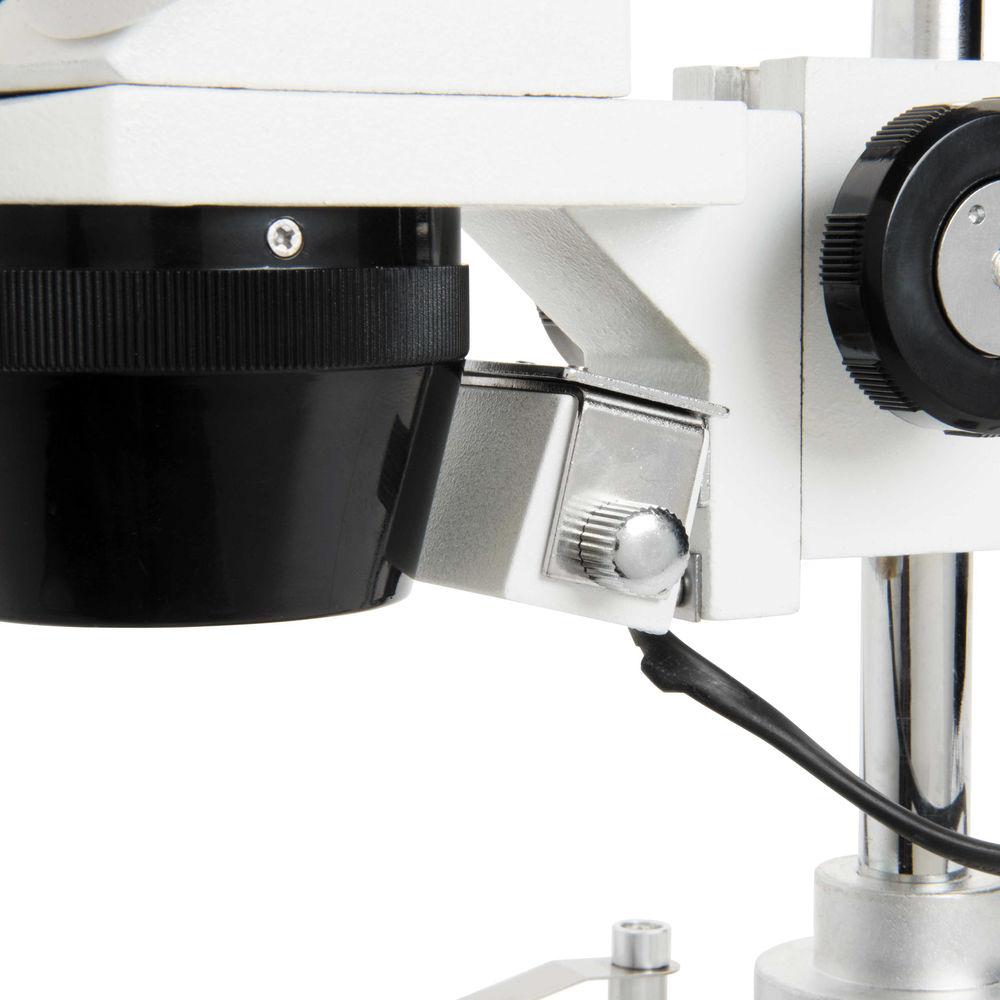

- Upper tungsten bulb illumination
- Lower halogen bulb illumination
- On/off switch
- Focusing
-

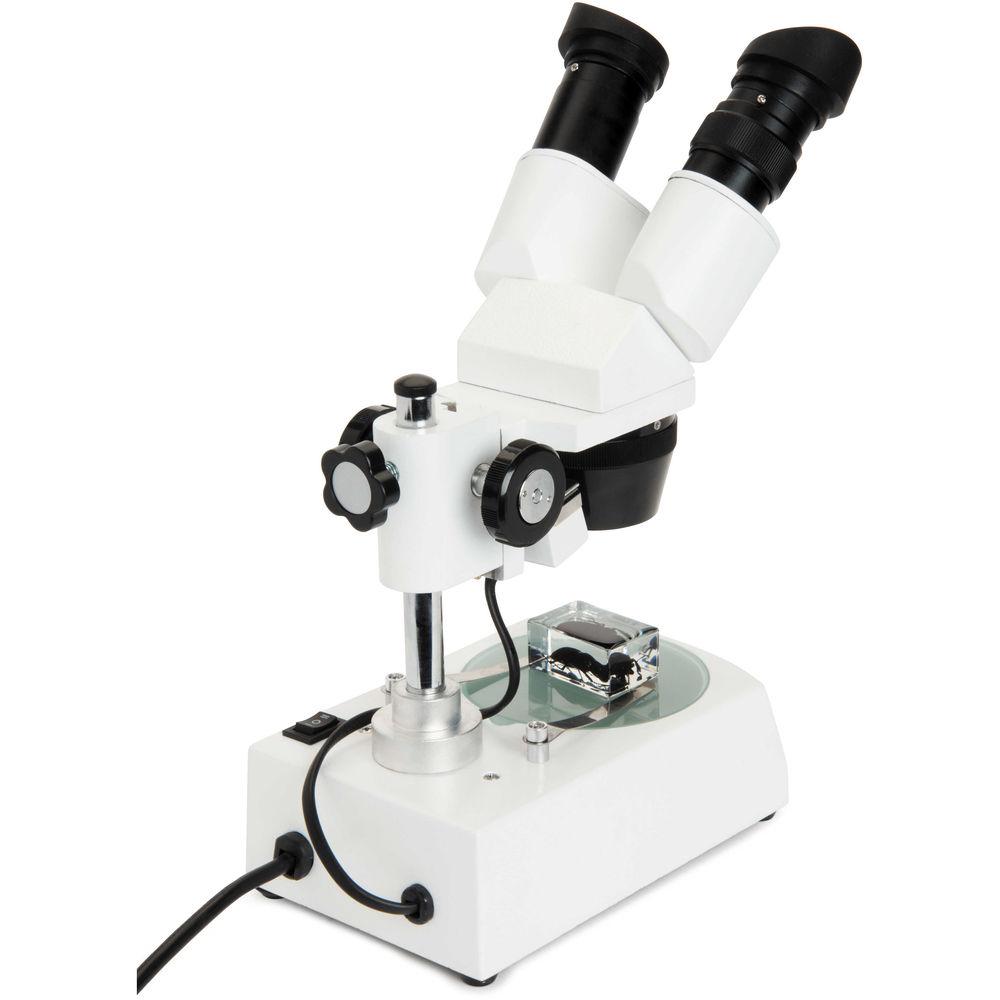

- Dual coarse focus knob, left and right sides
- Siedentopf interpupillary adjustment accommodates a wide range of users
- Right-eye dioptric adjustment
- Stage
-
- Adjustable working distance, 2.17" maximum
- Stage is integrated into base with slide/specimen clips
- Removable 3.7" diameter round stage plates for different viewing application

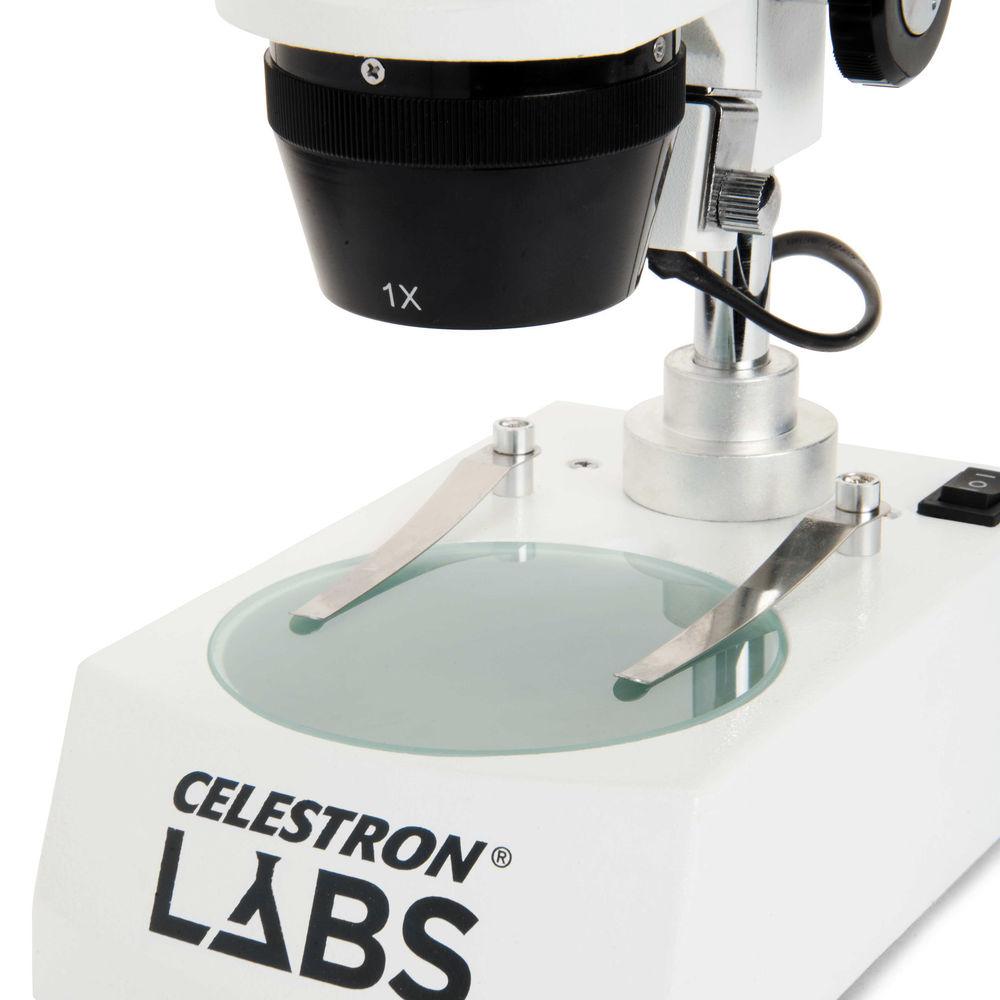

- Translucent: Light passes through the plate and illuminates the specimen from below

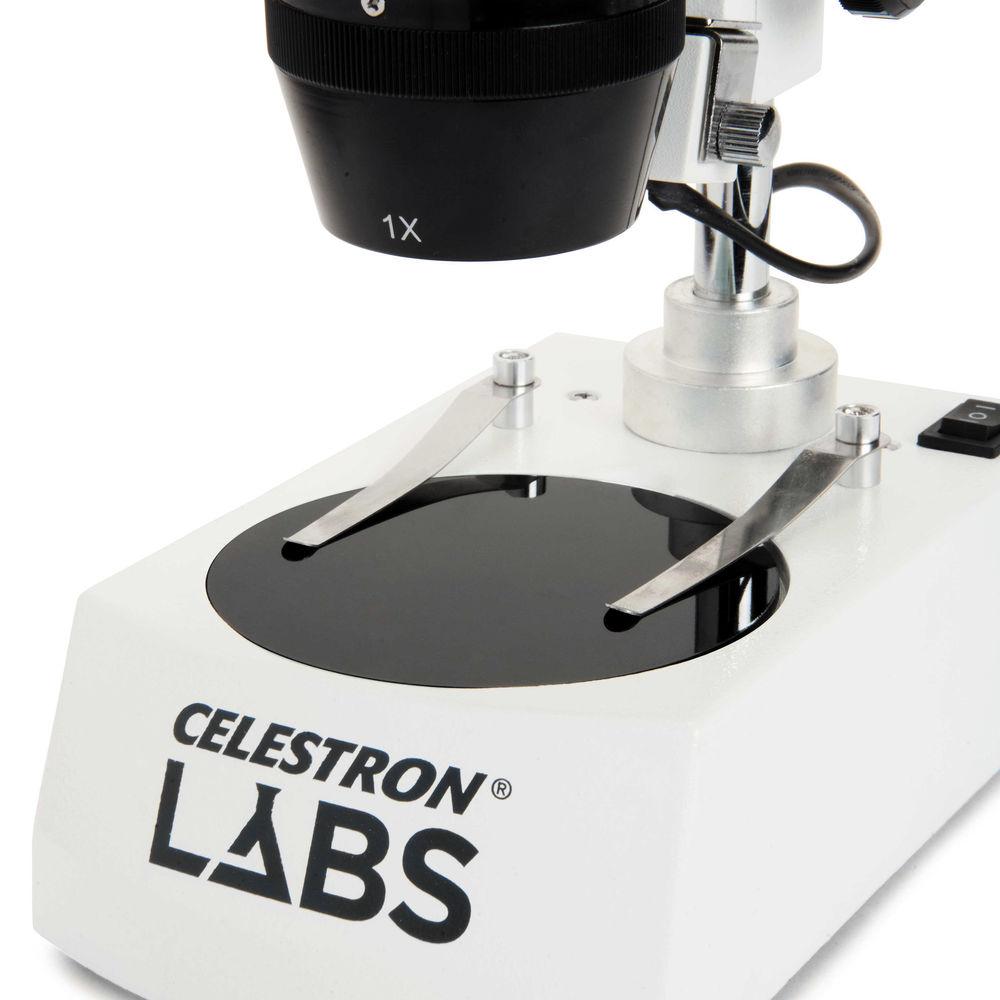

- Opaque: Optimal when using the top illuminator and helps to improve contrast on specimens for better viewing

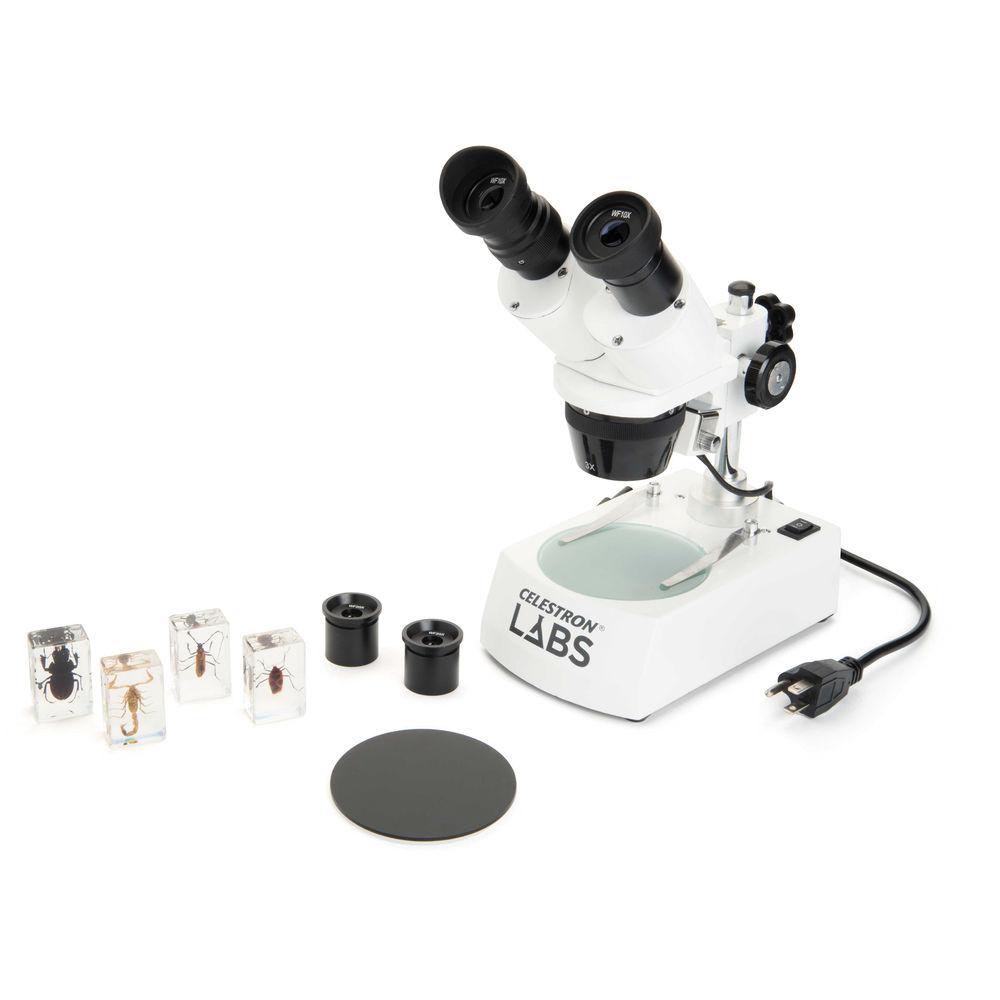

UPC: 050234442084 In the Box CELESTRON LABS S10-60 Stereo Microscope 2 x 10x Eyepieces 2 x 20x Eyepieces Opaque Stage Plate Translucent Stage Plate 4 x Prepared Insect Specimens Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CELESTRON LABS S10-60 Stereo Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCELESTRON LABS S10-60 Specs | Microscope Type | Stereo | | Head | 45
