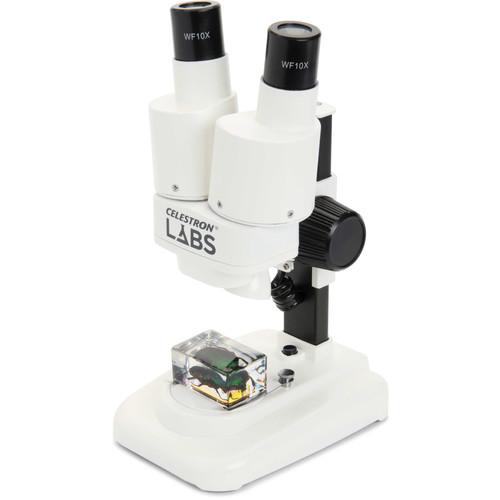

User Manual for CELESTRON LABS S20 Stereo Microscope Click to enlarge the picture
Contents of the user manual for the CELESTRON LABS S20 Stereo Microscope
- Product category: Microscopes CELESTRON LABS
- Brand: CELESTRON LABS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CELESTRON LABS Microscopes
 |
User manual for the CELESTRON LABS S20 Stereo Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CELESTRON LABS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CELESTRON LABS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CELESTRON LABS product will considerably shorten its lifespan!
|

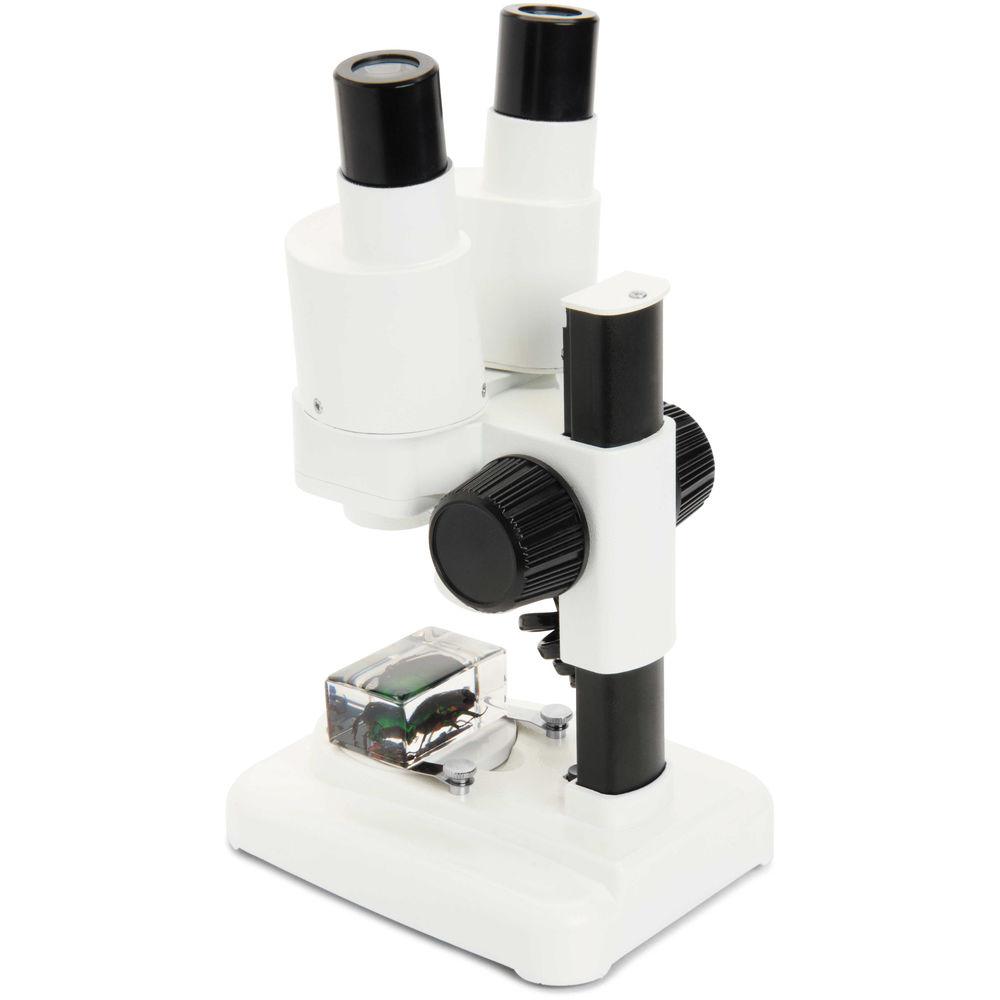

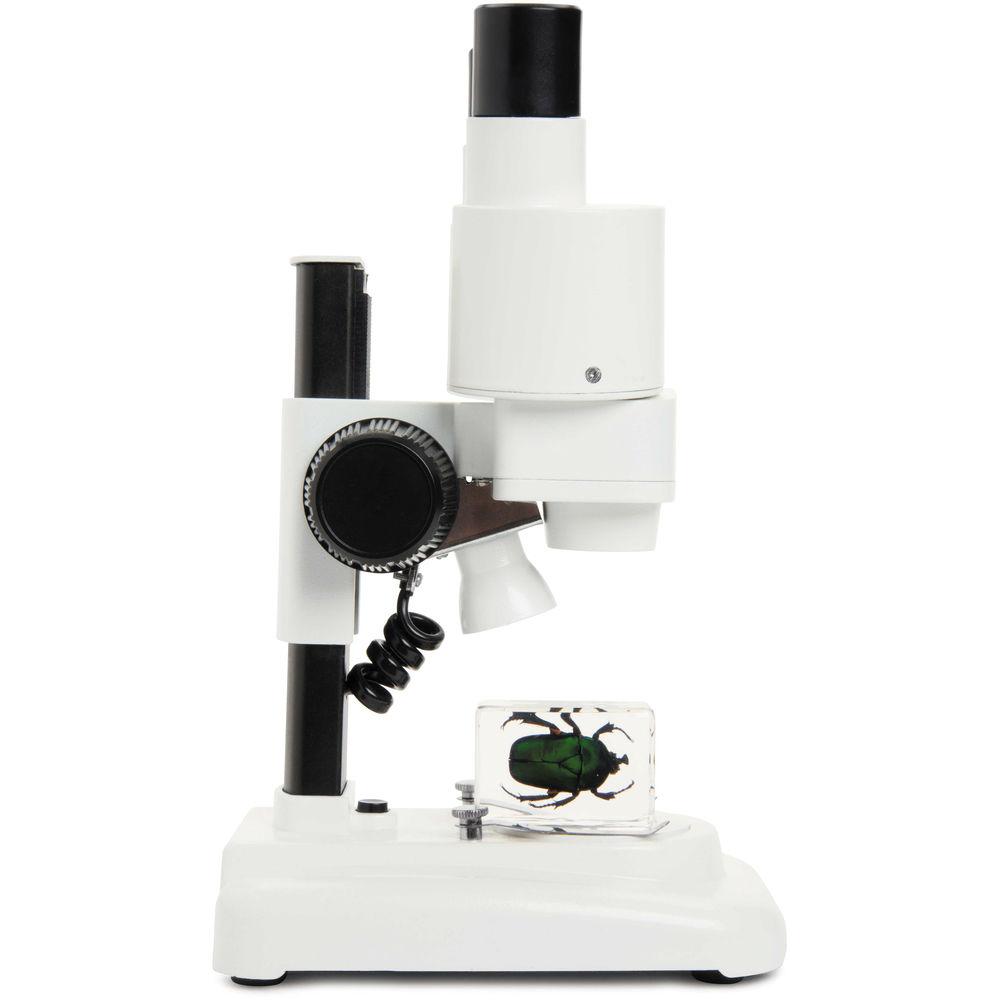

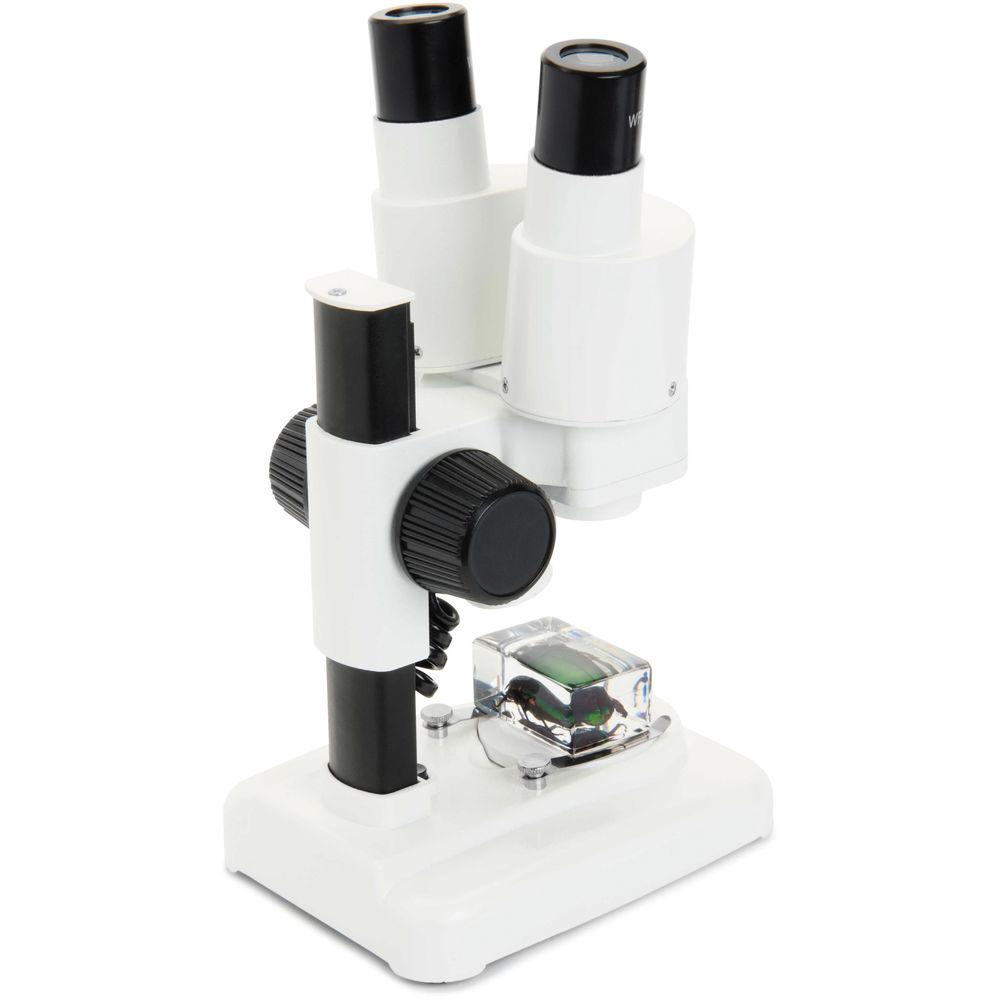

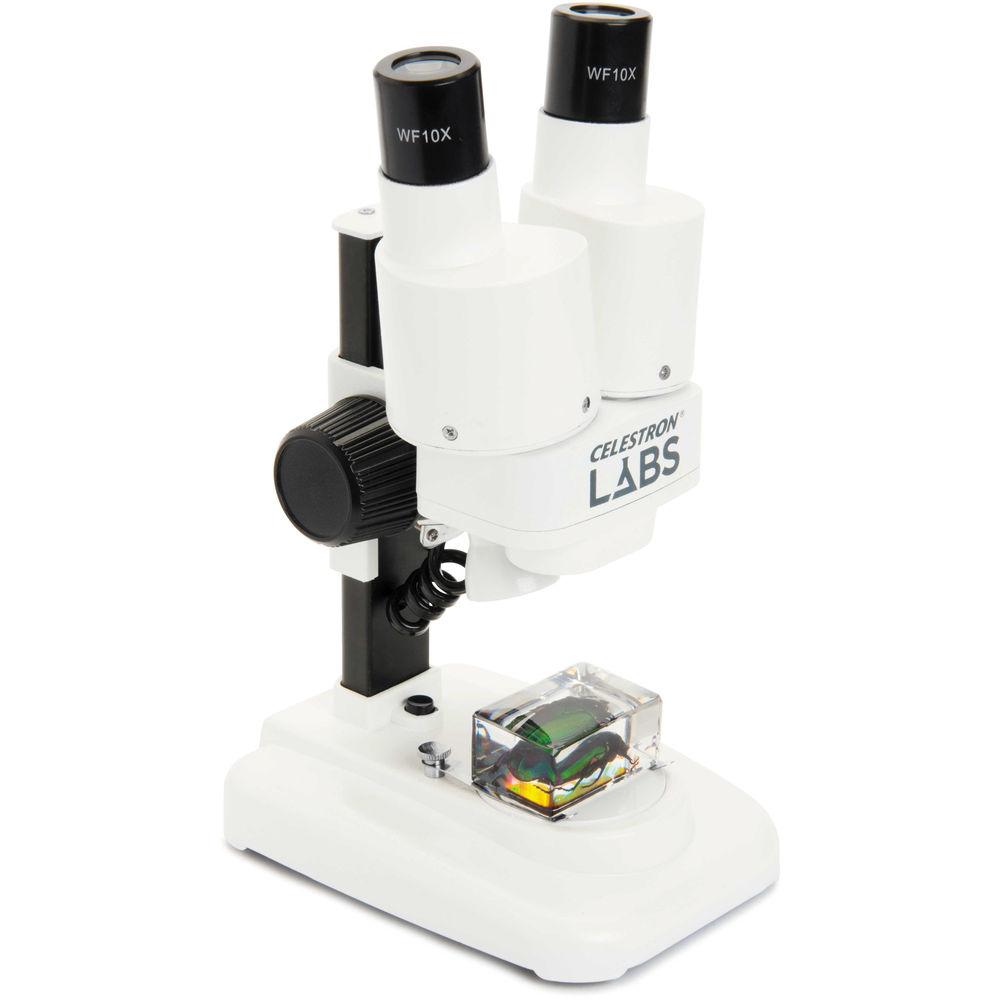

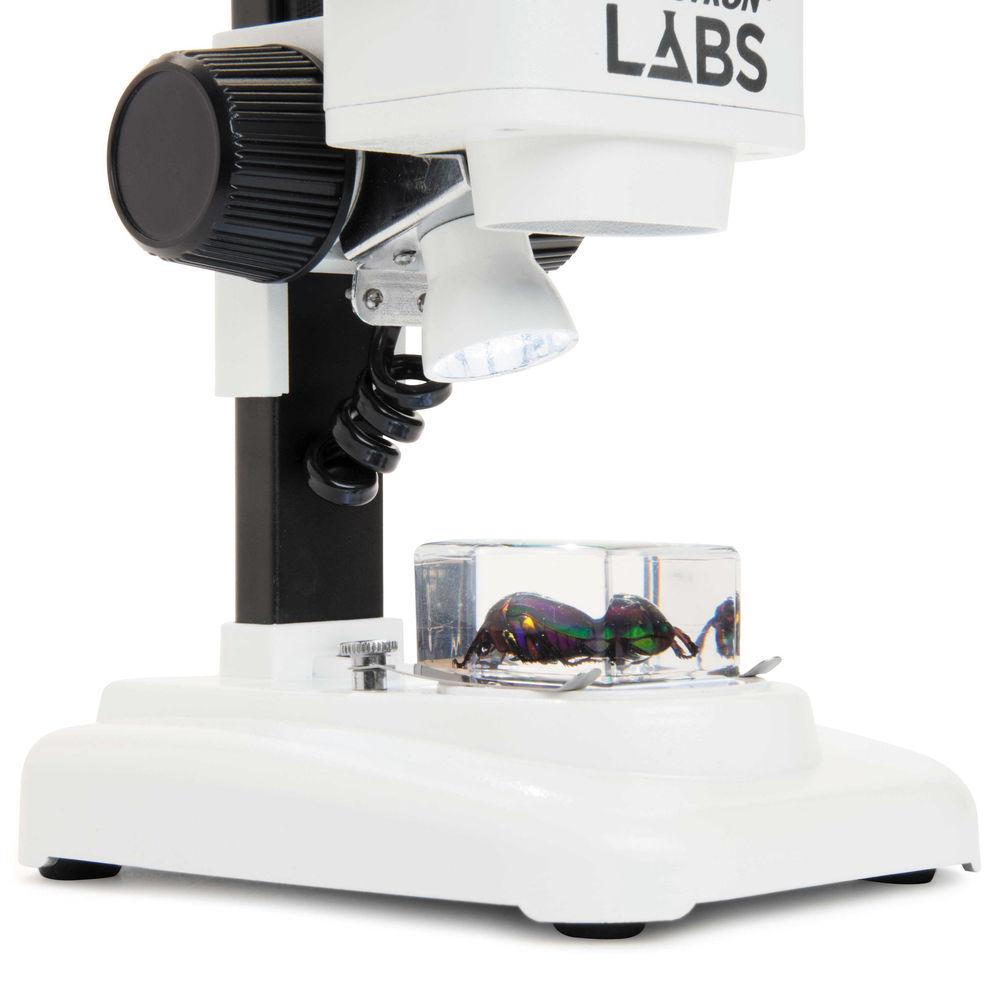

Product description Designed as an entry-level instrument for students and hobbyists, Celestron Lab's S20 Stereo Microscope is a versatile optic that is ideal for making 3D observations of a variety of subjects such as coins, minerals, insects, leaves, textiles, and documents. Dual eyepieces preserve stereoscopic vision, which renders images in three dimensions, as opposed to a flat field common in single-ocular microscopes. It has a magnification of 20x with a maximum working distance of 2.76". The head and nosepiece are attached to the microscope's pillar and are easily adjustable to set the correct working distance to achieve the sharpest focus. Specimens are illuminated from above with a space-saving and energy-efficient LED emitter. The S20 is battery powered, making it ideal for use in the field. - Optical System
-
- Two 10x wide field eyepieces
- Single 2x objective lens
- 20x magnification
- Lighting
-

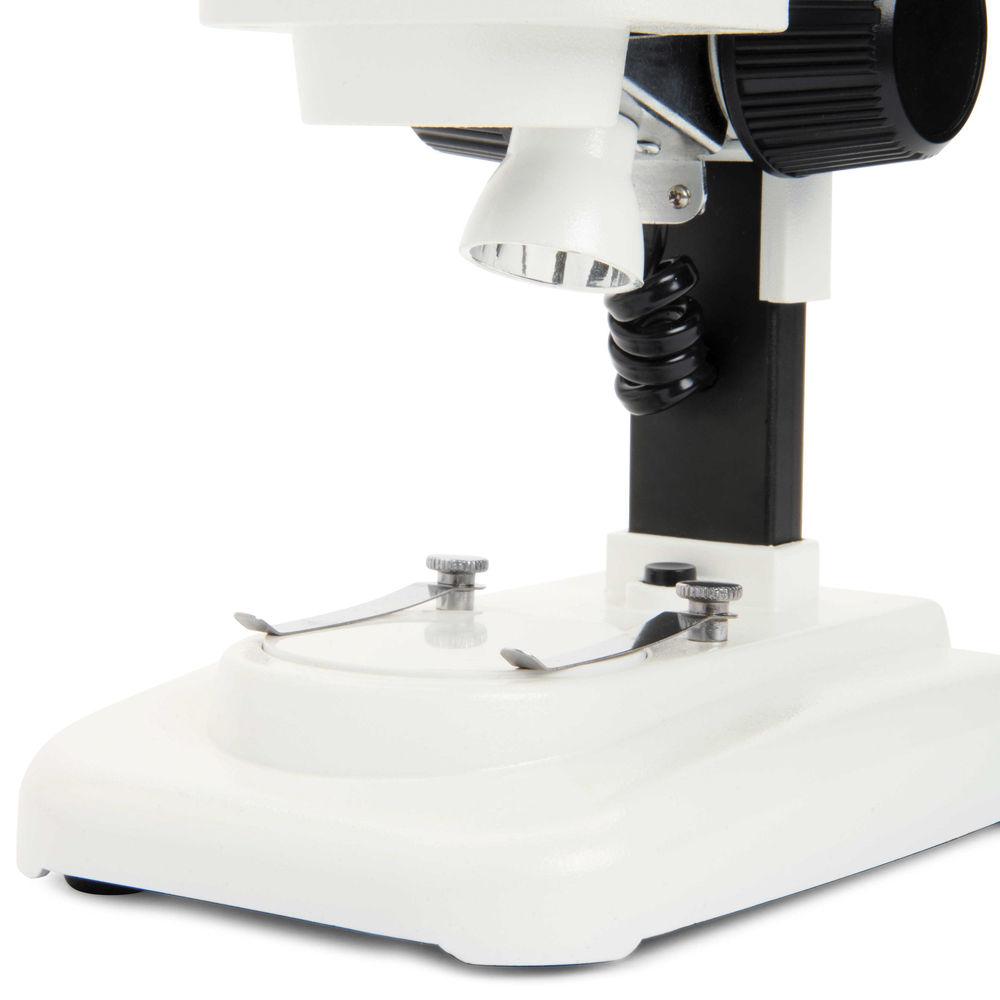

- Upper LED illumination
- On/Off switch
- Runs on two AA batteries for use in the field
- Focusing
-

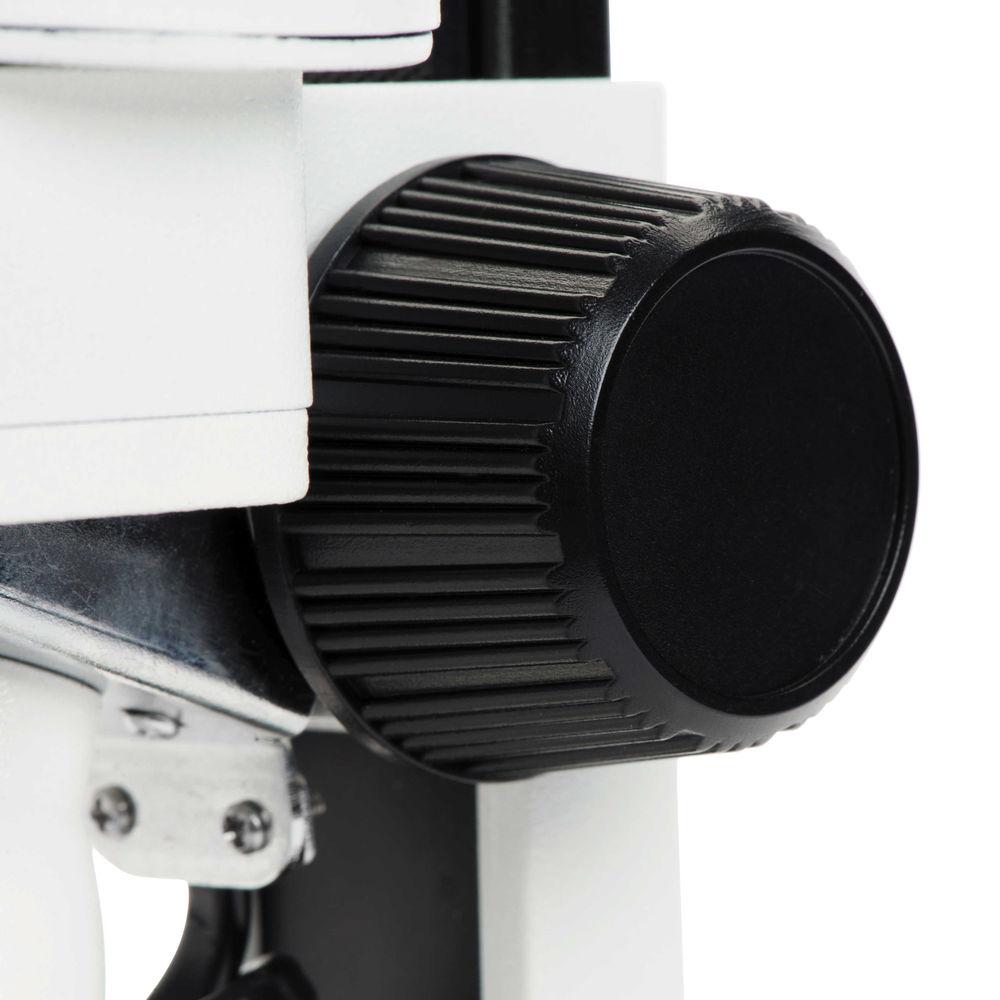

- Dual coarse focus knob, left and right sides
- Siedentopf interpupillary adjustment accommodates a wide range of users
- Right-eye dioptric adjustment
- Stage
-
- Adjustable working distance, 2.76" maximum
- Stage is integrated into base with slide/specimen clips

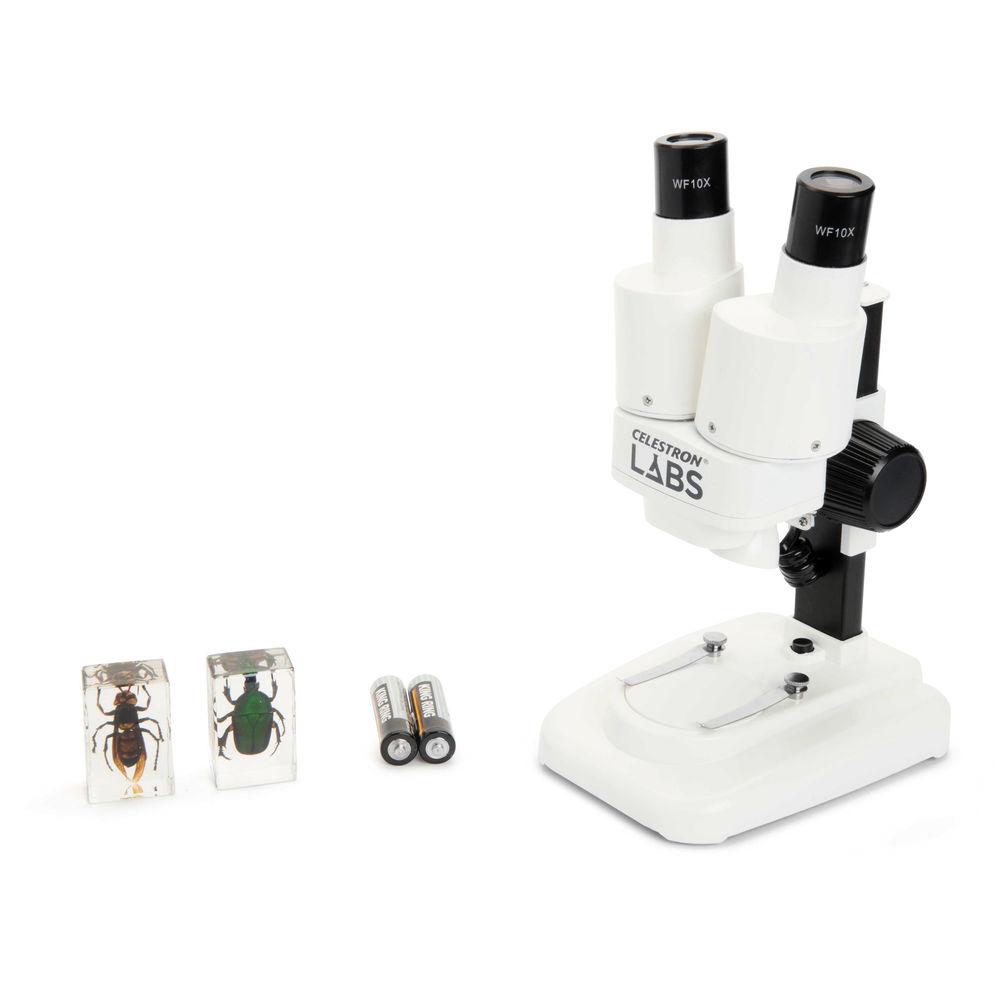

UPC: 050234442077 In the Box CELESTRON LABS S20 Stereo Microscope Stage Plate 2 x Insect Specimens 2 x AA Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CELESTRON LABS S20 Stereo Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCELESTRON LABS S20 Specs | Microscope Type | Stereo | | Head | Binocular | | Nosepiece | 1-Position Nosepiece | | | | Objective | 2x | | Eyepiece | 10x Wide Field | | Focusing | Coarse | | | | Battery | 2 x AA | | Interpupillary Adjustment | 55 to 75 mm / 2.2 to 3" | | Dimensions | L: 5.3 x W: 4.0 x H: 9.8" / L: 13.5 x W: 10.2 x H: 24.8 cm | | Weight | 18 oz / 510.3 g | | | | Package Weight | 1.81 lb | | Box Dimensions (LxWxH) | 11.15 x 7.15 x 5.75" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
