User Manual for Celestron LandScout 12-36x60 Spotting Scope with Tripod Click to enlarge the picture
Contents of the user manual for the Celestron LandScout 12-36x60 Spotting Scope with
- Product category: Spotting Scopes Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Spotting Scopes
 |
User manual for the Celestron LandScout 12-36x60 Spotting Scope with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More - Celestron LandScout Spotting Scope Product Overview

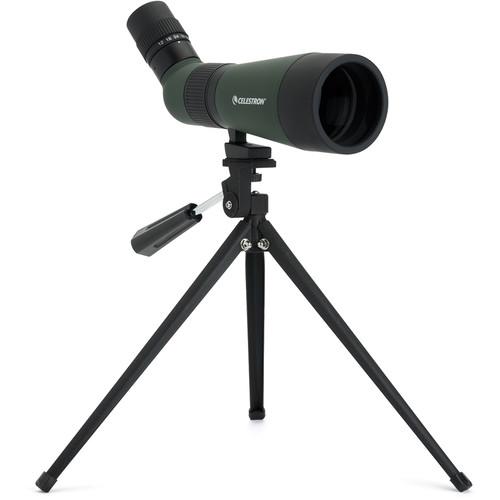

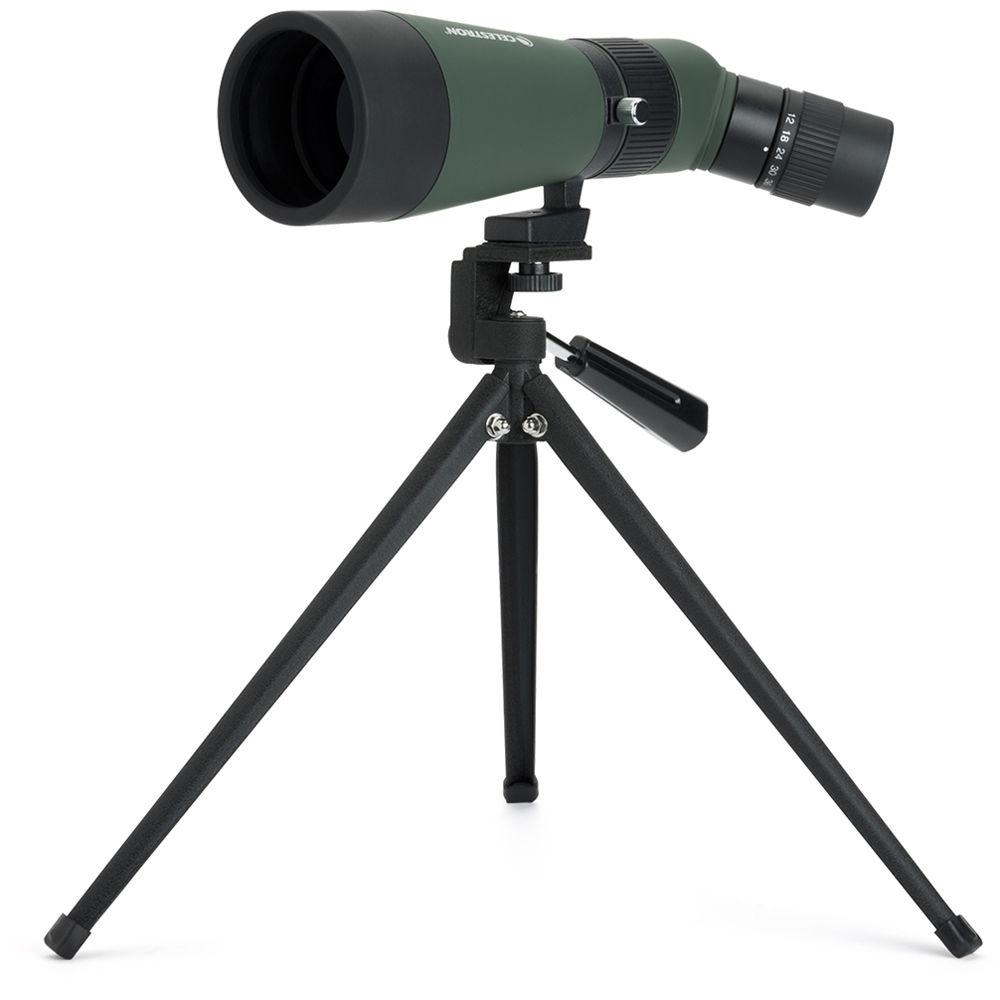

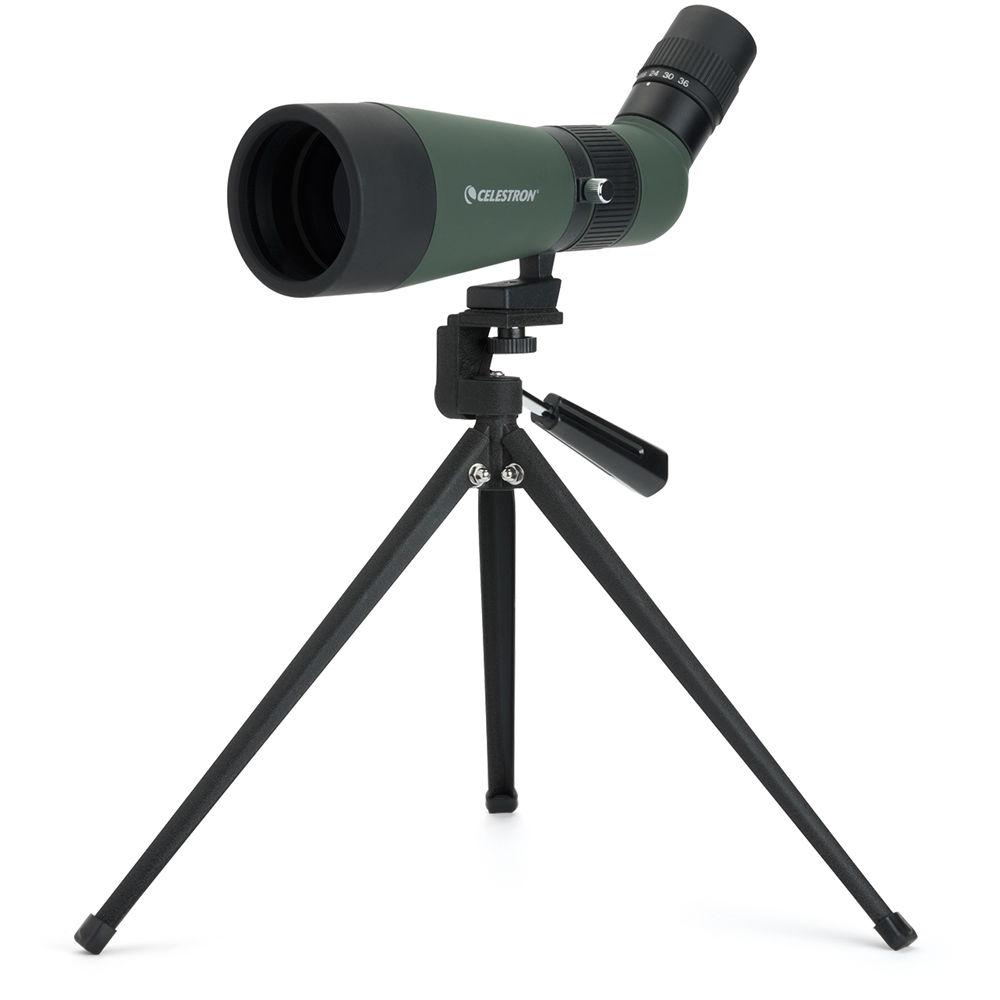

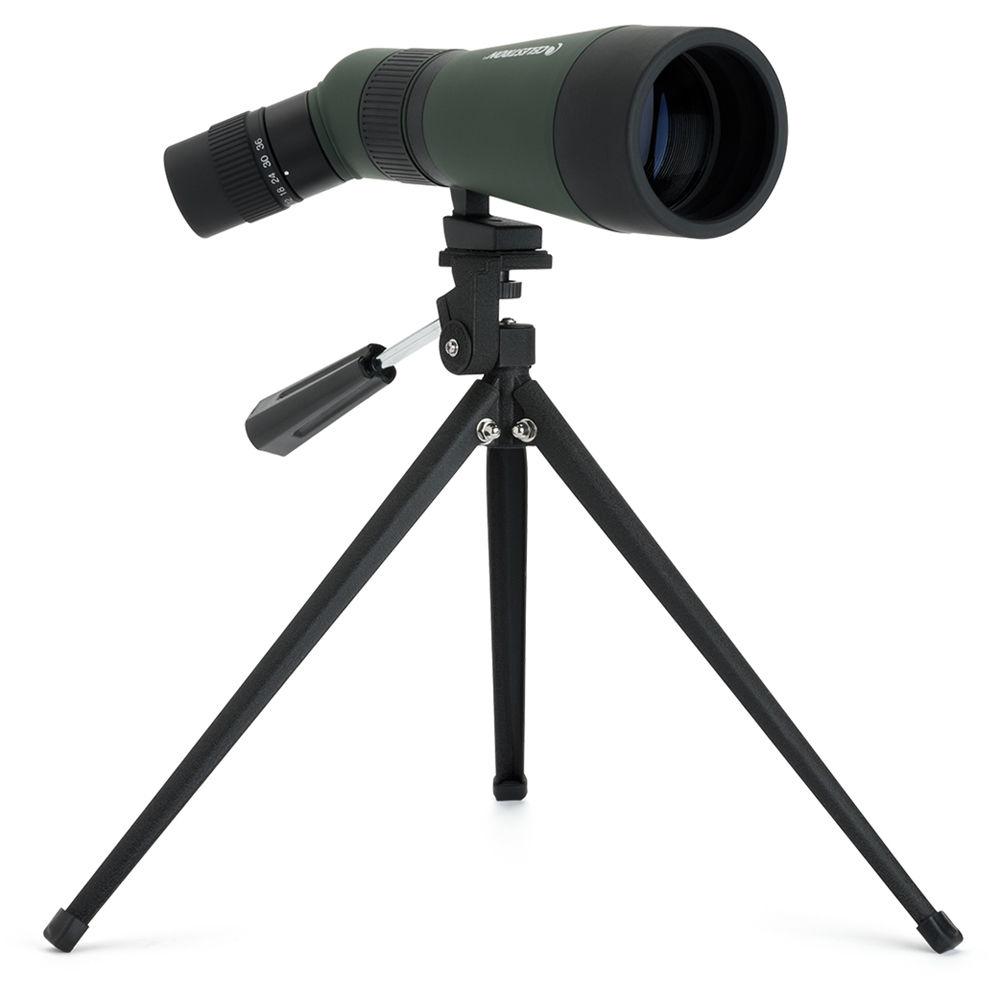

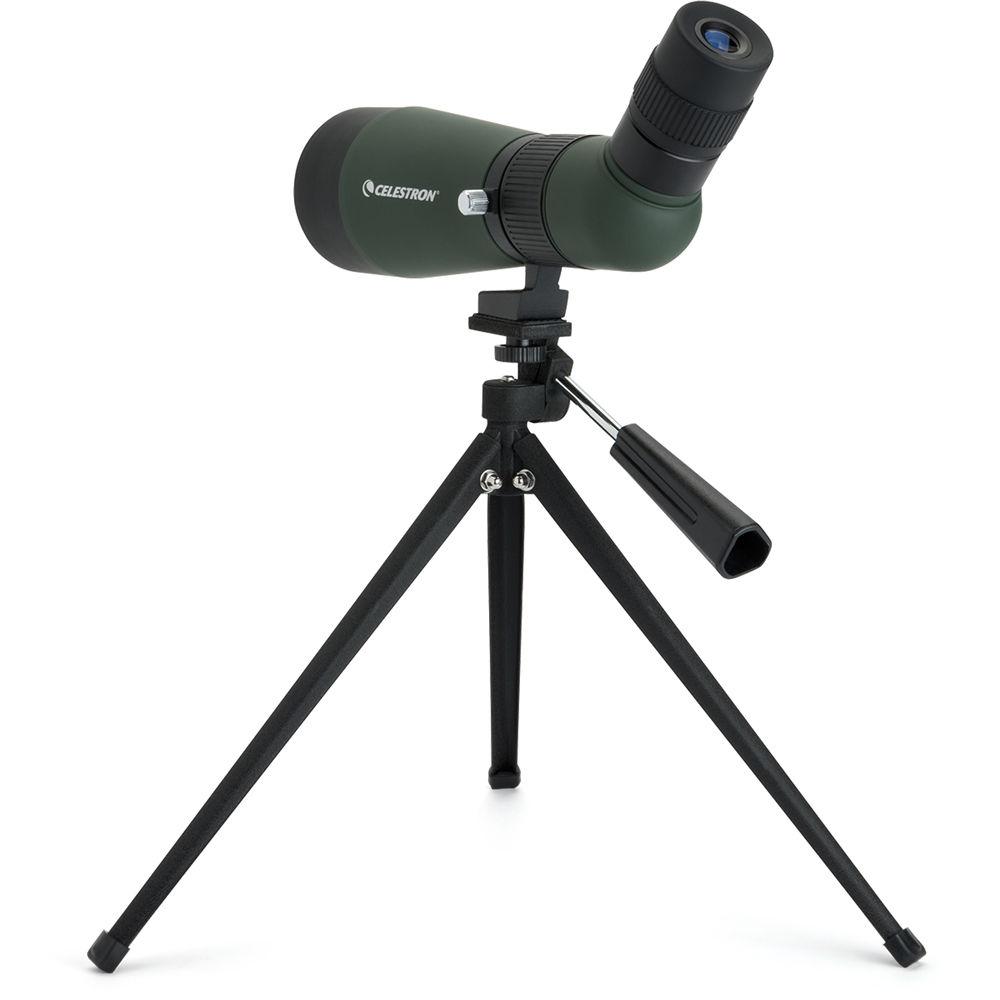

The angled-viewing LandScout 12-36x60 Spotting Scope from Celestron is a lightweight entry-level zoom optic designed to be easy on the budget and easy to transport. This LandScout spotting scope has a built-in 12-36x eyepiece and includes a tabletop tripod, providing the observer with a system that is ready to start glassing right out of the box. A 60mm objective lens and fully coated optics transmit adequate brightness and detail to handle a range of tasks, including nature observation and spotting at the rifle range. The integrated tripod mounting collar rotates, providing the observer with alternate viewing orientations to suit their use. This configuration of the LandScout has a generously sized non-slip rubber focus ring and a 33-foot close-focusing distance that makes the 12-36x60 spotting scope well equipped for birding and other outdoor activities. - Optical Performance
-
- 12-36x magnification, 60mm objective
- Fully coated optics, BK7 prisms
- 157-84' field of view at 1000 yd
- 18-14mm eye relief, 5-1.7mm exit pupil
- 33' close-focusing distance
- Use and Handling
-

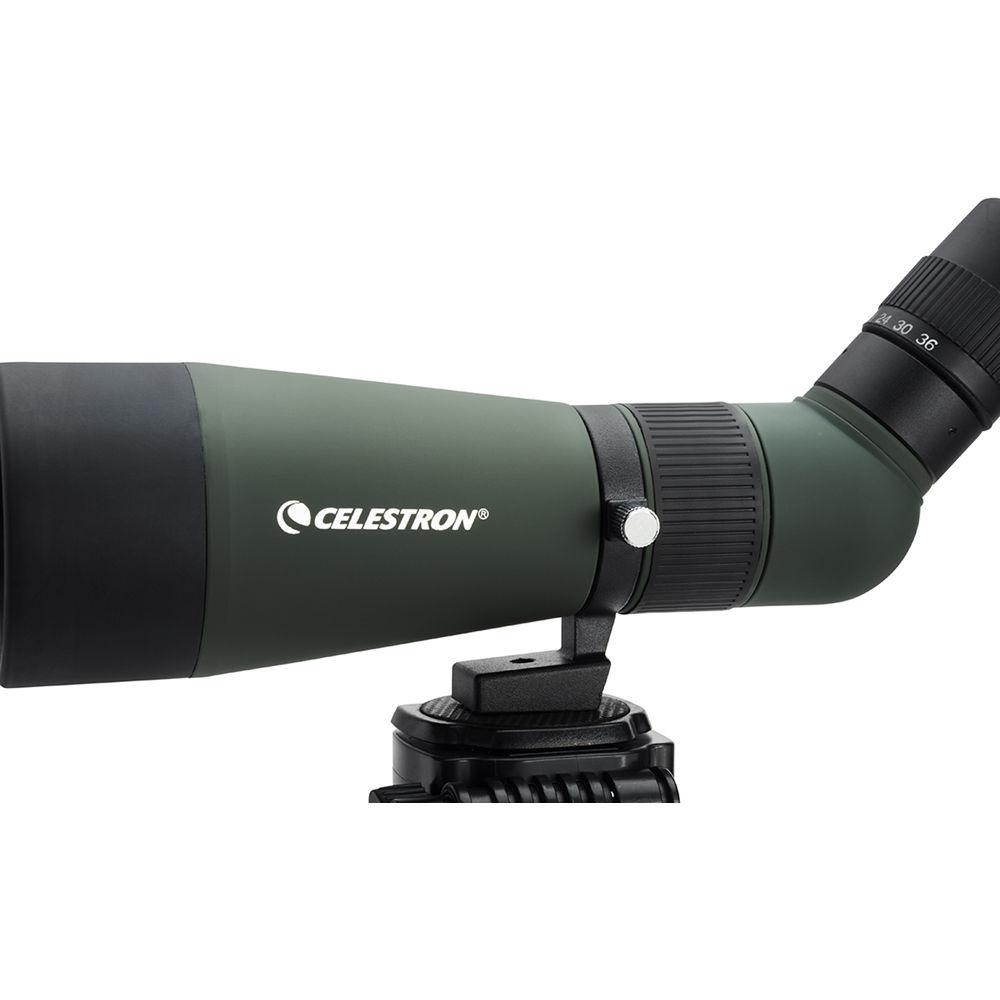

- Rotating and locking tripod collar with 1/4"-20 socket
- Angled-viewing eyepiece, non-slip rubber magnification ring
- Non-slip rubber focus wheel
- Includes tabletop tripod

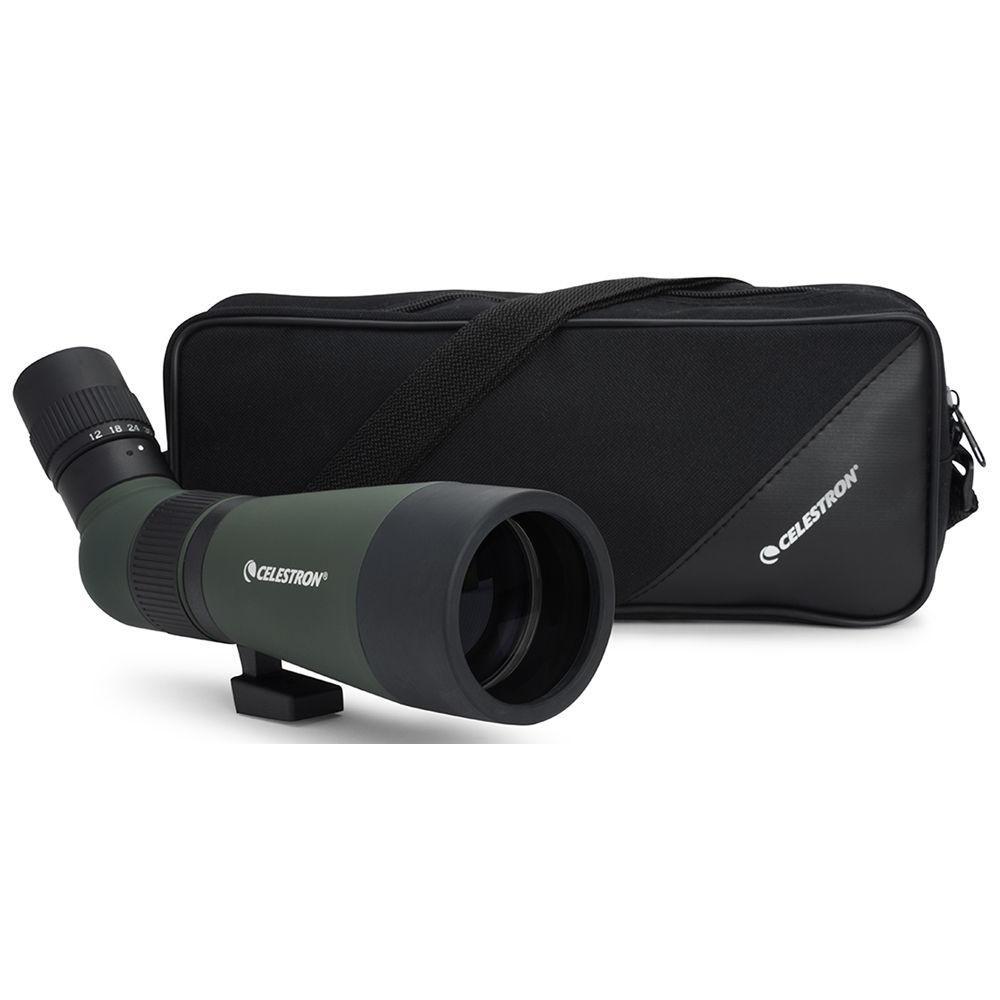

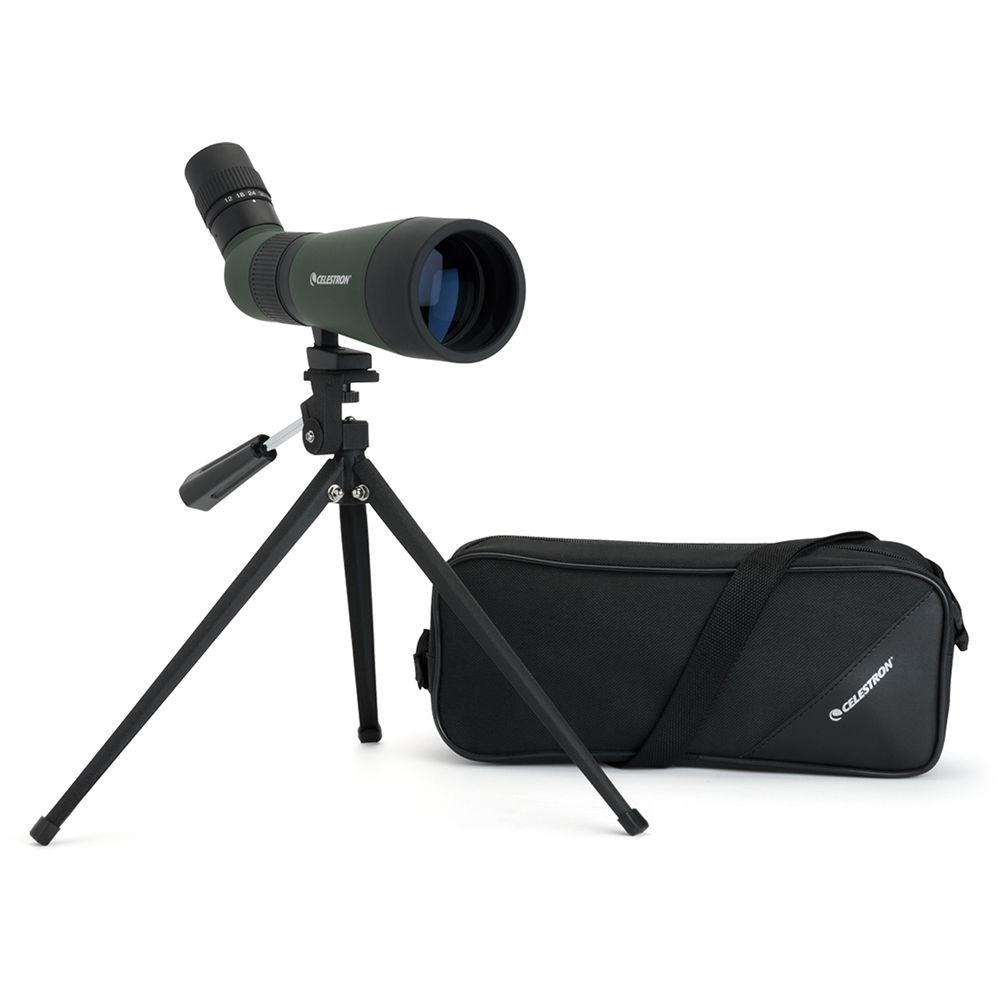

UPC: 050234523226 In the Box Celestron LandScout 12-36x60 Spotting Scope with Tripod (Angled Viewing) Table Top Tripod Soft Carrying Case Limited Lifetime Warranty Manual PDF 2.8mbdwecswyrzwcb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron LandScout 12-36x60 Spotting Scope with Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 52322 Specs | | | Magnification | 12 to 36x | | Objective Lens Diameter | 60 mm | | Angle of View | 12x: 3.0° (Actual)
36x: 1.6° (Actual) | | Field of View | 12x: 157.0' @ 1000 yd / 40.0 m @ 1000 m
36x: 84.0' @ 1000 yd / 20.7 m @ 1000 m | | Minimum Focus Distance | 33.0' / 10.0 m | | Exit Pupil Diameter | 12x: 5 mm
36x: 1.7 mm | | Eye Relief | 18.0 to 14.0 mm | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 10.7 x H: 2.9 x W: 5.3" / L: 27.3 x H: 13.6 x W: 7.3 cm | | Weight | 18.1 oz / 513.0 kg | | | | Package Weight | 2.745 lb | | Box Dimensions (LxWxH) | 13.7 x 8.8 x 3.75" |
