Product description

  • MICRODIRECT 1080P HDMI HANDHELD DIGITAL MICROSCOPE

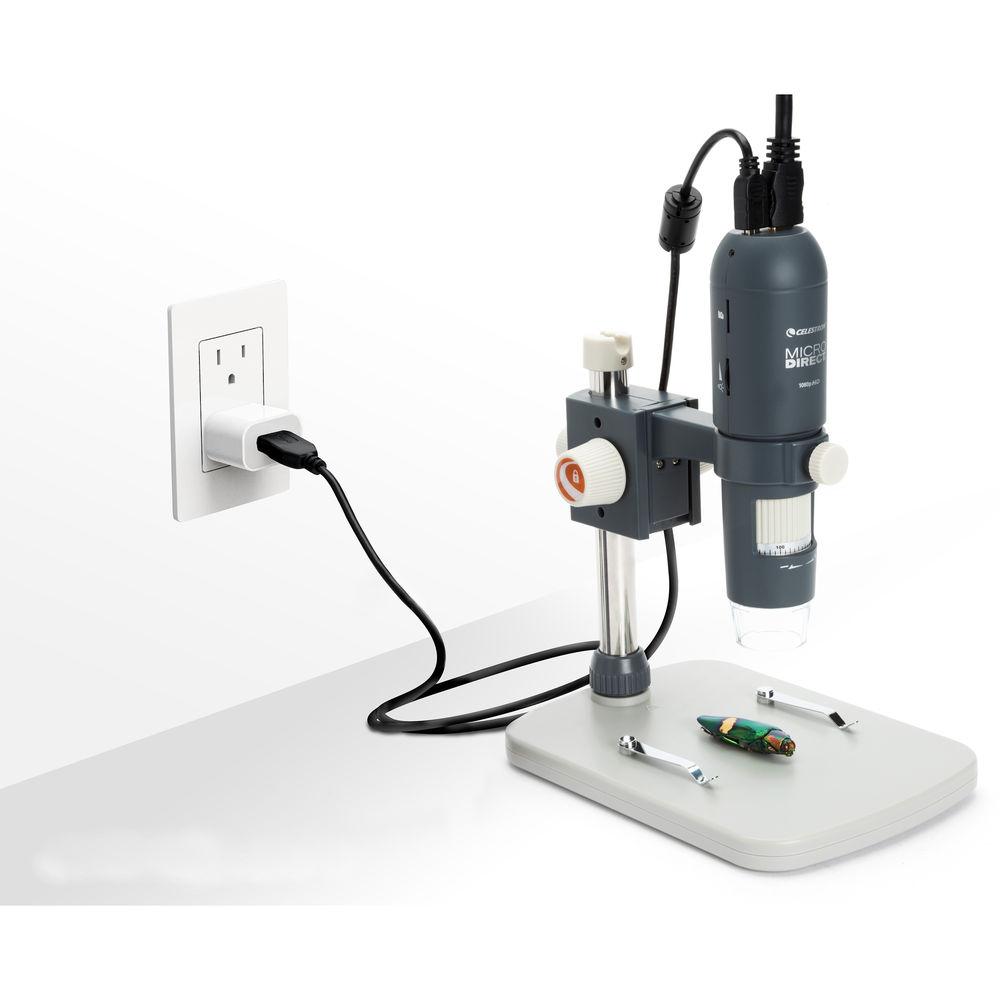

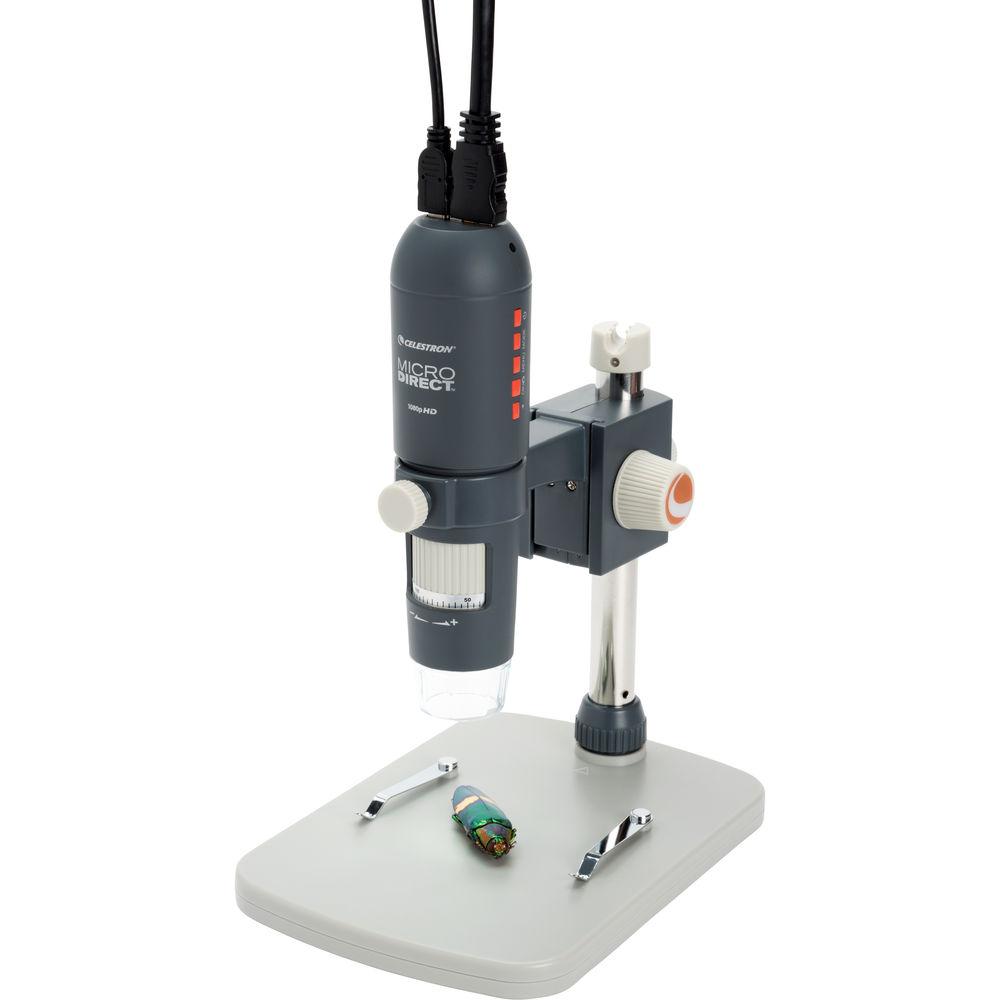

Celestron's MicroDirect 1080P HDMI Handheld Digital Microscope is a compact magnifying tool that offers handheld and stand-mounted operating options. Using the included wide stand, you can adjust and secure a working distance and horizontal position above your sample. The base also provides two clips to hold your slides or flat samples. With its high-resolution 3.5MP imaging sensor and an LED illumination ring, you can capture bright and crisp images and 30 fps videos. Optimized for 3D examinations, this kit also can be useful to study miniature artifacts by bumping up the magnification power to 220x on a 20" monitor. The device also provides options for streaming videos out via its mini-USB or mini-HDMI ports, saving your visual data to a 32GB microSD slot, and controlling shutter speeds manually or through your PC.
    Sensor, Optical System, & Illumination
    • 3.5MP, 1/3" CMOS sensor
    • 10x - 220x magnification
    • Shutter can be controlled manually or from PC
    • Focusing range from 0 to 1.4"
    • LED ring illuminator
      Photo/Video Capture, Memory, & Ports
      • Streams 1080p videos via a mini-HDMI port at 30 fps
      • Captures 30 fps AVI videos: HD 720p, 640 x 480
      • Saves visual data to a PC or a built-in microSD card
      • Captures interpolated JPEG photos with resolution of up to 14.0 MP or 5120 x 2880

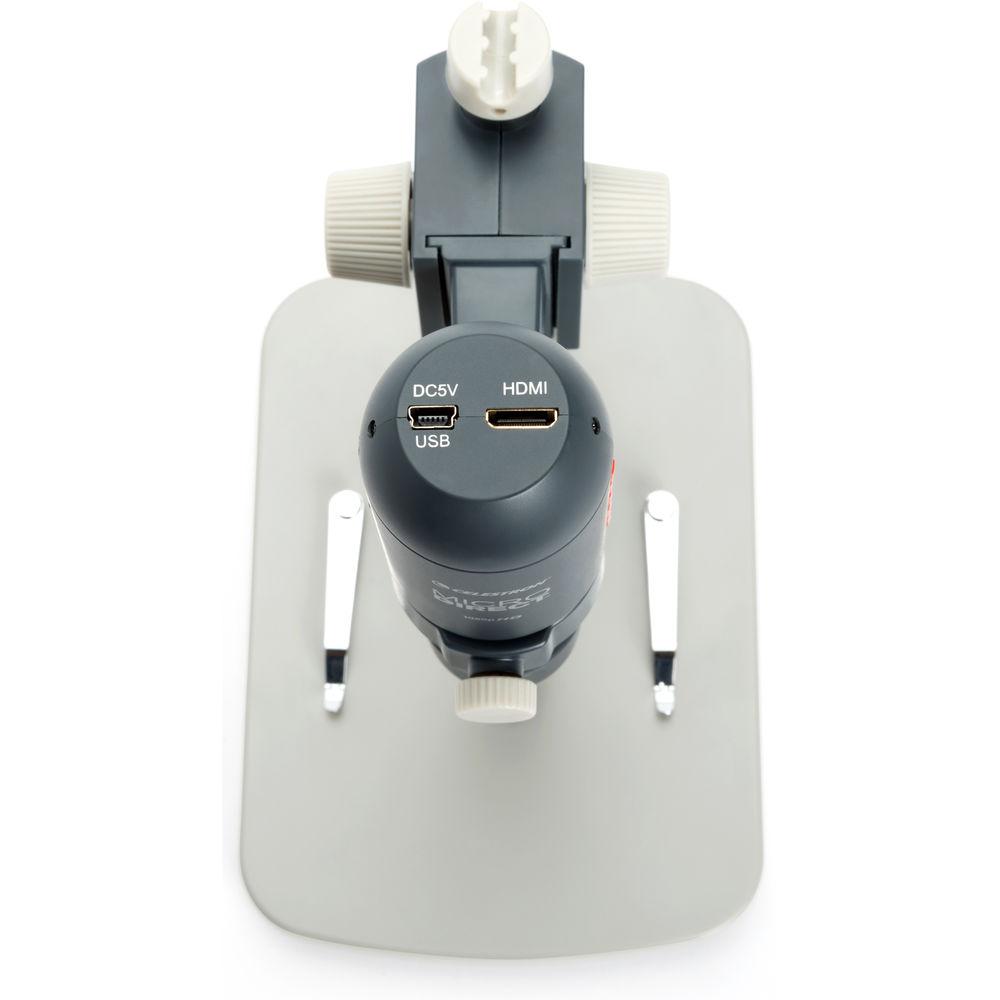

      • Mini-HDMI video out port for direct streaming to HDTV displays

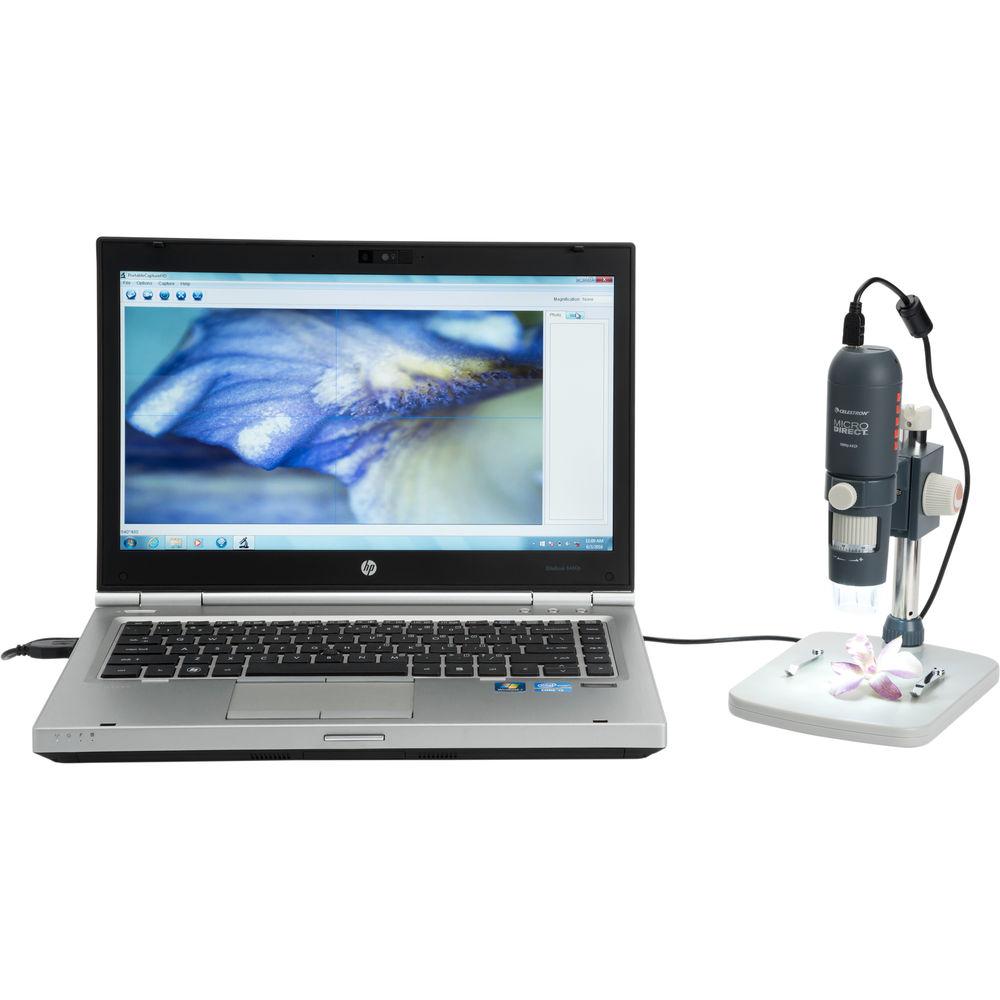

      • Mini-USB port allows connectivity to your PC
        Stage, Focusing, and Construction

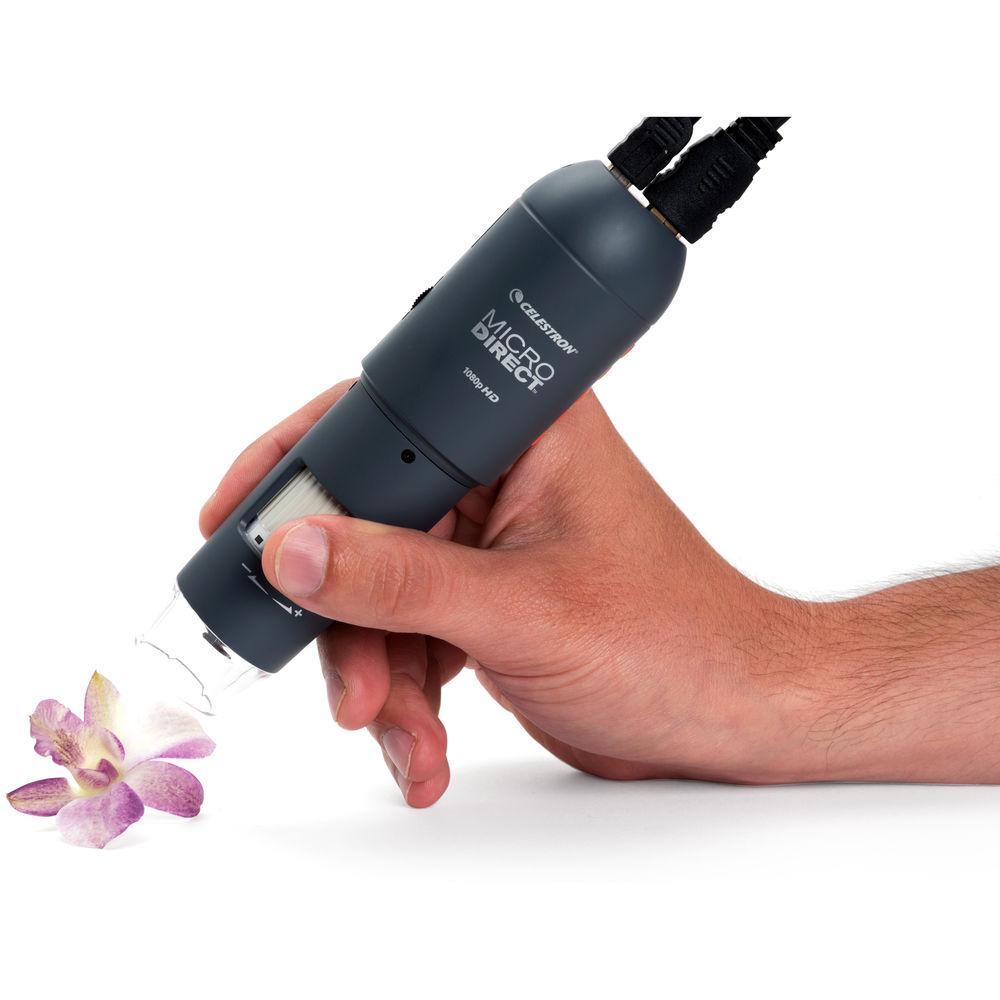

        • Handheld or mounted operation

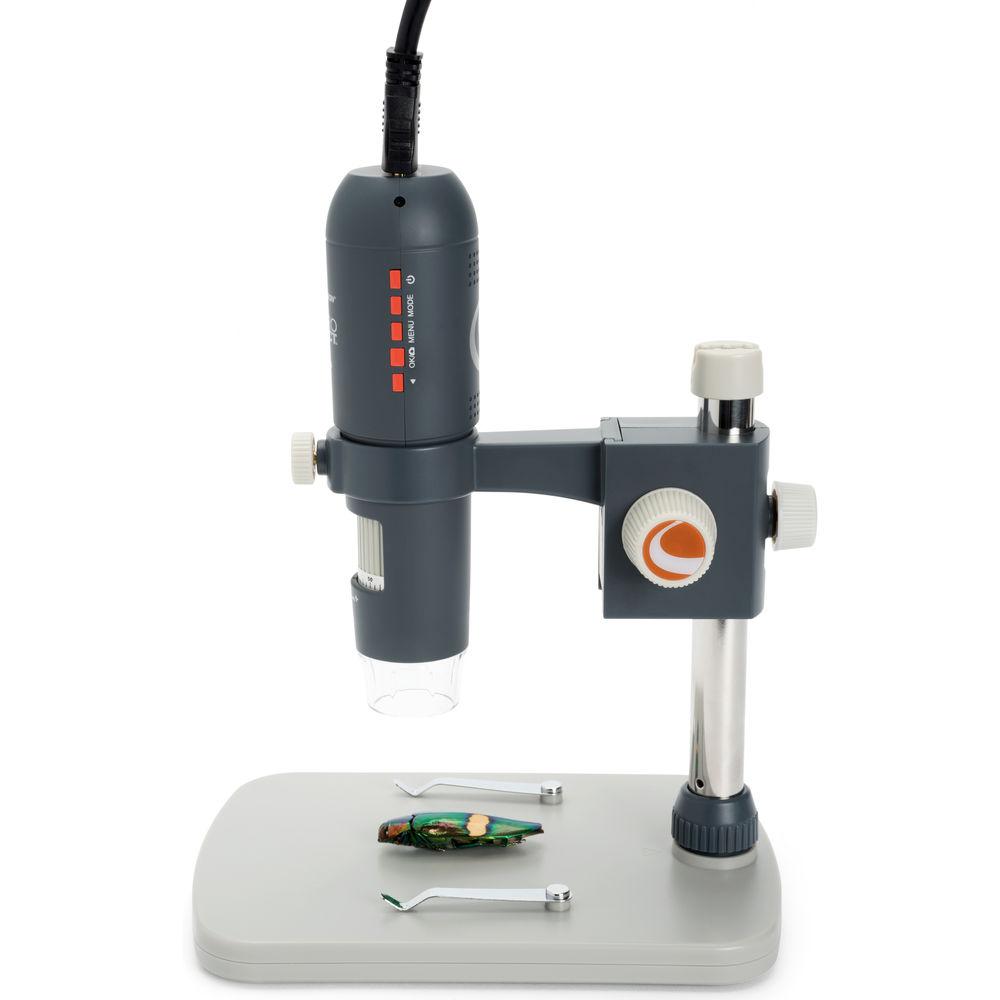

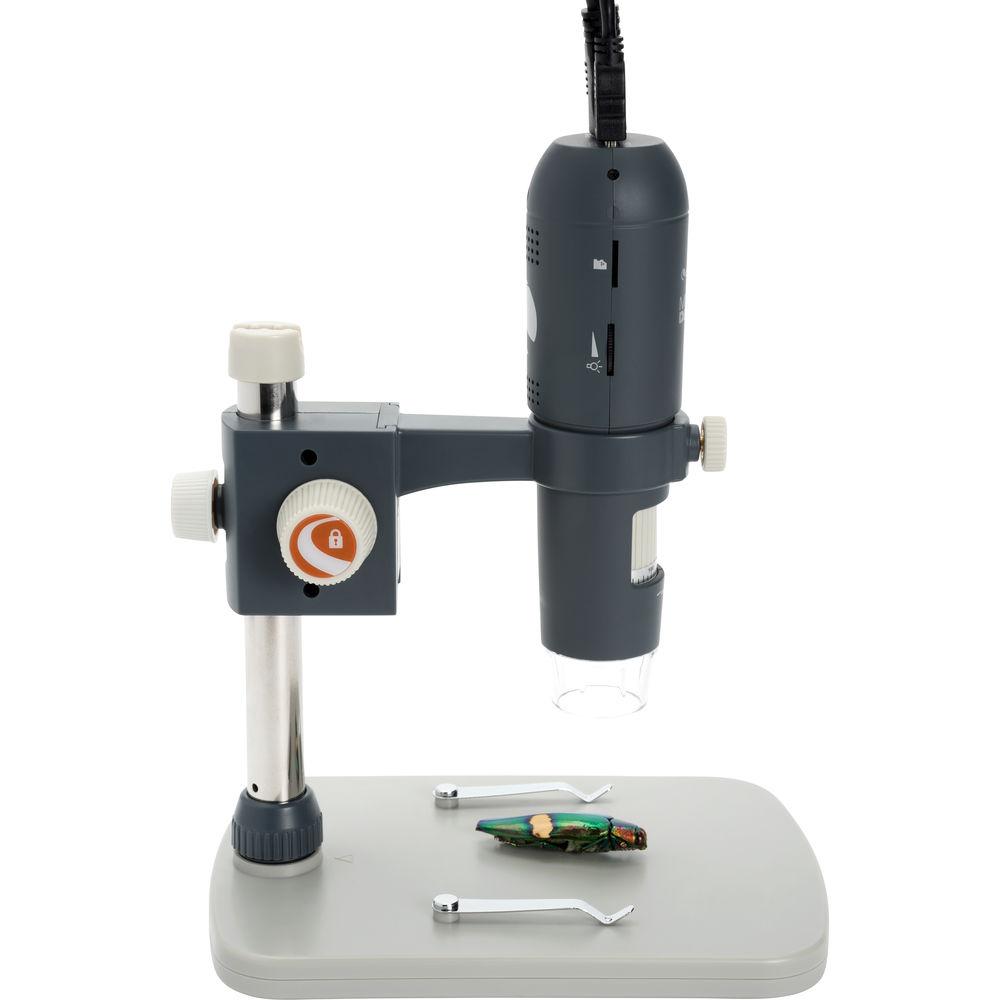

        • Pillar-type frame: stable base and two metal clips
        • Rod allows adjusting height (working distance) and horizontal position
        • Coarse-focusing adjustment with a knurled knob on the post
        • Fine-focusing wheel is built into the microscope body

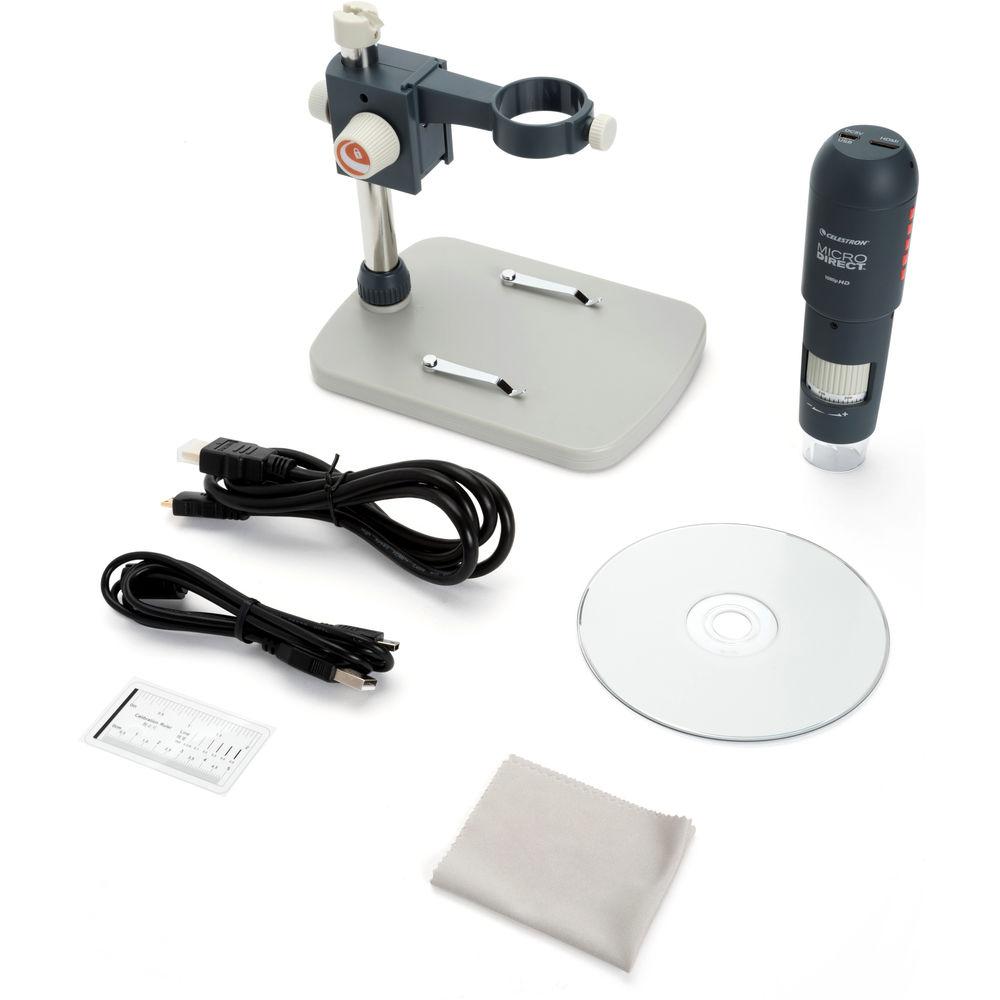

        UPC: 050234443166 In the Box Celestron MicroDirect 1080P HDMI Handheld Digital Microscope (Gray)
      • Mini-USB/USB Cable
      • Mini-HDMI/HDMI Cable
      • Software CD
      • Calibration Ruler
      • Pillar Stand
      • Limited 2-Year Warranty
      Table of Contents




Upload User Manual

Have you got an user manual for the Celestron MicroDirect 1080P HDMI Handheld Digital Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Celestron 44316 Specs

Optical Magnification 10x to 220x
Max Resolution 3.5 MP
Additional Resolutions 14 MP: 5120 x 720 (Interpolated)
Sensor 1/3" CMOS
Image File Format JPEG
Working Distance 0 to 1.4" / 0 to 35 mm
Video Format 1280 x 720p at 30 fps
640 x 480 at 30 fps
File Format AVI
Wired Connectivity HDMI, USB 2.0
Memory Card Type microSD (Up to 32 GB)
Compatible Operating Systems Windows XP or Later
Supported Languages Dutch
English
French
German
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Power USB Power
