User Manual for Celestron NexImage 10 Solar System Color Eyepiece Imager Click to enlarge the picture
Contents of the user manual for the Celestron NexImage 10 Solar System Color
- Product category: Accessories Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Accessories
 |
User manual for the Celestron NexImage 10 Solar System Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

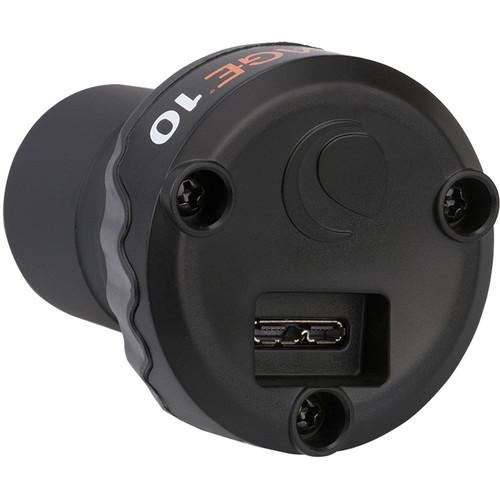

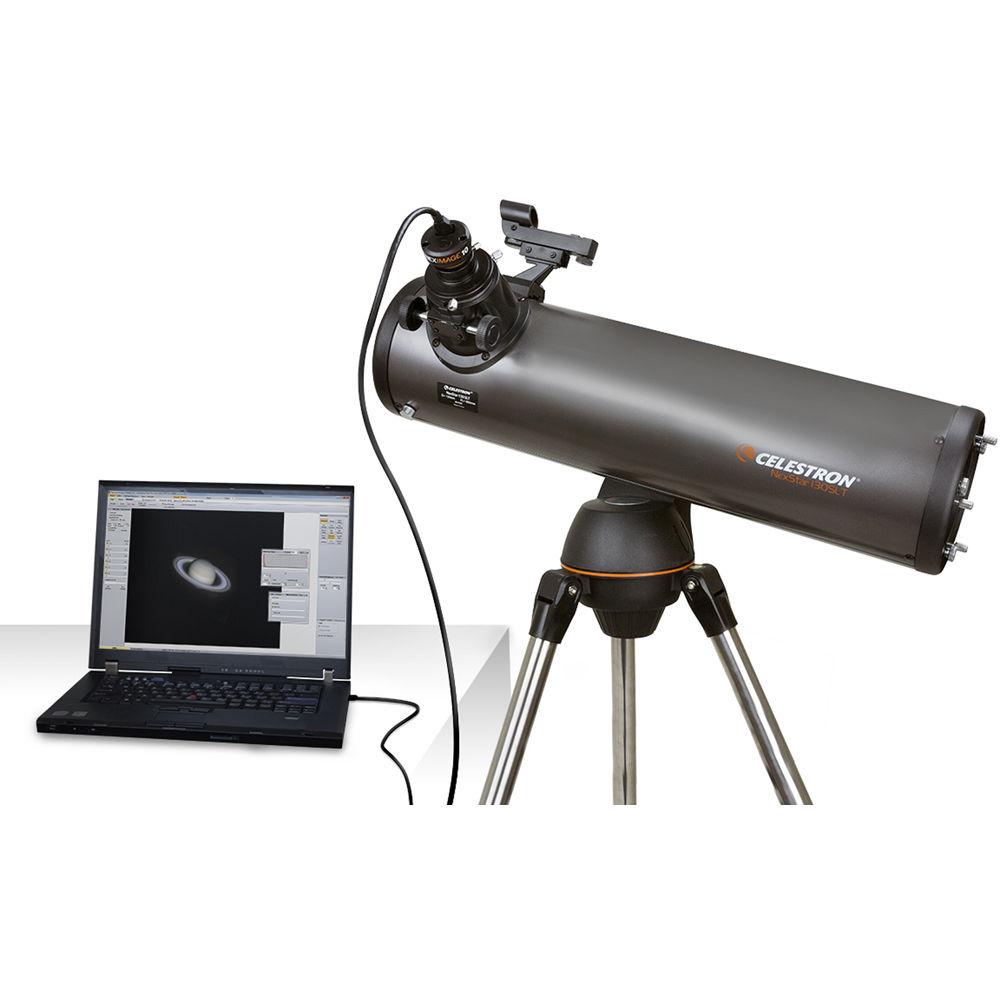

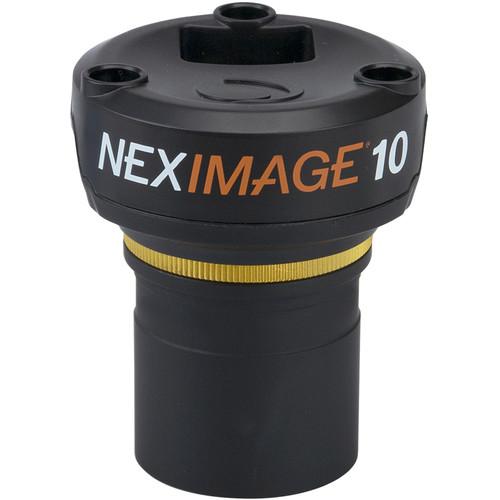

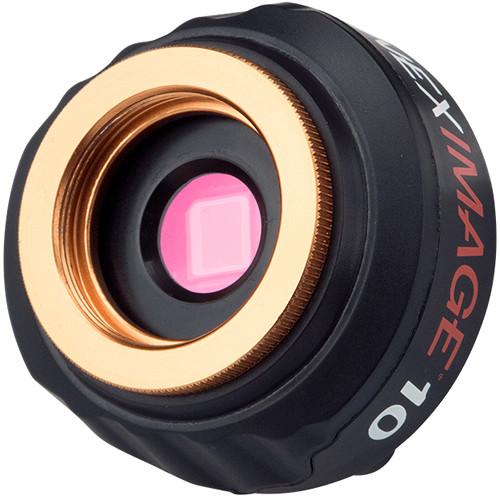

Product description Eyepiece Imagers: Capture the Universe and Share, Tweet, or Whatever It Read More The NexImage 10 Solar System Color Eyepiece Imager from Celestron is a powerful update from its earlier iteration with a larger and higher-resolution imaging sensor, longer exposure capability, and - most notably - high-speed USB 3.0 connection to your computer for fast data transfer. This color astroimager is designed to capture images of the Moon, planets, and the Sun (when used with the proper filter systems) within our solar system. It's compatible with any telescope that accepts 1.25" eyepieces and accessories, or you can directly connect it to a C-mount threaded back.An ON Semi MT9J003 color CMOS sensor captures 3856 x 2764 resolution images with exposure speeds from 0.0001 to 10 seconds. Using a color imager lets you capture full-color images across the entire visual spectrum without having to attach or change filters. The included Registax software analyzes each frame of video, throws away the ones affected by atmospheric turbulence, and perfectly aligns the best frames. With the ability to tweak settings such as gamma, sharpness, RGB balance, and color mixing, the resulting stacked single image is bright, clear, and focused. - Imaging Performance
-
- ON Semi MT9J003 Color CMOS
- 3856 x 2764 image resolution
- Sensor size: 6.4 x 4.6mm
- Exposure range from 0.0001 to 10 seconds
- >200 fps, 30 fps on full-frame
- Rolling shutter
- Anti-reflection multi-coatings with IR-block on cover glass
- Capture full-color images across the entire visual spectrum without having to use or change filters
- High-speed data transfer via USB 3.0 to compatible PCs
- Included Software Suite
-
- Celestron iCap software for image capture and export
- RegiStax stacking software automatically filters the best images, aligns, and stacks images
- Software compatible with Windows and Mac OS
- Software Compatibility
-
- iCap
- IC Capture
- DirectShow
- FireCapture

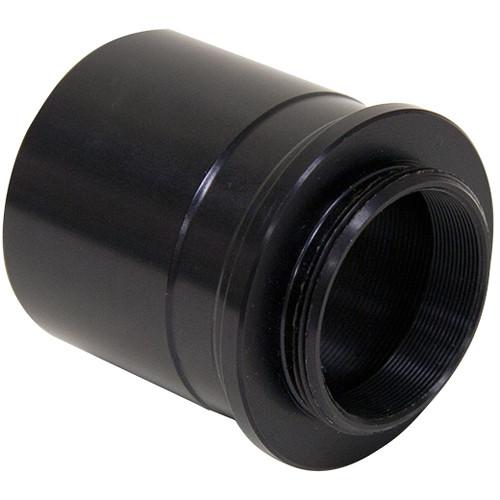

UPC: 050234937085 In the Box Celestron NexImage 10 Solar System Color Eyepiece Imager (1.25") 1.25" Nosepiece 10' USB 3.0 Cable iCap Imaging Software Registax Stacking and Filtering Software Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron NexImage 10 Solar System Color Eyepiece Imager in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 93708 Specs | Imaging Sensor | ON Semi MT9J003 Color CMOS | | Sensor Size | 6.4 x 4.6 mm | | Resolution | 3856 x 2764 | | Back Focus Distance | With nosepiece: 13.1 mm | | Frame Rate | >200 fps, 30 fps at full-frame | | Exposure Range | 0.0001 to 10 seconds | | Barrel Diameter | 1.25", with nosepiece | | Mounting | C-thread | | Power Requirement | Powered by USB cable | | Operating Temperature | -40 to 104°F / -40 to 40°C | | Weight | 2.0 oz / 57.0 g | | | | Package Weight | 0.81 lb | | Box Dimensions (LxWxH) | 5.8 x 5.5 x 2.0" |
