User Manual for Celestron NexImage 5 Solar System Imager Click to enlarge the picture
Contents of the user manual for the Celestron NexImage 5 Solar System Imager
- Product category: Accessories Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Accessories
 |
User manual for the Celestron NexImage 5 Solar System Imager contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

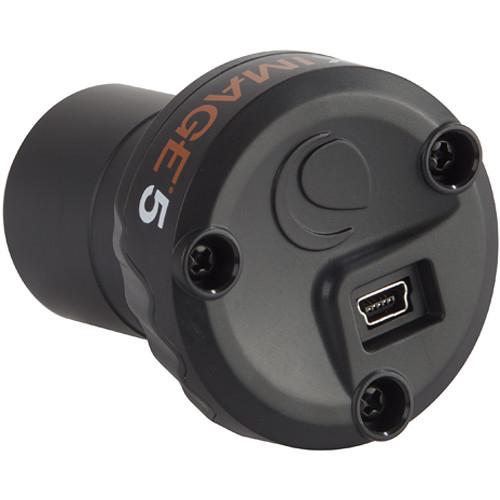

Product description Eyepiece Imagers: Capture the Universe and Share, Tweet, or Whatever It Read More The NexImage 5 Solar System Imager (5MP) from Celestron is a 5 megapixel color sensor that not only allows you to capture still images of your celestial subjects on a computer but also boasts the ability to view and capture live video as well. A small pixel size provides sub arc-second planetary detail with most telescopes and the Micron DigitalClarity technology reduces image noise levels. The included software automatically filters out video frames that have been the most affected by poor atmospheric seeing and leaves only the sharpest, clearest frames to be stacked and aligned into one high quality image. The software also delivers the ability to manually change the gain, contrast, exposure time, frame rate and color saturation of the camera through the computer. It has a machined aluminum 1.25" adapter barrel that accepts standard 1.25" eyepiece filters. The camera body has integrated C-threads affording direct threaded connection to the telescope. The optical window has been IR-cut for greater precision and there is a selectable "region of interest" for sub-framing. The NexImage 5 has 2x2 and 4x4 binning capability, progressive scanning and includes a high speed USB 2.0 cable. - View and capture live video to a computer
- Barrel accepts standard 1.25" eyepiece filters

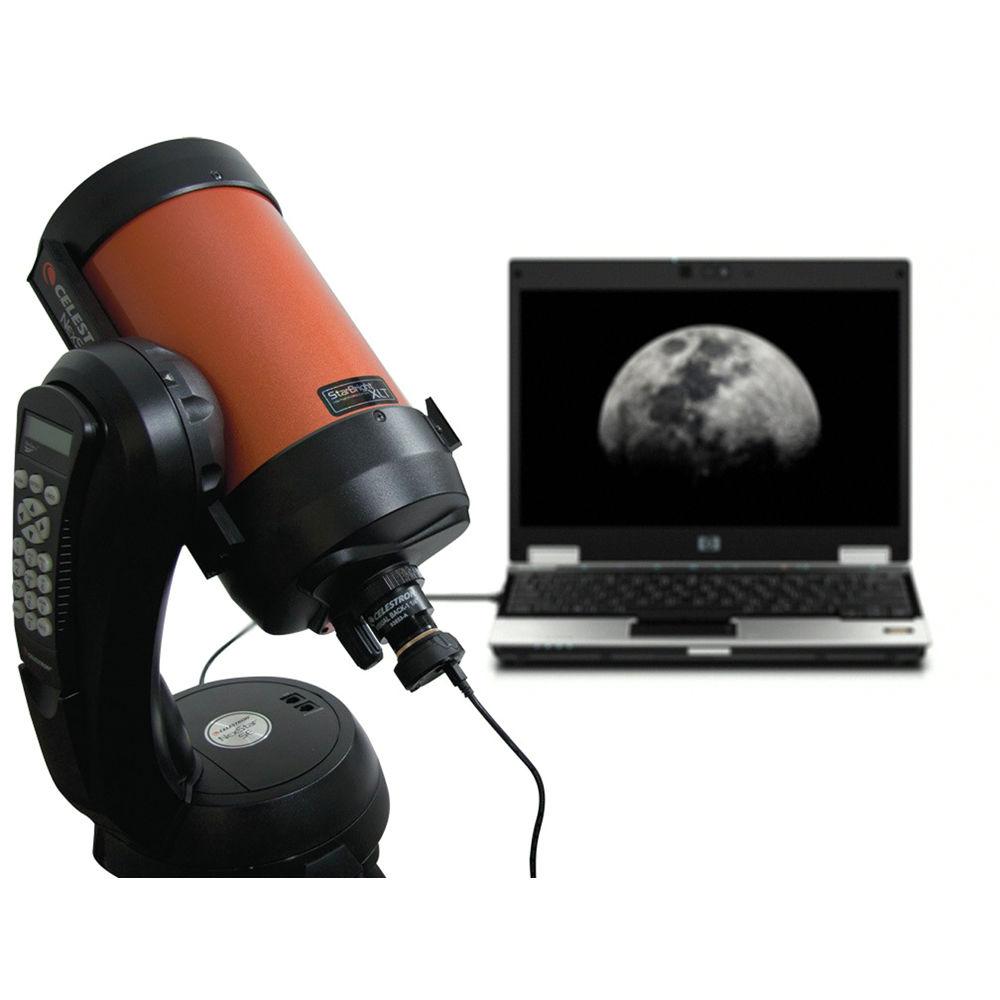

- USB 2.0 cable connects the camera to a computer
- The integrated optical window has been IR-cut for a precision fit
- Selectable "region of interest" sub-framing allows greater attention to selected details

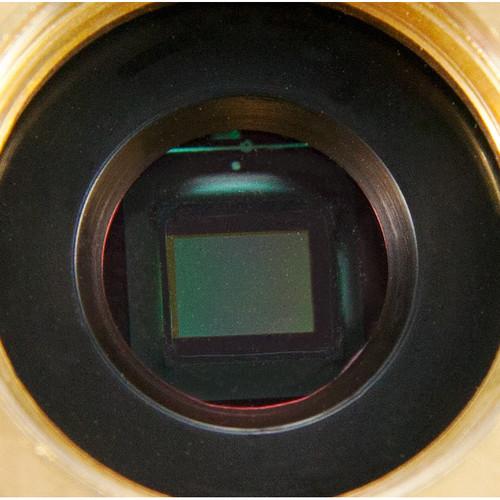

- 5 mega pixel color sensor with Micron DigitalClarity technology reduces image noise levels

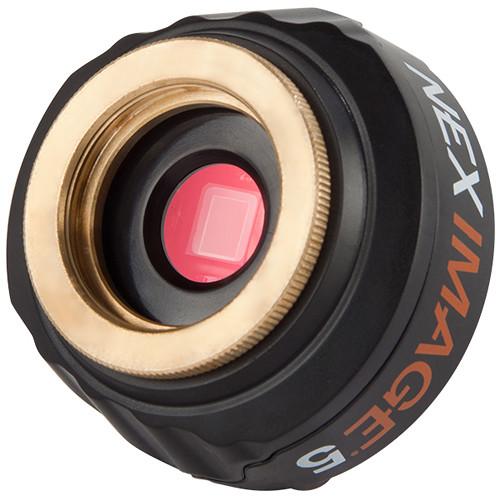

- Integrated C-threads for direct threaded connection between the camera body and the telescope
- Progressive scan reduces visual artifacts and virtually eliminates interline twitter delivering clearer, crisply focused and stable images
- Small pixels sizes provide sub arc-second planetary detail. 2x2 and 4x4 binning capability provides versatile pixel image scaling according to the seeing conditions
- RegiStax 6 image processing program minimum requirements:
Windows XP (fully updated), Windows Vista, Windows 7 (32 & 64 bit) - iCap 2.2 image capturing program minimum requirements:
Pentium IV, 2.0 GHz, 1GB RAM
Graphics card, 24 or 32 bit
Windows XP, Windows Vista, Windows 7 (32 & 64 bit)
DirectX 9.0c or higher UPC: 050234937115 In the Box Celestron NexImage 5 Solar System Imager (5MP) USB 2.0 cable Software Limited 2-Year Warranty User Manual PDF 1.1mbxcudqwuftcyfbcvcv Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron NexImage 5 Solar System Imager in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron NexImage 5 Specs | Mounting | 1.25" barrel | | Chip | 1/2.5" format, color CMOS Sensor | | Camera Resolution | 5MP, 2592 x 1944 | | Sensor Size | 5.7 x 4.28 mm
7 mm diagonal | | Pixel Size | 2.2 micron square | | Sensitivity | .53 V/ lux-sec @550 nm | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 5.8 x 5.5 x 2.0" |
