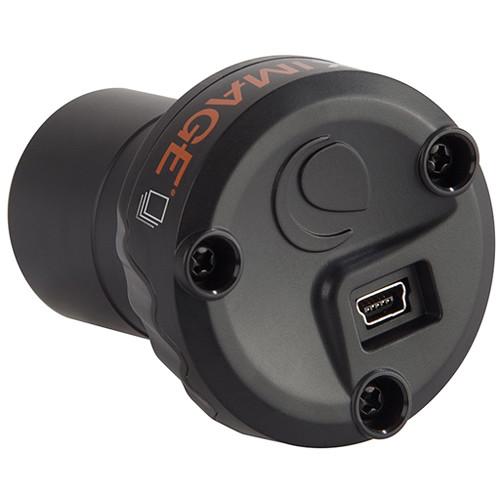

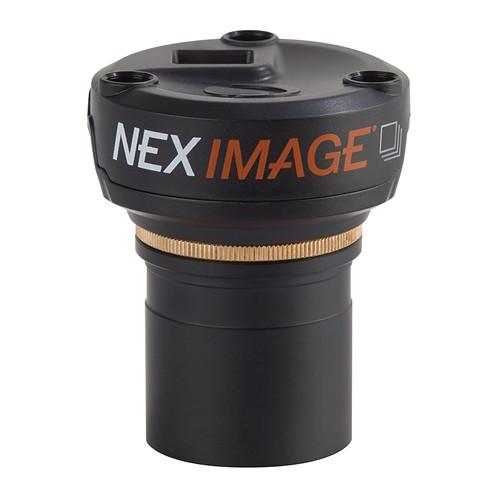

User Manual for Celestron NexImage Burst Color CCD Eyepiece Camera Click to enlarge the picture
Contents of the user manual for the Celestron NexImage Burst Color CCD Eyepiece
- Product category: Accessories Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Accessories
 |
User manual for the Celestron NexImage Burst Color CCD Eyepiece contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

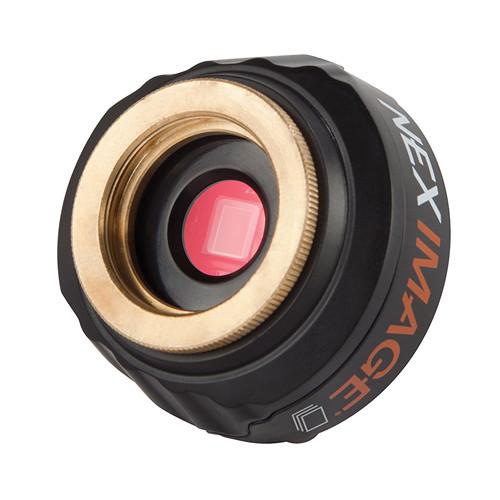

Product description Eyepiece Imagers: Capture the Universe and Share, Tweet, or Whatever It Read More txuzxyqdsyvq The NexImage Burst Color CCD Eyepiece Camera from Celestron is a color astroimager designed to capture images of the Sun, Moon, and planets with our solar system. It's compatible with any computerized telescope or a non-computerized telescope with a tracking motor drive. Use the 1.25" nosepiece to quickly swap the NexImage with an eyepiece, or directly connect it to a C-mount back.A Aptina AR0132AT color CMOS sensor captures 1280 x 960 resolution images with exposure speeds from 1 second to as fast as 0.0001 of second. Using a color imager lets you capture full-color images across the entire visual spectrum without having to attach or change filters. The included Registax software analyzes each frame of video, throws away the ones affected by atmospheric turbulence, and perfectly aligns the best frames. With the ability to tweak settings such as the gamma, sharpness, RGB balance, and color mixing, the resulting image is bright, clear, and focused. - Imaging Performance
-
- Aptina AR0132AT Color CMOS
- 1280x960 image resolution
- Exposure range from 0.0001 to 1 second
- Capture full-color images across the entire visual spectrum without having to attach or change filters
- Software Compatibility
-
- iCap
- IC Capture
- DirectShow
- FireCapture

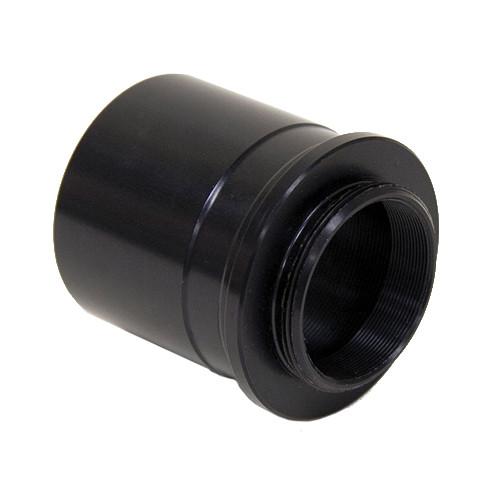

UPC: 050234955188 In the Box Celestron NexImage Burst Color CCD Eyepiece Camera (1.25") iCap Imaging Software Registax Stacking and Filtering Software 1.25" Nosepiece Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron NexImage Burst Color CCD Eyepiece Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 95518 Specs | Imaging Sensor | Aptina AR0132AT Color CMOS | | Sensor Size | 3.54mm x 2.69mm | | Resolution | 1280 x 960 | | Frame Rate | >120 fps, 30 fps at full-frame | | Back Focus Distance | With nosepiece: 13.1 mm
Without nosepiece: 10.6 mm | | Exposure Range | 0.0001 to 1 second | | Barrel Diameter | 1.25", with nosepiece | | Mounting | C-thread | | Power Requirement | Powered by USB cable | | Operating Temperature | -40 to 104°F(-40 to 40°C) | | Weight | 2 oz (57 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 5.9 x 5.5 x 1.95" |
