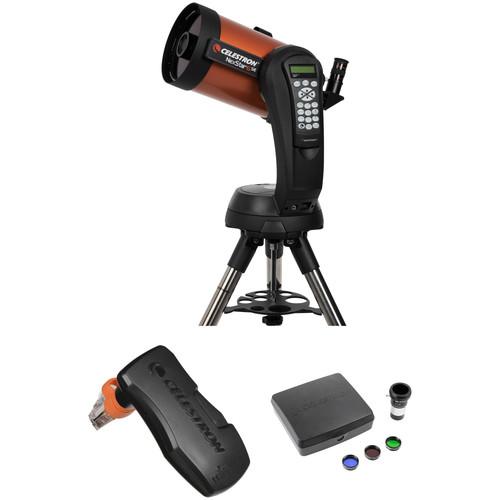

User Manual for Celestron NexStar 6SE 150mm f 10 Schmidt-Cassegrain GoTo Telescope WiFi Kit

• Product category: Catadioptrics (Cassegrains) Celestron
• Brand: Celestron
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Celestron Catadioptrics (Cassegrains)

Product description

• Celestron NexStar 6SE 150mm f/10 Schmidt-Cassegrain GoTo Telescope
  • NexStar SE
  Celestron's NexStar 6SE 150mm f/10 Schmidt-Cassegrain GoTo Telescope is a powerful, portable, and user-friendly Schmidt-Cassegrain-style scope that can be used for observing everything from the Moon and planets to deep-sky objects like stars, galaxies, and nebulae. Using Celestron's proprietary StarBright XLT multi-coating system, light transmission is increased throughout the entire optical path with anti-reflection multi-coated lenses, highly reflective multi-coated mirrors, and crown optical glass elements. While the focal ratio is a relatively slow f/10, the mount's precision tracking system allows it to be a competent shorter-exposure astrophotography imaging platform for the Moon and planets.Driving the dual servo motors on the mount is the brain of the NexStar 6SE: the iconic NexStar+ computer hand controller. Packed with 40,000+ celestial objects, it can hold up to 100 additional user-defined destinations and is updatable via the Celestron website. It has multiple alignment procedures to get you observing fast—including the super-easy SkyAlign system. Capable of being used in the Northern or Southern Hemispheres, the NexStar has sidereal, lunar, and solar tracking speeds to accurately follow near- and deep-sky objects, plus nine slew speeds and the ability to automatically trigger a camera's shutter release for Fastar or piggyback wide-field photography or conventional prime-focus astrophotography.
  Performance
  • • 6" (150mm) aperture
    • f/10 focal ratio
    • 1500mm focal length
    • Crown optical glass primary mirror
    • StarBright XLT optical coatings: Multi-layer aluminum/SiO2 (quartz)/TiO2 (titanium dioxide) mirror coatings with flat reflectivity across the light spectrum for both astrophotography/astroimaging and visual observation
    • Multi-layer MgF2 (magnesium fluoride) and HfO2 (hafnium dioxide) anti-reflective lens coatings
    • High-transmission water white glass corrector lens with 97.4% light transmission
    • Internal focusing mechanism
    • Resolution: 0.93 arcsec (Rayleigh); 0.77 arcsec (Dawes)
    • Secondary mirror obstruction: 2.2"; 37% by diameter; 14% by area
    • Fastar capability: Secondary mirror can be removed and a DSLR or imaging rig mounted in its place for fast f/2 wide-field astrophotography
  NexStar+ Computer Controller
  • • 2-line, 16-character LCD display
    • 19 fiber optic backlit red LED buttons
    • Database of over 40,000 celestial objects plus 100 user defined
    • Automatically slew to planets, stars, constellations, and a variety of catalogs
    • Camera control: For piggyback wide-field or conventional astrophotography through the optical tube assembly, the controller can automatically trigger the shutter release to capture the image
    • Anti-backlash compensation programs out play between gears for more precise tracking
    • Tour Mode: Shows a selection of the most popular objects for the time and date you are observing
    • Constellation Tour: Allows you to take a tour of all the best objects within a particular constellation
    • Alignment procedures: SkyAlign, Auto 2-Star, 1-Star, 2-Star, and Solar System
    • SkyAlign alignment: Takes minutes, with minimal effort or experience—point the telescope at three bright objects in the sky, and the telescope does the rest
    • Nine slew speeds: 5°/sec, 3°/sec, 1°/sec, 2x, 4x, 8x, 16x, 32x, and 64x
    • Sidereal, Solar, and Lunar tracking rates for observing the fast-moving Moon to slower-moving deep-space subjects
    • Tracking modes: Alt-Az, EQ North, EQ South, Off (no tracking when using as a terrestrial spotting scope)
    • RS-232 communication port allows for computer control
    • Flash updatable via the Celestron website
    Database Details:
    • Solar system objects including the Sun, Moon, and planets
    • Named objects
    • Stars: Asterims, variable stars, double stars, named stars
    • Caldwell catalog
    • Messier catalog
    • NGC catalog
    • SAO catalog
    • Constellations
  Mount & Tripod
  • Mount:
    • Single-fork alt-az
    • Dual-axis servo motors allow for precise tracking with virtually no vibration
    • Motor resolution: 0.26 arcsec
    • Optical encoders track mount movement to improve tracking and GoTo accuracy while allowing the mount to maintain alignment when moved manually
    • Communication ports: Autoguider port, Aux port, hand controller
    • Runs on eight user-supplied AA batteries or optional 12 VDC power supply
    Tripod:
    • Stainless steel legs
    • Adjustable height accommodates a variety of observation positions or users
    • Tray holds accessories such as eyepieces and filters and adds stability and vibration reduction
    • Weight: 10 pounds
  Included Accessories
  • Eyepiece:
    • 1.25"-diameter barrel
    • 25mm focal length produces 60x magnification
    • Anti-reflection multi-coated glass improves color rendition and contrast
    • Threaded barrel accepts most 1.25" astronomical filters
    • Fold-down rubber eyecup for use with or without eyeglasses
    • 44' field of view at 1000 yards
    Diagonal:
    • 1.25" input and output accepts most 1.25" astronomical eyepieces and accessories
    • 90° angle puts head in a comfortable position when observing at or near the zenith
    • Corrects view horizontally, but not vertically
    StarPointer Finder:
    • Projects a single red dot in line of sight
    • Unmagnified view ensures a wide field of view to make finding objects faster and star-hopping navigation easier
  UPC: 050234110686
• Celestron SkyPortal WiFi Module
  • NexStar SE
  Transform your smartphone or tablet into a wireless controller for your computerized telescope with Celestron's SkyPortal WiFi Module. It plugs into the Hand Control or AUX port and begins to generate it's own WiFi signal to directly connect to your mobile device without the need for a router. Since it uses the telescope's power there are no batteries, plugs, or cables required.The SkyPortal module works in conjunction with the free SkyPortal mobile app available for iOS and Android devices. The app features a database of over 100,000 objects with astroimages and audio descriptions of hundreds of them including the history, mythology, and key features of them. It can assist with the telescope alignment and if you hold the screen up to sky, it will identify the objects based on your location, date, and time. If you don't know what you want to look at, the SkyPortal app will take you on a guided tour.
  Use and Handling
  • • Plugs into the telescope's Hand Control or AUX port
    • Emits its own WiFi signal to directly connect to smartphones and tablets
    • Lets you use your device as a wireless hand controller
    • Powered by telescope: no batteries, cables, or plugs required
  SkyPortal Planetarium App
  • • Free mobile app for iOS and Android smartphones and tablets
    • Tap any celestial object you see in the sky to identify it, tap again to slews to that object
    • Directly interfaces with SkyQ Link II WiFi module
    • Assists in alignment procedures, except with SkyProdigy models
    • Over 100,000 celestial objects from the Moon and planets to galaxies and nebulae
    • Provides guided tours of available objects based on location, date, and time
    • Works as a stand-alone planetarium app
    • Astroimages and audio descriptions for the most popular objects
    • Explains the history, mythology, and key features of the most popular celestial objects
    • Hold your screen up to the sky to identify objects in Compass Mode
  Compatibility
  • • Astro Fi
    • NexStar SE Series
    • NexStar SLT
    • NexStar Evolution
    • CPC, CPC DX
    • NexStar GT, with required #93919 splitter - sold separately
    • CGE, CGE Pro
    • Advanced VX
    • CG-5, with required #93923 splitter - sold separately
    • CGEM, CGEM DX
    • LCM, with required #93919 splitter - sold separately
    • CGX
    • CGX-L
    • CGEM II
  UPC: 050234939737
• Celestron Mars Observing Telescope Accessory Kit (1.25")
  • NexStar SE
  Celestron assembled this 1.25" Mars Observing Telescope Accessory Kit for the 2018 Mars Opposition, but the filters assembled can be used at any time to view and photograph other planets such as Saturn and Jupiter, as well as the moon. Also included with the filters is the universal Barlow lens. This versatile accessory effectively doubles the magnification of any eyepiece used in it without affecting the exit pupil or eye relief—allowing for high-power observations without the discomfort of using short focal length eyepieces. The Barlow has standard T-mount threads on the end that accept optional camera-specific T-rings to mount just about any DSLR for astrophotography. To safely store and transport the filters and Barlow, Celestron includes a hard plastic storage case.
  Eyepiece Filters
  • #80A Blue:
    • Helpful in studying surface features and polar caps
    • Most popular for the study of detail on Jupiter and Saturn
    • Enhances the contrast on Jupiter's cloud belts
    • Enhances details of the Great Red Spot
    • Brings out detail in Saturn's belts and polar features
    • Also very useful for lunar observing
    #56 Light Green:
    • Excellent for increased contrast of Martian polar caps, low clouds, and yellowish dust storms
    • Increases the contrast of the red and blue regions in Jupiter's atmosphere and cloud belts
    • Great for lunar observing
    #25 Red:
    • Reduces light from blue and green areas, which darkens the maria and oases, while lightening the orange-hued desert region; sharpens the boundaries of yellow dust clouds
    • Blocks the transmission of blue and green wavelengths
    • Sharply defines the contrast between the cloud formations and the lighter-toned surface features on Jupiter
  Barlow Lens
  • • 1.25" eyepiece holder and barrel diameter
    • Effectively doubles the magnification of any eyepiece used with it
    • Threads on top accept optional standard camera-specific DSLR T-rings
  UPC: 050234943123

• NexStar 6SE 150mm f/10 Schmidt-Cassegrain GoTo Telescope xqtucwwqydtbtaawcbwtcsyrwr
• StarPointer Finderscope
• 25mm Eyepiece
• 90° Star Diagonal
• Tripod with Accessory Tray
• Limited 2-Year Warranty

• SkyPortal WiFi Module

Includes Free

• Mars Observing Telescope Accessory Kit (1.25")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Celestron NexStar 6SE 150mm f/10 Schmidt-Cassegrain GoTo Telescope

  Optical Design	Schmidt Cassegrain
  Aperture	150 mm / 5.9"
  Focal Length	1500 mm
  Focal Ratio	f/10
  Focuser	Internal
  Eyepiece Barrel Diameter	1.25"
