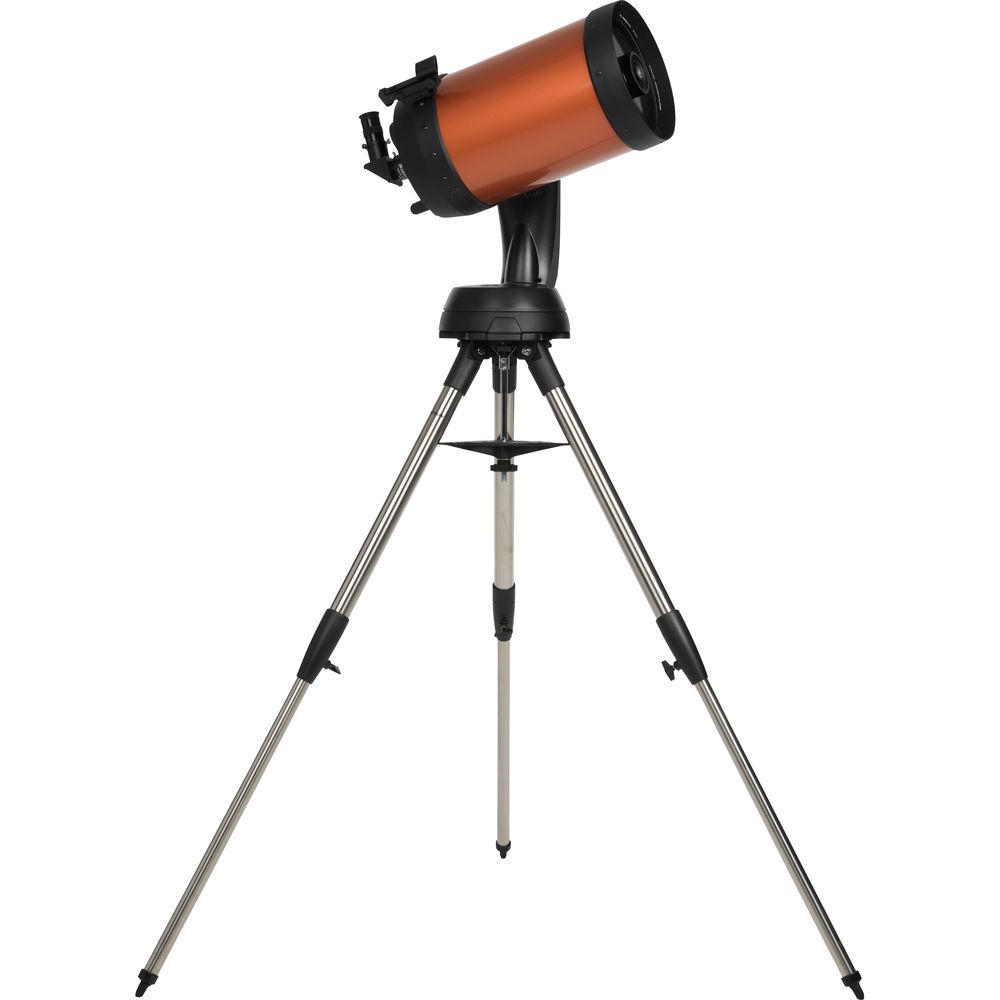

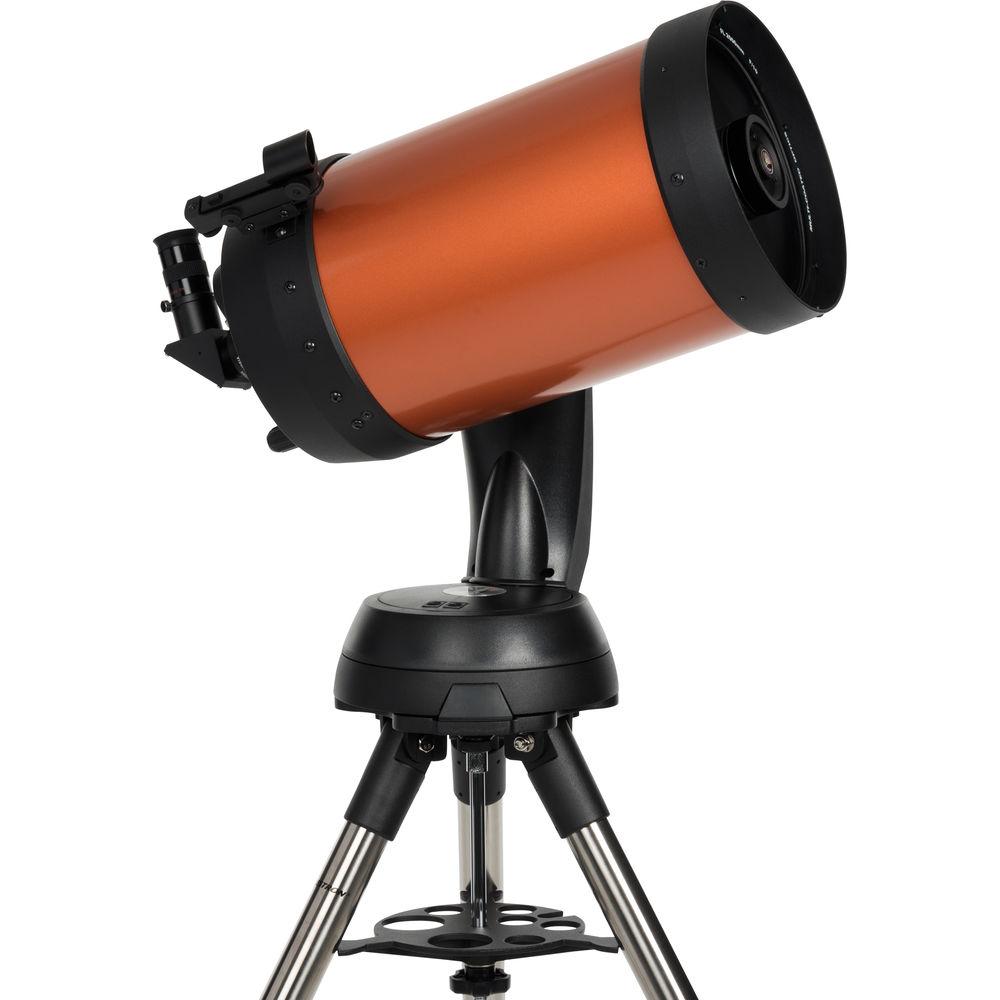

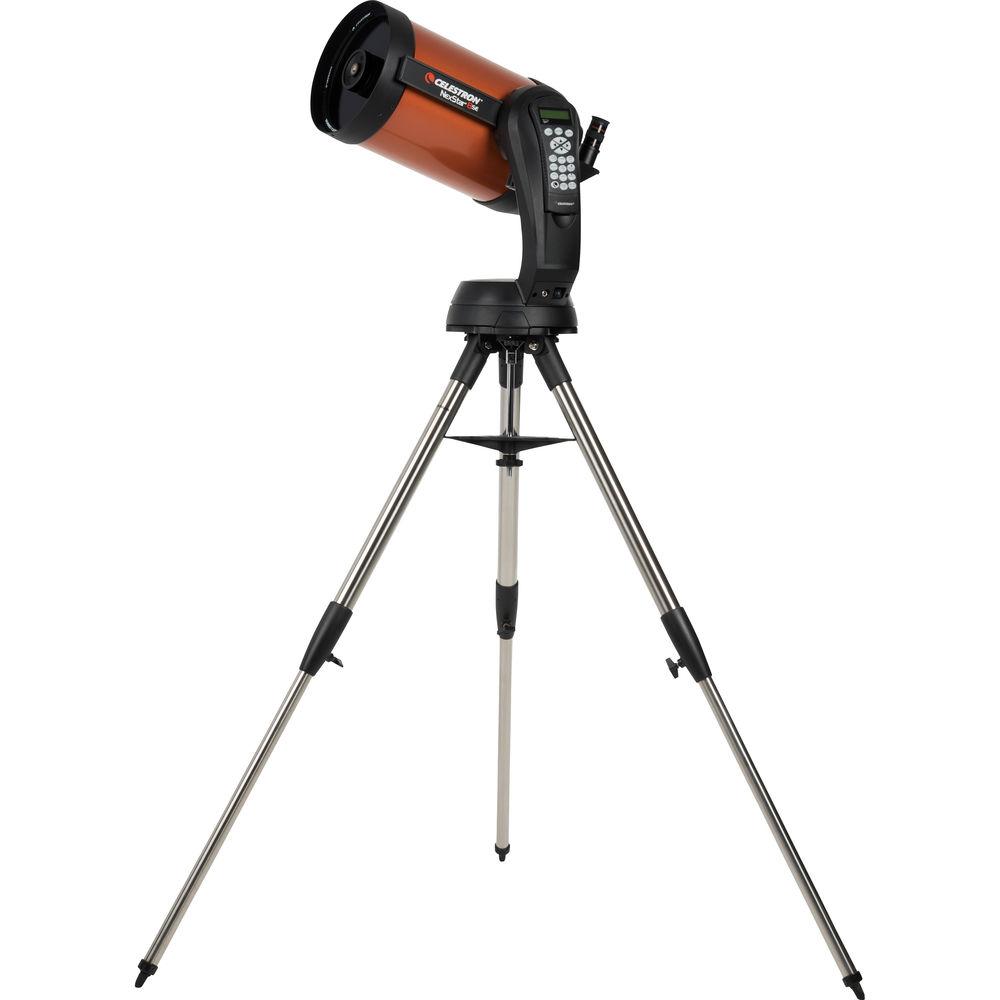

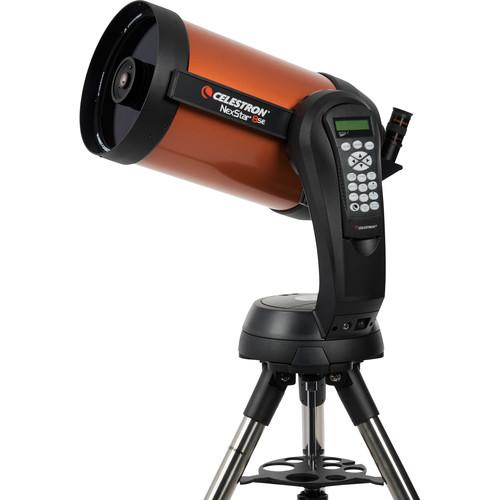

User Manual for Celestron NexStar 8SE 203mm f 10 Schmidt-Cassegrain GoTo Telescope Click to enlarge the picture
Contents of the user manual for the Celestron NexStar 8SE 203mm f 10
- Product category: Catadioptrics (Cassegrains) Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Catadioptrics (Cassegrains)
 |
User manual for the Celestron NexStar 8SE 203mm f 10 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description Representing the largest aperture in the series and drawing in more light to see deeper into space than smaller versions, Celestron's NexStar 8SE 203mm f/10 Schmidt-Cassegrain GoTo Telescope is a powerful yet portable scope that can be used for observing everything from the Moon and planets to deep-sky objects like stars, galaxies and nebulae, while maintaining the user-friendly interface of the SE series. Using Celestron's proprietary StarBright XLT multi-coating system, light transmission is increased throughout the entire optical path with anti-reflection multi-coated lenses, highly reflective multi-coated mirrors, and crown optical glass elements. While the focal ratio is a relatively slow f/10, the mount's precision tracking system allows it to be a competent shorter-exposure astrophotography imaging platform for the Moon and planets.Driving the dual servo motors on the mount is the brain of the NexStar 8SE: the iconic NexStar+ computer hand controller. Packed with 40,000+ celestial objects, it can hold up to 100 additional user-defined destinations and is updatable via the Celestron website. It has multiple alignment procedures to get you observing fast, including the super-easy SkyAlign system. Capable of being used in the northern or southern Hemispheres, the NexStar has sidereal, lunar, and solar tracking speeds to accurately follow near- and deep-sky objects, plus nine slew speeds and the ability to automatically trigger a camera's shutter release for Fastar or piggyback wide-field photography or conventional prime-focus astrophotography. - Performance
-
- 8" (203.2mm) aperture
- f/10 focal ratio
- 2032mm focal length
- Crown optical glass primary mirror
- StarBright XLT optical coatings: Multi-layer aluminum/SiO2 (quartz)/TiO2 (titanium dioxide) mirror coatings with flat reflectivity across the light spectrum for both astrophotography/astroimaging and visual observation
- Multi-layer MgF2 (magnesium fluoride) and HfO2 (hafnium dioxide) anti-reflective lens coatings

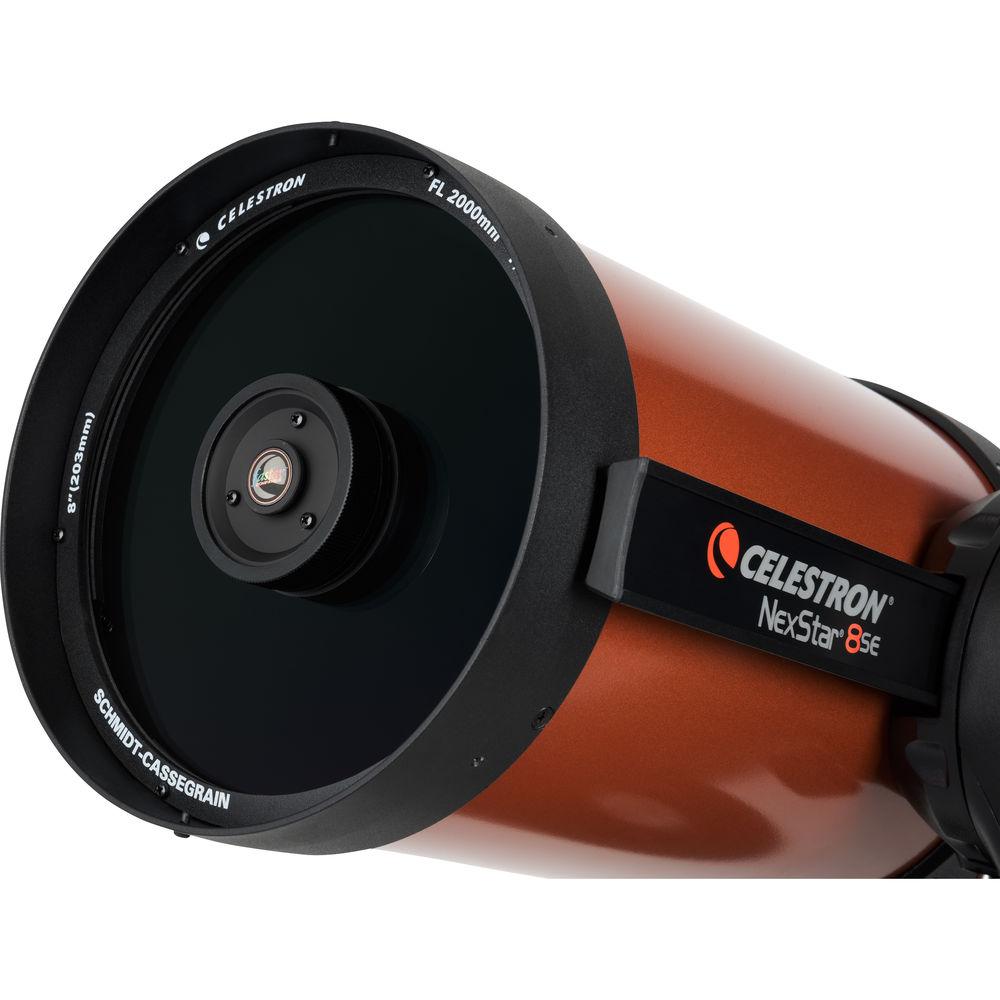

- High-transmission water white glass corrector lens with 97.4% light transmission

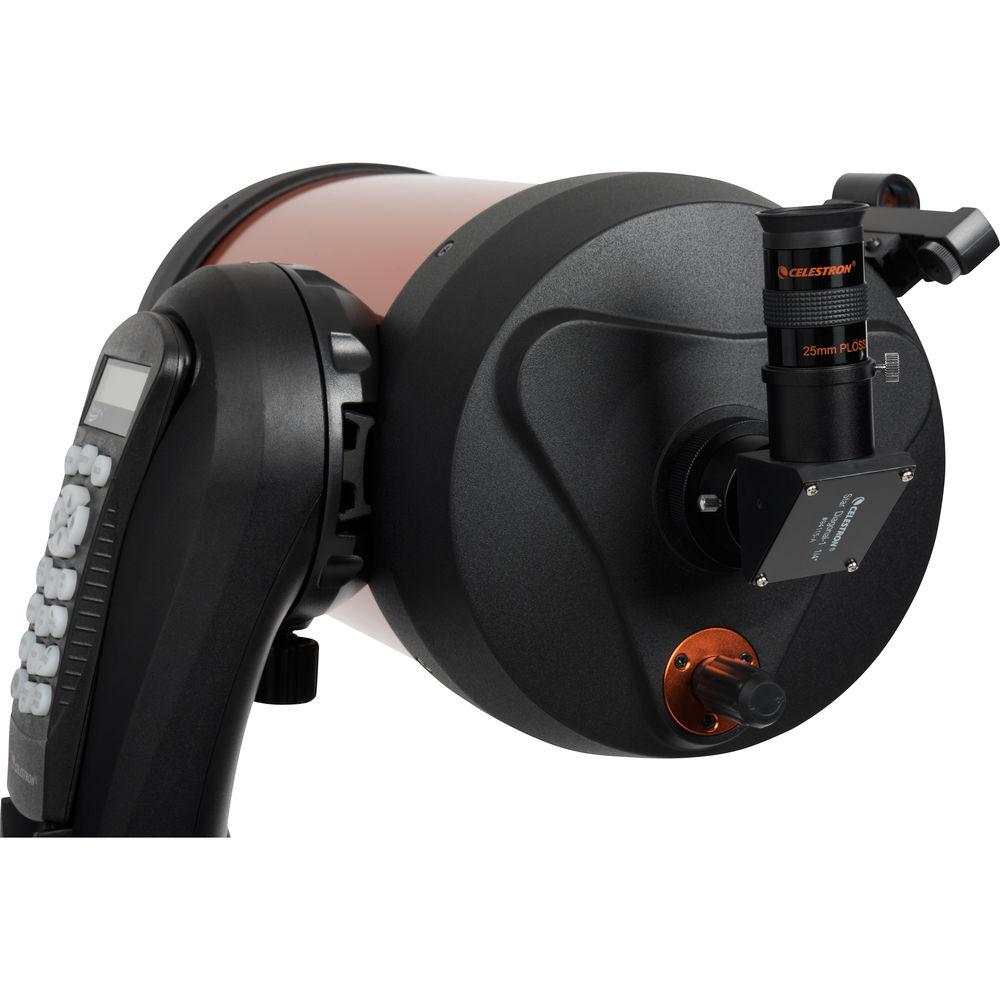

- Internal focusing mechanism
- Resolution: 0.69 arcsec (Rayleigh); 0.57 arcsec (Dawes)
- Secondary mirror obstruction: 2.5"; 31% by diameter; 9.77% by area
- Fastar capability: Secondary mirror can be removed and a DSLR or imaging rig mounted in its place for fast wide-field astrophotography

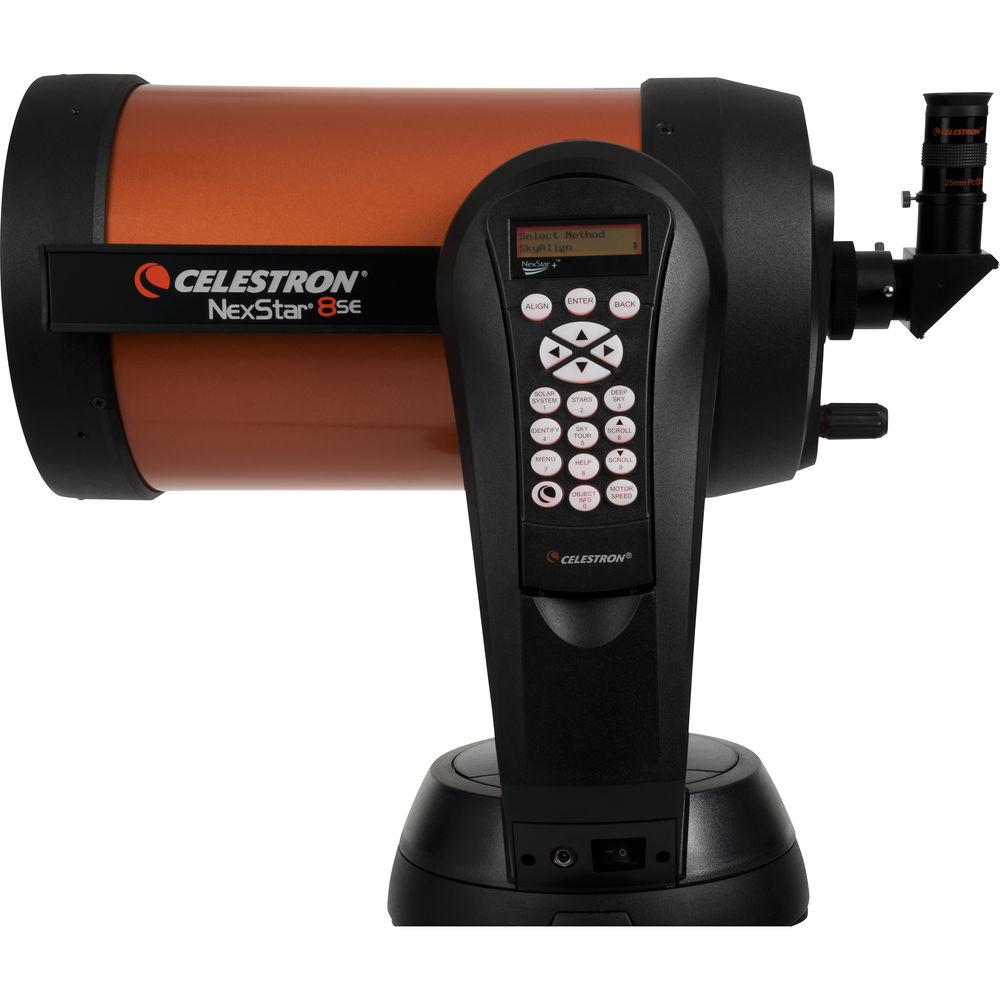

- NexStar+ Computer Controller
-
- 2-line, 16-character LCD display
- 19 fiber optic backlit red LED buttons
- Database of over 40,000 celestial objects plus 100 user defined
- Automatically slew to planets, stars, constellations, and a variety of catalogs
- Camera control: For piggyback wide-field or conventional astrophotography through the optical tube assembly, the controller can automatically trigger the shutter release to capture the image
- Anti-backlash compensation programs out play between gears for more precise tracking
- Tour Mode: Shows a selection of the most popular objects for the time and date you are observing
- Constellation Tour: Allows you to take a tour of all the best objects within a particular constellation
- Alignment procedures: SkyAlign, Auto 2-Star, 1-Star, 2-Star, and Solar System
- SkyAlign alignment: Takes minutes, with minimal effort or experience—point the telescope at three bright objects in the sky, and the telescope does the rest
- Nine slew speeds: 5°/sec, 3°/sec, 1°/sec, 2x, 4x, 8x, 16x, 32x, and 64x
- Sidereal, Solar, and Lunar tracking rates for observing the fast-moving Moon, to slower-moving deep-space subjects
- Tracking modes: Alt-Az, EQ North, EQ South, Off (no tracking when using as a terrestrial spotting scope)
- RS-232 communication port allows for computer control
- Flash updatable via the Celestron website
Database Details:- Solar system objects including the Sun, Moon, and planets
- Named objects
- Stars: Asterims, variable stars, double stars, named stars
- Caldwell catalog
- Messier catalog
- NGC catalog
- SAO catalog
- Constellations
- Mount & Tripod
- Mount:
- Single-fork alt-az
- Dual-axis servo motors allow for precise tracking with virtually no vibration
- Motor resolution: 0.26 arcsec
- Optical encoders track mount movement to improve tracking and GoTo accuracy while allowing the mount to maintain alignment when moved manually

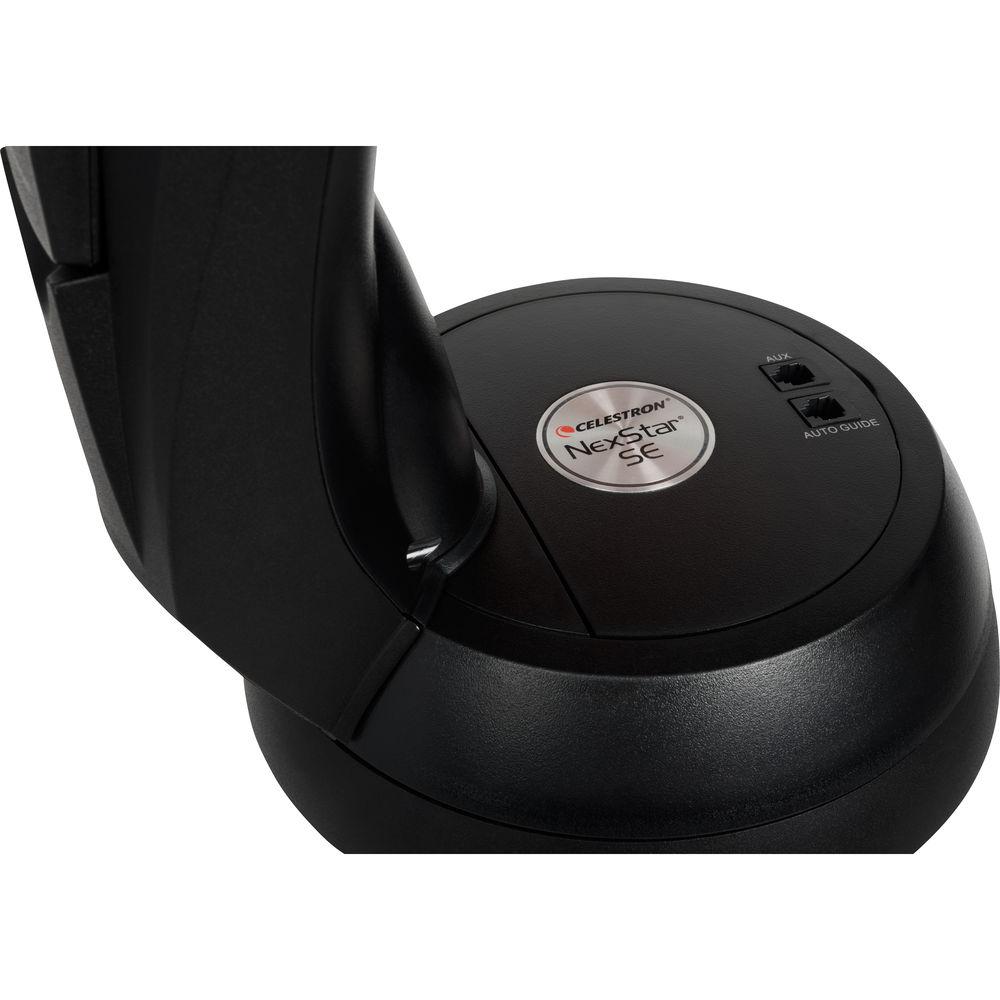

- Communication ports: Autoguider port, Aux port, hand controller
- Runs on eight user-supplied AA batteries or optional 12 VDC power supply
Tripod:- Stainless steel legs
- Adjustable height accommodates a variety of observation positions or users
- Tray holds accessories such as eyepieces and filters and adds stability and vibration reduction
- Weight: 10 pounds
- Included Accessories
- Eyepiece:
- 1.25"-diameter barrel
- 25mm focal length produces 81x magnification
- Anti-reflection multi-coated glass improves color rendition and contrast
- Threaded barrel accepts most 1.25" astronomical filters
- Fold-down rubber eyecup for use with or without eyeglasses
- 33' field of view at 1000 yards
Diagonal:- 1.25" input and output accepts most 1.25" astronomical eyepieces and accessories
- 90° angle puts head in a comfortable position when observing at or near the zenith
- Corrects view horizontally, but not vertically
StarPointer Finder:- Projects a single red dot in line of sight
- Unmagnified view ensures a wide field of view to make finding objects faster and star-hopping navigation easier
UPC: 050234110693 In the Box Celestron NexStar 8SE 203mm f/10 Schmidt-Cassegrain GoTo Telescope StarPointer Finderscope xfwvbxqecsdqeebrtccxdtyetycw The Sky CD-ROM Software for Windows NexRemote Control Software CD 25mm Eyepiece 90° Star Diagonal Tripod with Accessory Tray Limited 2-Year Warranty Guides & Manuals xfwvbxqecsdqeebrtccxdtyetycw More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron NexStar 8SE 203mm f 10 Schmidt-Cassegrain GoTo Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Celestron NexStar 8SE 203mm f 10 Schmidt-Cassegrain GoTo Telescope can be downloaded in PDF format at the link stated below.
Technical parametersCelestron 8SE Specs | | | Optical Design | Schmidt Cassegrain | | Aperture | 203 mm / 8" | | Focal Length | 2032 mm | | Focal Ratio | f/10 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | Yes, 90
