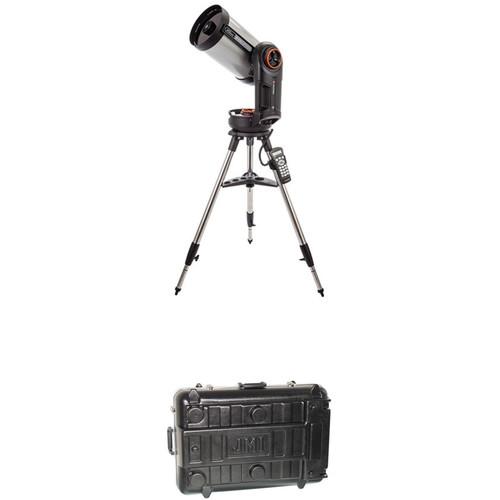

User Manual for Celestron NexStar Evolution 8 203mm f 10 Schmidt-Cassegrain GoTo Telescope and Case Kit Click to enlarge the picture
Contents of the user manual for the Celestron NexStar Evolution 8 203mm f
- Product category: Catadioptrics (Cassegrains) Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Catadioptrics (Cassegrains)
|
User manual for the Celestron NexStar Evolution 8 203mm f contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description Celestron NexStar Evolution Telescopes: Easy Does It Read More B&H put together this Celestron NexStar Evolution 8 Telescope and Case Kit to give you a complete observational platform and a safe way to protect your optical tube assembly (OTA) and mount during transport and storage. This full GoTo system features a large-aperture OTA on a solid motorized single-arm fork mount outfitted with the iconic NexStar computer GoTo hand controller and a WiFi module for wireless control from a smartphone or tablet, all supported by a sturdy 2" stainless steel tripod. An array of accessories is included to get you set up and observing right out of the box. B&H includes a custom-made JMI hard carrying case that can hold the OTA and mount plus accessories. - Celestron NexStar Evolution 8 203mm f/10 Schmidt-Cassegrain GoTo Telescope The NexStar Evolution 8 203mm Schmidt-Cassegrain Telescope from Celestron is a powerful, portable, versatile, and user-friendly telescope that can be used for observing everything from the Moon and planets to deep-sky objects like galaxies and nebulae. Using Celestron's proprietary StarBright XLT multi-coating system, light transmission is increased throughout the entire optical path with anti-reflection multi-coated lenses, highly reflective multi-coated mirrors, and four-element rare-earth glass. While the focal ratio is a slow f/10, the scope's precision tracking system allows it to be a competent astrophotography/astroimaging platform for the Moon and planets.The Evolution comes with two ways to use and control it. The first is to simply download Celestron's free Navigator app for Android and iOS smartphones and tablets. The scope's WiFi provides the connection to the app and expands the capabilities and functionality, including an expanded database of over 120,000 objects with detailed information on more than 200 of those objects. Second is the iconic 2-line 16-character NexStar computer controller. This is a wired piece of hardware with a database of over 40,000 celestial objects plus several astronomical catalogs including the Messier and Caldwell. Whether using the controller or mobile device, the system can assist in properly aligning the scope, provide tours of the objects and events visible whenever and wherever you're viewing, and allow for manual direction and slew control.Designed for portability, the Evolution features a long-life lithium-iron phosphate battery providing up to 10 hours of continual use on a single charge. The scope comes with an AC power supply with plugs for the US, EU, UK, and AU outlets. The battery powers the servo motors, auxiliary accessory ports, a USB charging port, and the built-in WiFi. Manual clutches in both altitude and azimuth enable you to manually move and point the telescope when it's powered off.
- Optical Performance
-
- 203mm (8") aperture
- f/10 focal ratio
- 2032mm focal length
- Crown optical glass primary mirror
- StarBright XLT optical coatings: Multi-layer aluminum/SiO2 (quartz)/TiO2 (titanium dioxide) mirror coatings with flat reflectivity across the light spectrum for both astrophotography/astroimaging and visual observation
- Multi-layer MgF2 (magnesium fluoride) and HfO2 (hafnium dioxide) anti-reflective lens coatings
- High-transmission water white glass corrector lens with 97.4% light transmission
- Internal focusing mechanism
- Resolution: 0.69 arcsec (Rayleigh); 0.57 arcsec (Dawes)
- Secondary mirror obstruction: 2.5"; 9.77% by area
- Fastar capability: Secondary mirror can be removed and a DSLR or imaging rig mounted in its place for fast wide-field astrophotography
- NexStar Controller
-
- 2-line, 16-character LCD display
- 19 fiber optic backlit red LED buttons
- Database of over 40,000 celestial objects plus 100 user defined
- Automatically slew to planets, stars, constellations, and a variety of catalogs
- Camera control: For piggyback wide field or conventional astrophotography through the OTA, the controller can automatically trigger the shutter release to capture the image
- Anti-backlash compensation programs-out play between gears for more precise tracking
- Tour Mode: Shows a selection of the most popular objects for the time and date you are observing
- Constellation Tour: Allows the user to take a tour of all the best objects within a particular constellation
- Alignment procedures: SkyAlign, Auto 2-Star, 1-Star, 2-Star, and Solar System
- SkyAlign alignment: Takes minutes, with minimal effort or experience—point the telescope at three bright objects in the sky, and the telescope does the rest
- Nine slew speeds: 4°/sec, 2°/sec, 1°/sec, 0.5°/sec, 2x, 4x, 8x,16x, and 32x
- Sidereal, Solar, and Lunar tracking rates for observing the fast-moving Moon, to slower-moving deep space subjects
- RS-232 communication port allows for computer control
- Flash updateable via the Celestron website
- Database Details:
- Solar system objects including the Sun, Moon, and planets
- Named objects
- Stars: Asterims, variable stars, double stars, named stars
- Caldwell catalog
- Messier catalog
- NGC catalog
- SAO catalog
- Constellations
- Sky Portal App
-
- Connect your smart device to the telescope via direct WiFi connection; no router required
- Align and control the telescope from your device
- App uses the device's camera and compass to determine location and what is available to see
- Enjoy the same features as NexStar controller, but without wires
- Expanded database to over 120,000 objects
- Detailed information on over 200 popular objects including audio commentary, statistics, history, mythology, video, and pictures
- Database includes: Sun, Moon, planets, star clusters, nebulae, galaxies, asteroids and comets, satellites, and the International Space Station
- Simulate the night sky up to 100 years in the past or future to plan an upcoming observing session
- Compass Mode: Hold device up to the night sky and identify objects such as stars, planets, and galaxies; zoom in to view fainter objects not visible to the naked eye
- Night Vision Mode: Preserves night-adjusted vision
- Listen to more than four hours of audio narration to learn the history, mythology, and science of astronomy and the night sky
- Works as a stand-alone planetarium app
- Free for Android or iOS mobile devices
- Apple iOS 7.0 and later, or Android 4.0 and later
- Mount and Tripod
-
- Mount:
- Motorized single-arm alt-azimuth fork mount
- Altitude and azimuth clutches to manually point the telescope when it is powered off
- Brass worm gears with steel ball bearings provide smooth movement with reduced vibration
- 146mm diameter/180-tooth stainless steel worm wheels
- Ports: One port for NexStar+ controller; one 5 VDC USB charging port for smartphones and small electronics; three auxiliary ports for optional accessories such as StarSense AutoAlign System
- Runs on one internal rechargeable 9.6V, 4.5Ah lithium-iron phosphate (LiFePO4) battery
- Includes power supply with US, EU, UK, and AU plugs
- Tripod:
- Stainless steel two-section legs
- Adjustable height accommodates a variety of users
- Spikes at the end of the legs provide a sure footing on soft or uneven ground
- Tray keeps accessories and equipment safe and organized
- No tools required to set up mount and tripod
- Included Accessories
-
- Eyepieces:
- 1.25"-diameter barrel accept most filters
- Anti-reflection multi-coated glass
- Fold-down rubber eyecups for use with or without eyeglasses
- 40mm eyepiece produces 51x magnification
- 13mm eyepiece produces 156x magnification
- Diagonal:
- 1.25" snout and eyepiece holder
- 90° angle places head in comfortable position when optical tube assembly is pointed at or near the zenith
- Star mirror diagonal corrects view horizontally, but not vertically
- Finderscope:
- Projects a single red dot in line of sight
- Unmagnified view ensures a wide field of view to make finding objects faster and star-hopping navigation easier
UPC: 050234120913 - JMI Telescopes Hard Carrying Case for 8" Celestron NexStar Evolution The Hard Carrying Case for 8" Celestron NexStar Evolution from JMI features four latches (two lockable), three steel-reinforced handles, a 2x26" steel hinge and die-cut foam lining with compartments for telescope, eyepieces, finderscope and accessories. The finderscope must be removed from the telescope and placed in a foam compartment. A soft bag is included to protect the hand unit. The case can be carried, or pulled using the attached Kryptane wheels.
In the Box - NexStar Evolution 8 203mm f/10 Schmidt-Cassegrain GoTo Telescope rfsxbedavvddzsadeeesvxzrwy
- NexStar+ Hand Control (EQ)
- StarPointer Finderscope
- 13mm Eyepiece
- 40mm Eyepiece
- 90° Star Diagonal
- Tripod with Accessory Tray
- AC Adapter with US, EU, UK, and AU Plugs
- Limited 2-Year Warranty
- JMI Telescopes - Hard Carrying Case for 8" Celestron NexStar Evolution rfsxbedavvddzsadeeesvxzrwy
Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron NexStar Evolution 8 203mm f 10 Schmidt-Cassegrain GoTo Telescope and Case Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Celestron NexStar Evolution 8 203mm f/10 Schmidt-Cassegrain GoTo Telescope
| | | Optical Design | Schmidt Cassegrain | | Aperture | 203 mm / 8" | | Focal Length | 2032 mm | | Focal Ratio | f/10 | | Focuser | Internal | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90
