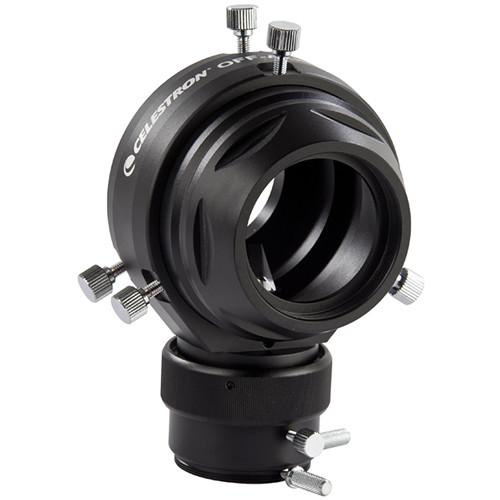

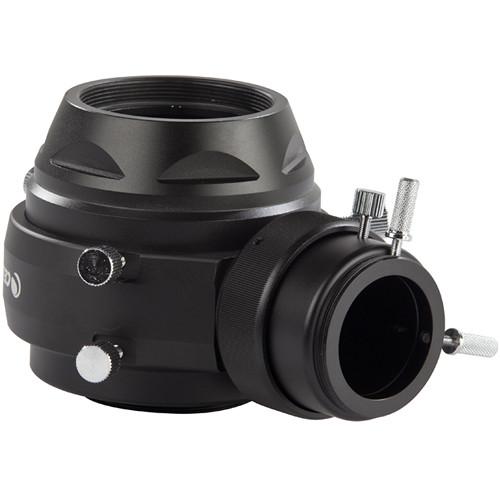

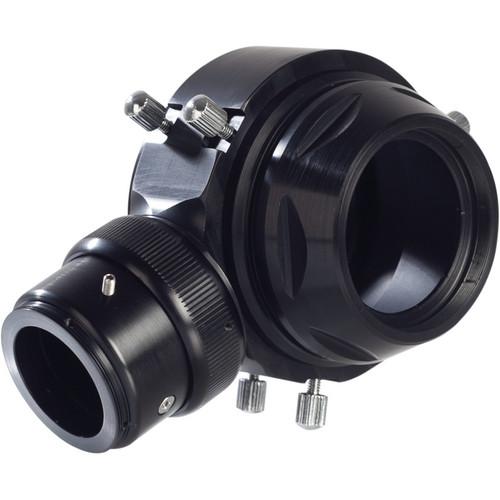

User Manual for Celestron Off-Axis Guider Click to enlarge the picture
Contents of the user manual for the Celestron Off-Axis Guider
- Product category: Astrophotography Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Astrophotography
 |
User manual for the Celestron Off-Axis Guider contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description The Off-Axis Guider from Celestron is an astrophotography accessory used to compensate for tracking errors and align the focal planes of an imaging camera and autoguider. The 12.5mm adjustable prism is capable of transmitting brighter guide stars by moving closer to the center of the telescope's focal plane (without entering the imaging camera's field of view), which is especially useful when using high-magnification optical tubes. A fixed-orientation helical focuser with 8mm travel distance enables precise focus adjustments without changing the autoguider camera alignment as well as eliminates time-consuming guess work when focusing an image onto the imaging camera and autoguider sensors. An included set of male/female adapters and spacers allows the Off-Axis Guider to be mounted with common telescope-camera configurations; including DSLRs, Nightscape CCD, and other popular astroimaging cameras. - Use and Handling
-
- 48mm clear aperture
- Helical focuser with 8mm travel distance for autoguider focus
- Adjustable 12.5mm prism for brighter guide star alignment
- Connections
-
- Telescope: M42 T-thread, M48, SCT/EdgeHD
- Autoguider: M42 T-thread, standard 1.25" tube
- Imaging Camera: M42 T-thread, M48
- Adapters and Spacers
-
- M48 female adapter
- M48 male adapter
- M42 T-thread female adapter
- M42 T-thread male adapter
- Schmidt-Cassegrain/EdgeHD adapter
- (3) T-thread spacers
UPC: 050234936484 In the Box Celestron Off-Axis Guider SCT/EdgeHD Adapter M48 Female Adapter M48 Male Adapter M42 Female T-Thread Adapter M42 Male T-Thread Adapter 3 x T-Thread Spacers Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron Off-Axis Guider in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 93648 Specs | Aperture | 48 mm | | Weight | 18 oz (510 g) | | | | Package Weight | 1.995 lb | | Box Dimensions (LxWxH) | 9.3 x 9.1 x 4.8" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
