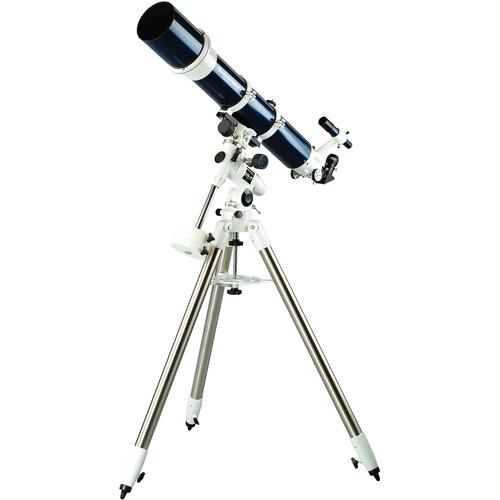

User Manual for Celestron Omni XLT 120mm f 8.3 EQ Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Celestron Omni XLT 120mm f 8.3
- Product category: Refractors Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Refractors
|
User manual for the Celestron Omni XLT 120mm f 8.3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description With its large aperture and respectable focal length, the Celestron Omni XLT 120mm f/8.3 EQ Refractor Telescope is an ideal choice for making detailed observations of the Moon and planets, with the capability to split binary stars and separate star clusters, and resolve galaxies and nebulae. Its fairly fast focal ratio gives it the ability to achieve high magnifications with the addition of optional eyepieces, and thanks to its large 2" focuser the available options are nearly limitless. The larger drawtube also helps to prevent vignetting when using wide-field eyepieces during observation sessions, or when using large imaging-sensor cameras for astrophotography. To allow the use of the included 1.25" eyepiece and diagonal, a reducer adapter is included and installs easily without tools. The scope comes with the manual CG-4 equatorial mount outfitted with steel worm gears on both axes for smooth tracking and stability with two counterweights for proper balancing to ensure smooth movement. Also included is a heavy-duty stainless steel tripod to provide a sturdy and steady platform. - Optical Tube
-
- Large 120mm aperture
- f/8.3 focal ratio
- 1000mm focal length
- Achromatic refractor lens configuration
- Proprietary StarBright XLT anti-reflection multi-coatings reduce light loss while improving light transmission, color rendition, and contrast
- Resolution: 1.16 arcsec, Rayleigh; 0.97 arc sec, Dawes
- Sturdy 2" rack-and-pinion focuser
- Large 2" drawtube accepts 2" eyepieces and accessories, and helps to prevent vignetting when using wide-field eyepieces or imaging with large-sensor cameras
- Mount and Tripod
-
CG-4 Mount:- Manual German equatorial
- Dual slow-motion control knobs enable fine adjustments with reduced vibrations
- Altitude adjustment screws locks setting
- Etched Right Ascension and Declination scales
- Removable counterweight bar
- 7 and 4-lb counterweights properly balance OTA and accessories for smooth movement
- Dovetail plate enables fast assembly and break-down
Tripod:- Stainless steel legs
- 1.75" leg diameter
- Adjustable height from 33 - 47"
- Center tray hold accessories like eyepieces and filters, and holds legs steady to reduce vibrations and improve stability
- Weight: 12.5 pounds
- Included Accessories
-
Eyepiece:- 1.25" diameter barrel
- Accepts most 1.25" astronomical filters
- 25mm focal length produces 40x magnification
Reducer Adapter:- 2-to-1.25" reducer allows the use of smaller 1.25" eyepieces and accessories in the 2" drawtube
Diagonal:- 1.25" snout and eyepiece holder
- 90° angle puts head in comfortable viewing position when scope is aimed straight, or nearly straight, up
- Star diagonal correct image horizontally, but not vertically, so images are right-side-up, but flipped backwards
6x30 Finderscope:- 6x magnification ensures a wide field of view for easier alignment and faster star-hopping navigation
UPC: 050234210904 In the Box Celestron Omni XLT 120mm f/8.3 EQ Refractor Telescope 25mm Eyepiece 90° Star Diagonal 2"-to-1.25" Reducer Adapter Tripod with Accessory Tray 6x30 Finderscope with Bracket 4 lb Counterweight 7 lb Counterweight Limited 2-Year Warranty User Manual PDF 8.8mbeawutwyyuqbbfurtesx Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron Omni XLT 120mm f 8.3 EQ Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron Omni XLT 120 Specs | | | Optical Design | Achromatic Refractor | | Focal Length | 1000 mm | | Focal Ratio | f/8.3 | | Resolution | 0.97 Arcsec | | Eyepiece Barrel Diameter | 1.25", 2" | | Finderscope | Yes | | | | Type | German Equatorial | | GoTo Capability | No | | | | Material of Tripod | Stainless Steel | | | | Package Weight | 61.0 lb | | Box Dimensions (LxWxH) | 52.0 x 9.0 x 9.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
