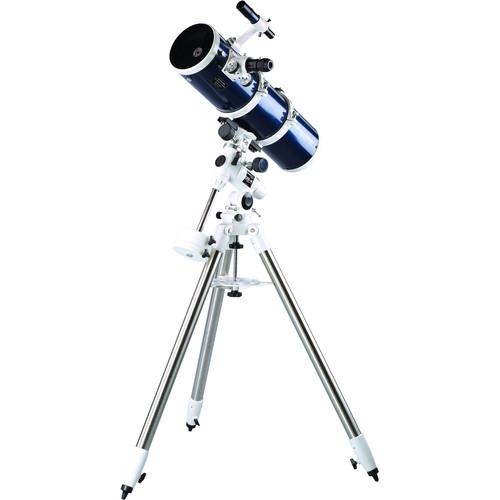

User Manual for Celestron Omni XLT 150mm f 5 EQ Reflector Telescope Click to enlarge the picture
Contents of the user manual for the Celestron Omni XLT 150mm f 5
- Product category: Reflectors Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Reflectors
|
User manual for the Celestron Omni XLT 150mm f 5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description With its large primary mirror and moderate focal length, the Celestron Omni XLT 150mm f/5 EQ Reflector Telescope is an ideal choice for making detailed observations of the moon, with the capability to resolve distant objects like star clusters, galaxies, and nebulae. Its fast focal ratio further improves resolution while reducing exposure times during astrophotography sessions. It comes with the manual CG-4 equatorial mount outfitted with steel worm gears on both axes for smooth tracking and stability. Also included is a heavy-duty stainless steel tripod to provide a sturdy and steady platform. - Optical Tube
-
- Large 150mm aperture
- Fast f/5 focal ratio
- 750mm focal length
- Proprietary XLT anti-reflection coatings mirrors improve light transmission, color rendition, and contrast
- Resolution: 0.93 arcsec, Rayleigh; 0.77 arcsec, Dawes
- 1.25" rack-and-pinion focuser
- Mount and Tripod
-
- CG-4 Mount
- Manual German equatorial
- Dual slow-motion control cables enable fine adjustments with reduced vibrations
- Altitude adjustment screws locks setting
- Etched Right Ascension and Declination scales
- Removable counterweight bar
- 7-lb and 4-lb counterweights to properly balance OTA and accessories for smooth movement
- Dovetail plate enables fast assembly and breakdown
Tripod:- Stainless steel
- 1.75"diameter legs
- Adjustable height up to 47"
- Weight: 12.5-pounds
- Included Accessories
-
Eyepieces:- 1.25" diameter barrel
- Accepts most 1.25" astronomical filters
- 25mm focal length produces 30x power
- 50° field of view
Finderscope:- 6x magnification ensures a wide field of view for alignment and star-hopping navigation
- 30mm aperture
- Includes mounting bracket
UPC: 050234310574 In the Box Celestron Omni XLT 150mm f/5 EQ Reflector Telescope 25mm Eyepiece Dovetail Mounting Plate Tripod with Accessory Tray 4 lb Counterweight 7 lb Counterweight Limited 2-Year Warranty User Manual PDF 8.8mbeawutwyyuqbbfurtesx Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron Omni XLT 150mm f 5 EQ Reflector Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron OMNI-XLT 150 Specs | Optical Design | Reflector | | Aperture | 150 mm | | Focal Length | 750mm | | Focal Ratio | f/5 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | None | | Finderscope | 6x30 | | Tripod | Stainless steel
1.75" / 4.4 cm diameter legs
Max height: 47.0" / 119.4 cm | | Mount Type | Manual equatorial | | Counterweights | 1 x 7.0 lb / 3.2 kg
1 x 4.0 lb / 1.8 kg | | Motors | None | | GoTo System | None | | Power Source | None | | Optical Tube Length | 34.0" / 86.4 cm | | Weight | 45.5 lb / 22.5 kg, fully assembled including counterweights | | | | Package Weight | 62.0 lb | | Box Dimensions (LxWxH) | 45.0 x 20.0 x 19.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
