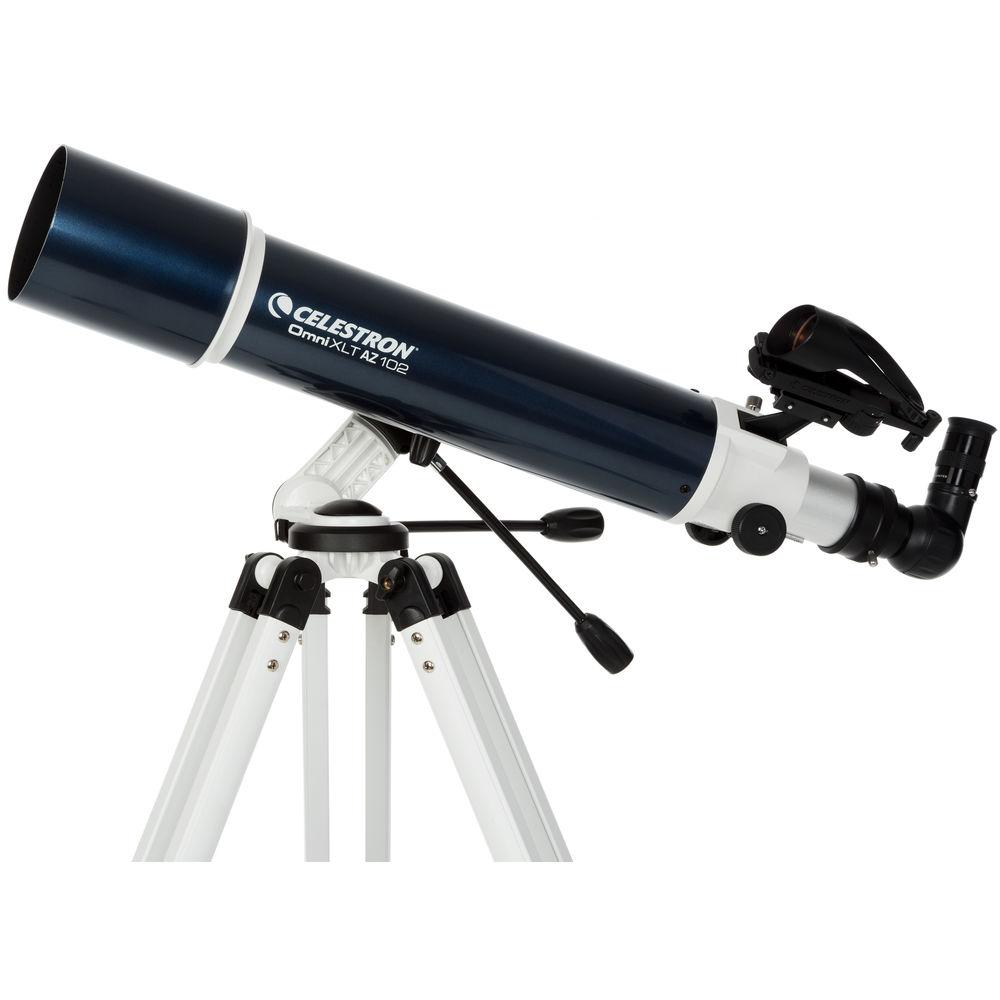

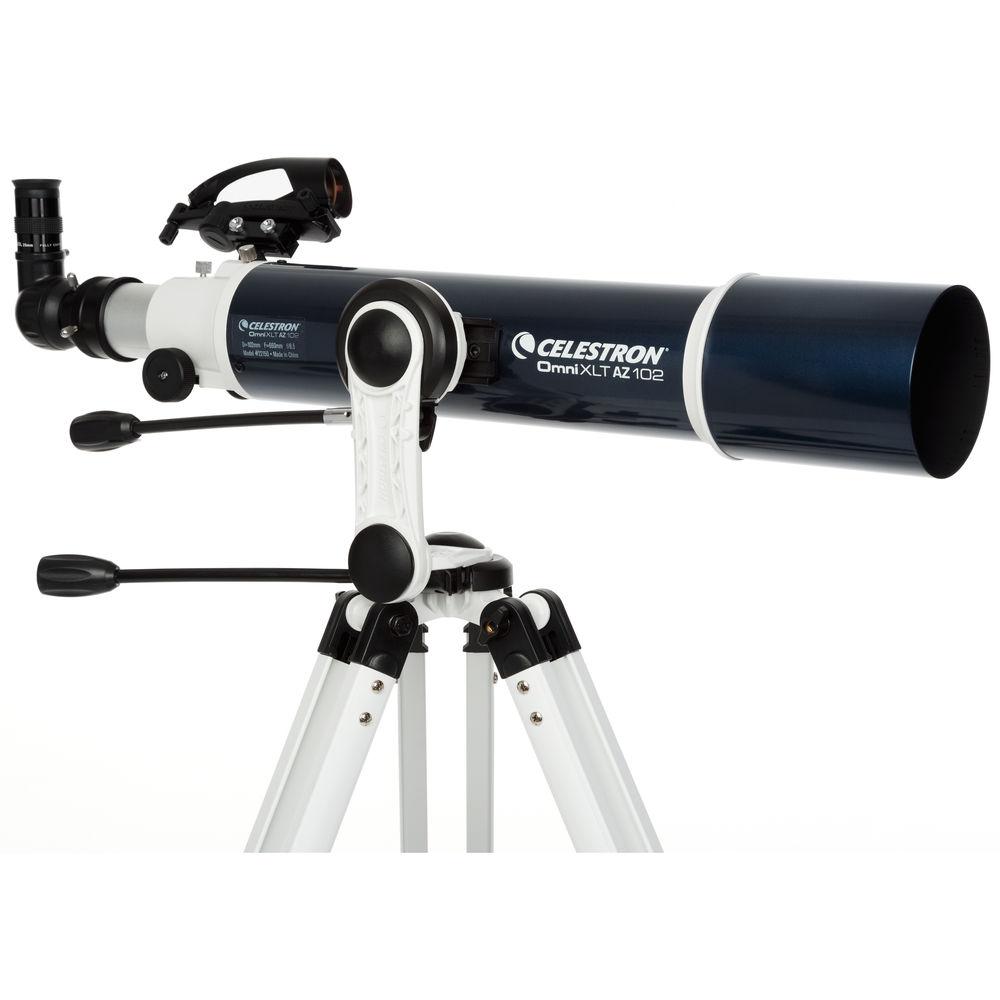

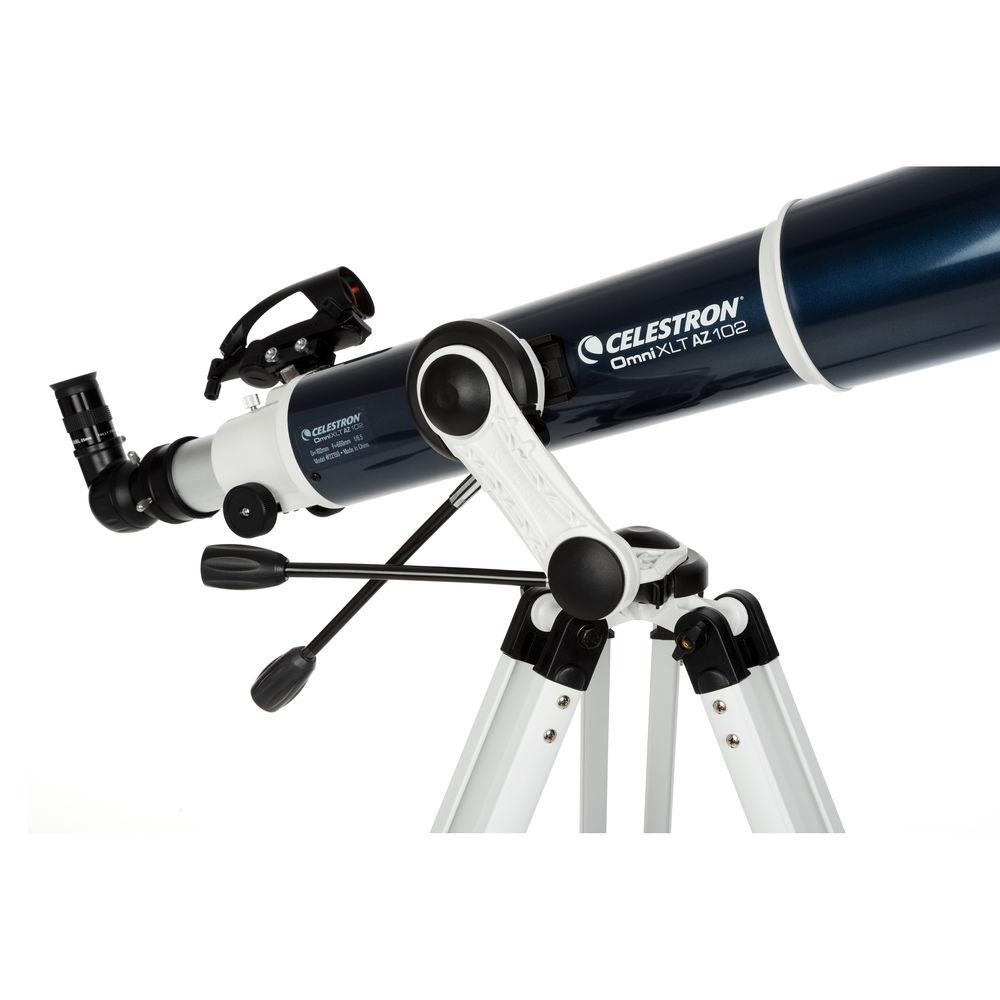

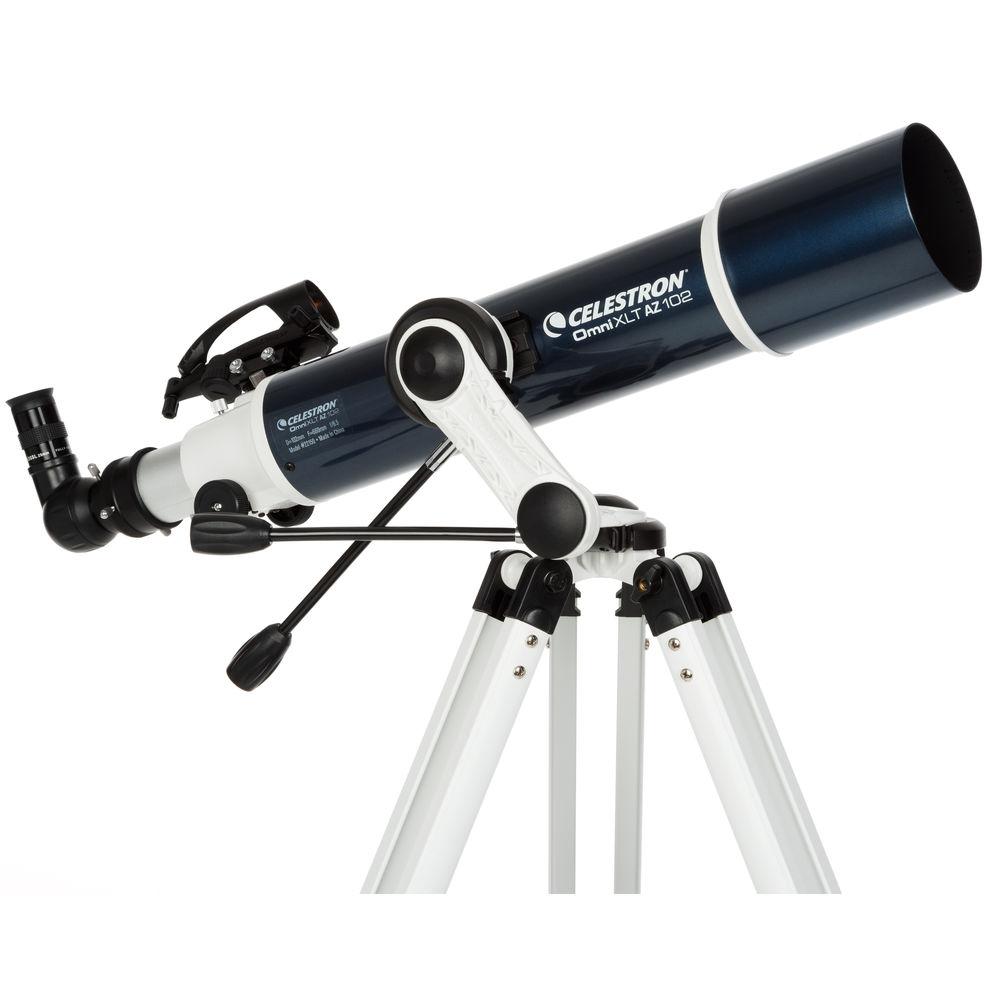

Product description - Celestron Omni XLT AZ Telescope Series Product Overview
Designed for both astronomical and terrestrial use, Celestron's Omni XLT AZ 102mm f/6.5 Refractor Telescope is an ideal instrument to introduce beginner viewers to astronomy by giving them a complete setup for viewing the Moon, planets, meteor showers, and bright, deep-sky objects. Its manual alt-azimuth mount has slip clutches and slow-motion controls on both axes for precise tracking. The mount's single fork-arm design enables the optical tube to be aimed at or near the zenith for astronomical use, and pointed downward past the horizon for terrestrial viewing on a deck, through a window, or from an observational platform.A 90° erector prism is included that corrects the image orientation for use on land as a conventional spotting scope. A single 1.25" diameter barrel eyepiece is included that yields 26x power, and any 1.25" eyepiece and accessory will fit the sturdy rack-and-pinion focuser to add greater versatility to the scope. Its adjustable-height aluminum tripod provides a stable observation platform, and its maximum height of 49" allows for comfortable viewing by most users. An integrated dew-shield helps to prevent condensation on the objective lens, while blocking stray terrestrial peripheral light from interfering with celestial observations. - Optical Tube
-
- 102mm aperture
- Fast f/6.5 focal ratio
- 660mm focal length
- Refractor-style optical configuration
- Proprietary XLT anti-reflection coatings improve light transmission, color rendition, and contrast
- Resolution: 1.37 arcsec, Rayleigh; 1.14 arcsec, Dawes

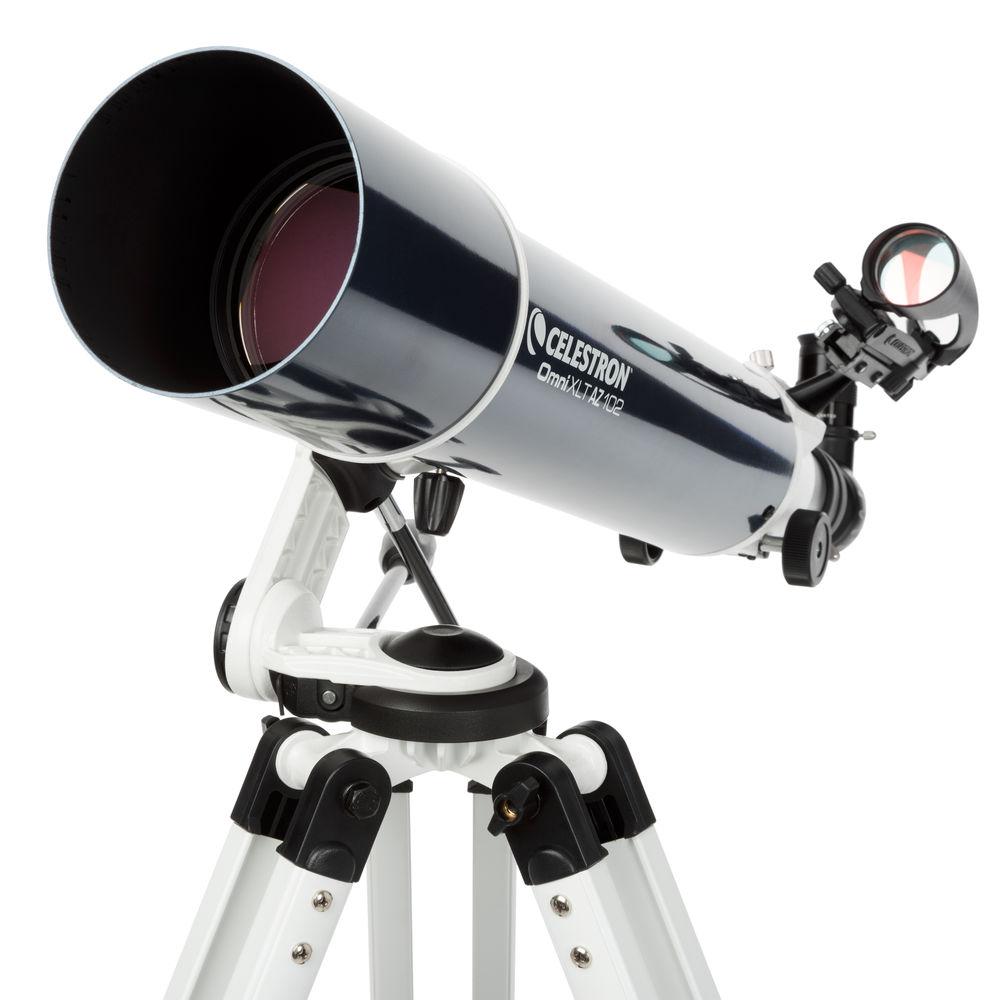

- Integrated dew shield helps to prevent condensation on objective while reducing glare from the Sun or street/house lights
- 1.25" rack-and-pinion focuser accepts any 1.25" eyepieces or accessories
- Dovetail plate allows for easy set-up and breakdown
- Mount & Tripod
-
Mount:- Manual single fork alt-az
- Adjustable fork angle for optimum clearance in astronomical or terrestrial settings
- Dual-axis slip clutches for fast pointing and aiming
- Dual slow-motion cables allow for precise tracking with limited vibrations
- Dovetail saddle accepts plate on OTA

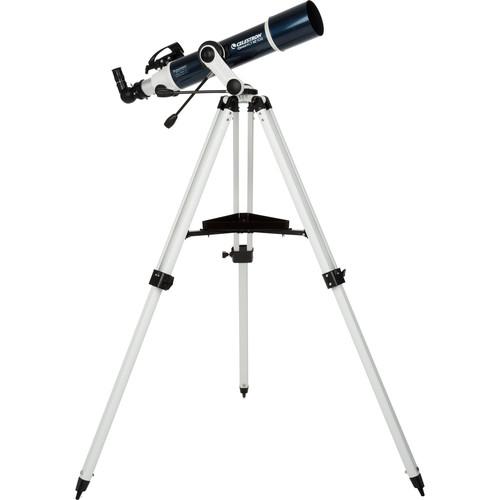

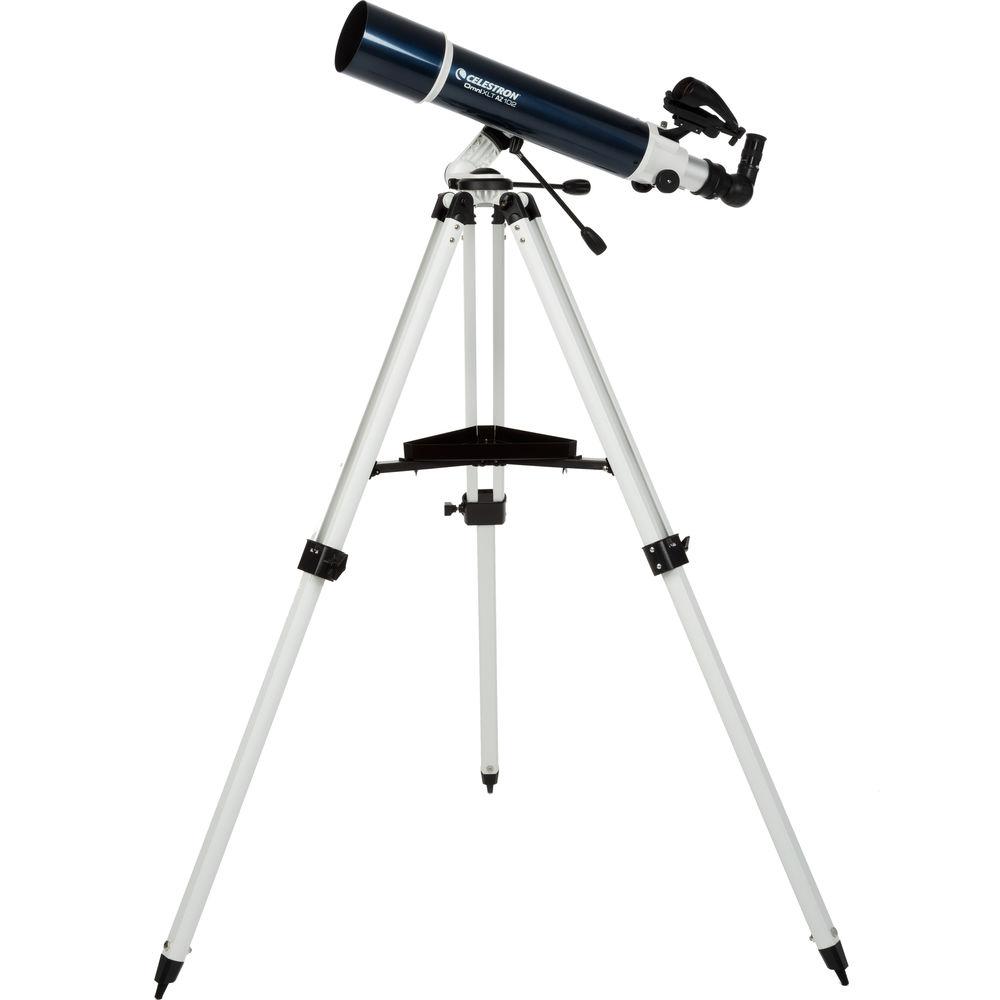

Tripod:- Two-stage aluminum
- Tray holds eyepieces, filters, and flashlights
- Adjustable height up to 49" (124.5cm)
- Eyepiece and Accessories
-
Eyepiece:- 1.25" diameter barrel
- Accepts most 1.25" astronomical filters
- 25mm Plossl eyepiece yields 26x power

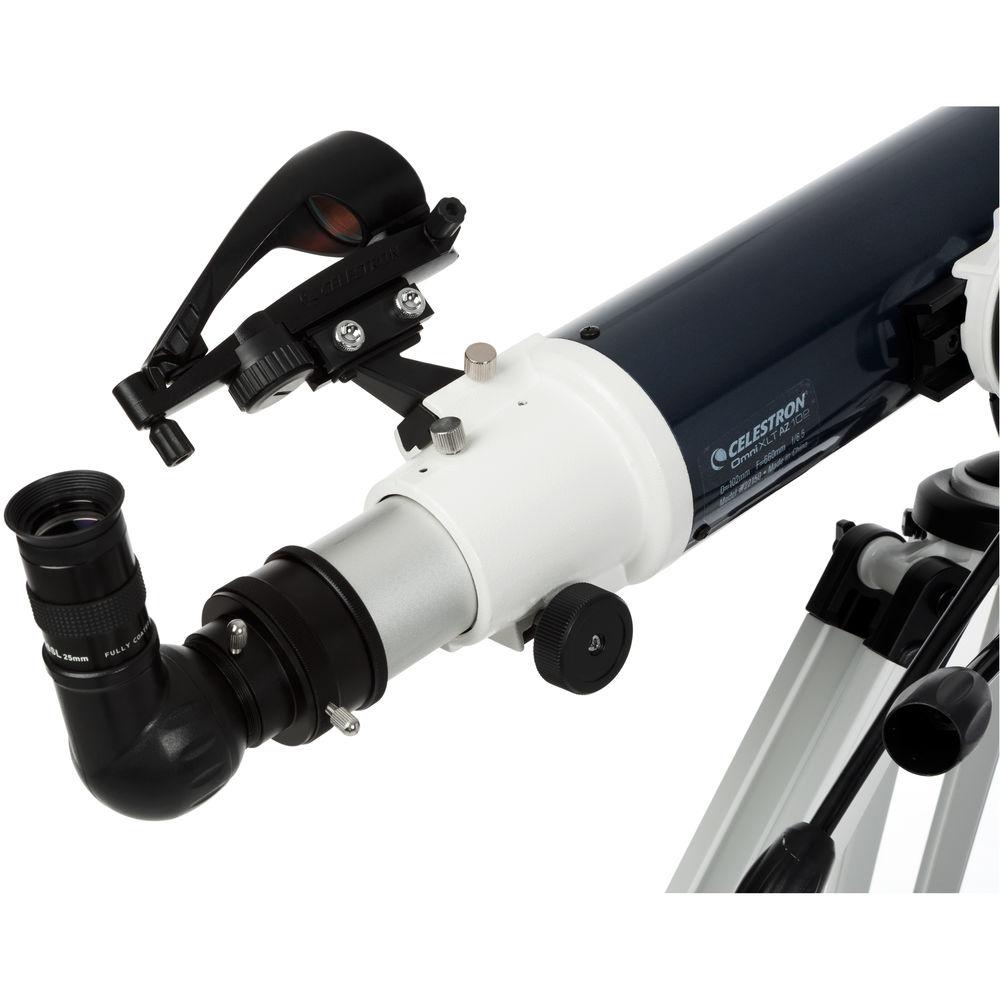

Diagonal:- 1.25" holder for eyepieces and accessories
- 90° places head in a comfortable viewing position
- Erect-image prism corrects image horizontally and vertically for terrestrial viewing
Finderscope:- StarPointer Pro red-dot finder
- Wide unmagnified field of view
- Projects dual-circle reticle that won't obstruct distant objects
- Adjustable intensity
UPC: 050234221504 In the Box Celestron Omni XLT AZ 102mm f/6.5 Refractor Telescope StarPointer Pro Finderscope Aluminum Tripod with Tray Alt-Az Mount 26mm Eyepiece Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron Omni XLT AZ 102mm f 6.5 Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 22150 Specs | | | Optical Design | Refractor | | Aperture | 102 mm / 4.1" | | Focal Length | 660 mm | | Focal Ratio | f/6.5 | | Focuser | Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90
