User Manual for Celestron Omni XLT AZ 130mm f 5 Reflector Telescope Click to enlarge the picture
Contents of the user manual for the Celestron Omni XLT AZ 130mm f
- Product category: Reflectors Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Reflectors
 |
User manual for the Celestron Omni XLT AZ 130mm f contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description - Celestron Omni XLT AZ Telescope Series Product Overview

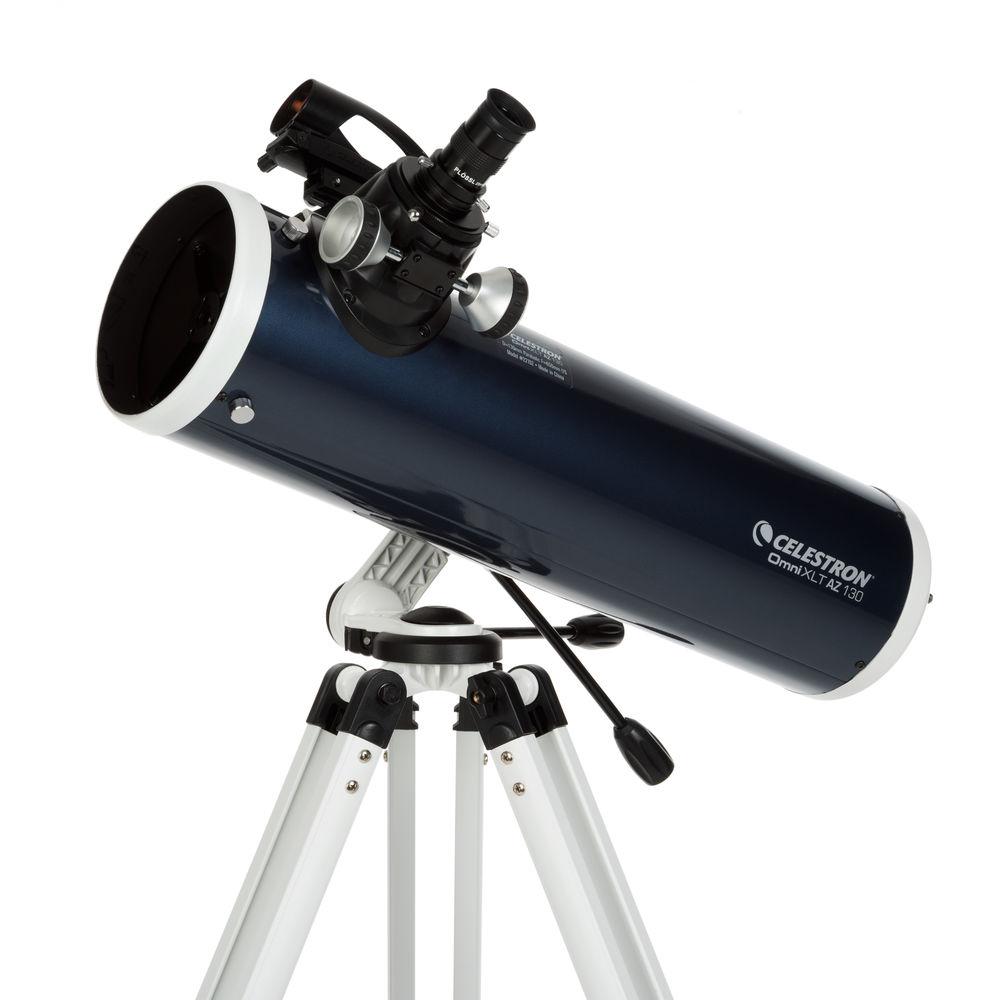

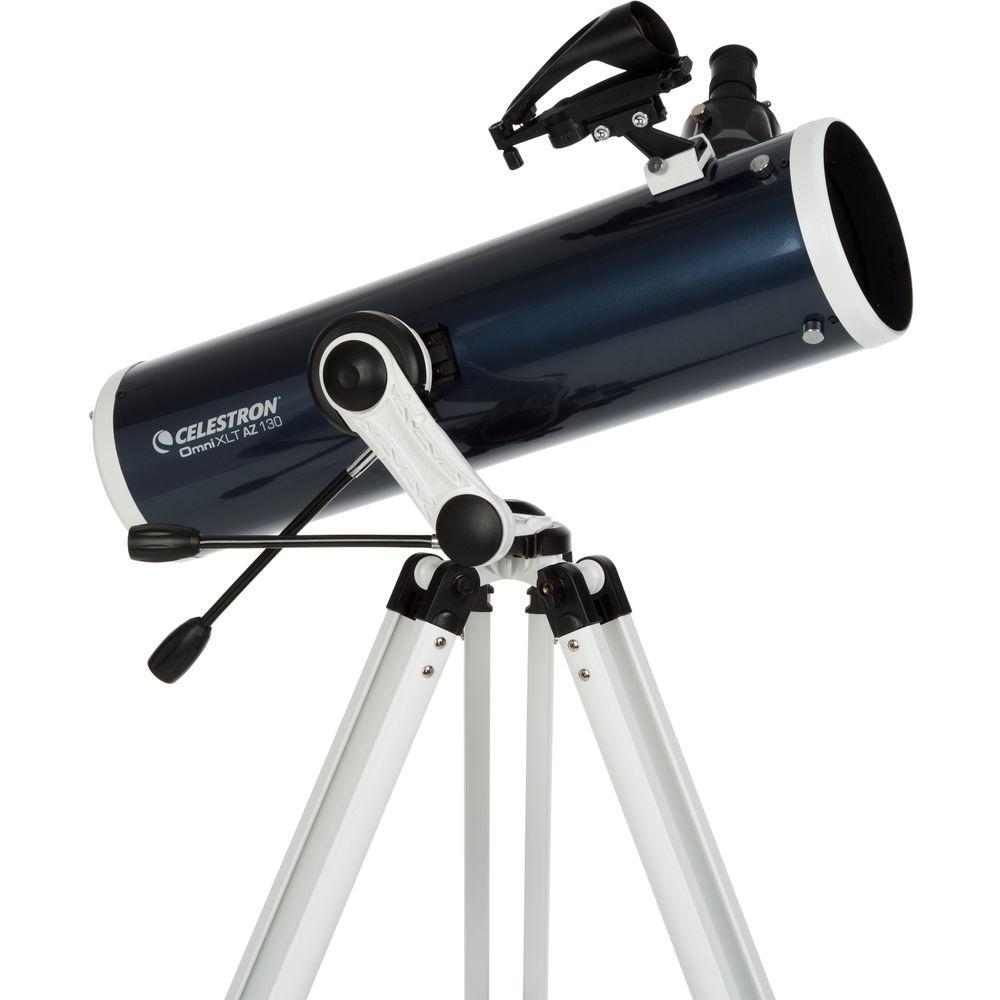

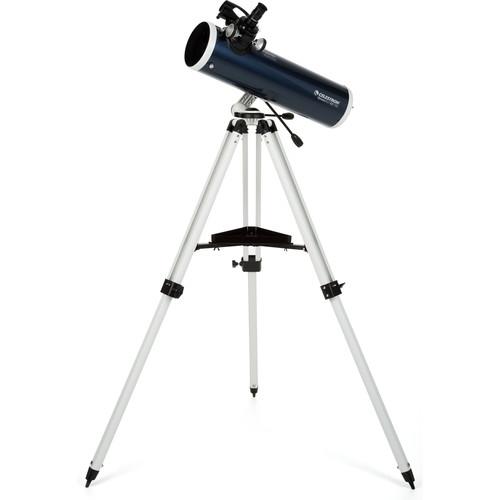

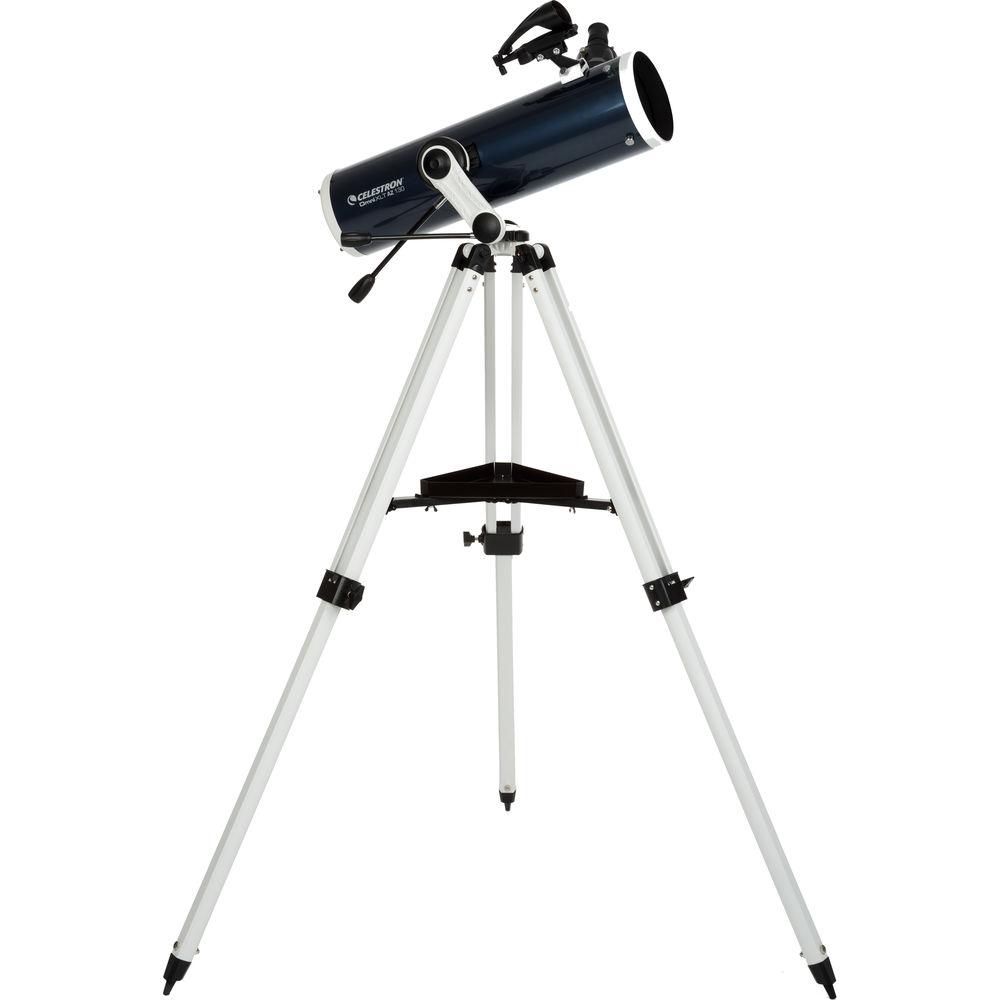

Ideal for beginner to intermediate observers, the Omni XLT AZ 130mm f/5 Reflector Telescope from Celestron offers a complete kit for viewing the Moon, planets, meteor showers, and bright deep-sky objects. The optics are fully coated with the proprietary XLT anti-reflection coatings to limit light loss and produce brighter and clearer images with more accurate colors and enhanced contrast versus non-coated systems.The scope features the manual Omni alt-azimuth mount with slip clutches, and dual slow-motion controls on both axes for precise tracking. A 1.25" diameter barrel eyepiece is included that yields 26x power, and a 1.25" eyepiece and accessory will fit the focuser to add greater versatility to the scope. Its adjustable-height aluminum tripod provides a stable observation platform, and its maximum height of 49" allows for comfortable viewing by most users. - Optical Performance
-
- 130mm aperture
- f/5 focal ratio
- Newtonian reflector optical configuration
- 650mm focal length
- Fully multi-coated optics
- Proprietary XLT anti-reflection coatings
- Resolution: 1.07 arc sec, Rayleigh; 0.89 arc sec, Dawes

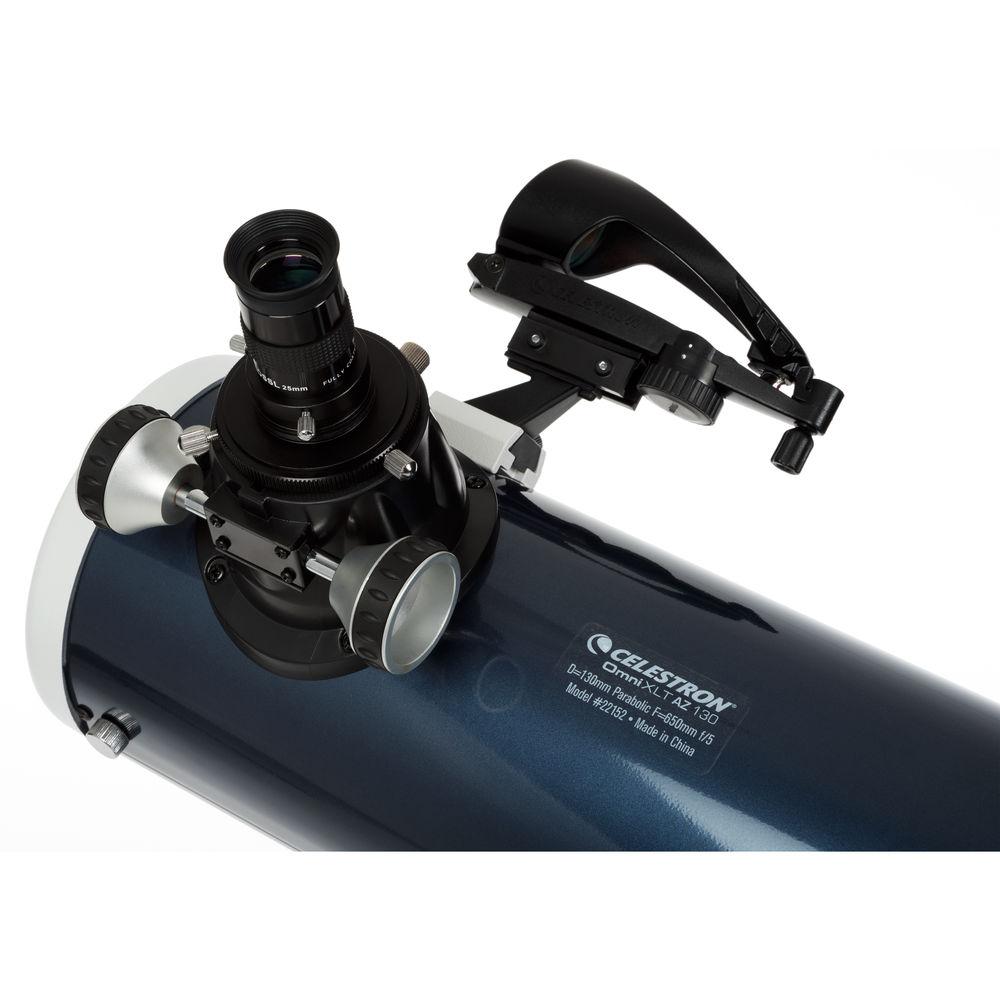

- 1.25" rack-and-pinion focuser
- Mount and Tripod
-

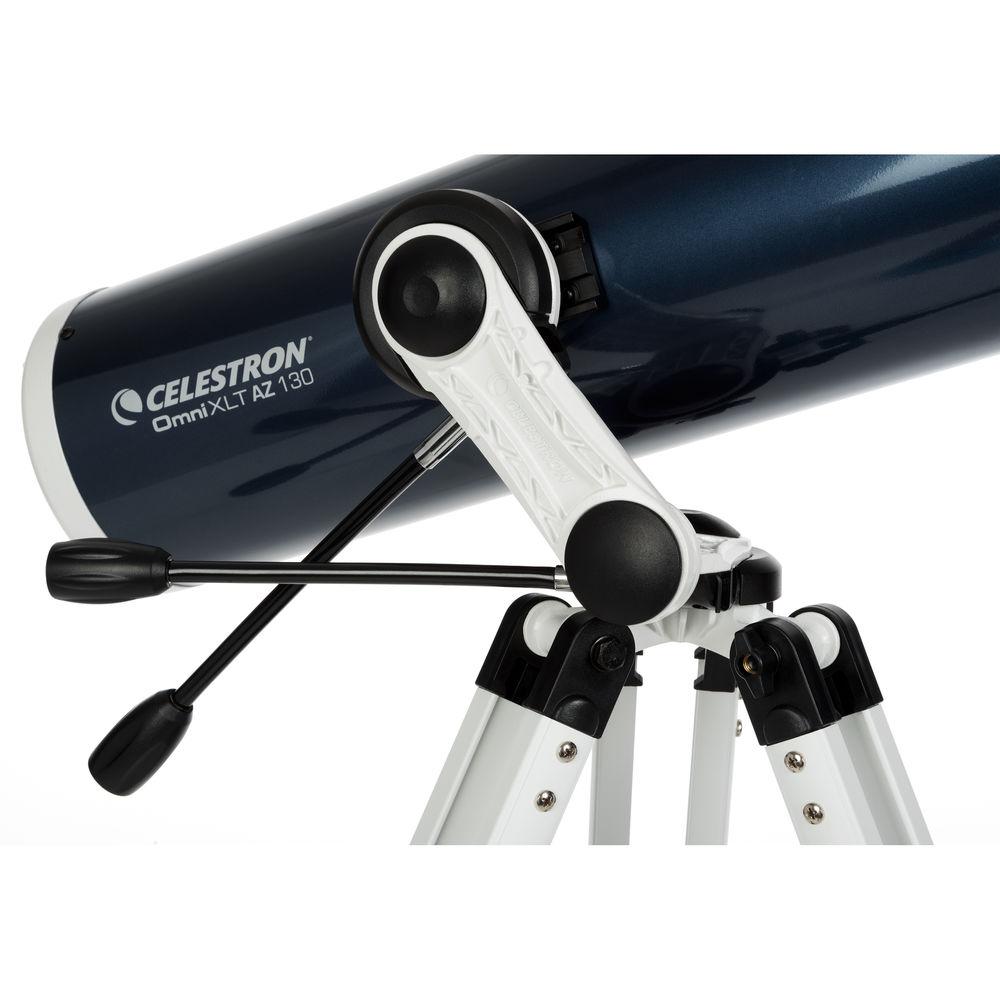

Mount:- Manual single fork alt-az
- Dual-axis slip clutches for fast pointing/aiming
- Dual slow-motion cables
Tripod:- Two-stage aluminum legs
- Tray for accessories such as eyepieces, filters, lights
- Adjustable height up to 49"
- Included Accessories
-

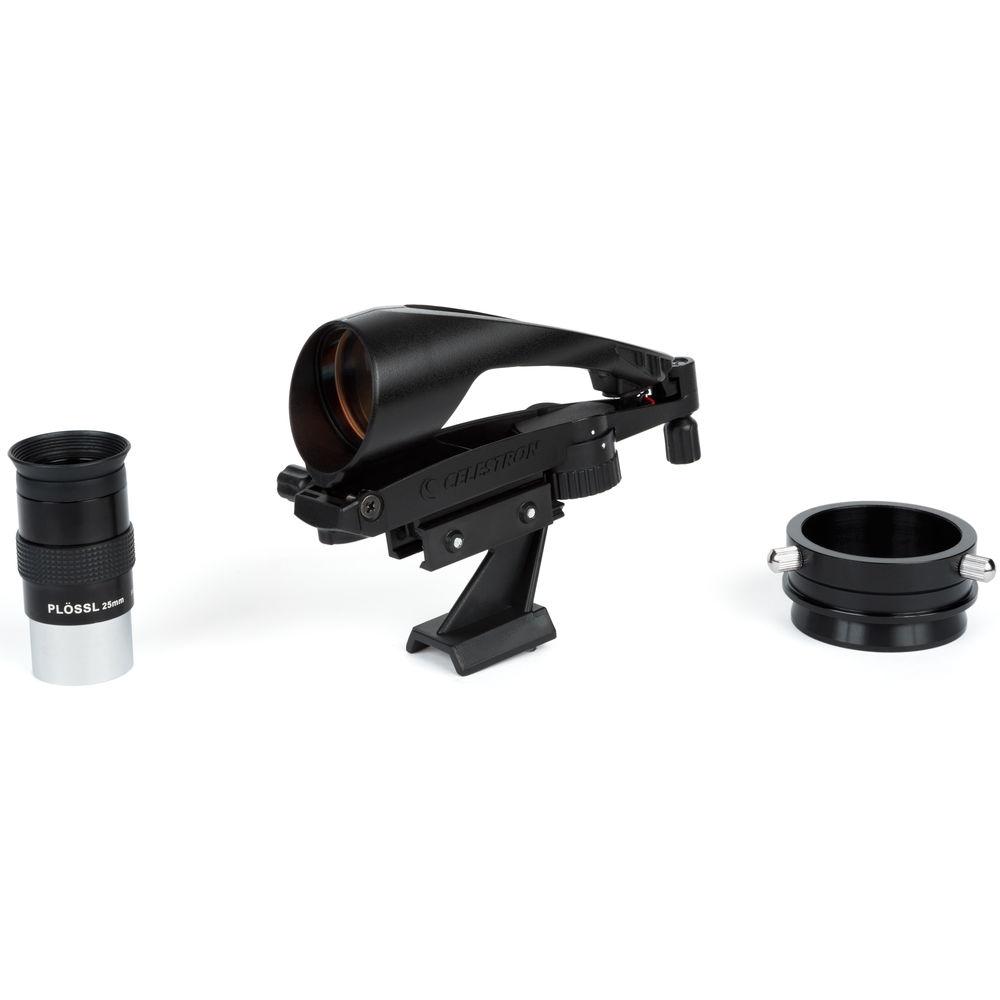

Eyepieces:- 1.25" diameter barrel
- Accepts most 1.25" astronomical filters
- 25mm eyepiece yields 26x power
Finder:- StarPointer Pro red-dot
- Un-magnified wide field of view makes finding objects easier and star-hopping navigation faster
- Projects dual circle reticle that won't obstruct distant objects
- Red illumination is easy to see without affecting night-adjusted vision
- Adjustable intensity illumination
UPC: 050234221528 In the Box Celestron Omni XLT AZ 130mm f/5 Reflector Telescope StarPointer Pro Finderscope ebyqbyuvwrbrsfbwuz 25mm Eyepiece Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron Omni XLT AZ 130mm f 5 Reflector Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 22152 Specs | Optical Design | Newtonian reflector | | Aperture | 130 | | Focal Length | 650mm | | Focal Ratio | f/5 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | None | | Finderscope | Red-dot finder | | Tripod | Yes, aluminum
Adjustable, Max Height: 49.0" / 124.5 cm | | Mount Type | Manual alt-azimuth | | Power Source | None | | Optical Tube Dimensions | Length: 25.0" / 63.5 cm | | Weight | 17.4 lb / 7.9 kg | | | | Package Weight | 31.4 lb | | Box Dimensions (LxWxH) | 39.0 x 21.0 x 15.0" |
