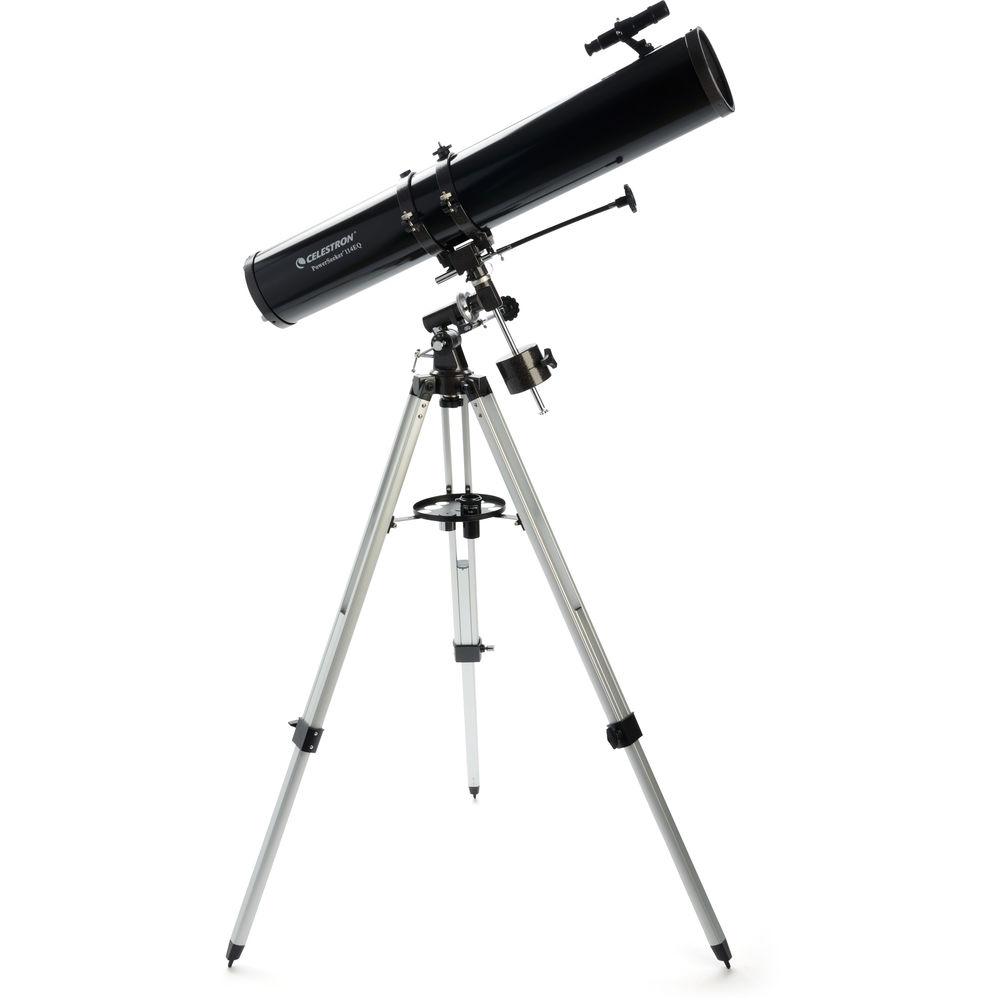

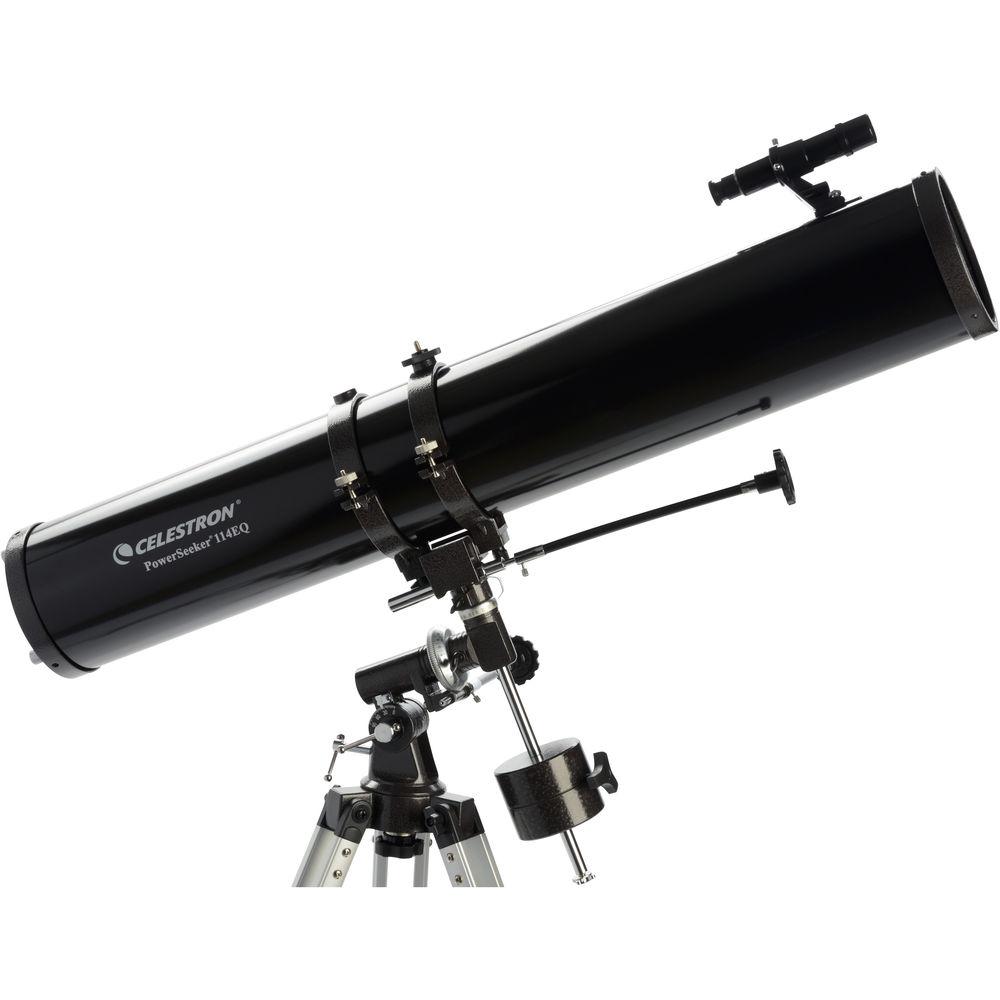

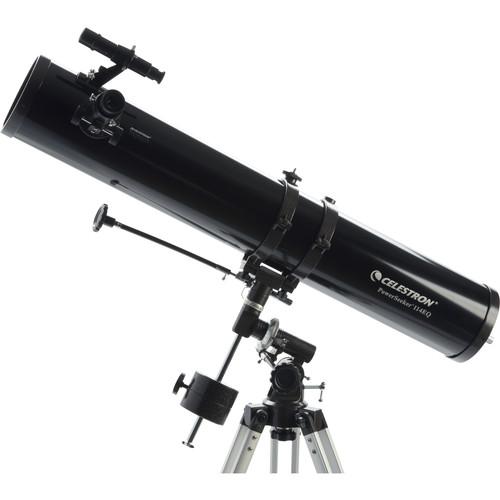

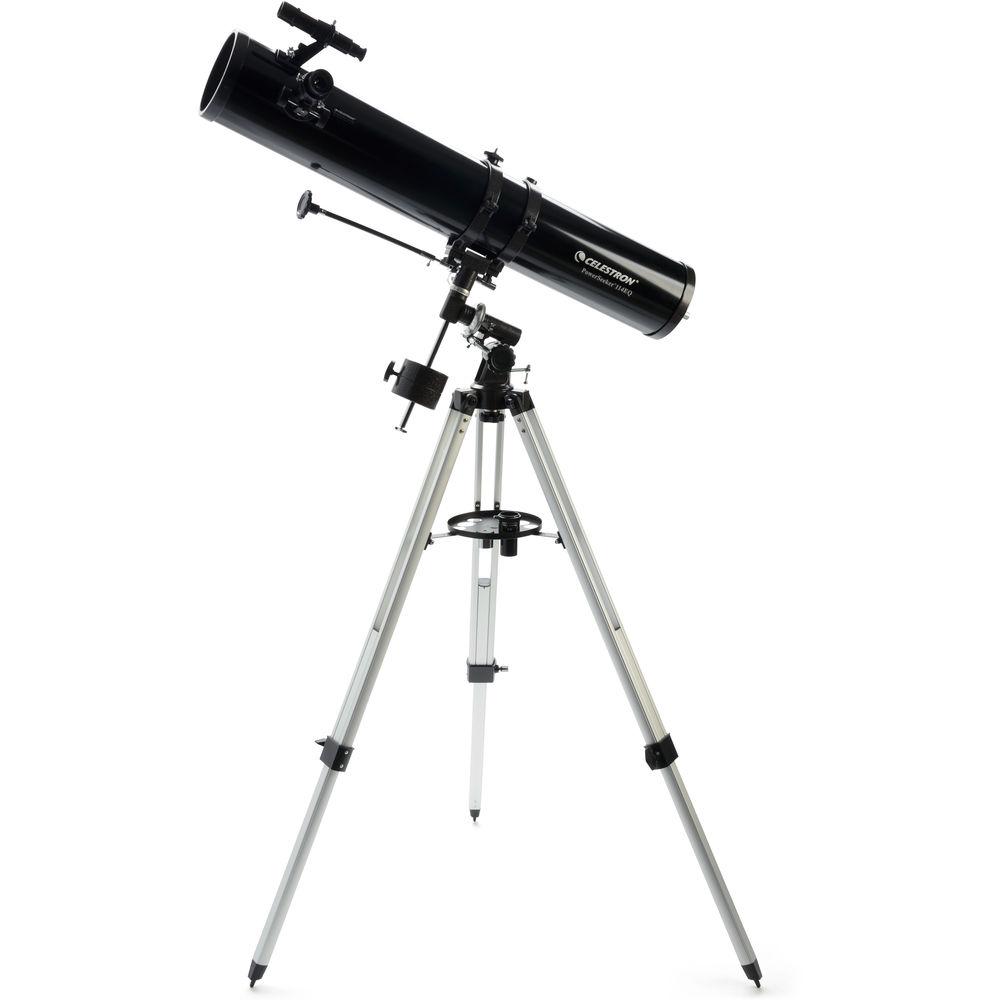

User Manual for Celestron PowerSeeker 114EQ 114mm f 8 Reflector Telescope Click to enlarge the picture
Contents of the user manual for the Celestron PowerSeeker 114EQ 114mm f 8
- Product category: Reflectors Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Reflectors
 |
User manual for the Celestron PowerSeeker 114EQ 114mm f 8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description Ideal for near and deep-sky observation, Celestron's PowerSeeker 114EQ 114mm f/8 Reflector Telescope features a respectable focal length and a larger parabolic mirror that produce detailed images of the Moon, clear views of the planets, and the ability to resolve bright distant objects such as nebulae and galaxies. The scope is outfitted with a 1.25 rack-and-pinion focuser and two eyepieces to get new users started, and a 3x Barlow lens that effectively triples the magnification of any eyepiece used with it to expand the usability.The included manual equatorial mount features slow-motion control cables with large knobs to make it easy to track objects even when wearing gloves, while also minimizing vibrations caused by handling the mount with your hands; and clearly visible indicators on the Right Ascension and Declination axes. An adjustable-height aluminum tripod rounds out the rig with a tray for accessories such as eyepieces, filters, and lights. - Optical Tube
-
- 114mm aperture
- f/7.89 focal ratio
- 900mm focal length
- High-transmission multi-coated mirrors improve light transmission, color rendition, and contrast
- Resolution: 1.22 arcsec, Rayleigh; 1.02 arcsec, Dawes
- 1.25" rack-and-pinion focuser
- Mount and Tripod
-

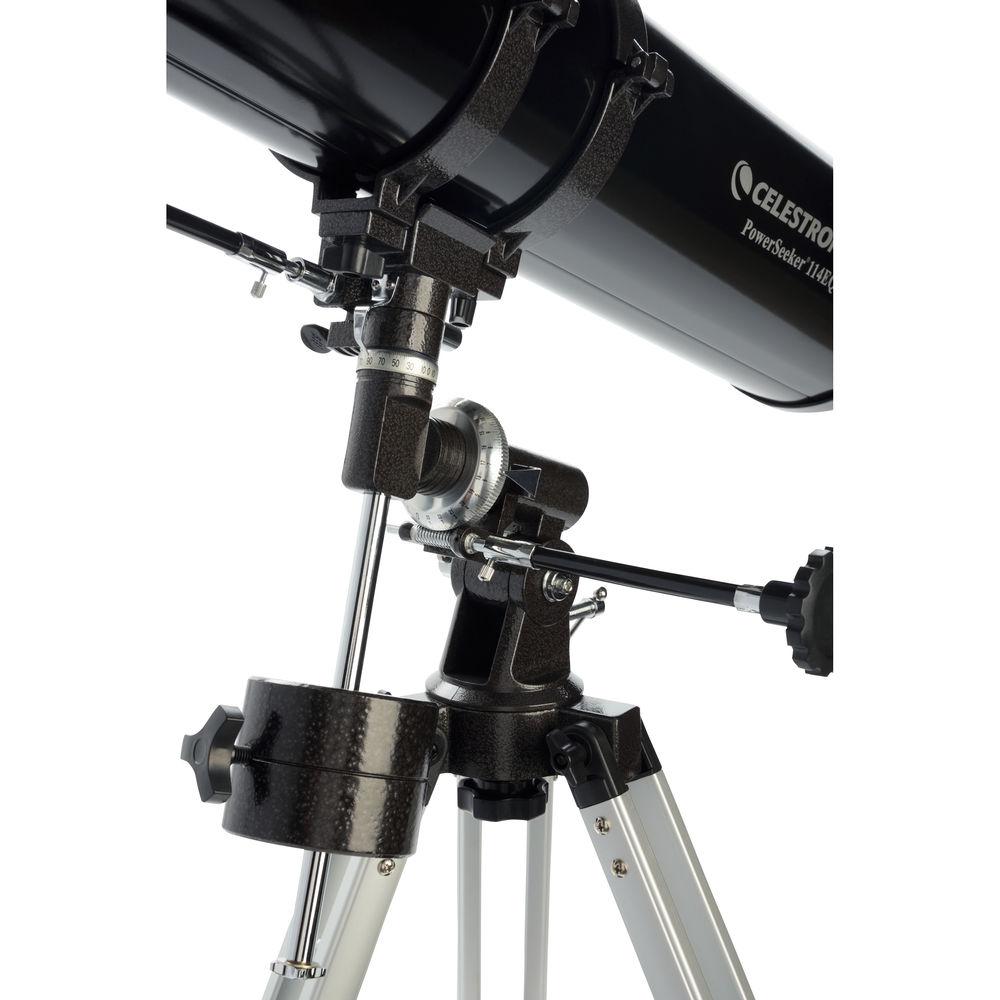

Mount:- Manual German equatorial
- Dual slow-motion control cables enable fine adjustments with reduced vibrations
- Altitude adjustment screws locks setting
- Etched Right Ascension and Declination scales
- Removable counterweight bar
- 6-pound counterweight to properly balance OTA and accessories for smooth movement
- Dovetail plate enables fast assembly and break-down
Tripod:- Adjustable-height
- Aluminum-alloy legs
- Tray to hold eyepieces, lights, and accessories
- Spiked feet add stability on uneven/soft ground
- Included Accessories
-

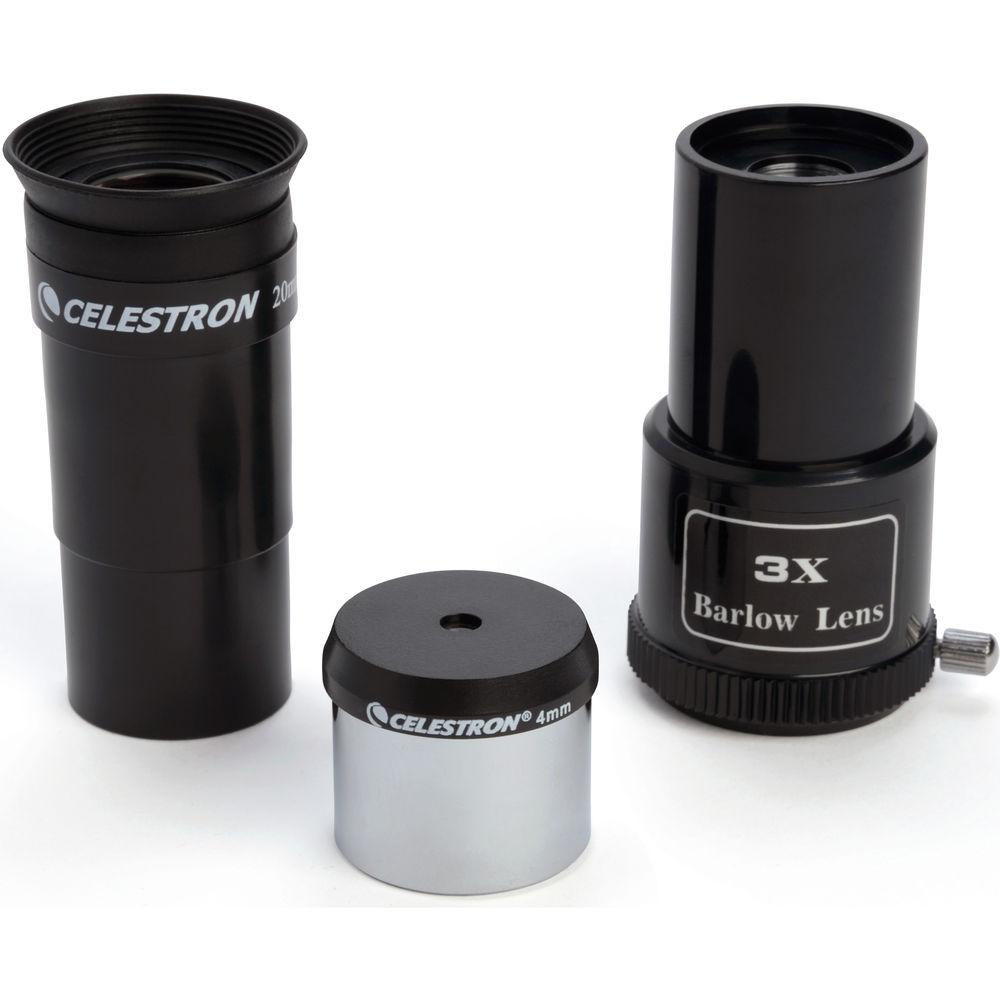

Eyepieces:- 1.25" diameter barrel
- Accepts most 1.25" astronomical filters
- 4mm focal length produces 225x
- 20mm focal length produces 45x
- 20mm eyepiece has integrated prism to correct image horizontally and vertically for terrestrial use
Barlow Lens:- Triples the magnification of any eyepiece used

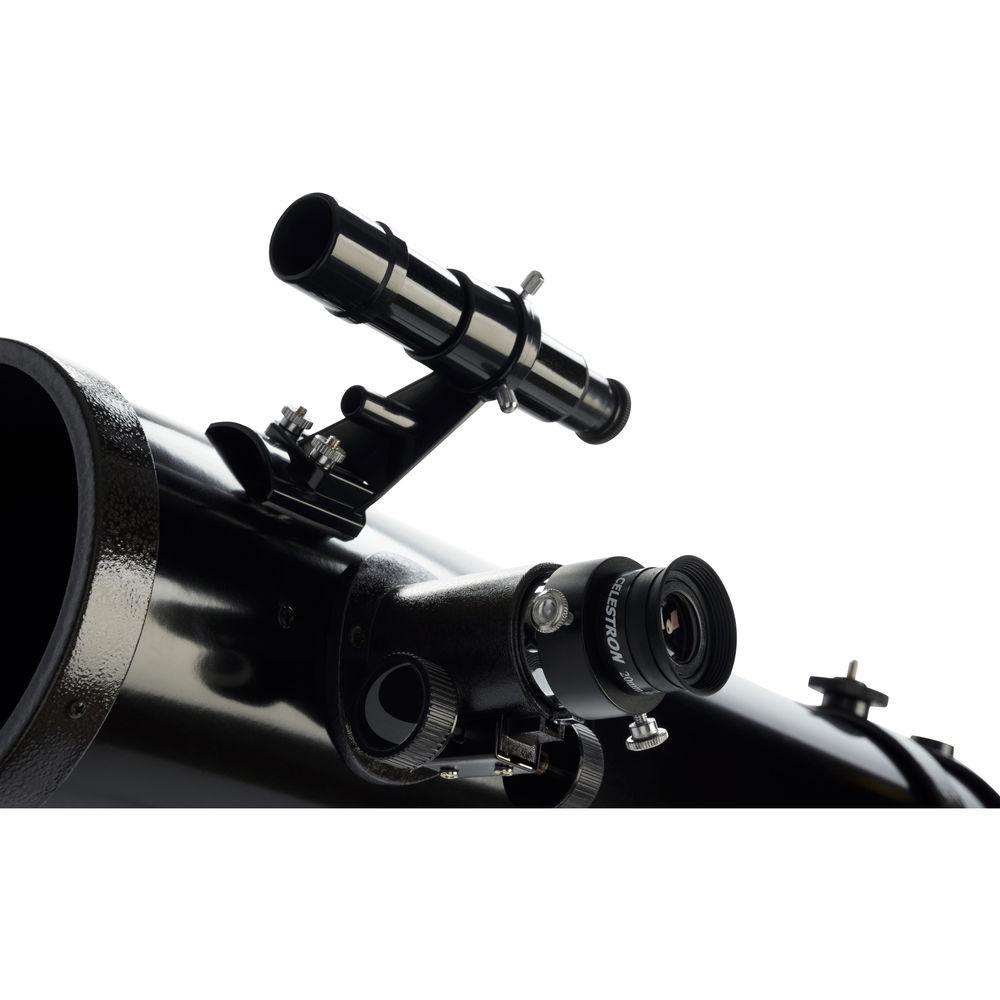

Finderscope:- Low 5x magnification has a wide field of view for easier set up, alignment, and star navigation
- 24mm aperture can resolve bright objects without being too big or heavy
UPC: 050234104524 In the Box Celestron PowerSeeker 114EQ 114mm f/8 Reflector Telescope 20mm Erect-Image Eyepiece 4mm Eyepiece 3x Barlow Lens Star Pointer Finder Equatorial Head 2 x Slow-Motion Cables Adjustable-Height Tripod Counterweight Bar 6-lb Counterweight "The Sky" Level 1 CD-ROM Limited 2-Year Warranty User Manual PDF 3.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron PowerSeeker 114EQ 114mm f 8 Reflector Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron PowerSeeker 114 EQ Specs | | | Optical Design | Newtonian Reflector | | Aperture | 114 mm / 4.5" | | Focal Length | 900 mm | | Focal Ratio | f/8 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | None | | Finderscope | Yes | | Optical Tube Dimensions | Length: 35" / 88.9 cm | | | | Type | Manual; German Equatorial | | Counterweight | 1 x 6.0 lb / 2.7 kg | | | | Type | Adjustable | | Material of Tripod | Aluminum | | | | Batteries | None | | Weight | 19.0 lb / 8.6 kg (Fully Assembled) | | | | Package Weight | 27.0 lb | | Box Dimensions (LxWxH) | 36.0 x 14.0 x 9.0" |
