User Manual for Celestron PowerSeeker 50 50mm f 12 AZ Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Celestron PowerSeeker 50 50mm f 12
- Product category: Refractors Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Refractors
 |
User manual for the Celestron PowerSeeker 50 50mm f 12 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

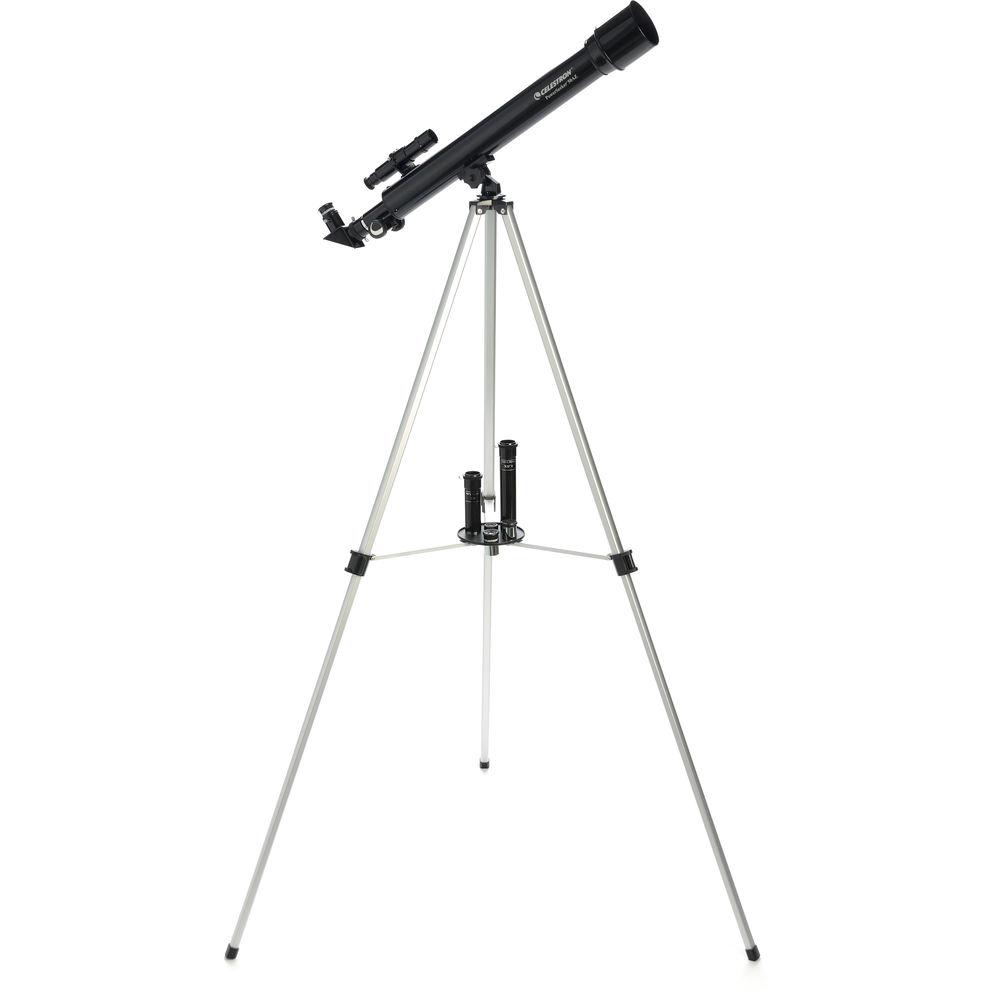

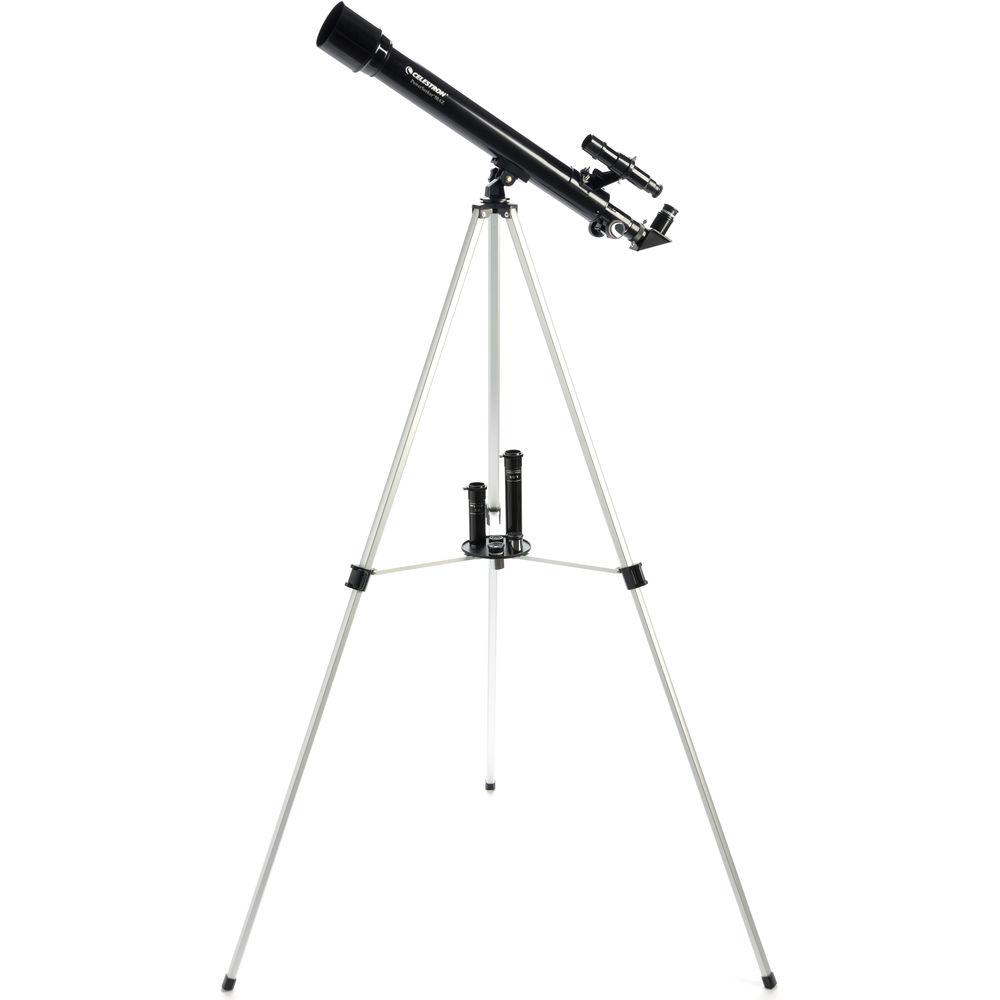

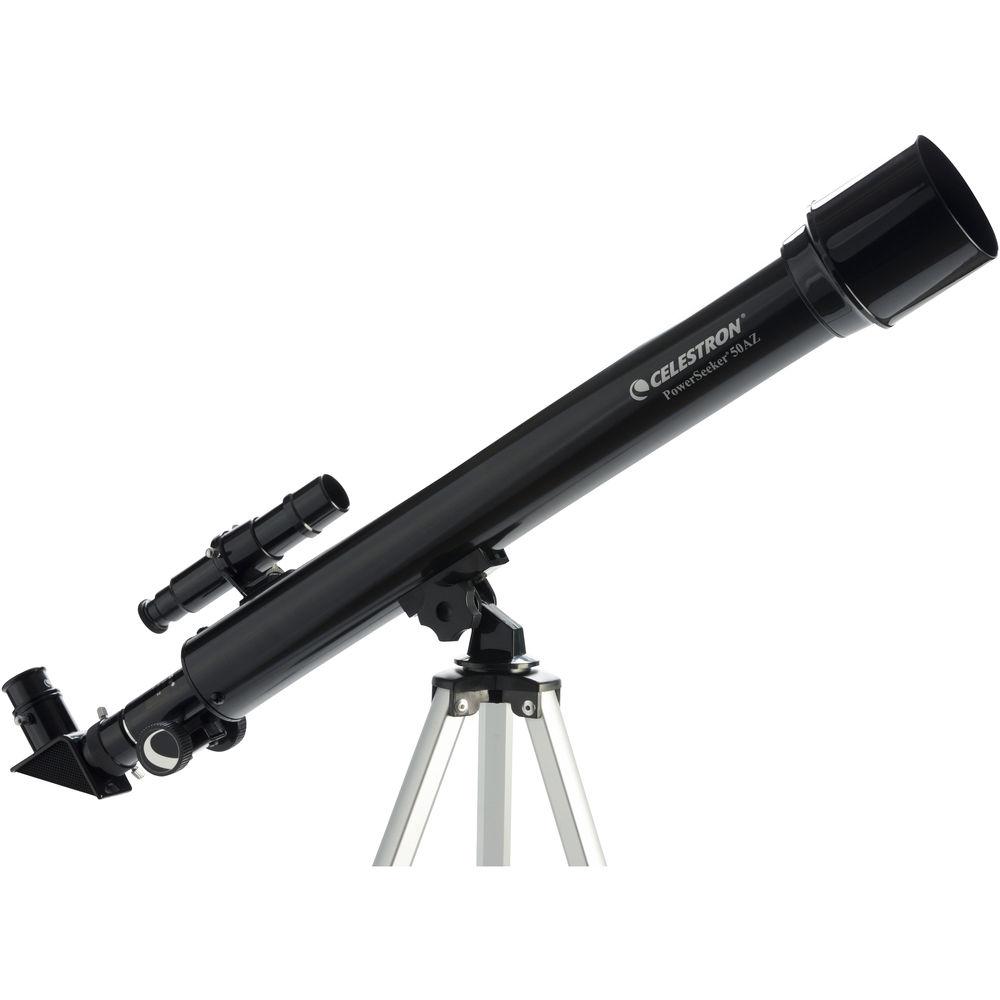

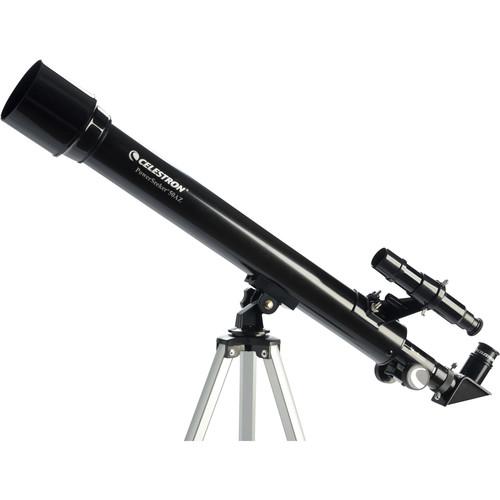

Product description The PowerSeeker 50 50mm f/12 AZ Refractor Telescope from Celestron is a starter scope designed to introduce viewers to astronomy by giving them a complete setup for viewing the moon, planets, and meteor showers. Three eyepieces provide 30x, 50x, and 150x magnifications with a 3x Barlow lens that triples the magnification of each eyepiece for a wider range of observing possibilities. An adjustable height aluminum tripod provides a stable platform for sky-watching, and the included 90° star diagonal makes looking through the scope more comfortable, especially when aiming the telescope toward the zenith. - Optical Tube
-
- 50mm aperture
- 600mm focal length
- f/12 focal ratio
- Refractor-style optical design
- Anti-reflection multi-coated optics improves light transmission, color rendition, sharpness, and contrast
- Resolution: 2.79 arc sec, Raleigh; 2.32 arc sec, Dawes
- 0.96" rack-and-pinion focuser
- Mount and Tripod
-
- Alt-Azimuth mount with altitude lock
- 2-Stage adjustable height aluminum tripod
- Tray holds accessories such as

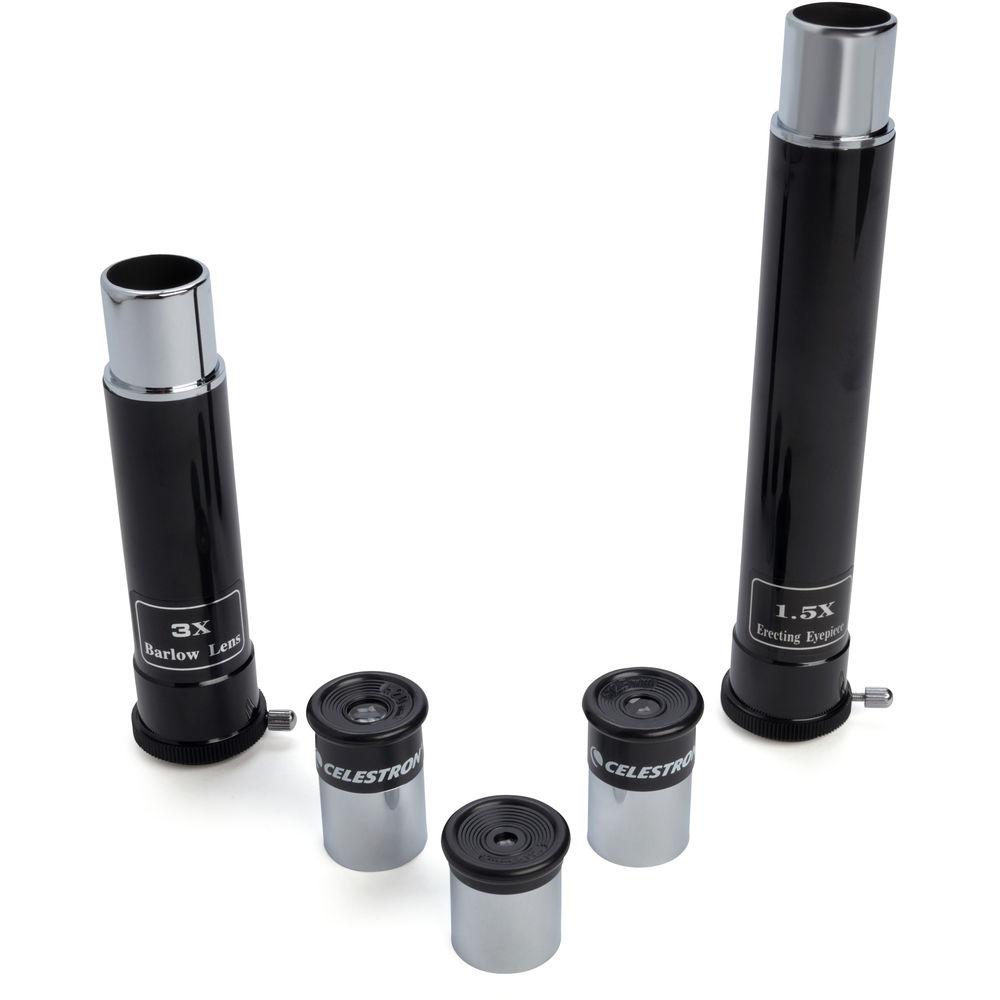

- Eyepieces and Accessories
-
Eyepieces:- 0.96" diameter barrel
- 20mm eyepiece yields 30x magnification, 51° apparent angle of view, 72' field of view at 1000 yards
- 12mm eyepiece yields 50x magnification
- 4mm eyepiece yields 150x magnification
Barlow lens:- 3x magnification effectively triples the power of each eyepiece for wider viewing options
Diagonal:- 90° angle provides a more comfortable viewing position
- Star diagonal vertically corrects images for land use

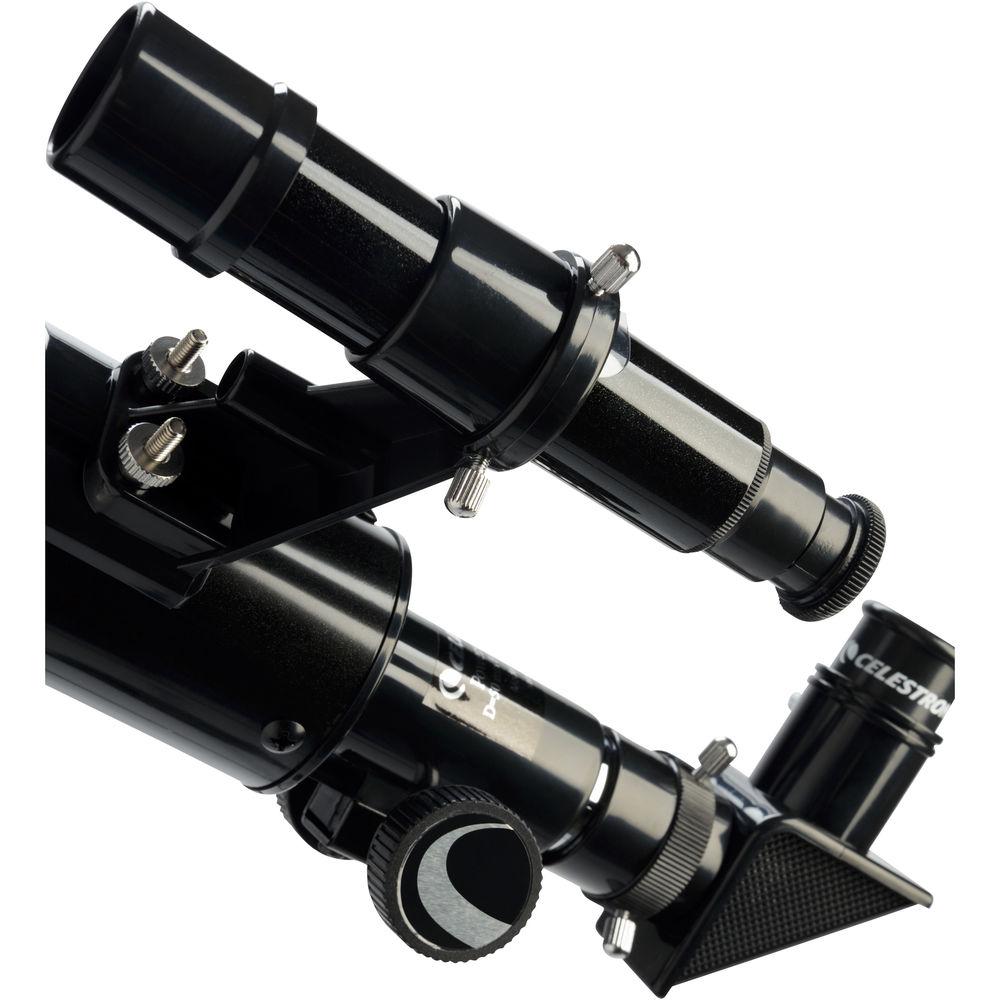

5x24 Finderscope- 5x magnification produces a wide field of view to make finding subjects easy and star-hopping navigation faster
- Straight-through viewing
- Includes mounting bracket
UPC: 050234210393 In the Box Celestron PowerSeeker 50 50mm f/12 AZ Refractor Telescope 20mm Eyepiece 12mm Eyepiece 4mm Eyepiece 5x24 Finderscope 3x Barlow Lens 90° Star Diagonal Aluminum Tripod with Accessory Tray TheSkyX - First Light Edition Astronomy Software Limited 2-Year Warranty User Manual PDF 3.2mbbyzstuartreyttttzbcywdwuads Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron PowerSeeker 50 50mm f 12 AZ Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron PowerSeeker 50 Specs | | | Optical Design | Refractor | | Focal Length | 600 mm | | Focal Ratio | f/12 | | Focuser | Rack-and-Pinion | | Eyepiece Barrel Diameter | 0.965" | | Finderscope | Yes | | | | Type | Adjustable, 2-Section | | | | Package Weight | 4.95 lb | | Box Dimensions (LxWxH) | 32.75 x 7.25 x 4.25" |
