User Manual for Celestron PowerSeeker 70mm f 10 EQ Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Celestron PowerSeeker 70mm f 10 EQ
- Product category: Refractors Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Refractors
 |
User manual for the Celestron PowerSeeker 70mm f 10 EQ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

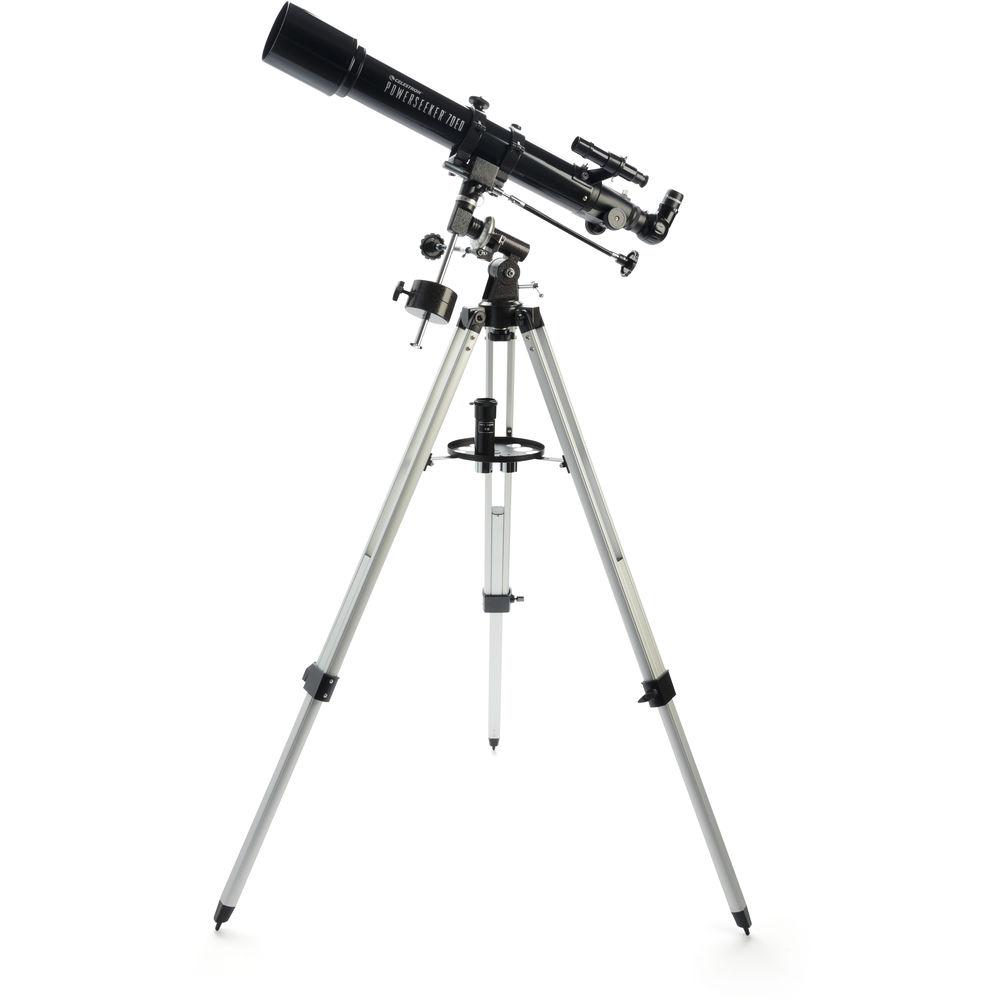

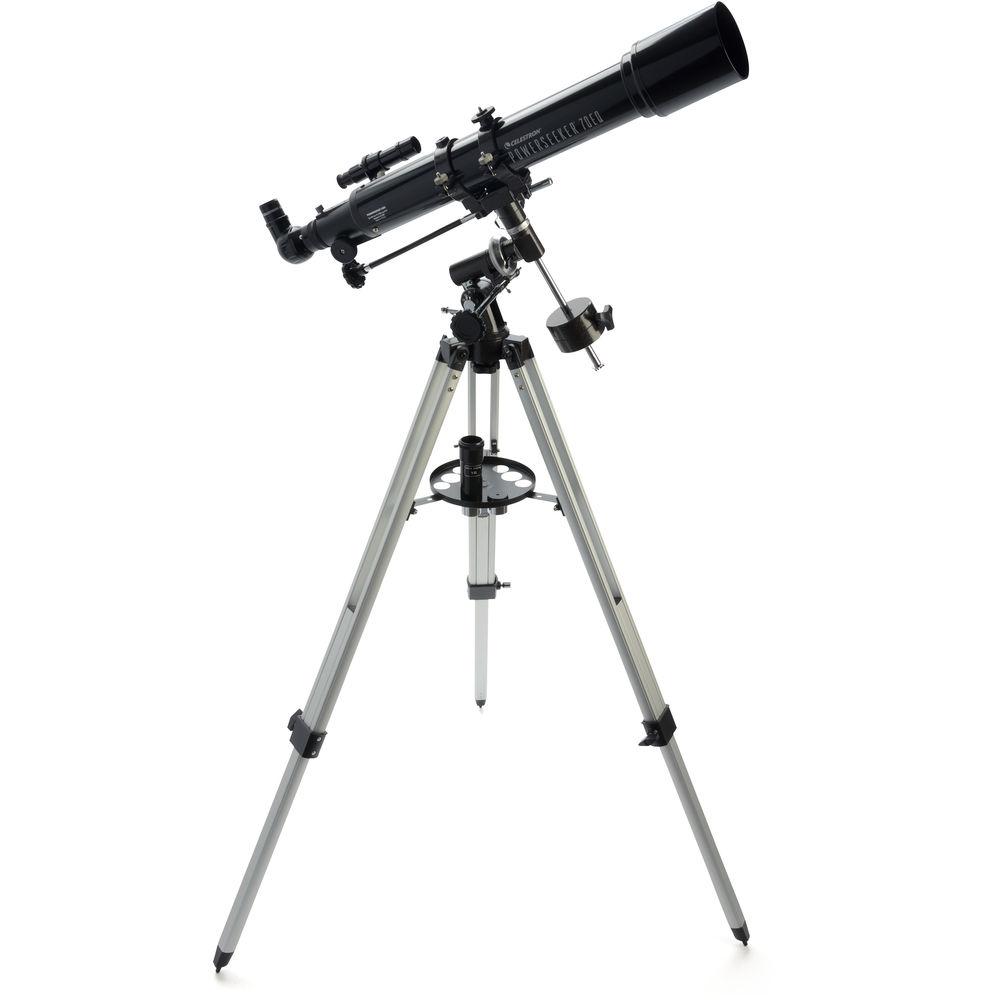

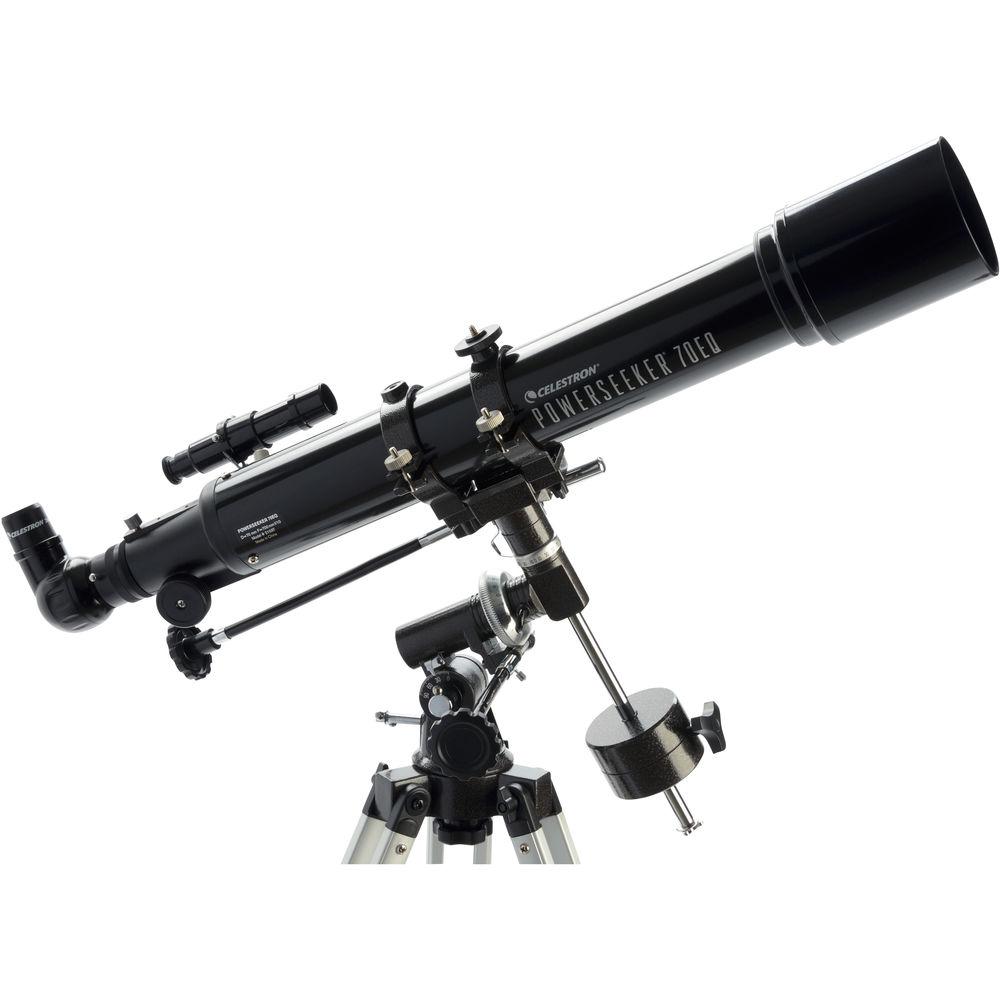

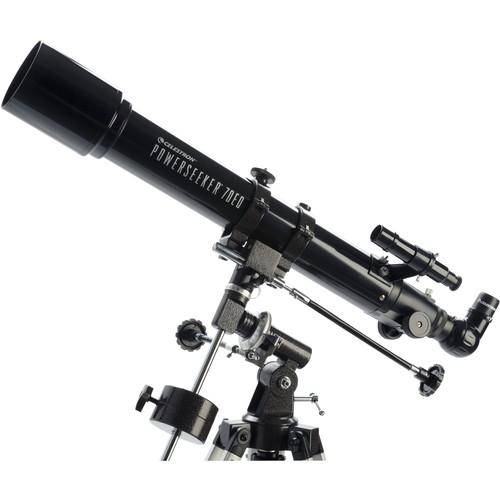

Product description Designed for intermediate users, Celestron's PowerSeeker 70mm f/10 EQ Refractor Telescope is intended to take astronomic observation to the next level by providing a complete set up for viewing the Moon and planets, and brighter deep-sky objects like star clusters and galaxies. Two eyepieces provide 35x and 175x magnifications with a 3x Barlow lens that triples the magnification of each eyepiece for a wider-range of observing possibilities.Its manual German equatorial mount has precise Right Ascension (RA) and Declination indicators for celestial navigation, and dual slow-motion cables to track your object with accuracy and reduced vibrations. An adjustable-height aluminum tripod provides a stable platform for sky-watching, and the included 90° erect-image diagonal makes looking through the scope more comfortable, especially when aiming the telescope directly overhead. The diagonal's prism corrects images horizontally and vertically, allowing the scope to be used for terrestrial viewing as well. - Optical Performance
-
- 70mm aperture
- 700mm focal length
- f/10 focal ratio
- Refractor-style optical design
- Anti-reflection fully coated optics improves light transmission, color rendition, sharpness, and contrast
- Resolution: 1.99 arcsec, Raleigh; 1.66 arcsec, Dawes

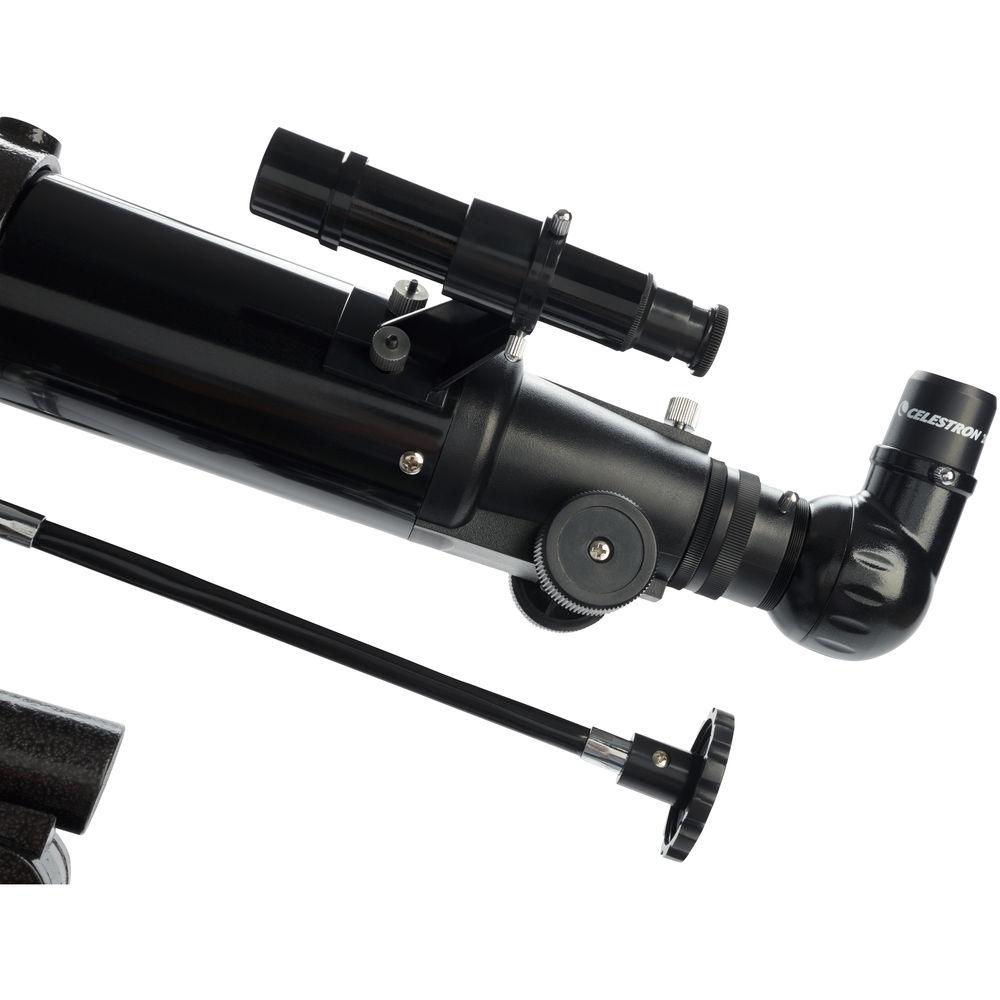

- 1.25" rack-and-pinion focuser
- Integrated dew-shield
- Mount and Tripod
-

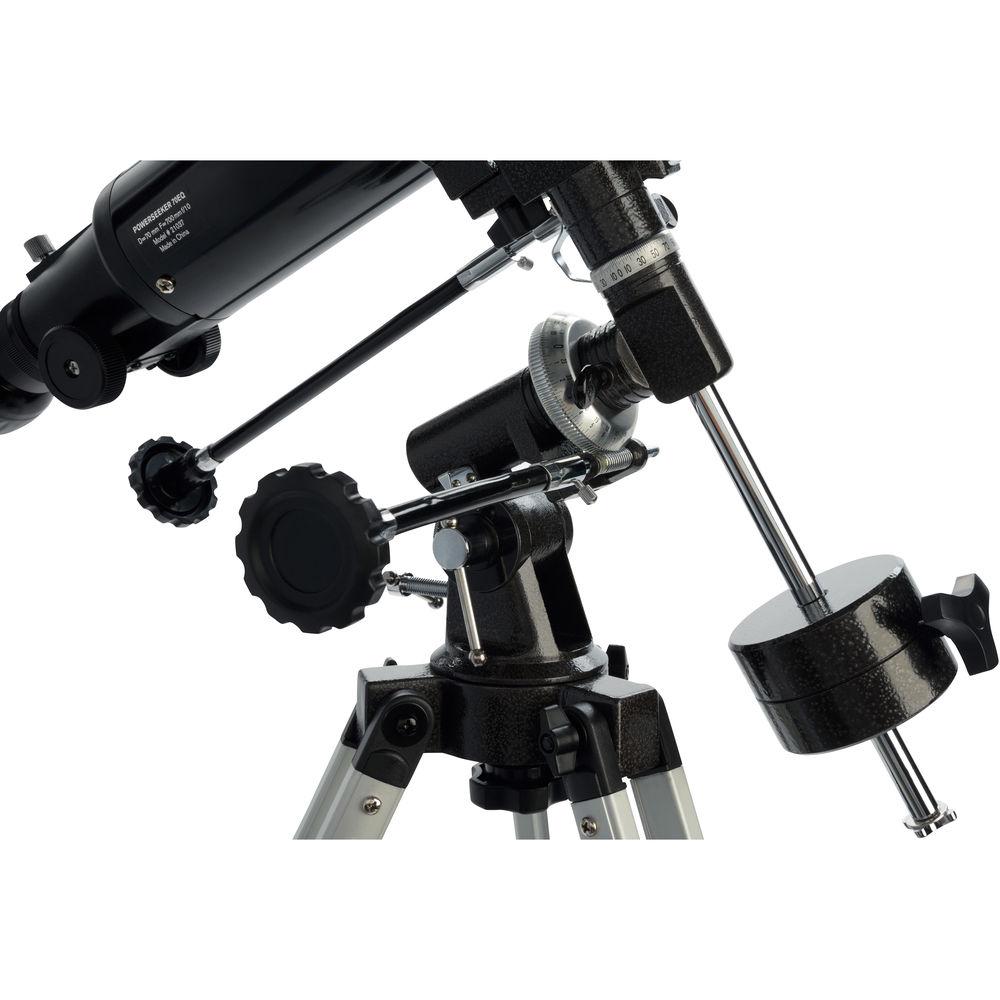

Mount:- Manual German equatorial
- Etched Right Ascension and Declination scales
- Includes 4-pound counterweight and shaft to enable proper balancing for free and easy movement
- Flexible controllers with large knurled knobs allows for precise control with reduced vibrations
Tripod:- Lightweight and durable aluminum legs
- Two-stage adjustable height allows for easy use by most people
- Tray to hold accessories such as eyepieces, filters, and lights
- Eyepieces and Accessories
-

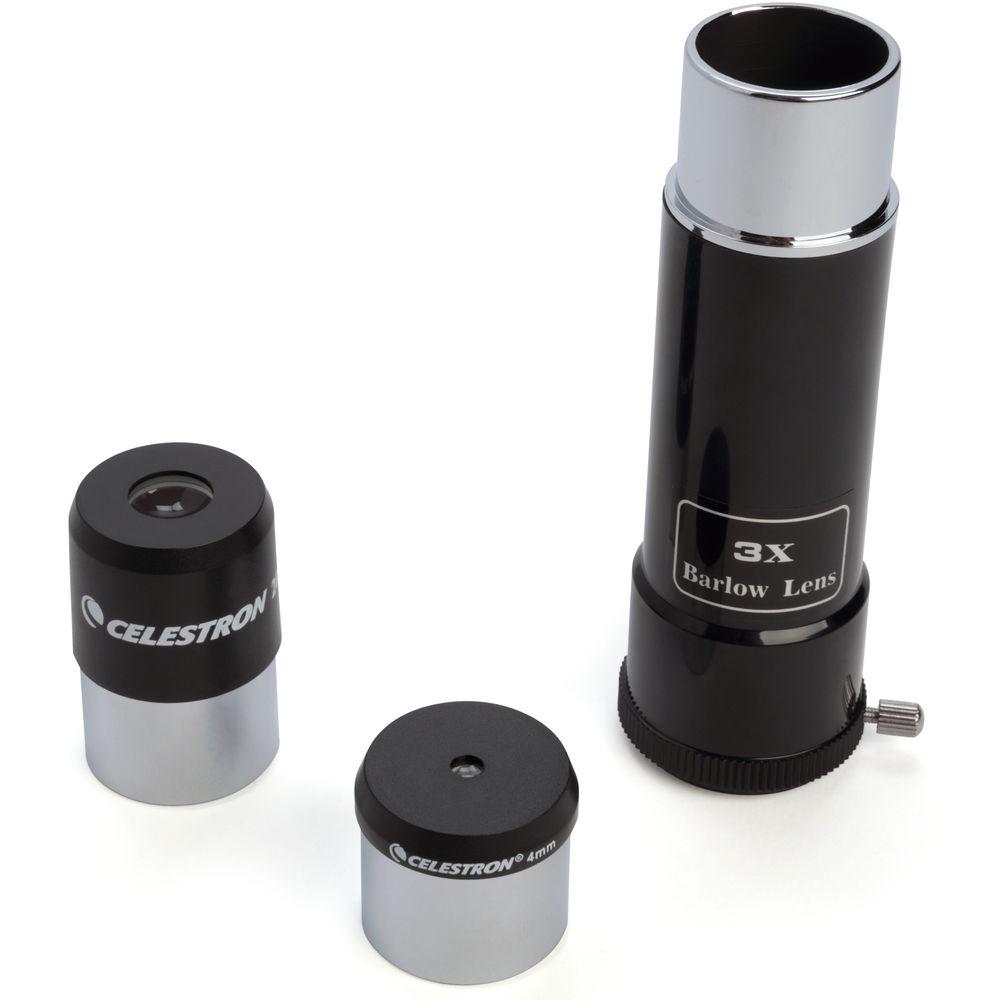

Eyepieces:- 1.25" barrel diameter accepts more astronomical filters
- 20mm eyepiece: 35x magnification
- 4mm eyepiece: 175x magnification
Barlow lens:- 3x magnification
- Triples the power of any eyepiece used with it
Diagonal:- 90° angle provides a more comfortable viewing position
- Integrated erecting prism corrects image for land use
5x24 Finderscope:- 5x magnification produces a wide field of view to make finding subjects easy and star-hopping navigation faster
- Straight-through viewing
- Includes mounting bracket
UPC: 050234210379 In the Box Celestron PowerSeeker 70mm f/10 EQ Refractor Telescope 20mm Eyepiece 4mm Eyepiece 5x24 Finderscope 3x Barlow Lens Manual Equatorial Mount 4-pound Counterweight 2 x Control Cable for Mount 90° Erect-Image Diagonal Adjustable-Height Aluminum Tripod TheSkyX - First Light Edition Astronomy Software Limited 2-Year Warranty User Manual PDF 3.2mbxxtxfttecc Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron PowerSeeker 70mm f 10 EQ Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron Powerseeker 70 EQ Specs | | | Optical Design | Achromatic Refractor | | Focal Length | 700 mm | | Focal Ratio | f/10 | | Eyepiece Barrel Diameter | 1.25" | | | | Type | German Equatorial | | GoTo Capability | No | | | | Type | Adjustable | | Tripod Height Adjustment Range | 26.0 to 47.0" / 66.0 to 119.0 cm | | Material of Tripod | Aluminum | | | | Package Weight | 21.5 lb | | Box Dimensions (LxWxH) | 38.5 x 12.5 x 9.5" |
