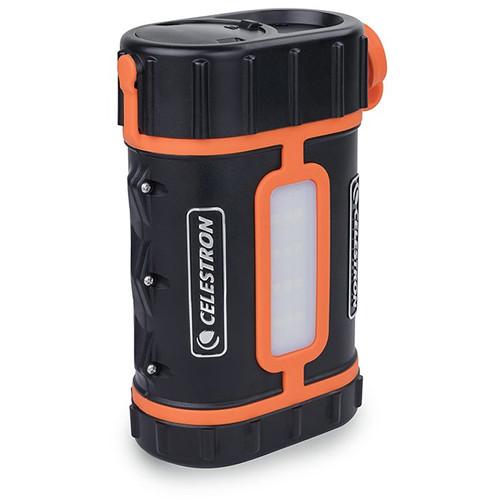

User Manual for Celestron PowerTank Lithium Pro Power Supply Click to enlarge the picture
Contents of the user manual for the Celestron PowerTank Lithium Pro Power Supply
- Product category: Drives & Computerized Accessories Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Drives & Computerized Accessories
 |
User manual for the Celestron PowerTank Lithium Pro Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

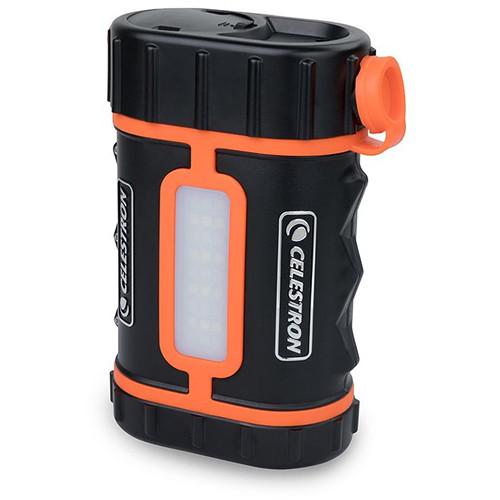

Product description Employing a more environmentally-friendly battery chemistry than previous iterations of the PowerTank line, Celestron's PowerTank Lithium Pro Power Supply gives you the power required to run your motorized Celestron mount with the added capability of charging small electronics, such as smartphones, tablets, and cameras.Its Lithium Iron Phosphate (LiFePO4) battery has an impressive capacity of 159Wh that will power most Celestron mounts for up to 17 continuous hours. Two USB ports are ideal for small electronics, while a more powerful car/vehicle port can power larger devices. An integrated white LED flashlight with two output settings gives you the illumination you need to get to your observation point and to help you during set-up. A separate red LED light allows you to perform tasks like swapping eyepieces or attaching filters without affecting your night-adjusted vision.The PowerTank has a compact form factor at 8.75x6x4" and weighs in at 4.5 pounds. A strap is included so you can attach it to a tripod leg, but if you want to leave it on the ground it has an IP65-rating making it dustproof and water-resistant. - Battery
-
- 159Wh capacity
- Lithium Iron Phosphate (LiFePO4) battery chemistry
- Uses phosphates instead of environmentally hazardous elements like cobalt or lead, which are commonly found in other rechargeable batteries
- Un-recharged shelf life of 10 years
- Performance degrades at a much slower pace than other chemistries
- Includes wall charger with assorted interchangeable international plugs
- Power Outputs
- USB ports:
- One 5 VDC quick-charge port
- One 5 VDC, 2100mA USB port

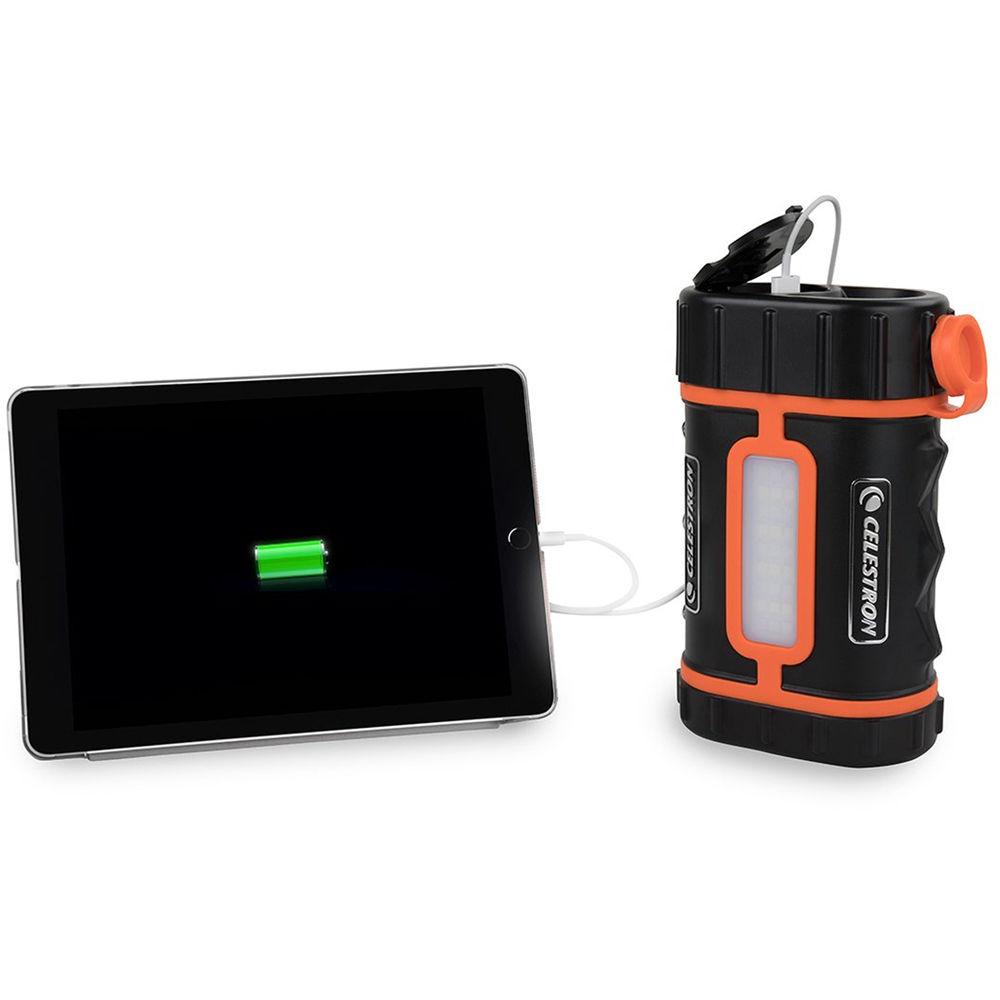

- Use to charge small electronic devices such as smartphones, tablets, and cameras
Celestron telescope port:- One 12 VDC 5A power port designed to power Celestron mounts
- Powers mounts for up to 17 hours
- Includes a 6.5' power cable for Celestron mounts

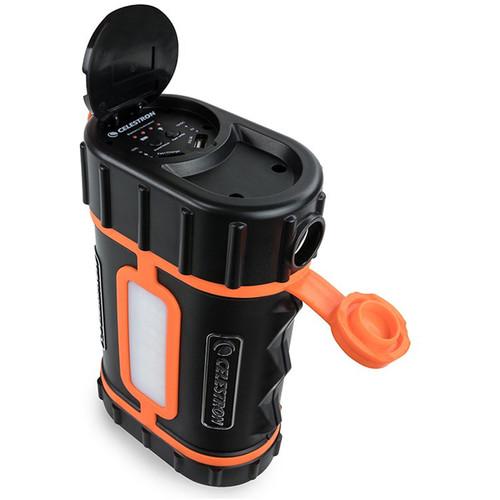

Car/vehicle plug:- Standard plug for larger devices
- 12 VDC 10A
- Lights
-
- White LED flashlight to navigate and for use during set-up

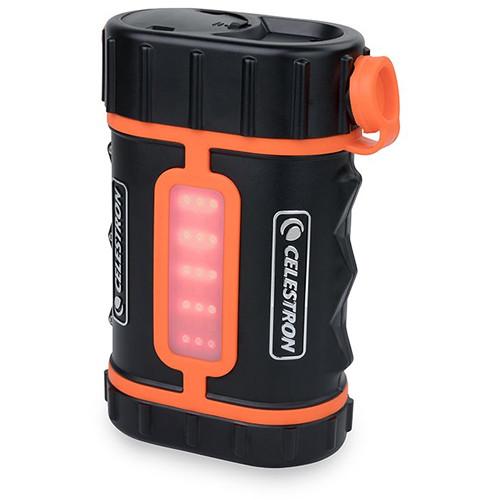

- Red LED light to preserve night-adjusted vision while performing tasks during observation sessions
- Each color has two brightness settings, Low and High
- Construction Details
-

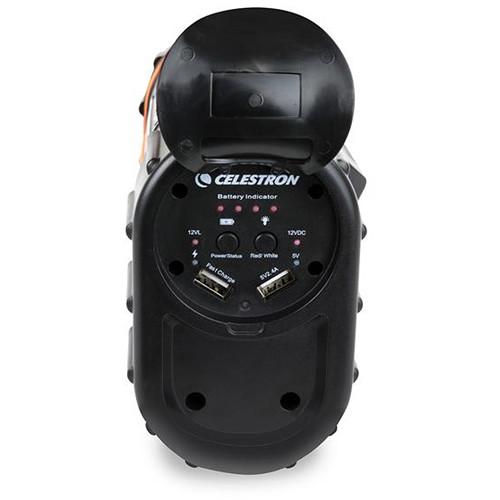

- LED charging and charge-status indicators
- Compact 8.75x6x4" form factor
- IP65-rated, dustproof and water-resistant against driving rain

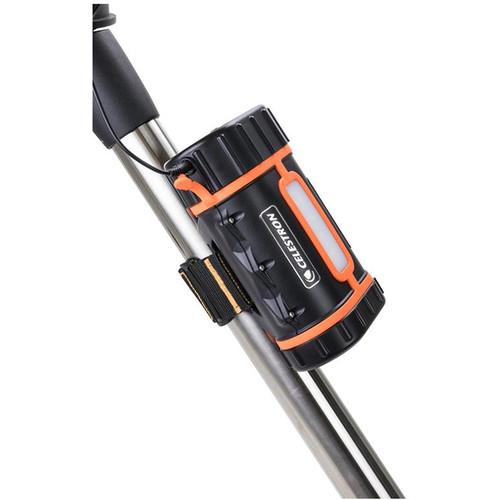

- Includes strap to connect to a telescope tripod leg

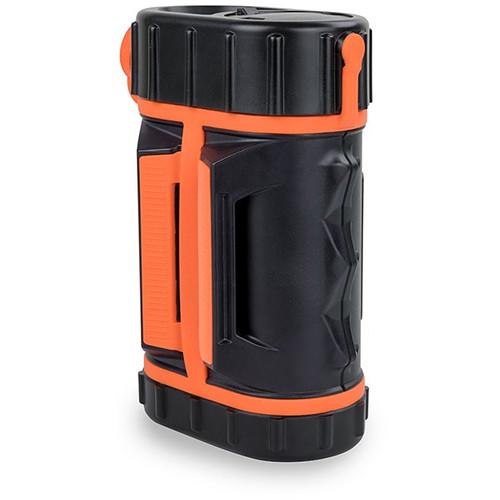

- Integrated carrying handle
- Weight: 4.5 pounds

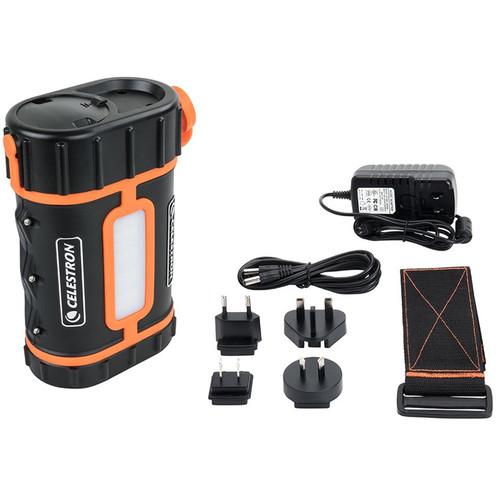

UPC: 050234187688 In the Box Celestron PowerTank Lithium Pro Power Supply Tripod Strap AC Wall Charger 4 x International Adapter Plugs Power Cable for Celestron Mounts (6.5') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron PowerTank Lithium Pro Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 18768 Specs | Battery Chemistry | Lithium Iron Phosphate (LiFePO4) | | Capacity | 158.74 Wh | | Charge Time | 6 h | | Inputs | 1 x 16 VDC, 2 A charging port | | Outputs | 1 x USB port, 5 VDC quick-charge
1 x USB port, 5 VDC 2.1 A
1 x 12 VDC, 5 A Celestron telescope power port
1 x 12 VDC, 10 A car/vehicle port | | Light Panel | White LED flashlight
Red LED flashlight | | Weatherproofing | IP65-rated, dustproof and weather-resistant | | Dimensions | 8.75 x 6.0 x 4.0" / 22.2 x 15.2 x 10.2 cm | | Weight | 4.5 lb / 2.0 kg | | | | Package Weight | 6.195 lb | | Box Dimensions (LxWxH) | 11.5 x 10.05 x 4.55" |
