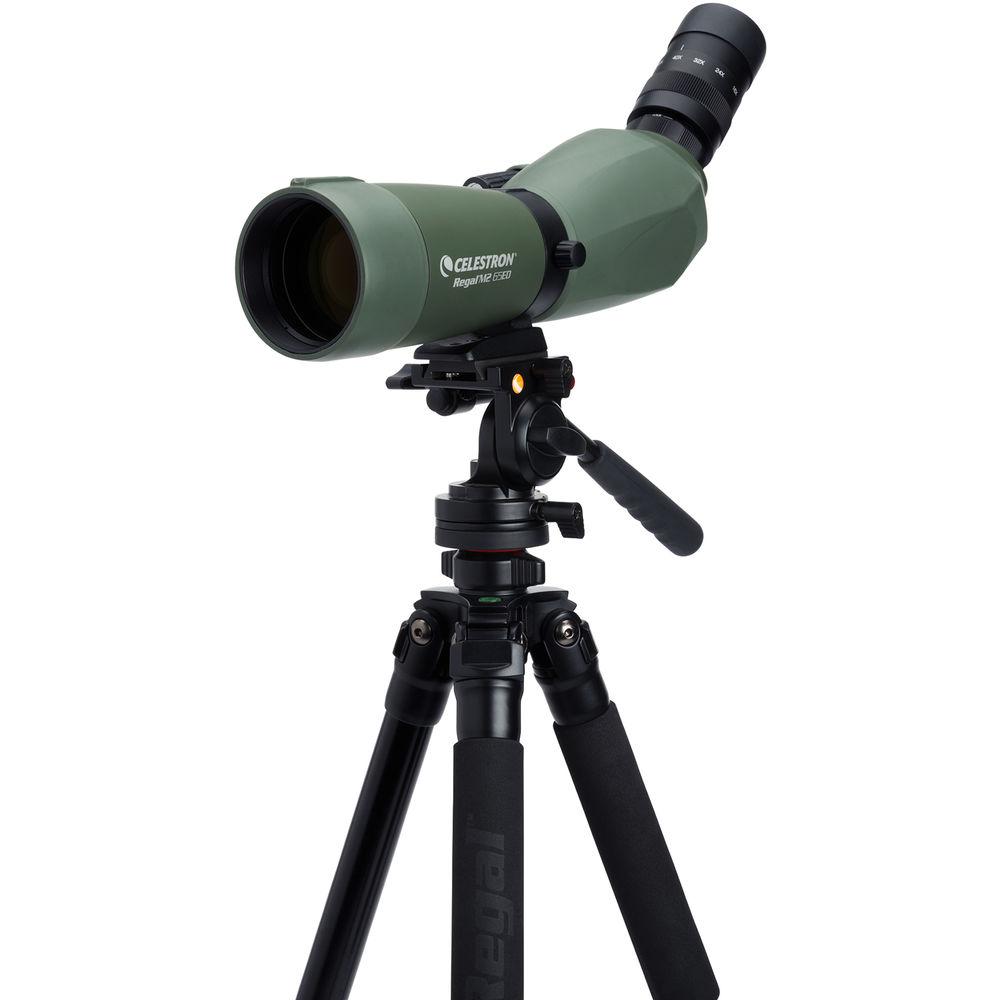

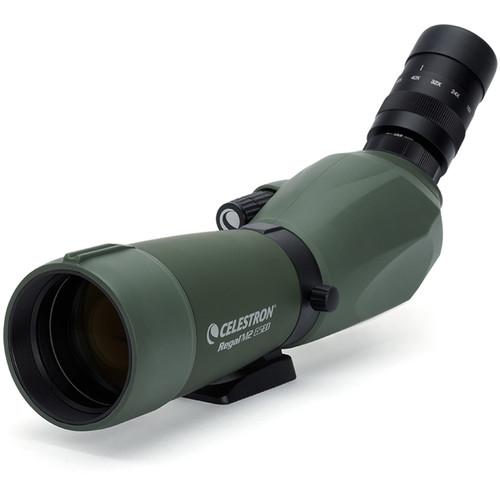

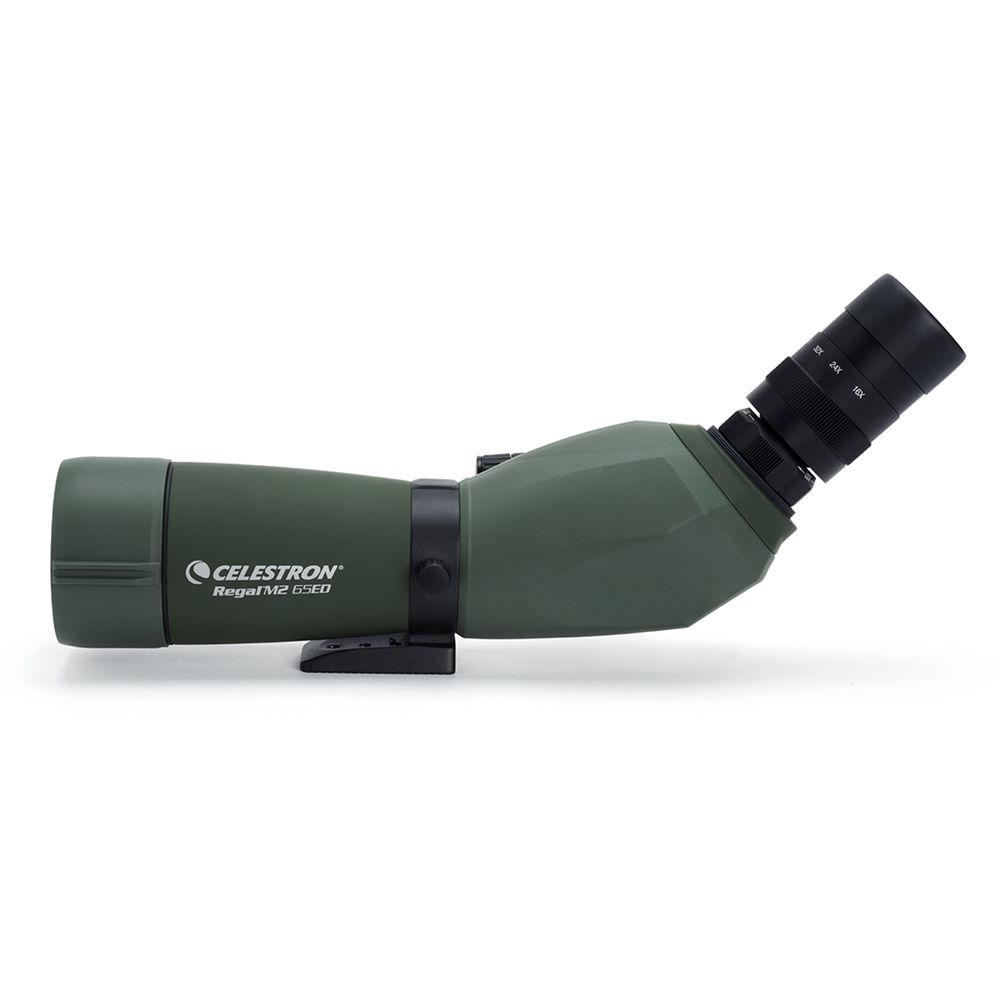

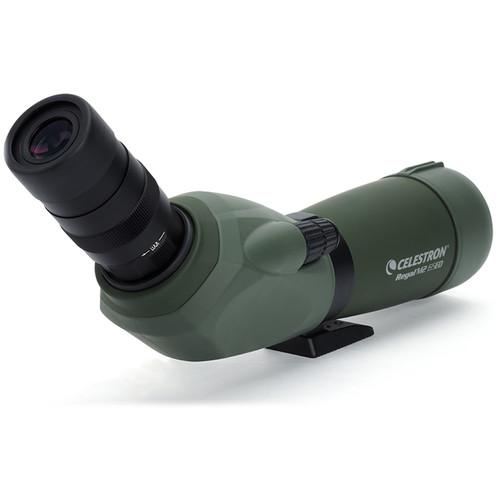

User Manual for Celestron Regal M2 65ED Spotting Scope with 16-48x Eyepiece Click to enlarge the picture
Contents of the user manual for the Celestron Regal M2 65ED Spotting Scope
- Product category: Spotting Scopes Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Spotting Scopes
 |
User manual for the Celestron Regal M2 65ED Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More The angled-viewing Regal M2 65ED Spotting Scope from Celestron combines a high-transmission optical path with a nitrogen-filled magnesium-alloy housing to deliver reliable imaging performance at low light and in unforgiving weather conditions. At the core of the Regal M2 are fully multi-coated optics, including BAK4 prisms and an extra-low dispersion (ED) glass objective that minimizes chromatic aberration and maximizes light gathering. Multiple layers of Celestron's proprietary XLT coating on each lens preserve brightness and transmit contrast-rich images to the eyepiece.This version of the Regal M2 spotting scope includes a 16-48x eyepiece that is ideal for intermediate- to long-range glassing. The broad magnification range, comfortable 20mm eye relief, and twist-up rubber eyecup make this zoom eyepiece well suited for long-duration observations. The scope's standard 1.25" eyepiece mount will accept most astronomy eyepieces, which enables a near-infinite number of optical configurations.Complementing the image quality and weather-sealed construction of the Regal M2, several features enhance the scope's functionality and observer's user experience. An included T-adapter ring permits DSLR camera mounting to the objective assembly, transforming the 65ED into a high-transmission digiscoping platform. The rotating tripod collar has a 1/4"-20 mounting socket and is detented at multiple positions to provide the observer with alternate viewing orientations. A sliding sunshade, sighting aid, and dual-focus mechanism equip the Regal M2 with the functionality needed for a wide range of outdoor glassing applications. - Optical Performance
-
- 16-48x eyepiece magnification, 65mm objective
- Fully multi-coated optics, XLT anti-reflective coating
- Extra-low dispersion (ED) glass objective lens, BAK4 prisms
- 131-68 ft field of view at 1000 yd
- 20mm eye relief, 4-1.3mm exit pupil
- 16.4 ft close-focusing distance
- Use and Handling
-

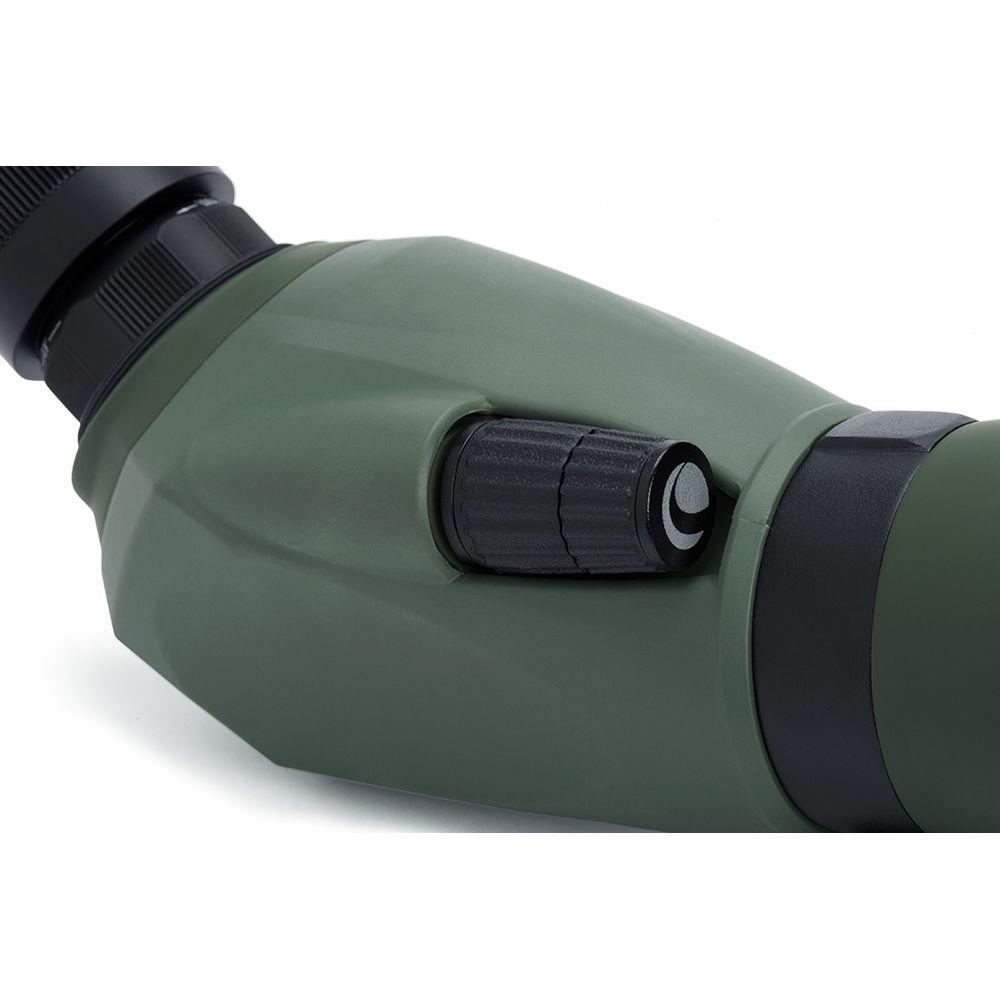

- Dual-focus mechanism with coarse/fine adjustments

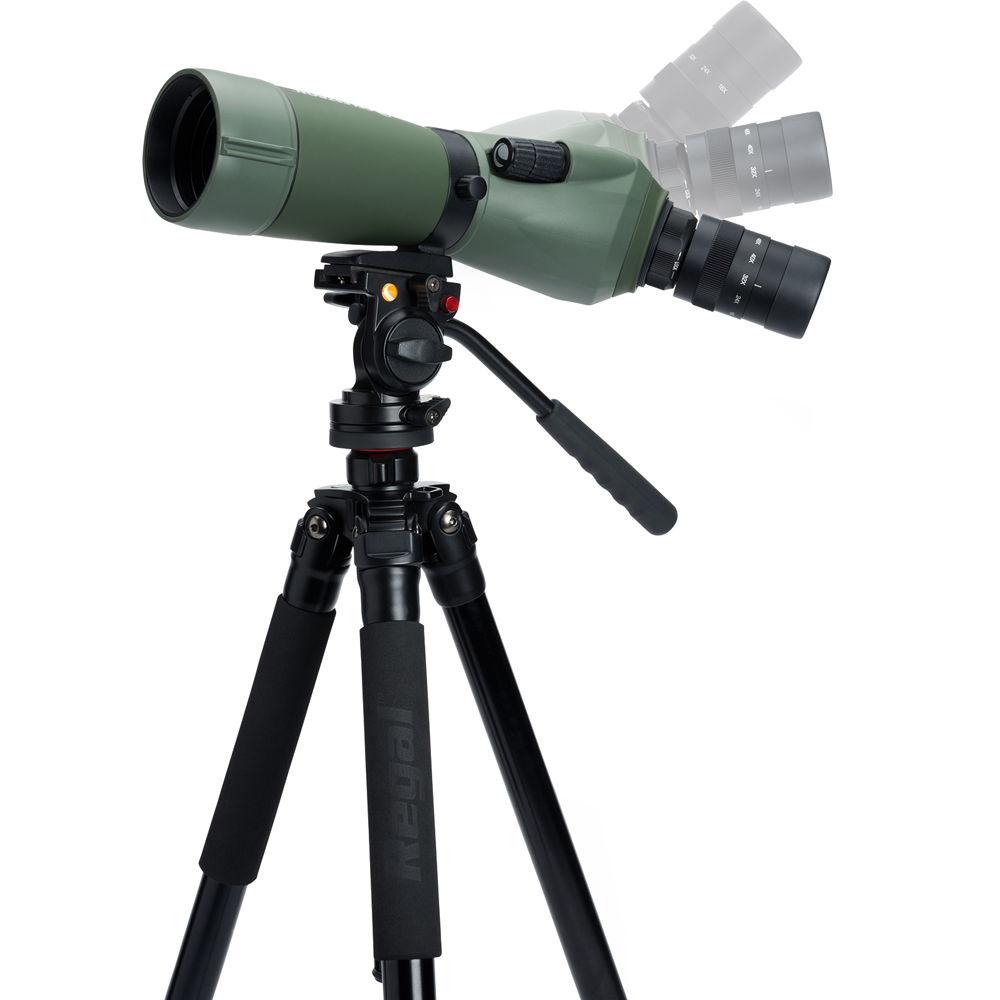

- Rotating and locking tripod collar with 1/4"-20 socket
- Compatible with 1.25" astronomy eyepieces
- Angled-viewing eyepiece, twist-up rubber eyecup

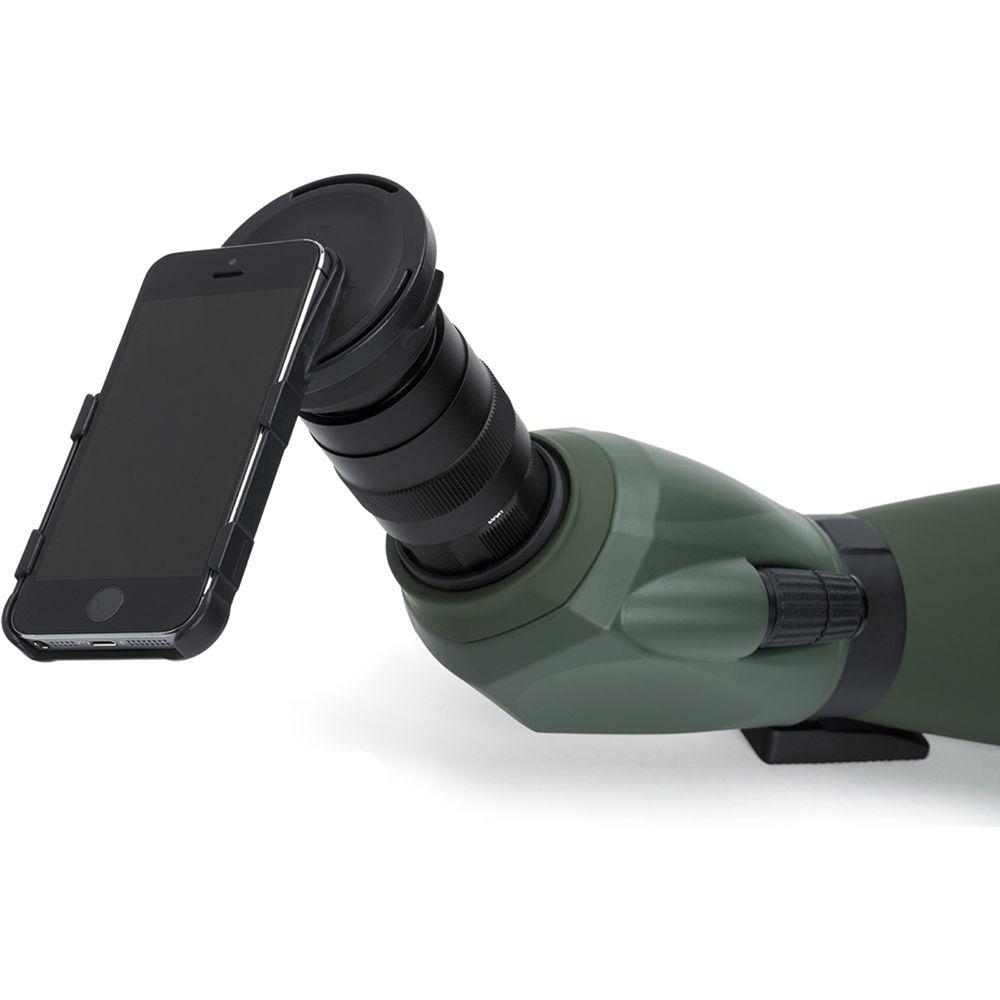

- Included T-adapter ring for digiscoping with DSLR
- Sliding sunshade for shielding stray light
- Sighting aid for faster subject acquisition
- Construction Details
-
- Nitrogen filled for fog and waterproof performance
- Magnesium-alloy housing
- 46.8 oz weight

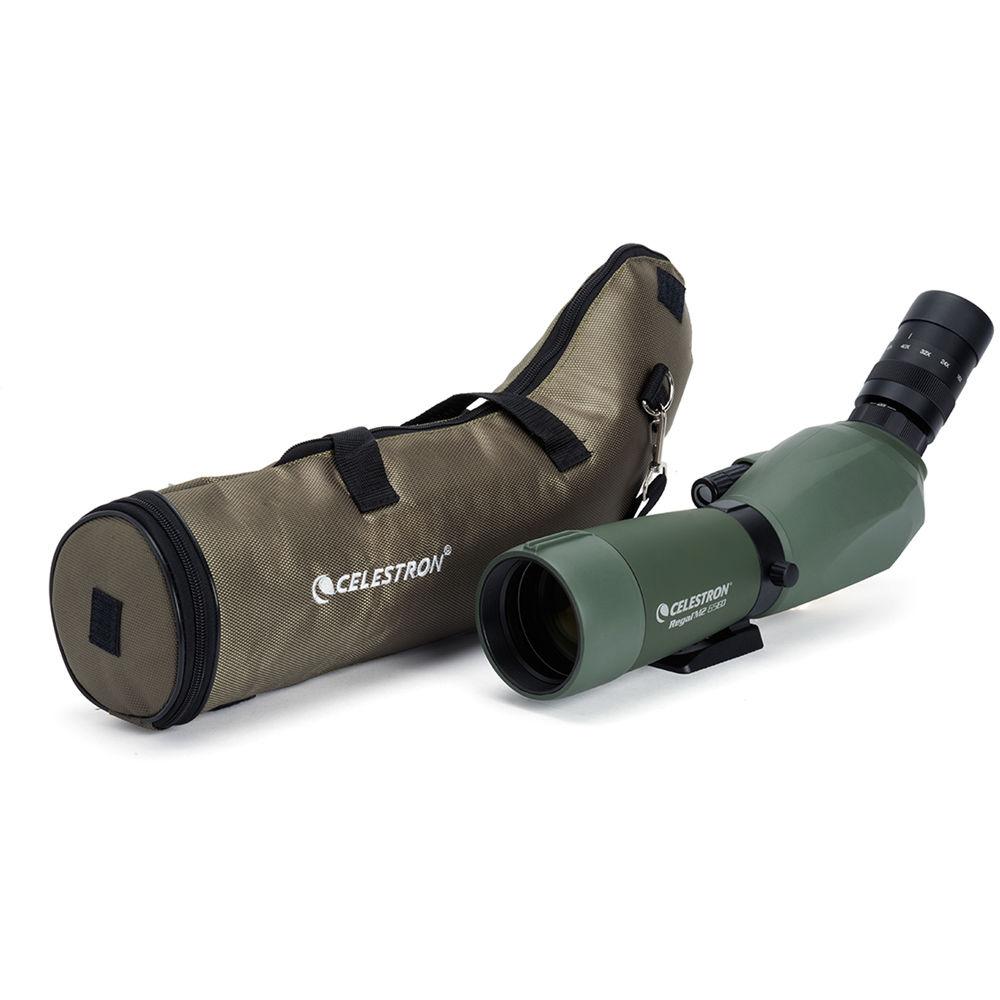

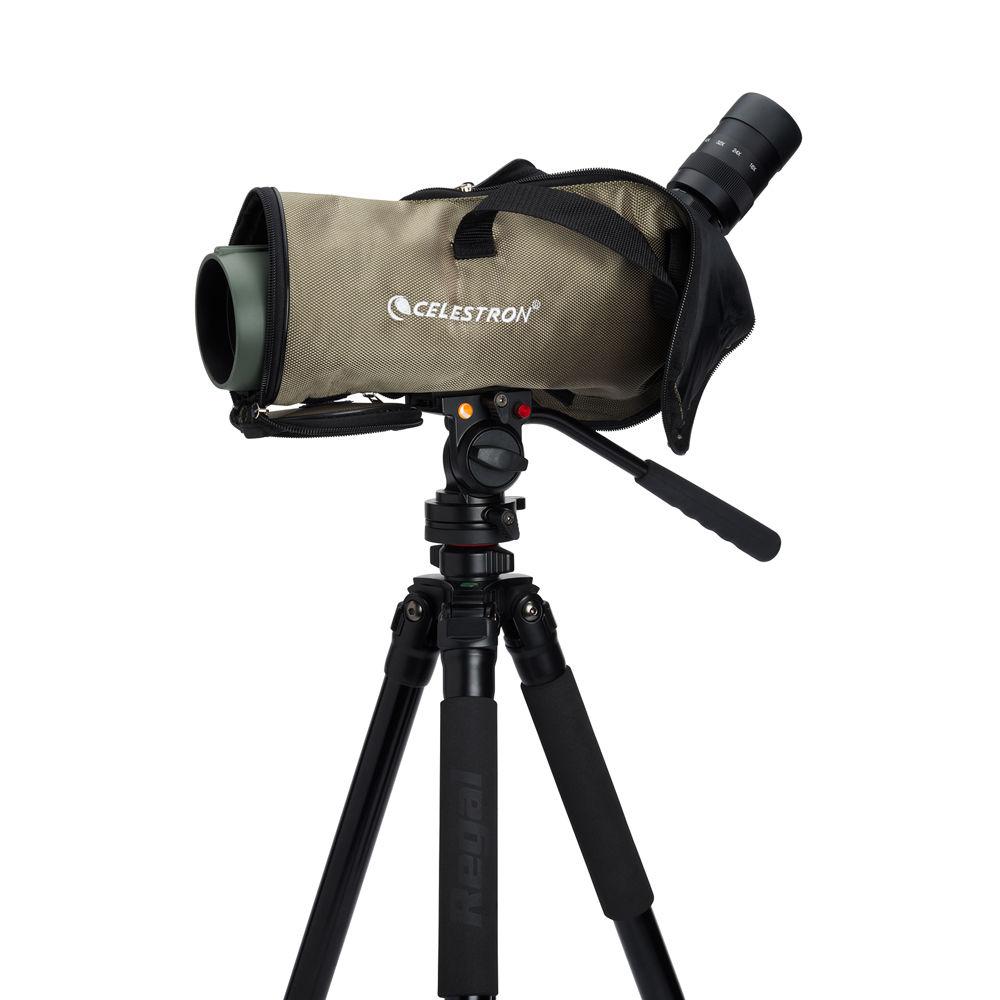

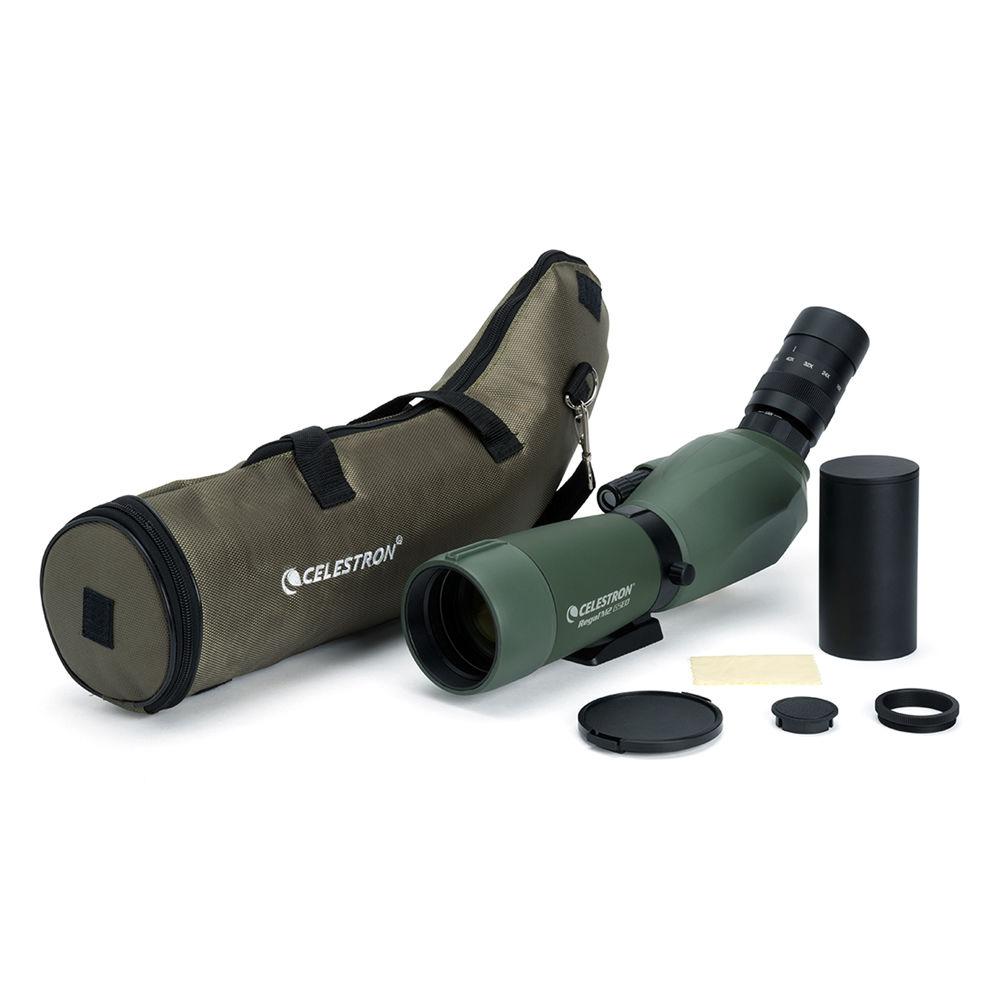

UPC: 050234523042 In the Box Celestron Regal M2 65ED Spotting Scope with 16-48x Eyepiece (Angled Viewing) Zoom Eyepiece T-Adapter Ring Soft Carrying Case Limited Lifetime Warranty User Manual PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron Regal M2 65ED Spotting Scope with 16-48x Eyepiece in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron M2 Specs | | | Magnification | 16 to 48x | | Objective Lens Diameter | 65 mm | | Angle of View | 16x: 2.5° (Actual)
48x: 1.3° (Actual) | | Field of View | 16x: 131.0' @ 1000 yd / 40.0 m @ 1000 m
48x: 68.0' @ 1000 yd / 20.7 m @ 1000 m | | Minimum Focus Distance | 16.4' / 5.0 m | | Exit Pupil Diameter | 16x: 4 mm
48x: 1.3 mm | | Eye Relief | 20.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 13.1 x H: 4.6 x W: 3.7" / L: 33.0 x H: 12.0 x W: 9.5 cm | | Weight | 46.8 oz / 1.3 kg | | | | Package Weight | 5.495 lb | | Box Dimensions (LxWxH) | 19.05 x 8.8 x 5.4" |
