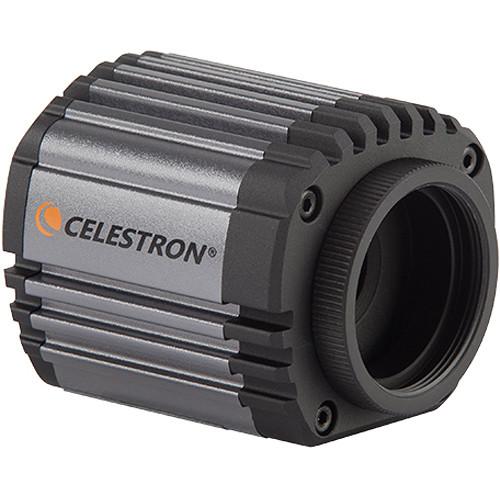

User Manual for Celestron Skyris 236C Color CCD Eyepiece Camera Click to enlarge the picture
Contents of the user manual for the Celestron Skyris 236C Color CCD Eyepiece
- Product category: Accessories Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Accessories
|
User manual for the Celestron Skyris 236C Color CCD Eyepiece contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description Eyepiece Imagers: Capture the Universe and Share, Tweet, or Whatever It Read More The Skyris 236C Color CCD Eyepiece Camera from Celestron is a high resolution digital imaging system that allows you to capture full-color astronomical images in as fast as 0.0001 of a second. Images are captured using a color Sony Exmor IMX236 CMOS sensor and sent directly to your Windows or Mac computer running the included iCap imaging software via the fast USB 3.0 connection. It is also backward compatible with USB 2.0, but download speeds will be slower. The fast download speed of USB 3.0 allows you to gather more images in less time, which is critical if the weather and atmospheric conditions are fluctuating and you have limited time for imaging. Whether you're looking at the Moon, Mars, or the rings of Saturn, the Skyris 226C takes your view of the sky and makes it available for everyone to see.Celestron recommends that you use a motorized mount for capturing clear and steady images. Out of the box, it is compatible with 1.25" focusers, and can be used in larger ones with an appropriate optional adapter. For use in Cassegrain-style scopes, a C-mount is included to attach it directly onto the visual back. The included iCap software for Windows and Mac lets you control the camera, snap pictures or create a movie file, and export them. An integrated stacking program in iCap lets you automatically filter the best images and stack them to create the perfect composite celestial picture. - System Requirements
-
- Windows XP, Vista, 7, or 8 (32-bit and 64-bit supported)
- Mac OS X Snow Leopard to Yosemite. May only operate Skyris at USB 2.0 speed
- Pentium® M processor equivalent or higher, 1.7 GHz or higher
- USB 3.0 for max performance, or USB 2.0 port
- 1 GB or more of system memory
- 20 GB or more hard disk space (recommended)
- Telescope Requirements
-
- 1.25" eyepiece holder or adapter with C-threads
- Motorized Mount, Alt-Azimuth or German Equatorial (recommended)
- Software Compatibility
-
- iCap
- IC Capture
- DirectShow
- oaCapture
UPC: 050234955065 In the Box Celestron Skyris 236C Color CCD Eyepiece Camera (1.25") 1.25" Nosepiece 10' USB 3.0 Cable Celestron iCap Software CD Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron Skyris 236C Color CCD Eyepiece Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 236C Specs | Output | 12-bit | | Back Focus Distance | With nosepiece: 19 mmWith C-mount: 17.5 mm | | Exposure Range | 0.0001 to 10 seconds | | Image Sensor | Color Sony Exmor IMX236 CMOS | | Mount | 1.25" barrelC-thread | | Camera Resolution | 1920 x 1200 | | Sensor Size | 5.44 x 3.42 mm | | Frames Per Second | Over 200
60 fps at full frame | | Pixel Size | 2.8 x 2.8 microns | | USB Connection | USB 3.0
Backward compatible with USB 2.0 | | Power Source | USB via computer | | Operating Temperature Range | -40 to 104° F (-40 to 40° C) | | Weight | 3.6 oz (102 g) | | | | Package Weight | 1.235 lb | | Box Dimensions (LxWxH) | 7.2 x 6.15 x 3.6" |
