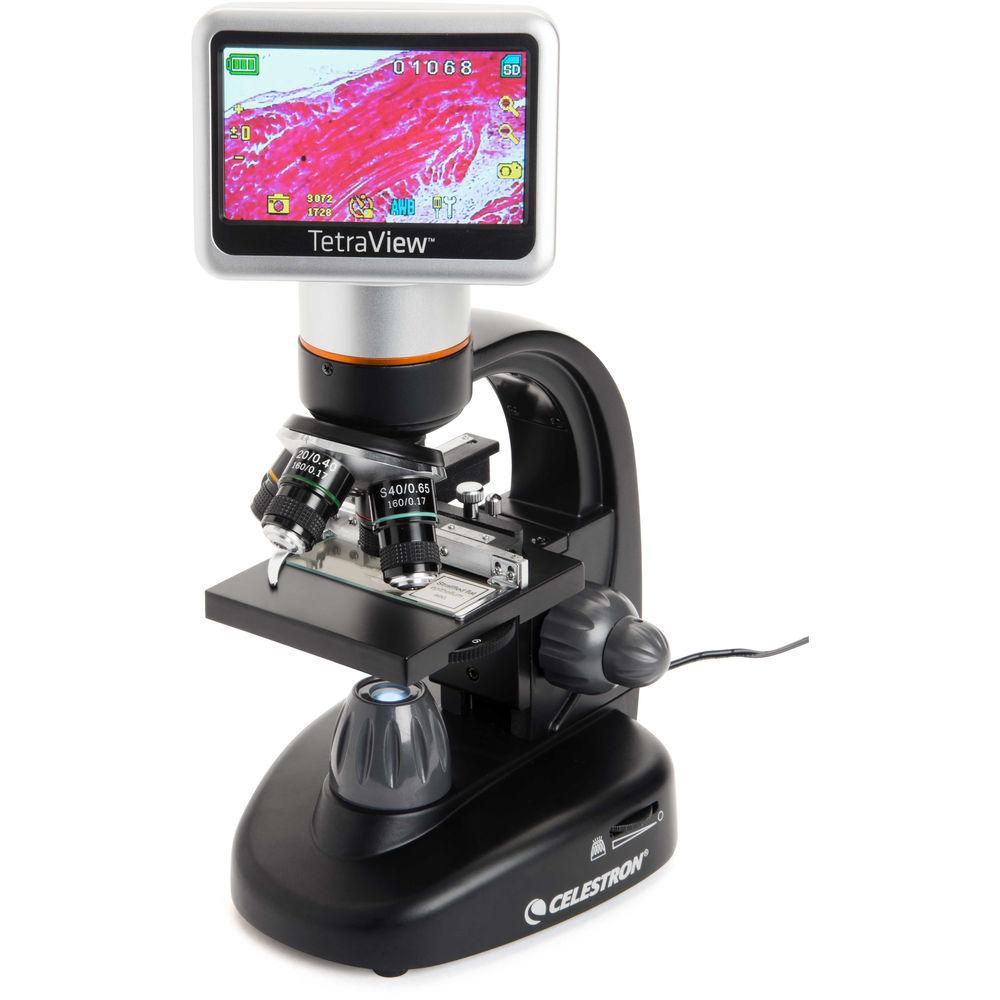

User Manual for Celestron TetraView 5.0MP Cordless Digital Microscope Click to enlarge the picture
Contents of the user manual for the Celestron TetraView 5.0MP Cordless Digital Microscope
- Product category: Digital Microscopes Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Digital Microscopes
 |
User manual for the Celestron TetraView 5.0MP Cordless Digital Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description - TetraView Tour
- Digital Microscope Kit Tour

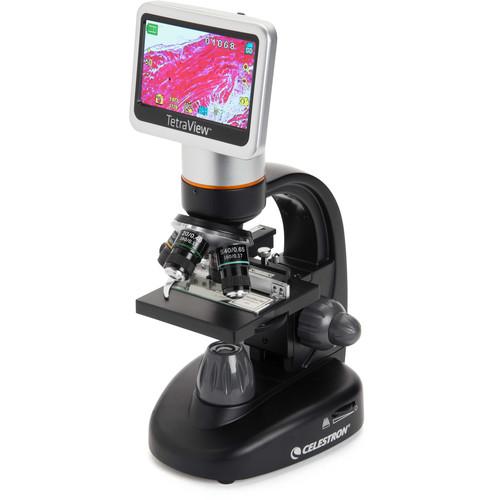

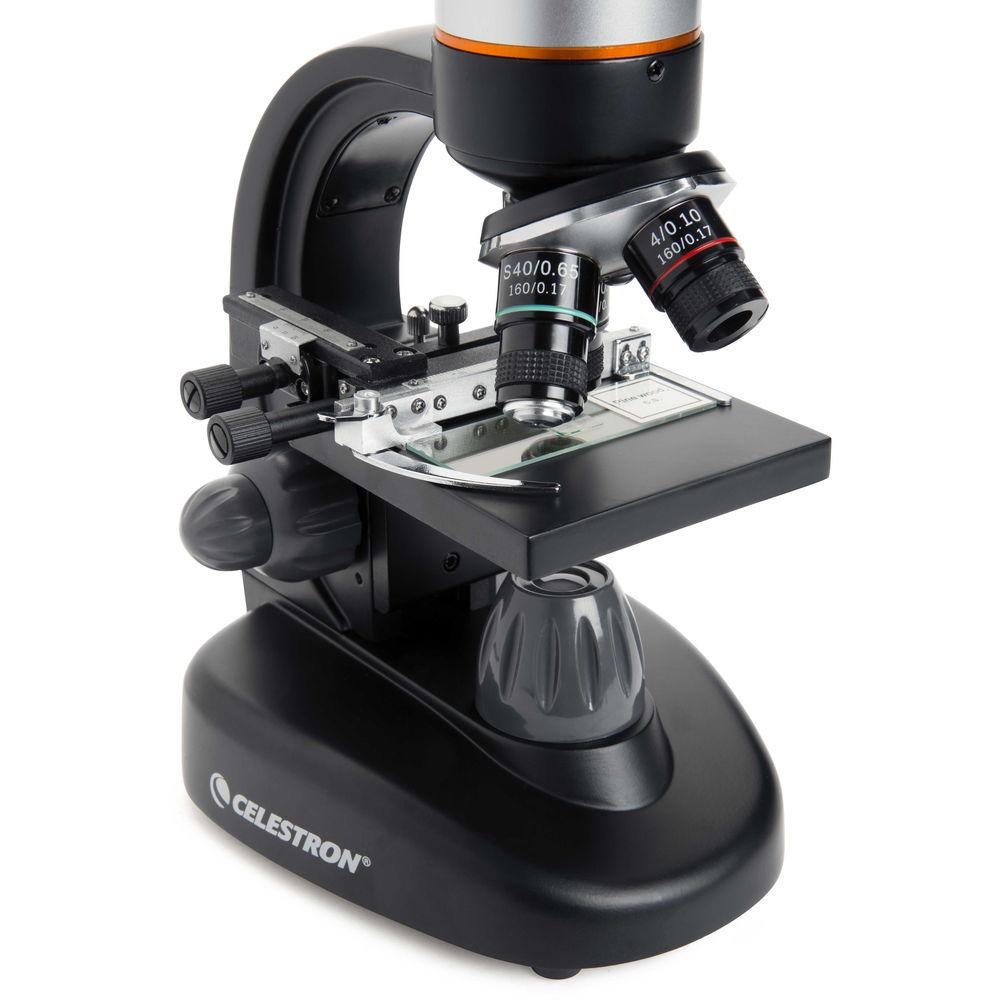

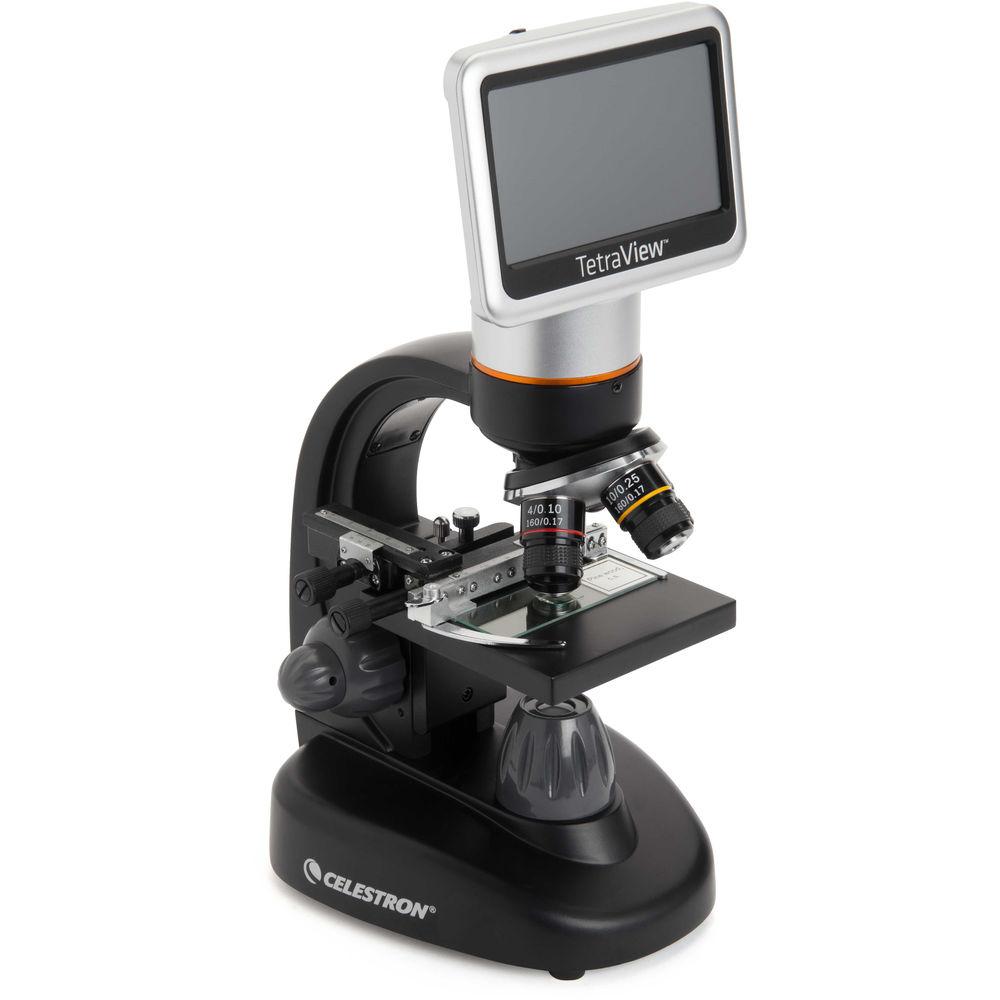

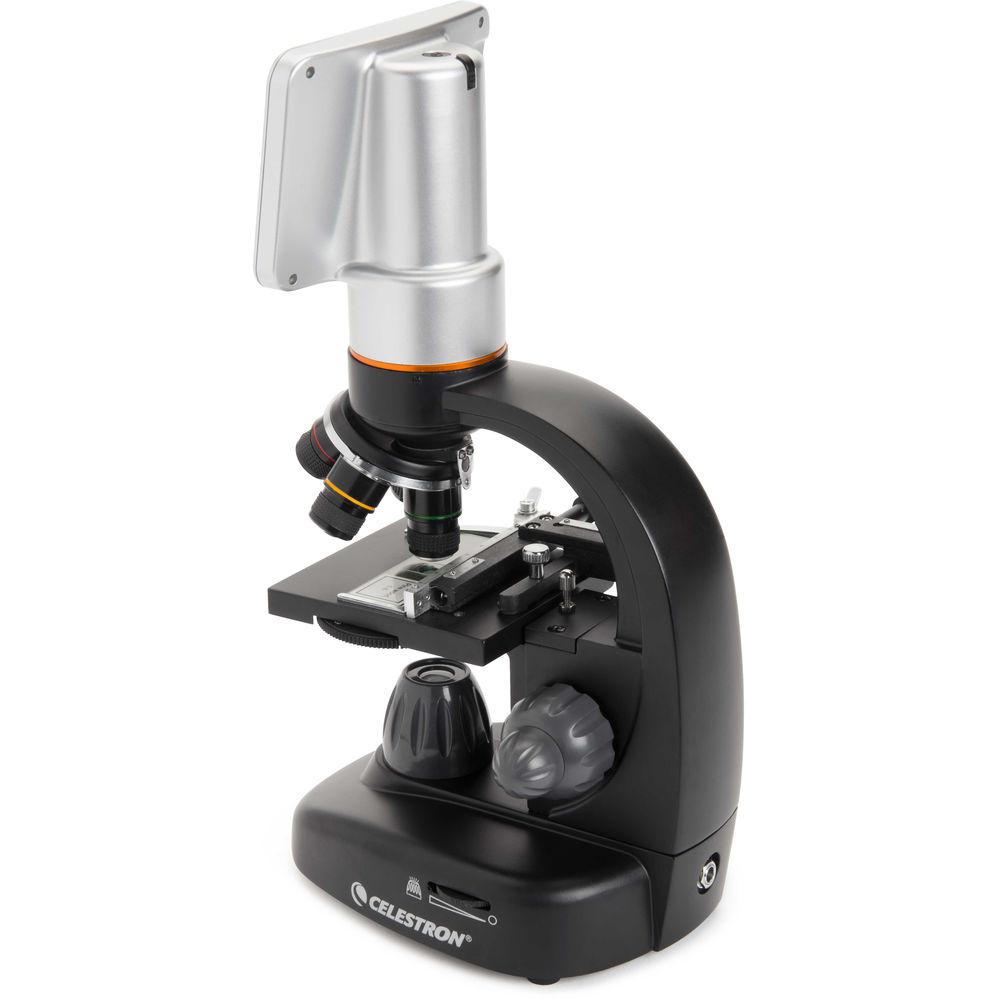

Rock your field trip, lab, or classroom with the TetraView 5.0MP Cordless Digital Microscope from Celestron. This full-size digital microscope is built around its 5.0MP digital CMOS sensor, capable of capturing high-resolution color images and videos at 20 frames per second. You can view them on the built-in 4.3" color LCD TFT display and relay to an external monitor or a recording device. To make saving your findings and observations a seamless experience, the LCD module offers an easy-to-use control panel, a 32GB microSD memory slot, and a mini-USB data port. To provide vivid and crisp images, the opto-mechanics feature a 4-position nosepiece with four achromatic objectives (4x, 10x, 20x, and 40x), a bottom LED illumination system with adjustable brightness, a 0.65 NA condenser lens, and a 6-position filter/diaphragm wheel.You are also empowered by the generous focusing range to ensure that no details will be left unseen. In addition to digital output, this scope features an AV video-out port.
This versatile device also does not cut short on comfort and ergonomics. It features an arched frame to serve as a carry handle and packs a battery compartment for four AA user-supplied batteries, which can provide 3 hours of uninterrupted cordless operation. For corded operation, the scope has a universal 100-240 VAC adapter (that works in most parts of the world) and wall plugs for the USA, UK, Europe, and Australia. To provide enough room for movement, its sturdy metal mechanical 3.5 x 3.5" stage offers Vernier control for motion in two dimensions and a bracket for holding your specimen slides. For sharing views with your team or students, the display head can rotate 180°. Using the fine and coarse focusing knobs, it allows you to achieve optimal focusing positions. The microscope also ships with other multiple lab accessories that you will find quite handy in your explorations and studies. - Optical System, Illumination & Focusing
-
- Achromatic objectives: 4x, 10x, 20x, and 40x
- Magnification: 40x, 100x, 200x, 400x
- 160x, 400x, 800x, and 1600x with 4x digital zoom
- Bottom LED illumination with a 0.65 NA condenser lens and adjustable brightness
- 6-position filter wheel: red, blue, and green filters and 3 apertures
- Fine and coarse focusing
- Display, Camera & Memory
-
- 5.0MP CMOS imager
- 4x digital zoom
- 4.3" TFT LCD color touchscreen
- Head with 180° rotation
- 32GB SD memory slot
- 2GB SD memory card included
- Universal 100 - 240 VAC adapter with USA, UK, Europe, Australia connectors
- Cordless operation using optional 4 x AA batteries

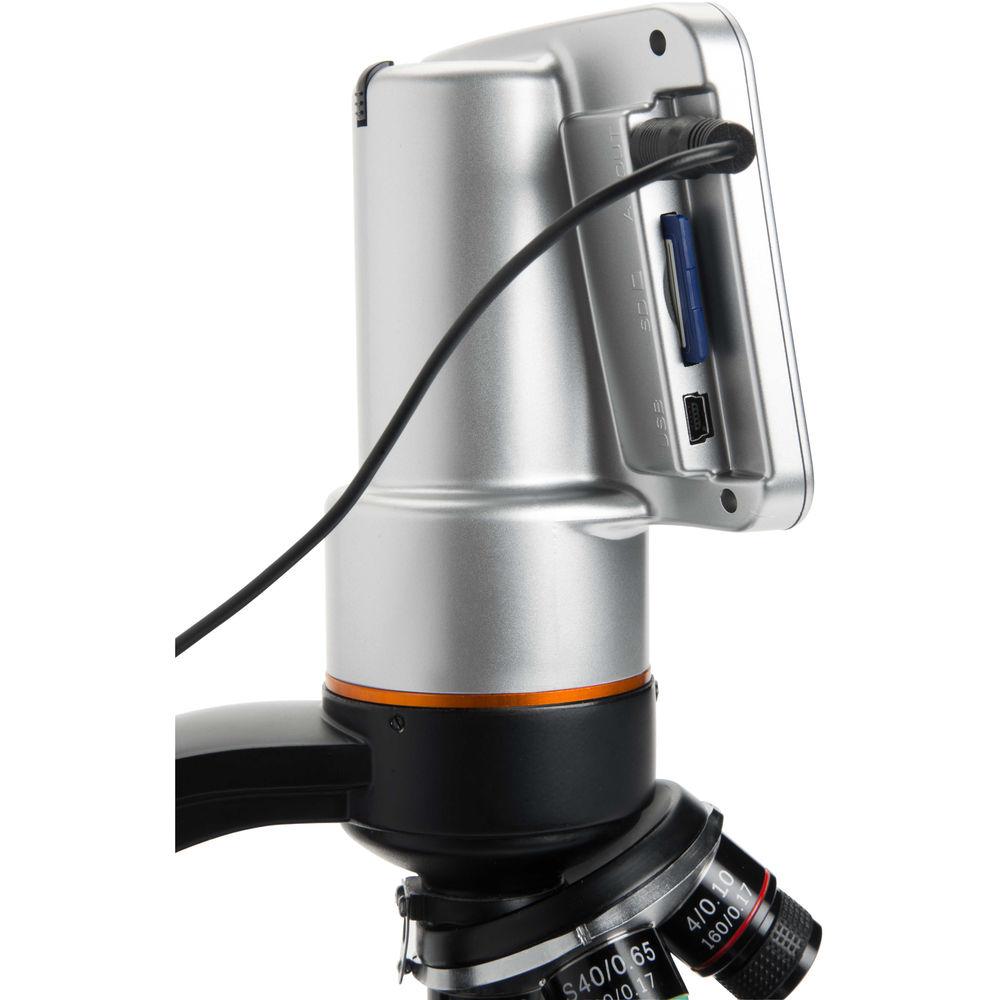

- AV/TV and mini-USB outputs
- Continuous video out at 20 fps
- Mechanical Stage
-

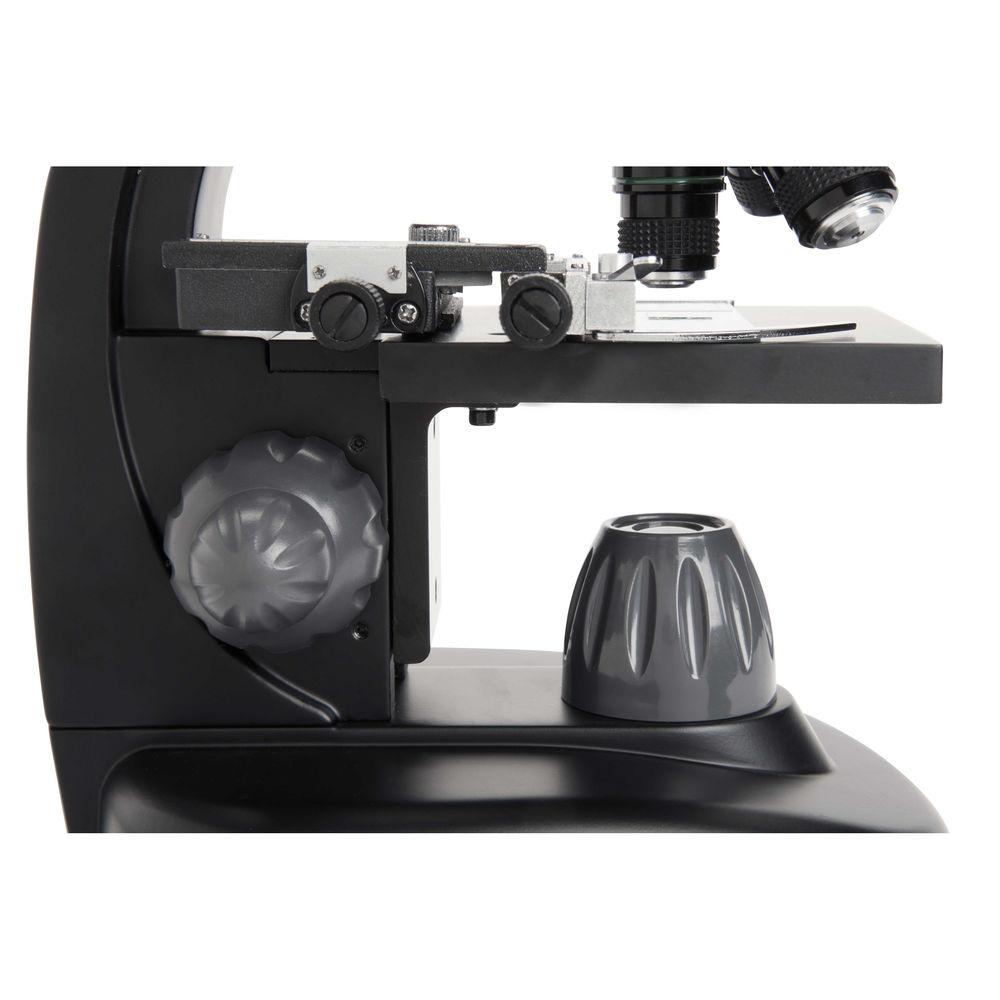

- 3.5 x 3.5" mechanical stage
- Two metal specimen brackets for specimen alignment
- Two X-Y precision position controls with measurement scales
- Construction Details
-
- Metal and polycarbonate frame

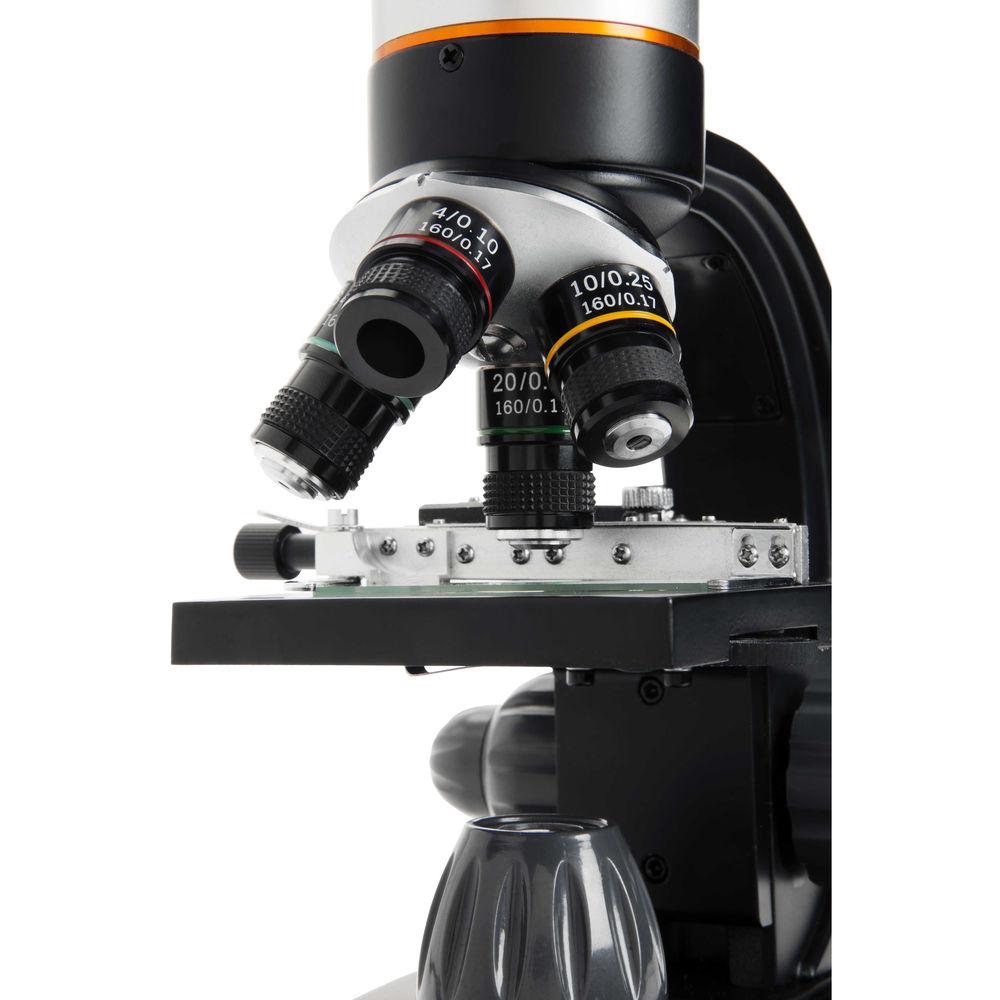

- Four position nosepiece with click stops
- Knurled and ergonomic adjustment knobs

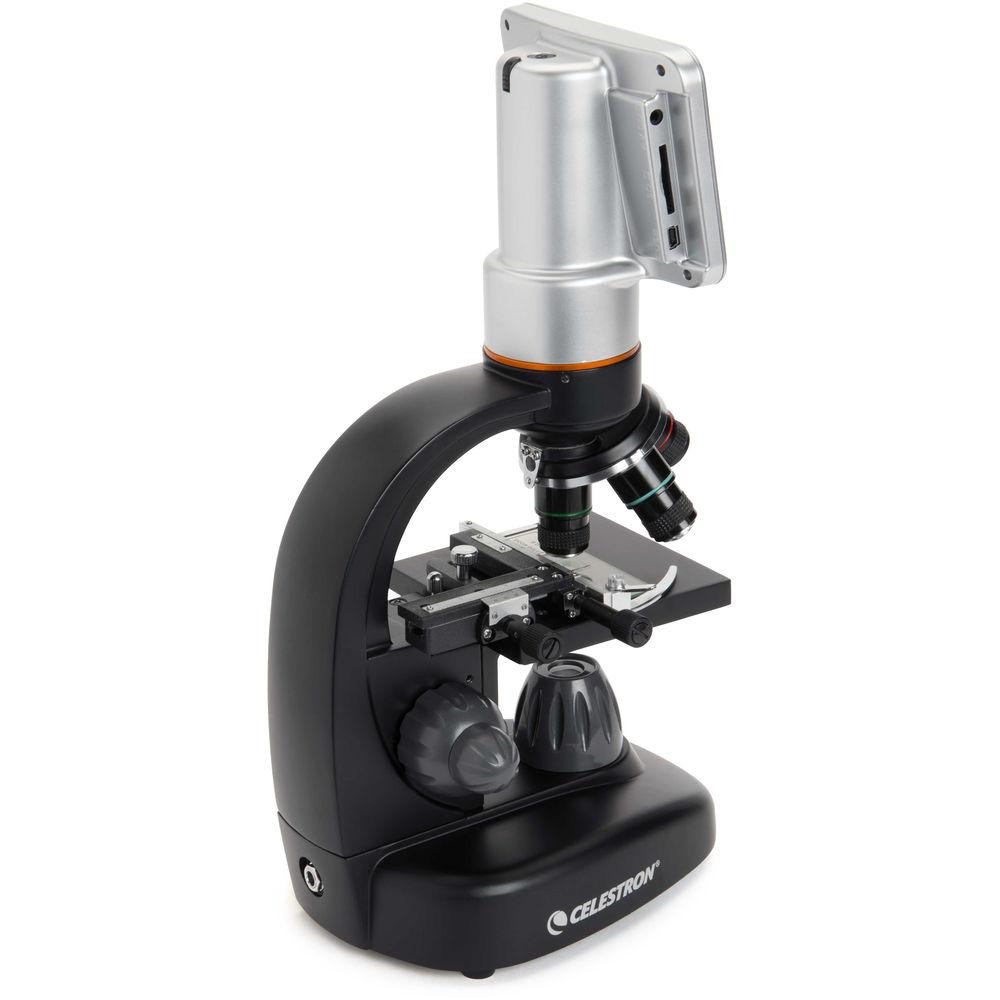

- Curved back serves as a handle

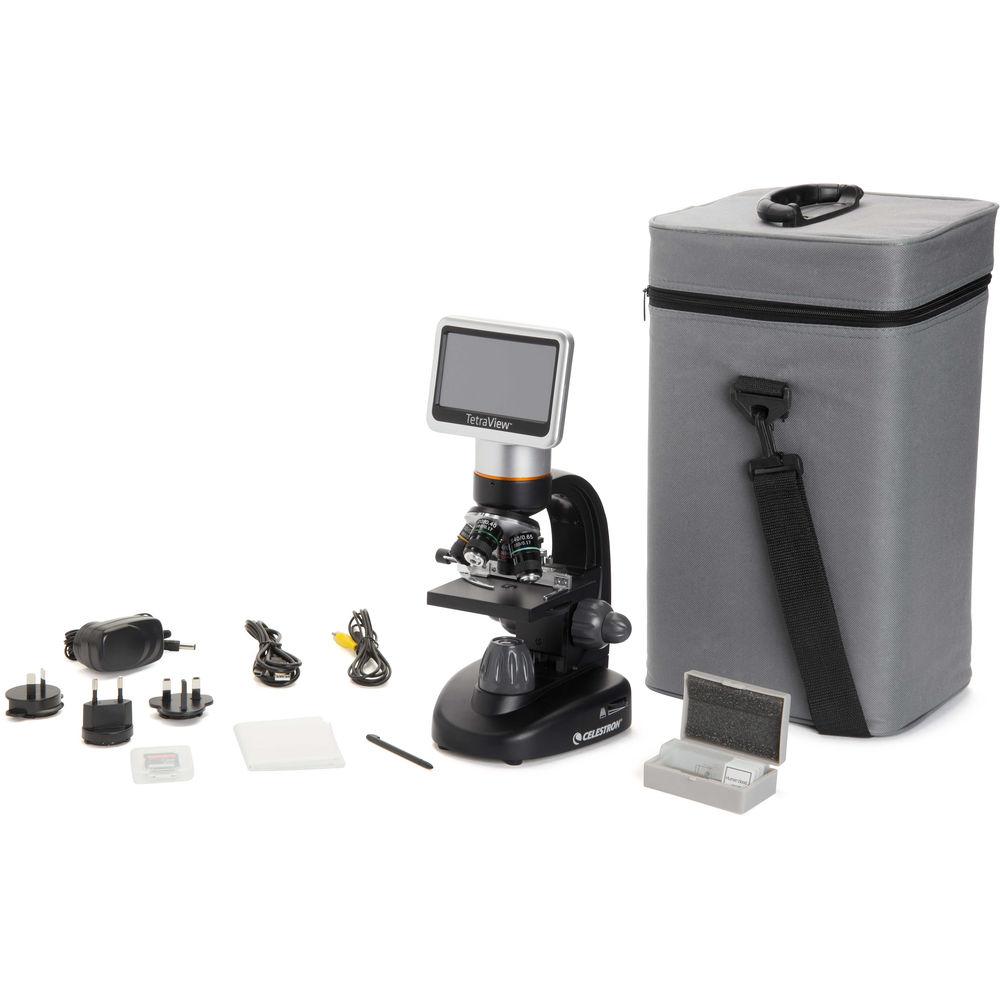

UPC: 050234443470 In the Box Celestron TetraView 5.0MP Cordless Digital Microscope (Black) - 7 x Prepared Slides
- Filter Wheel with Red, Blue, Green Filters and Three Apertures
- 2GB SD Memory Card
- Stylus
- AV/TV Cable
- USB 2.0 Cable
- Universal AC Adapter & Wall Plugs
- Dust Cover
- Hard Case
- Limited 2-Year Warranty
CETVDTSM User's Manual PDF 4.2mbrbrydryuwbvwrzayqtrftuarf Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron TetraView 5.0MP Cordless Digital Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 44347 Specs | | | Optical Magnification | 40x, 100x, 200x, 400x | | Digital Magnification | 160x, 400x, 800x, 1600x | | Objective | 4x, 10x, 20x, 40x | | Max Resolution | 5 MP | | Sensor | 1/2.5" CMOS | | Focusing | Coarse, Fine | | Working Distance | 0 to 1.4" / 0.7 to 35.3 mm | | | | Wired Connectivity | USB | | Memory Card Type | SDHC (Up to 32 GB) | | | | Battery | 4 x AA (3-Hour Runtime) | | Power | 100 to 240 VAC, 50 / 60 Hz | | Display | Yes, 4.3" / 109.2 mm | | Dimensions | L: 7.0 x W: 5.5 x H: 13.0" / L: 17.8 x W: 14.0 x H: 33.0 cm (Microscope)
L: 3.5 x W: 3.5" / L: 88.0 x W: 88.0 mm (Specimen Stage) | | Weight | 4.2 lb / 1.9 kg | | | | Package Weight | 7.45 lb | | Box Dimensions (LxWxH) | 19.35 x 13.5 x 8.45" |
