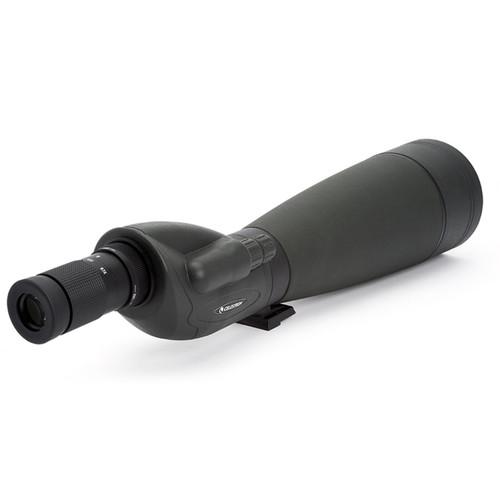

User Manual for Celestron TrailSeeker 100 22-67x100 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Celestron TrailSeeker 100 22-67x100 Spotting Scope
- Product category: Spotting Scopes Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Spotting Scopes
 |
User manual for the Celestron TrailSeeker 100 22-67x100 Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

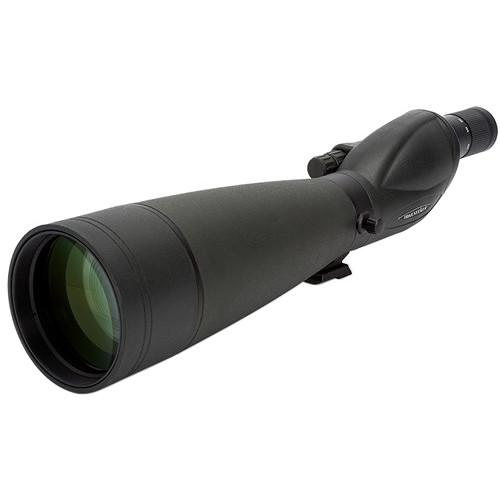

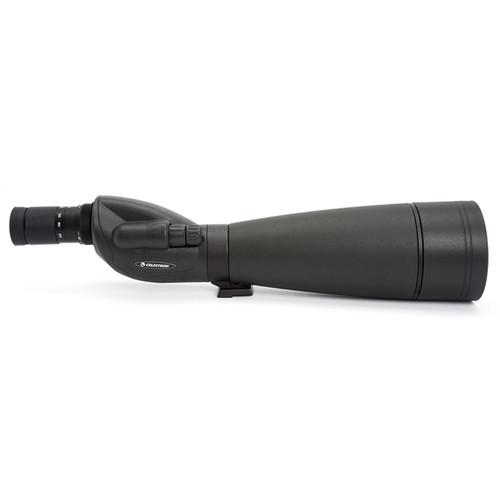

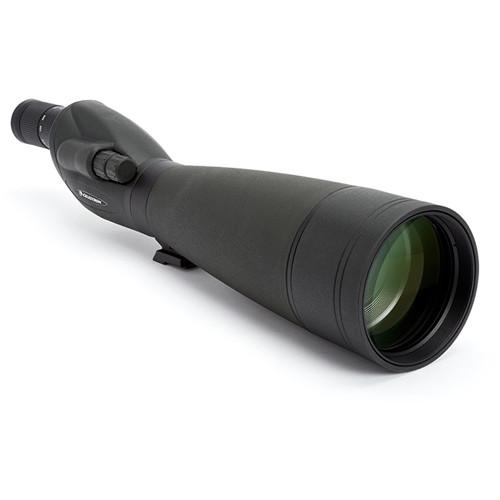

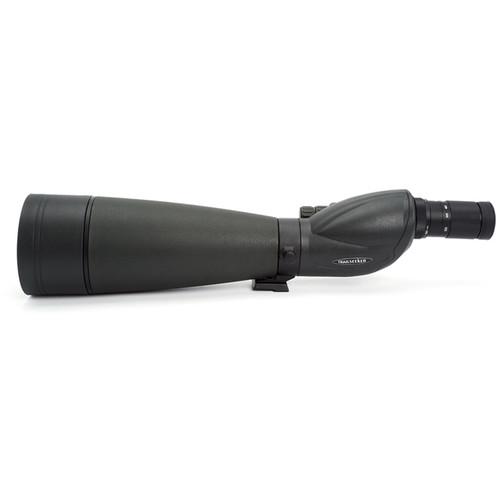

Product description A Guide to Birding with Spotting Scopes Read More The straight-through viewing TrailSeeker 100 22-67x100 Spotting Scope by Celestron features a versatile 22-67x zoom eyepiece to provide views from generous vistas at the lower power to tight, detailed images at the higher end. The 100mm objective lens possesses light-gathering capability superior to that of scopes with smaller lenses, which makes for a bright image and enhances the scope's capabilities in low-light conditions. Proprietary anti-reflection XLT fully multi-coated optics allow for efficient light transmission through the optical path for crisp, high-contrast views.The straight eyepiece makes spotting and tracking a subject quick and easy. Dual focus offers precise image control by allowing a preliminary coarse focus, which you can then refine using the fine-focus control for a tack-sharp view. You can rotate the scope a full 360° for easy viewing through the eyepiece from any position. The TrailSeeker 100 has a nitrogen-filled waterproof housing that won't fog up in humid conditions and features a sliding sunshade to keep glare or raindrops off the objective lens. To facilitate digiscoping, a T-adapter is included so you can mount a T-ring compatible with your DSLR to the eyepiece. For adverse weather conditions, a stay-on carrying case is included that can be left on the scope during use—zippers fore and aft open for the objective lens and the eyepiece.The TrailSeeker is designed to use standard 1.25" astronomical eyepieces, so in addition to the included zoom eyepiece, you can use other eyepieces on your spotting scope to achieve higher magnifications, wider fields of view, etc. A tripod balance plate is also included. - Optical Performance
-
- Zoom magnification: 22-67x
- Objective lens: 100mm for light-gathering power
- Proprietary XLT lens multi-coating reduces reflection for greater light transmission
- BAK4 prism
- Use and Handling
-
- Straight viewing: Straight-through eyepiece allows for easier target acquisition and tracking

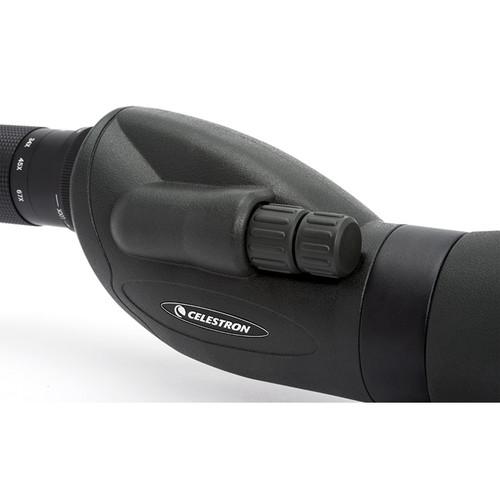

- Dual focusing allows you to get subjects in focus quickly with coarse focus control and then refine the image with the fine-focus control
- Tripod mount rotates 360° for positional flexibility
- Sliding sunshade to keep glare or moisture off the objective lens
- Twist-up eyecup for comfortable use with or without eyewear
- Construction Details
-
- Nitrogen-filled body is water and fogproof
- Durable rubber-armored polycarbonate housing

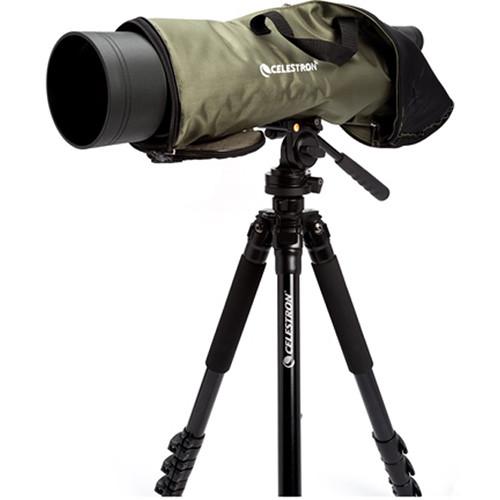

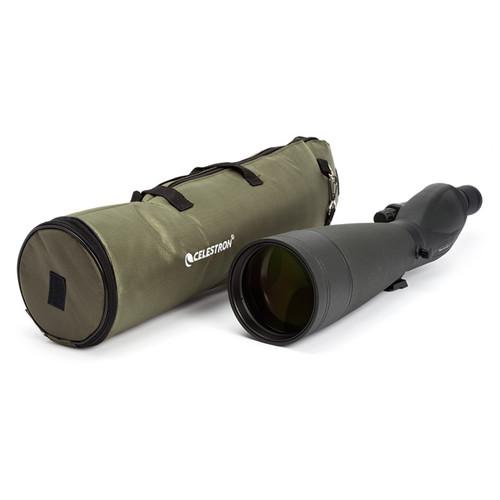

- Stay-on carrying bag with shoulder strap allows for faster setup and breakdown while keeping the bag off the ground
- T-adapter step ring accepts user-supplied T-ring to mount DSLR for digiscoping

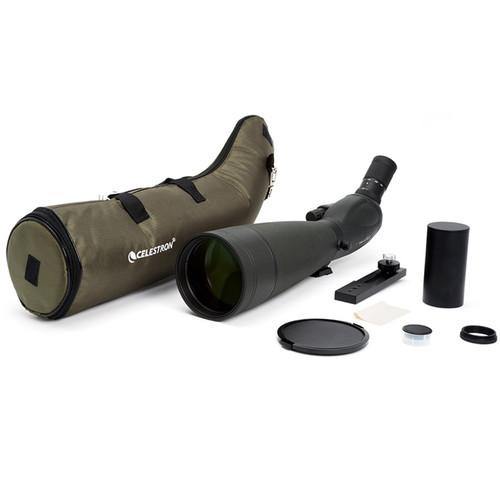

UPC: 050234523356 In the Box Celestron TrailSeeker 100 22-67x100 Spotting Scope (Straight Viewing) Tripod Balance Plate T-adapter Step Ring Stay-On Carrying Bag with Shoulder Strap Objective Lens Cap, Eyepiece Mount Cap & Eyepiece Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron TrailSeeker 100 22-67x100 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 52335 Specs | | | Magnification | 22 to 67x | | Objective Lens Diameter | 100 mm | | Field of View | 22x: 92.9' @ 1000 yd / 31.0 m @ 1000 m
67x: 47.9' @ 1000 yd / 16.0 m @ 1000 m | | Minimum Focus Distance | 29.5' / 9.0 m | | Exit Pupil Diameter | 22x: 4.4 mm
67x: 1.5 mm | | Eye Relief | 18.0 to 15.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 18.4" / L: 46.7 cm (Without Eyepiece)
L: 22.3" / L: 56.6 cm (with Eyepiece) | | Weight | 4.4 lb / 2.0 kg | | | | Package Weight | 8.2 lb | | Box Dimensions (LxWxH) | 25.0 x 9.0 x 6.1" |
