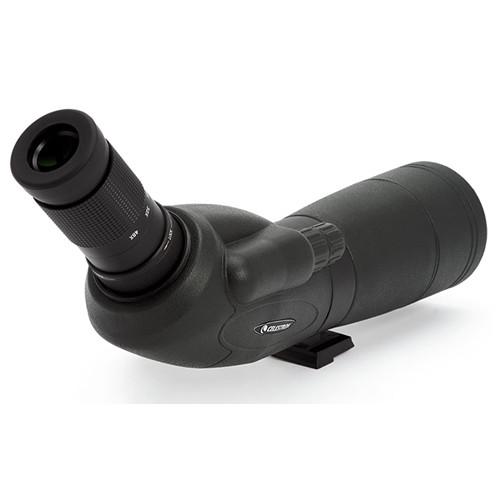

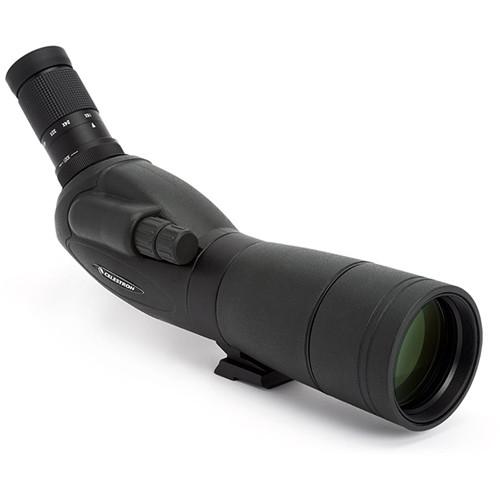

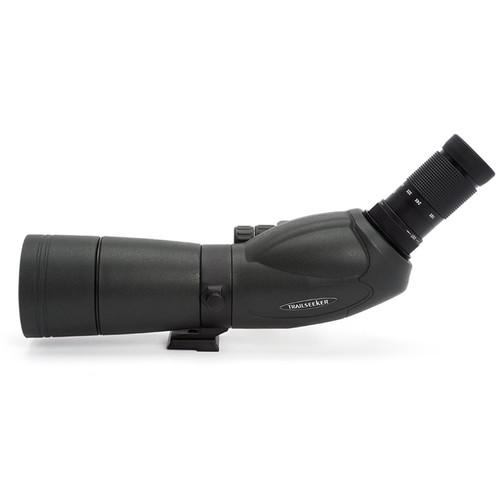

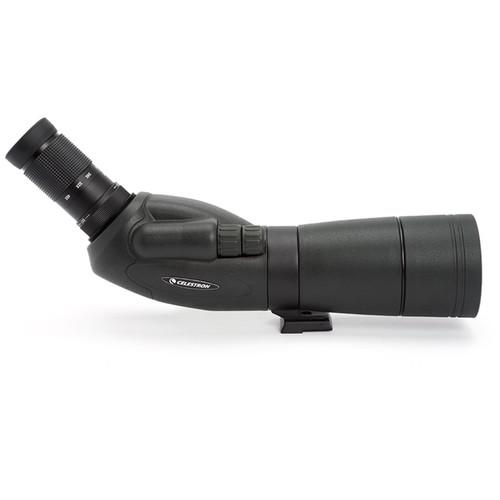

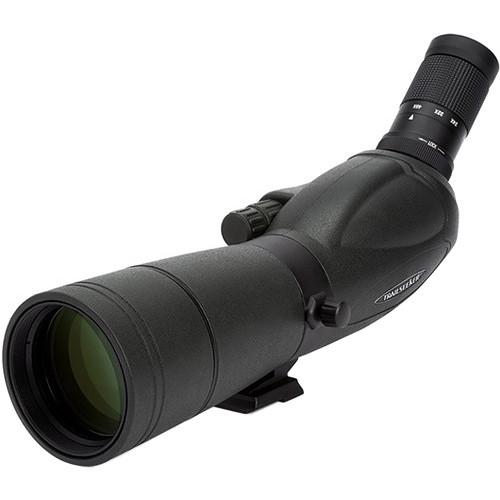

User Manual for Celestron TrailSeeker 65 16-48x65 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Celestron TrailSeeker 65 16-48x65 Spotting Scope
- Product category: Spotting Scopes Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Spotting Scopes
 |
User manual for the Celestron TrailSeeker 65 16-48x65 Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

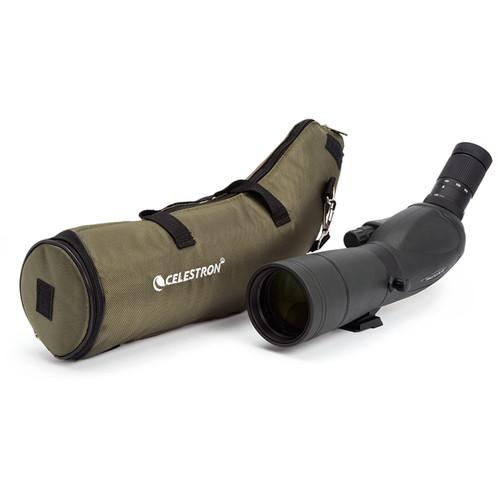

Product description A Guide to Birding with Spotting Scopes Read More The 45° angled-viewing TrailSeeker 65 16-48x65 Spotting Scope by Celestron features a versatile 16-48x zoom eyepiece to provide views from generous vistas at the lower power to tight, detailed images at the higher end. Proprietary anti-reflection XLT fully multi-coated optics allow for efficient light transmission through the optical path for crisp, high-contrast views. Dual focus offers precise image control by allowing a preliminary coarse focus, which you can then refine using the fine-focus control for a tack-sharp view.The angled eyepiece permits comfortable glassing whether standing, sitting or lying flat on the ground. You can rotate the scope in its tripod collar a full 360° to put the eyepiece in the best position. The TrailSeeker 65 has a nitrogen-filled waterproof housing that won't fog up in humid conditions and features a sliding sunshade to keep glare or raindrops off the objective lens. To facilitate digiscoping, a T-adapter is included so you can mount a T-ring compatible with your DSLR to the eyepiece. For adverse weather conditions, a stay-on carrying case is included, which can be left on the scope during use—zippers fore and aft open for the objective lens and the eyepiece. The TrailSeeker is designed to use standard 1.25" astronomical eyepieces, so in addition to the included zoom eyepiece, you can use other eyepieces on your spotting scope to achieve higher magnifications, wider field of views, etc. - Optical Performance
-
- Zoom magnification: 16-48x
- Objective lens: 65mm
- Proprietary XLT lens multi-coating reduces reflection for greater light transmission
- BAK4 prism
- Use and Handling
-
- Angled viewing: Eyepiece is at a 45° angle for more comfortable viewing from various positions

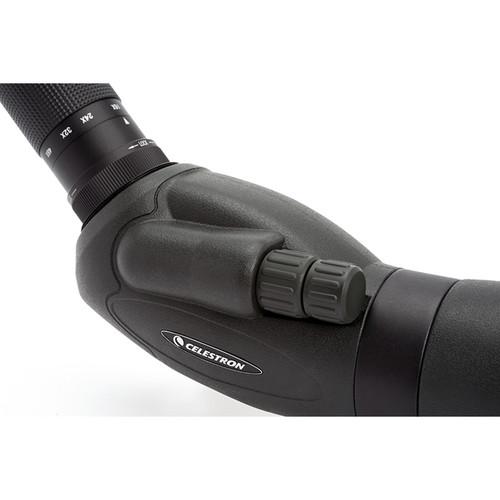

- Dual focusing allows you to get subjects in focus quickly with coarse focus control and then refine the image with the fine-focus control

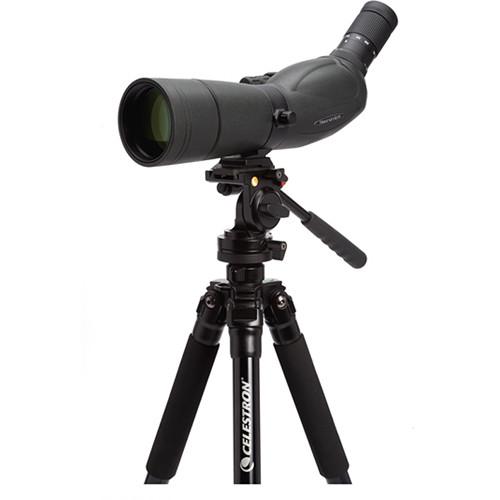

- Scope rotates 360° in its tripod collar for positional flexibility
- Sliding sunshade to keep glare or moisture off the objective lens
- Twist-up eyecup for comfortable use with or without eyewear
- Construction Details
-
- Nitrogen-filled body is water and fogproof
- Durable rubber-armored polycarbonate housing

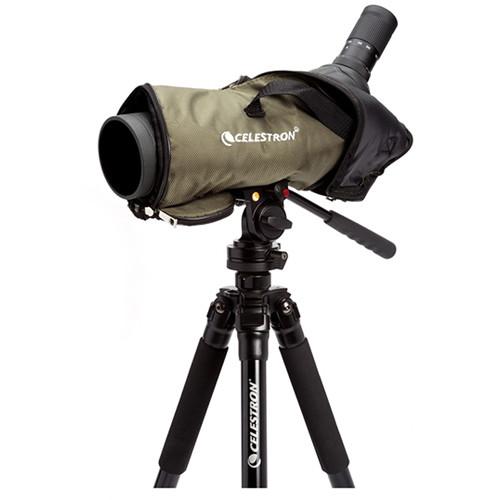

- Stay-on carrying bag with shoulder strap allows for faster setup and breakdown while keeping the bag off the ground
- T-adapter step ring accepts user-supplied T-ring for mounting DSLR for digiscoping

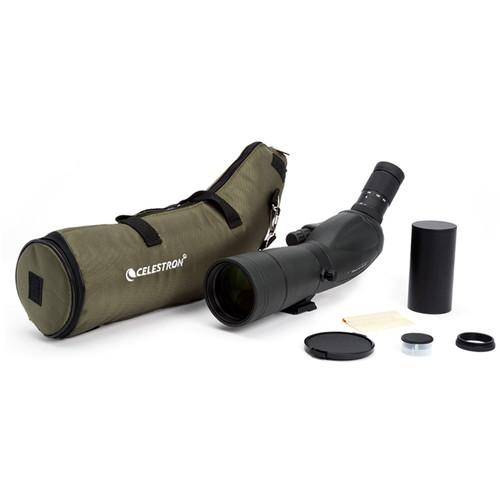

UPC: 050234523301 In the Box Celestron TrailSeeker 65 16-48x65 Spotting Scope (Angled Viewing) T-adapter Step Ring Stay-On Carrying Bag with Shoulder Strap Objective Lens Cap, Eyepiece Mount Cap & Eyepiece Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron TrailSeeker 65 16-48x65 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 52330 Specs | | | Magnification | 16 to 48x | | Objective Lens Diameter | 65 mm | | Field of View | 16x: 134.9' @ 1000 yd / 45.0 m @ 1000 m
48x: 68.9' @ 1000 yd / 23.0 m @ 1000 m | | Minimum Focus Distance | 18.0' / 5.5 m | | Exit Pupil Diameter | 16x: 4 mm
48x: 1.3 mm | | Eye Relief | 18.0 to 15.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 12.8" / L: 32.5 cm (Without Eyepiece)
L: 16.7" / L: 42.4 cm (with Eyepiece) | | Weight | 3.0 lb / 1.4 kg | | | | Package Weight | 5.6 lb | | Box Dimensions (LxWxH) | 19.5 x 9.0 x 5.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
