Celestron TrailSeeker 80 20-60x80 Spotting Scope

Search your instruction manual in PDF to download

User Manual for Celestron TrailSeeker 80 20-60x80 Spotting Scope

Click to enlarge the picture
Celestron TrailSeeker 80 20-60x80 Spotting Scope Contents of the user manual for the Celestron TrailSeeker 80 20-60x80 Spotting Scope
  • Product category: Spotting Scopes Celestron
  • Brand: Celestron
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Celestron Spotting Scopes

Celestron TrailSeeker 80 20-60x80 Spotting Scope Celestron TrailSeeker 80 20-60x80 Spotting Scope Celestron TrailSeeker 80 20-60x80 Spotting Scope Celestron TrailSeeker 80 20-60x80 Spotting Scope Celestron TrailSeeker 80 20-60x80 Spotting Scope Celestron TrailSeeker 80 20-60x80 Spotting Scope Celestron TrailSeeker 80 20-60x80 Spotting Scope
User manual for the Celestron TrailSeeker 80 20-60x80 Spotting Scope contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Celestron product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!



Product description

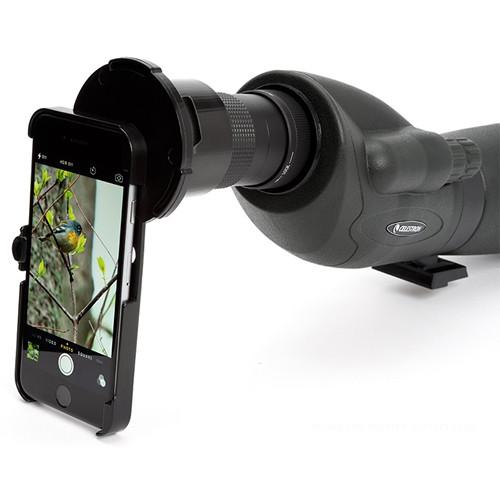

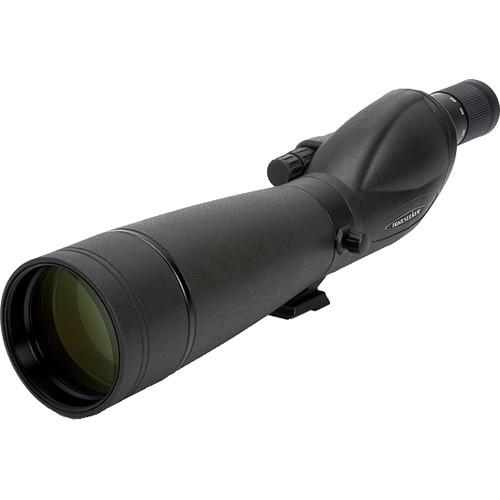

A Guide to Birding with Spotting Scopes Read More The straight-through viewing TrailSeeker 80 20-60x80 Spotting Scope by Celestron features a versatile 20-60x zoom eyepiece to provide views from generous vistas to tight, detailed images. The 80mm objective lens possesses light-gathering capability superior to that of scopes with smaller lenses, which makes for a bright image and enhances the scope's capabilities in low-light conditions. Proprietary anti-reflection XLT fully multi-coated optics allow for efficient light transmission through the optical path for crisp, high-contrast views.The straight eyepiece makes spotting and tracking a subject quick and easy. Dual focusing offers precise image control by allowing a preliminary coarse focus, which you can then refine using the fine-focus control for a tack-sharp view. You can rotate the scope in its tripod collar a full 360° to put the eyepiece in the best position. The TrailSeeker 80 has a nitrogen-filled waterproof housing that won't fog up in humid conditions and features a sliding sunshade to keep glare or raindrops off the objective lens. To facilitate digiscoping, a T-adapter is included so you can mount a T-ring compatible with your DSLR to the eyepiece.For adverse weather conditions, a stay-on carrying case is included that can be left on the scope during use—zippers fore and aft open for the objective lens and the eyepiece. The TrailSeeker is designed to use standard 1.25" astronomical eyepieces, so in addition to the included zoom eyepiece, you can use other eyepieces on your spotting scope to achieve higher magnifications, wider fields of view, etc.
    Optical Performance
    • Zoom magnification: 20-60x
    • Objective lens: 80mm for light-gathering power
    • Proprietary XLT lens multi-coating reduces reflection for greater light transmission
    • BAK4 prism
    Use and Handling

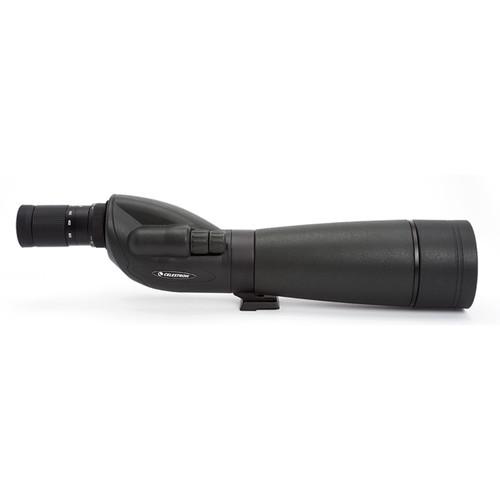

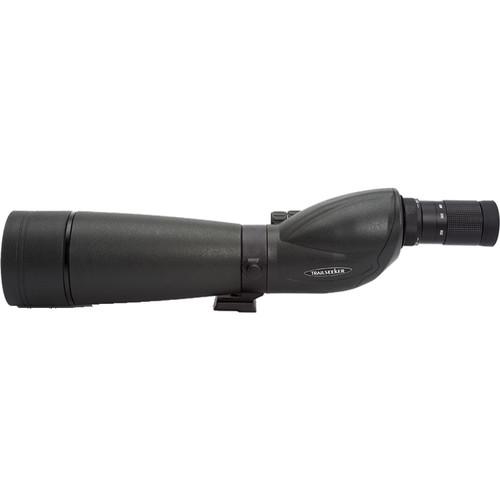

    • Straight viewing: Straight-through eyepiece allows for easier target acquisition and tracking

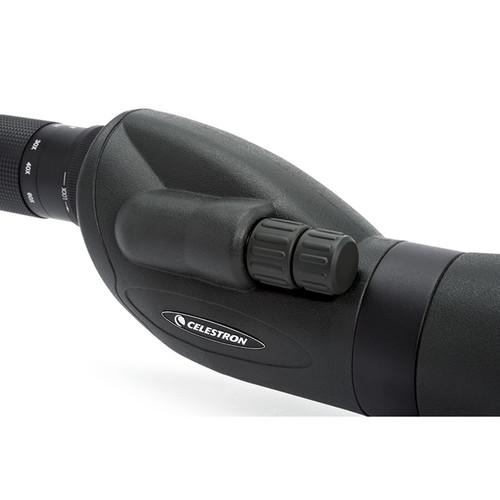

    • Dual focusing allows you to get subjects in focus quickly with coarse focus control and then refine the image with the fine-focus control

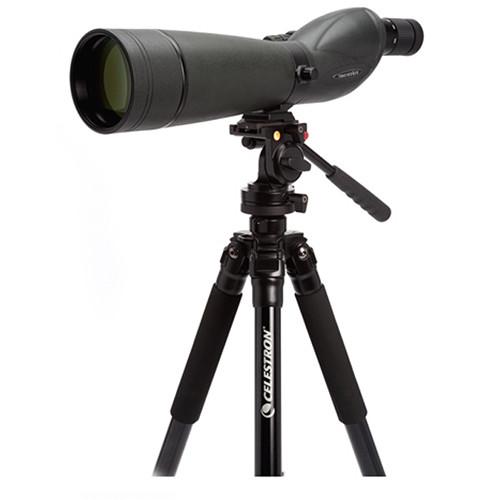

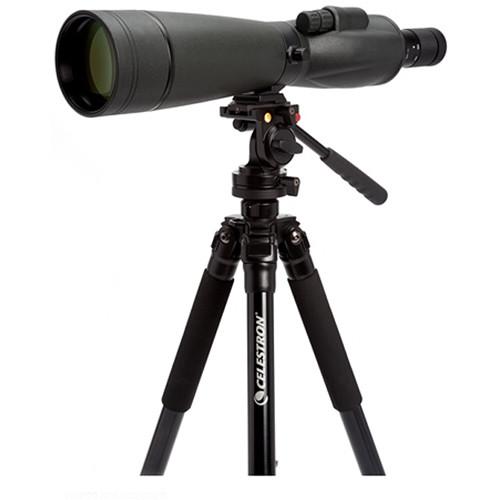

    • Tripod mount rotates 360° for positional flexibility
    • Sliding sunshade to keep glare or moisture off the objective lens
    • Twist-up eyecup for comfortable use with or without eyewear
    Construction Details
    • Nitrogen-filled body is water and fogproof
    • Durable rubber-armored polycarbonate housing
    • Stay-on carrying bag with shoulder strap allows for faster setup and breakdown while keeping the bag off the ground
    • T-adapter step ring accepts user-supplied T-ring for mounting DSLR

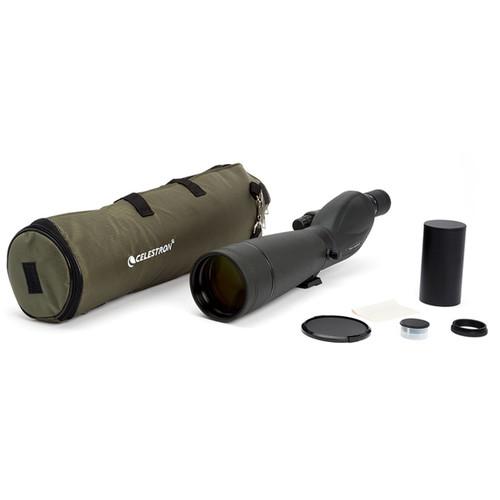

UPC: 050234523332 In the Box Celestron TrailSeeker 80 20-60x80 Spotting Scope (Straight Viewing)
  • T-Adapter Step Ring
  • Stay-On Carrying Bag with Shoulder Strap
  • Objective Lens Cap, Eyepiece Mount Cap & Eyepiece Cover
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Celestron TrailSeeker 80 20-60x80 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Celestron 52333 Specs

    Viewing Angle Straight
    Magnification 20 to 60x
    Objective Lens Diameter 80 mm
    Field of View 20x: 105.0' @ 1000 yd / 34.9 m @ 1000 m
    60x: 52.0' @ 1000 yd / 17.3 m @ 1000 m
    Minimum Focus Distance 24.6' / 7.5 m
    Exit Pupil Diameter 20x: 4 mm
    60x: 1.3 mm
    Eye Relief 18.0 to 15.0 mm
    Fogproof Yes, Nitrogen Filled
    Water Resistance Waterproof
    Tripod Mounting Thread 1/4"-20
    Dimensions L: 16.0" / L: 40.6 cm (Without Eyepiece)
    L: 19.9" / L: 50.5 cm (with Eyepiece)
    Weight 3.4 lb / 1.5 kg
    Package Weight 6.55 lb
    Box Dimensions (LxWxH) 24.0 x 8.4 x 5.6"
