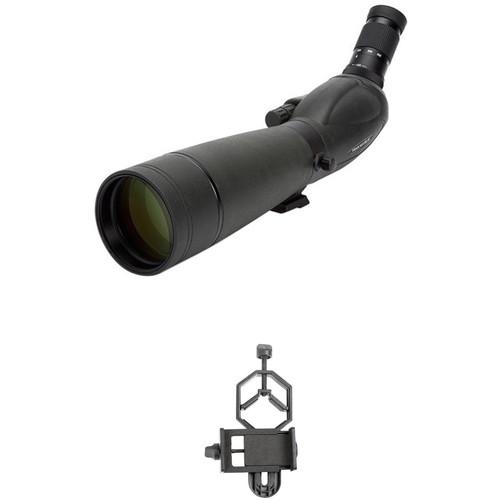

Celestron TrailSeeker 80 20-60x80 Spotting Scope

User Manual for Celestron TrailSeeker 80 20-60x80 Spotting Scope and Smartphone Adapter Kit

• Product category: Spotting Scopes Celestron
• Brand: Celestron
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Celestron Spotting Scopes

Product description

• Celestron TrailSeeker 80 20-60x80 Spotting Scope (Angled Viewing) The 45° angled-viewing TrailSeeker 80 20-60x80 Spotting Scope by Celestron features a versatile 20-60x zoom eyepiece to provide views from generous vistas to tight, detailed images. The 80mm objective lens possesses light-gathering capability superior to that of scopes with smaller lenses, which makes for a bright image and enhances the scope's capabilities in low-light conditions. Proprietary anti-reflection XLT fully multi-coated optics allow for efficient light transmission through the optical path for crisp, high-contrast views.The angled eyepiece permits comfortable glassing whether standing, sitting, or lying flat on the ground. Dual focusing offers precise image control by allowing a preliminary coarse focus, which you can then refine using the fine-focus control for a tack-sharp view. You can rotate the scope in its tripod collar a full 360° to put the eyepiece in the best position. The TrailSeeker 80 has a nitrogen-filled waterproof housing that won't fog up in humid conditions and features a sliding sunshade to keep glare or raindrops off the objective lens. To facilitate digiscoping, a T-adapter is included so you can mount a T-ring compatible with your DSLR to the eyepiece.For adverse weather conditions, a stay-on carrying case is included that can be left on the scope during use—zippers fore and aft open for the objective lens and the eyepiece. The TrailSeeker is designed to use standard 1.25" astronomical eyepieces, so in addition to the included zoom eyepiece, you can use other eyepieces on your spotting scope to achieve higher magnifications, wider fields of view, etc.
  Optical Performance
  • • Zoom magnification: 20-60x
    • Objective lens: 80mm for light-gathering power
    • Proprietary XLT lens multi-coating reduces reflection for greater light transmission
    • BAK4 prism
  Use and Handling
  • • Angled viewing: Eyepiece is at a 45° angle for more comfortable viewing from various positions
    • Dual focusing allows you to get subjects in focus quickly with coarse focus control and then refine the image with the fine-focus control
    • Tripod mount rotates 360° for positional flexibility
    • Sliding sunshade to keep glare or moisture off the objective lens
    • Twist-up eyecup for comfortable use with or without eyewear
  Construction Details
  • • Nitrogen-filled body is water and fogproof
    • Durable rubber-armored polycarbonate housing
    • Stay-on carrying bag with shoulder strap allows for faster setup and breakdown while keeping the bag off the ground
    • T-adapter step ring accepts user-supplied T-ring for mounting DSLR
  UPC: 050234523325
• Celestron Basic Smartphone Digiscoping Adapter (1.25") Capture still images and videos of celestial and terrestrial objects with virtually any smartphone through almost any 1.25" eyepiece with Celestron's Basic Smartphone Digiscoping Adapter. Ideal for telescopes, binoculars, spotting scopes, monoculars, microscopes, and any other type of optic with an eyepieces, the design allows it to be used on most oculars with outside diameters between 29mm (1.14") and 45mm (1.77"). The rigid frame is made of sturdy and lightweight aluminum with non-slip padding on clamping points to secure it to your eyepiece and mount your smartphone without marking or marring its surfaces. A clamping system holds the adapter securely on the eyepiece and locks in place, while an adjustment system allows for precise phone camera alignment. UPC: 050234810357

• TrailSeeker 80 20-60x80 Spotting Scope (Angled Viewing) wbqetybbfxvrbsryfvrzdrsaecatuta
• T-Adapter Step Ring
• Stay-On Carrying Bag with Shoulder Strap
• Objective Lens Cap, Eyepiece Mount Cap & Eyepiece Cover
• Limited Lifetime Warranty

• Basic Smartphone Digiscoping Adapter (1.25")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Celestron TrailSeeker 80 20-60x80 Spotting Scope (Angled Viewing)

  Viewing Angle	Angled

  Magnification	20 to 60x
  Objective Lens Diameter	80 mm
  Field of View	20x: 105.0' @ 1000 yd / 34.9 m @ 1000 m 60x: 52.0' @ 1000 yd / 17.3 m @ 1000 m
  Minimum Focus Distance	24.6' / 7.5 m
  Exit Pupil Diameter	20x: 4 mm 60x: 1.3 mm
  Eye Relief	18.0 to 15.0 mm

  Fogproof	Yes, Nitrogen Filled
  Water Resistance	Waterproof

  Tripod Mounting Thread	1/4"-20
  Dimensions	L: 16.0" / L: 40.6 cm (Without Eyepiece) L: 19.9" / L: 50.5 cm (with Eyepiece)
  Weight	3.4 lb / 1.5 kg

  Box Dimensions (LxWxH)	24.0 x 9.0 x 5.6"

• Celestron Basic Smartphone Digiscoping Adapter (1.25")

  Material of Construction	Aluminum Alloy
  Dimensions	7.0 x 4.0 x 1.5" / 177.8 x 101.6 x 38.1 mm
  Weight	6.0 oz / 170.7 g

  Box Dimensions (LxWxH)	6.45 x 3.3 x 1.55"
