User Manual for Celestron Travel Scope 50mm f 7.2 AZ Refractor Telescope Kit Click to enlarge the picture
Contents of the user manual for the Celestron Travel Scope 50mm f 7.2
- Product category: Refractors Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Refractors
 |
User manual for the Celestron Travel Scope 50mm f 7.2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

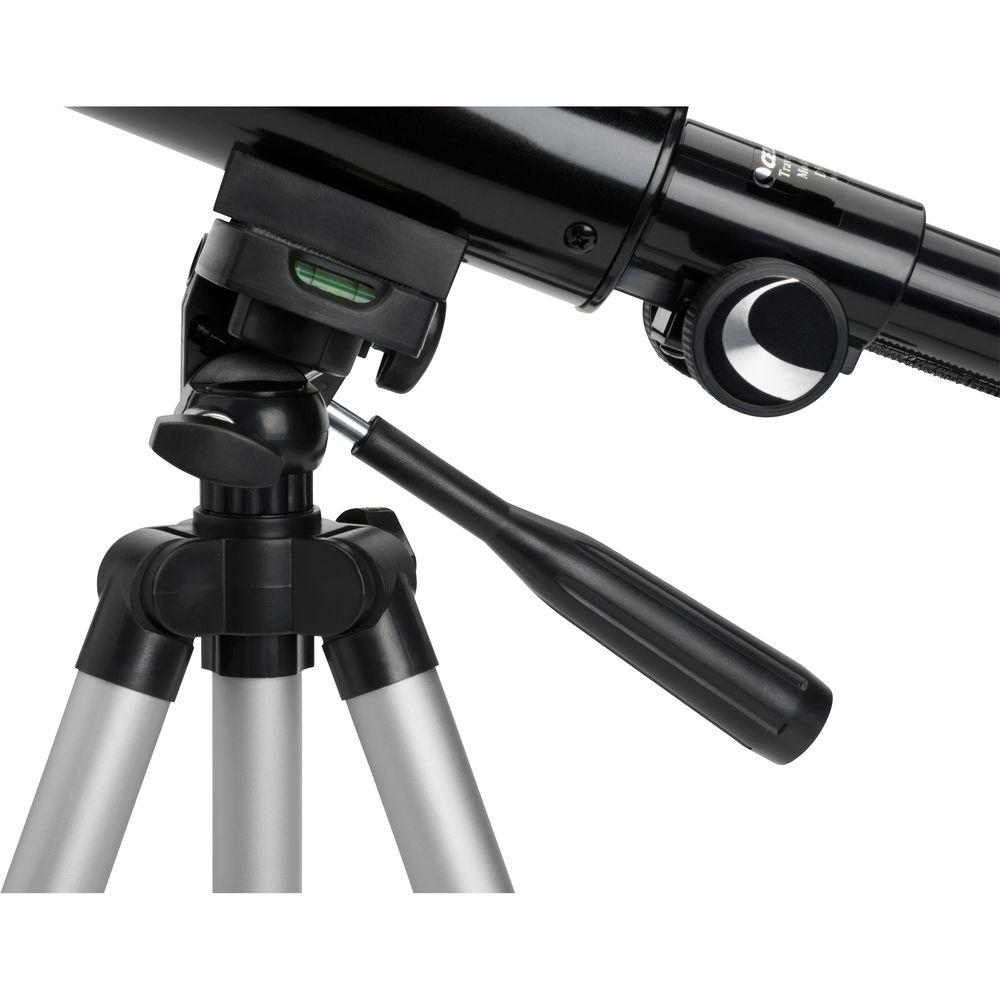

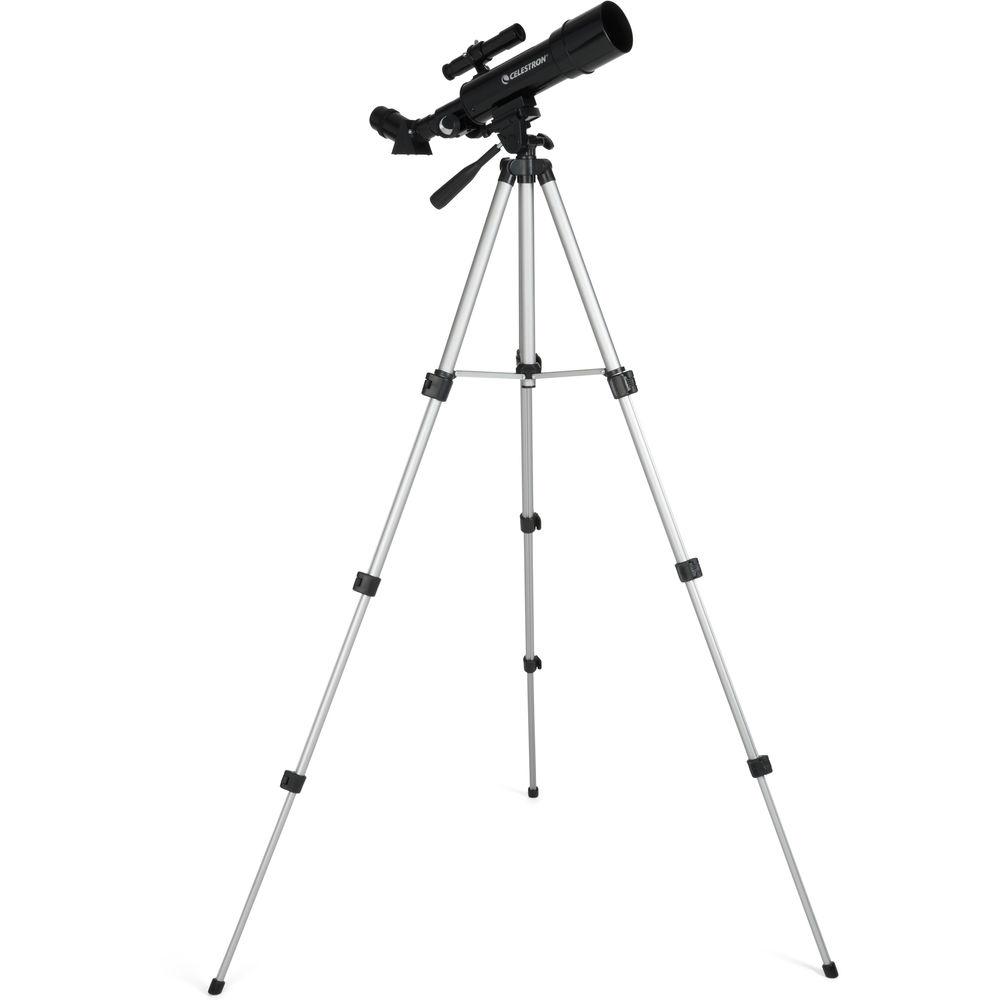

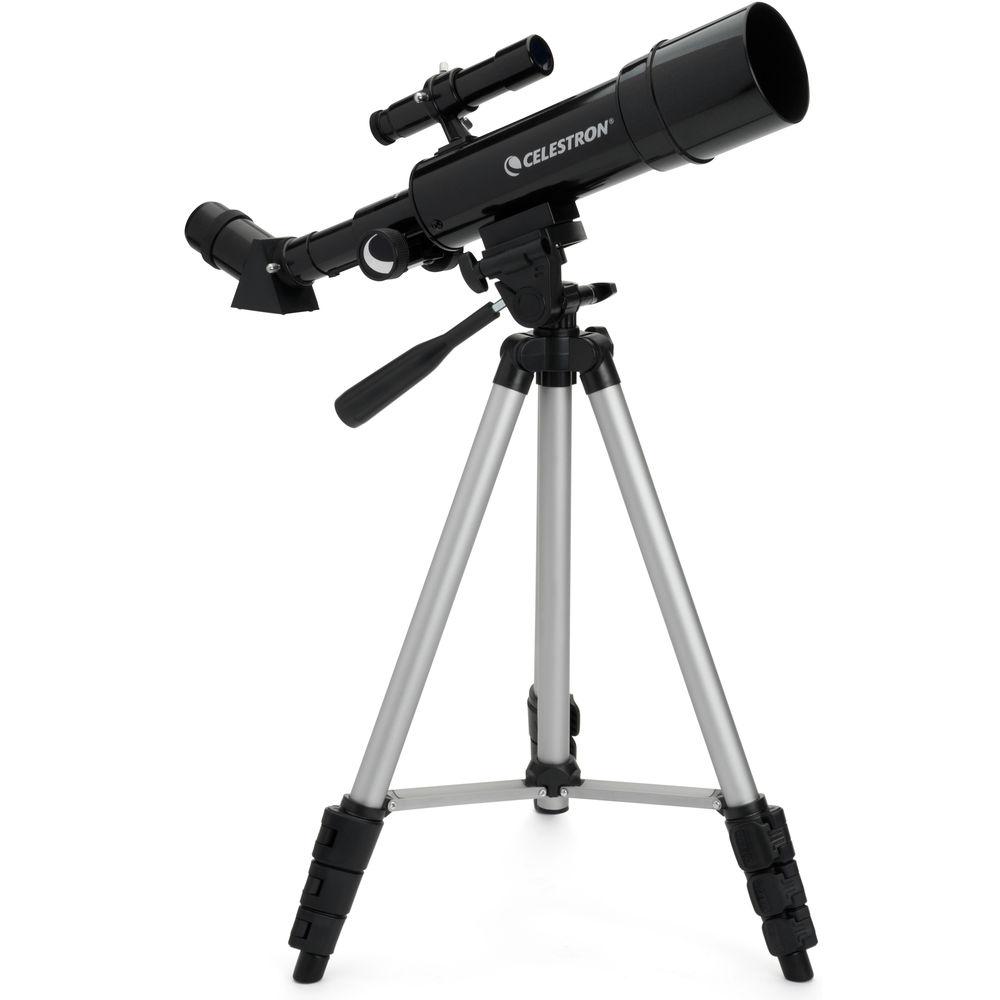

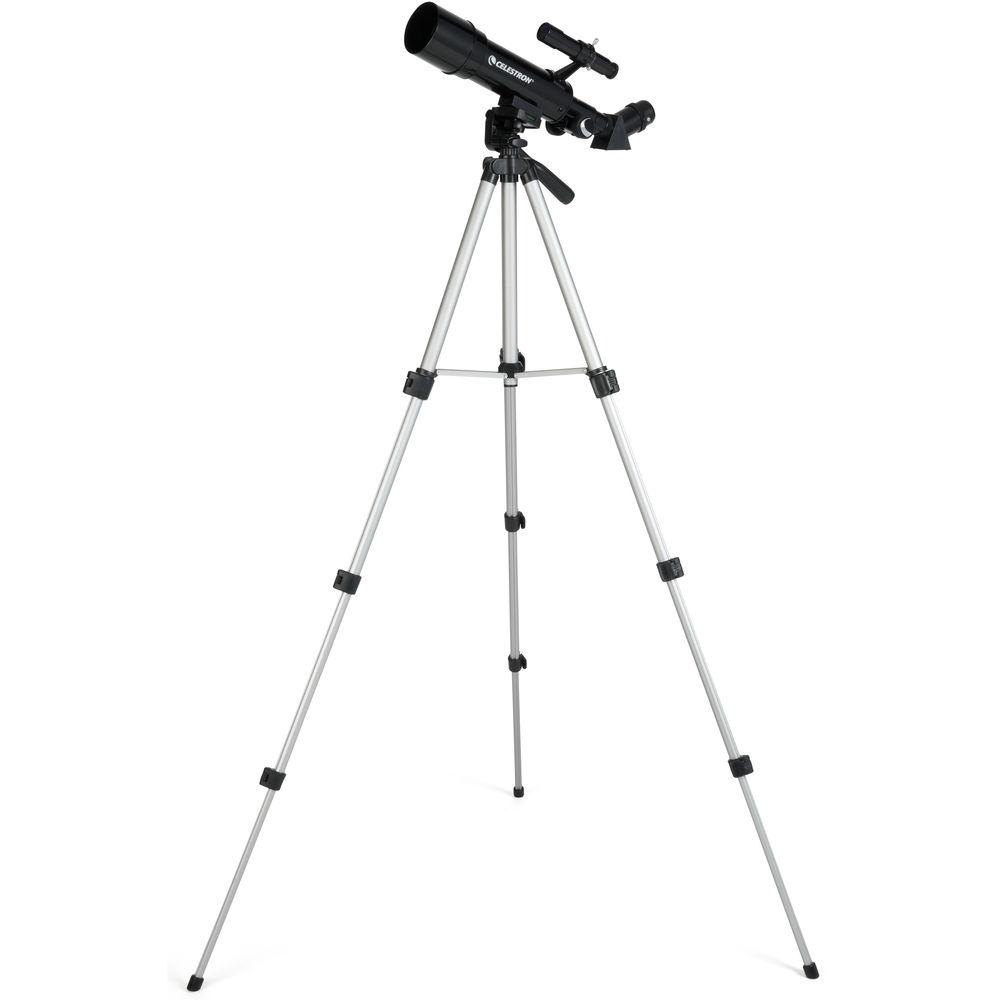

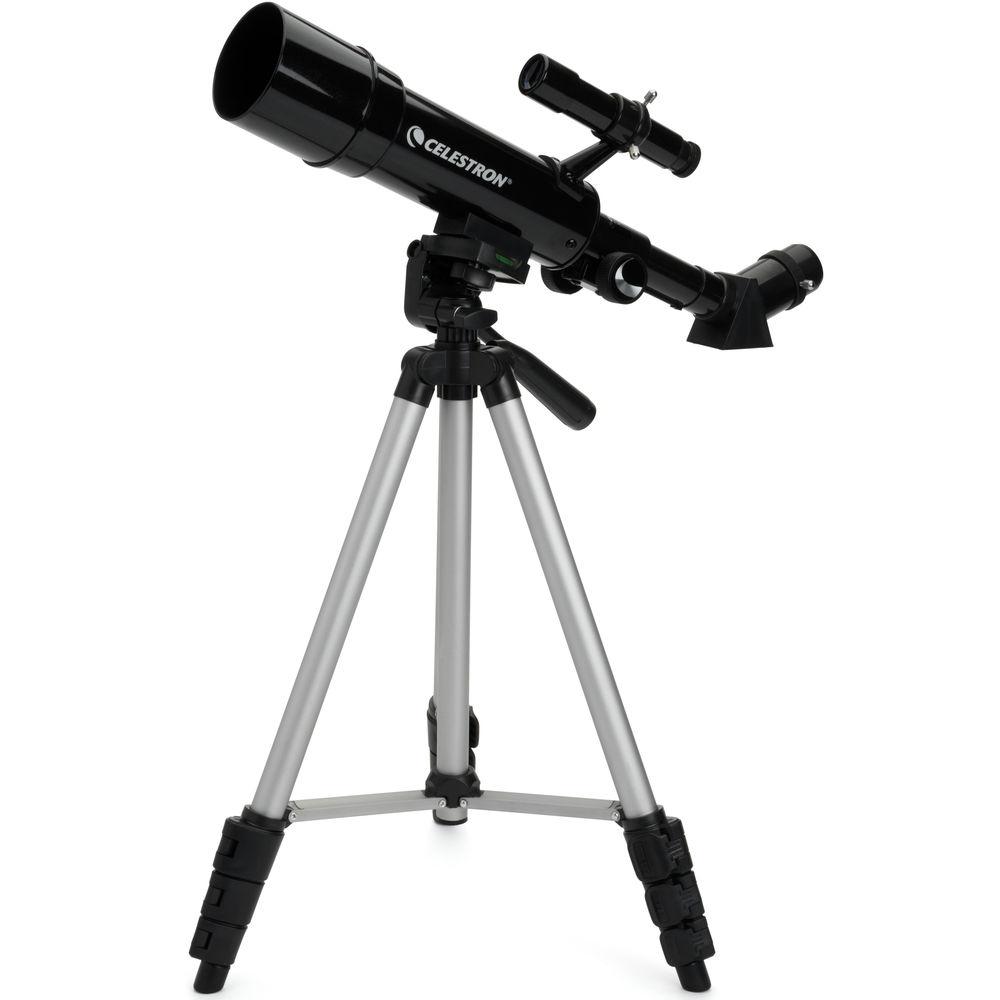

Product description The Celestron Travel Scope 50mm f/7.2 AZ Refractor Telescope Kit is designed for portability and ease-of-use for both astronomical and terrestrial use. Its refractor-style optical tube has a respectable aperture that gathers copious amounts of light, and a shorter focal length that produces a moderate magnification potential. A photo-style alt-az pan/tilt head easily mounts the OTA with a simple screw and has a single control handle that allows for smooth movement and locks the altitude in place for hands-free use to minimize vibration. Supporting it all is a photo-style tripod that collapses low enough for tabletop use and extends to full-sized height. The included erecting prism corrects views horizontally and laterally to the Travel Scope can be used as a conventional spotting scope, and it comes with to eyepieces offering 20x and 40x magnifications — although any 1.25" astronomical eyepiece may be used. Everything in this kit — OTA, tripod, head, and accessories — fit inside the included canvas backpack to make it as portable possible. - Optical Tube
-
- 50mm aperture
- f/7.2 focal ratio
- 360mm focal length
- Achromatic refractor optical design
- Anti-reflection fully coated optics improves light transmission, color rendition, sharpness, and contrast
- Resolution: 2.66 arcsec, Raleigh; 2.28 arcsec, Dawes
- 0.96" rack-and-pinion focuser
- Integrated dew shield prevents condensation at night, and minimizes glare during the day
- Mount and Tripod
-
Mount:- Manual pan/tilt photo-style alt-azimuth
- Control handle for easier pan/tilt and subject tracking
- Locking handle sets altitude
- Integrated level
Tripod:- Easy-use photo-style
- Lightweight and durable aluminum legs
- Four leg sections allows it to be set on a table or extended to full-height
- Simple snap-locks allows for fast setup and breakdown
- Included Accessories
-
Eyepieces:- 1.25" diameter barrel accepts most astronomical filters
- 8mm produces 45x power, 30° apparent field of view, 67' field of view at 1000 yards (13m @ 1000m)
- 20mm produces 18x magnification, 32° apparent field of view, 84' field of view at 1000 yards (28m @ 1000m), 15' (4.5m) close focus distance

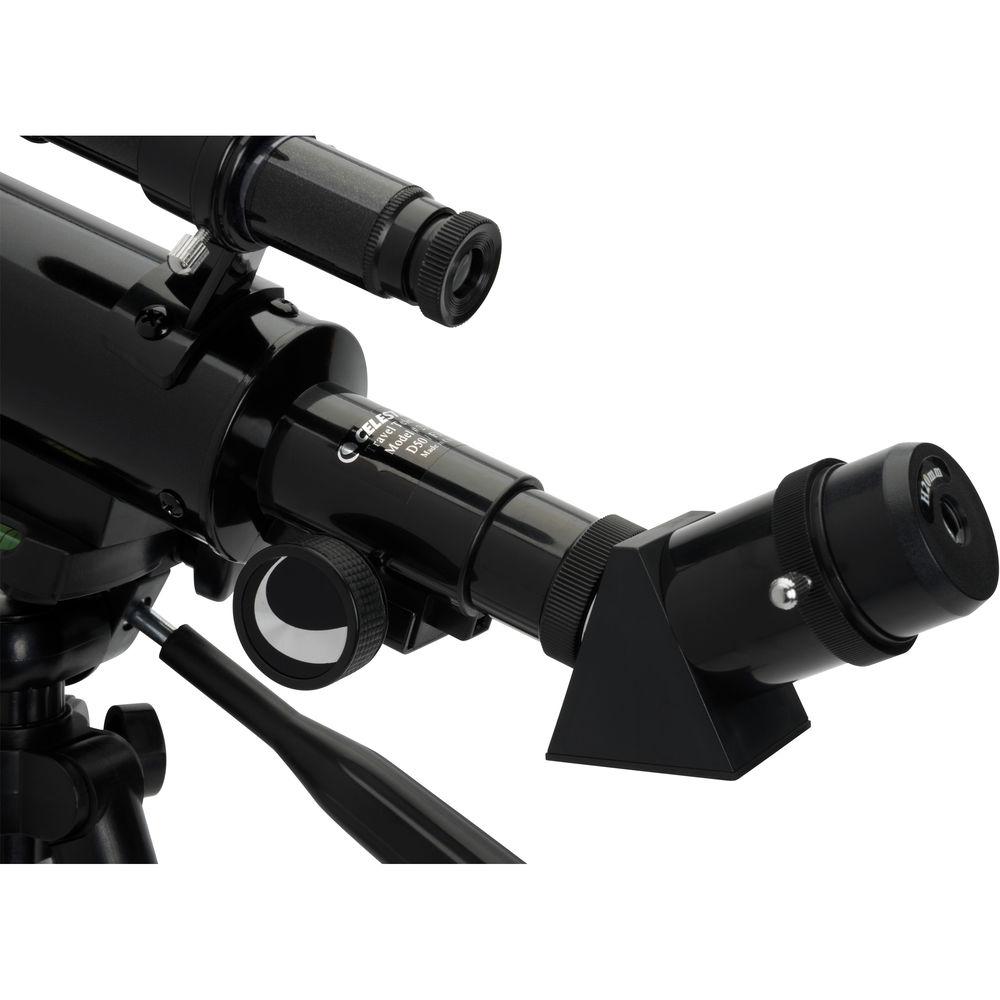

Diagonal:- 0.96" snout to fit drawtube with a 1.25" eyepiece holder to accept larger, more popular eyepieces
- 45° angle puts head in comfortable position for celestial and terrestrial viewing
- Integrated erecting prism corrects view horizontally and vertically for land use
Barlow Lens:- 3x magnification triples the power of any eyepiece
- 0.96" snout to fit drawtube with a 1.25" eyepiece holder to accept larger, more popular eyepieces
2x20 Finderscope:- 2x magnification produces a wide field of view to make finding subjects easy and star-hopping navigation faster
- Straight-through viewing

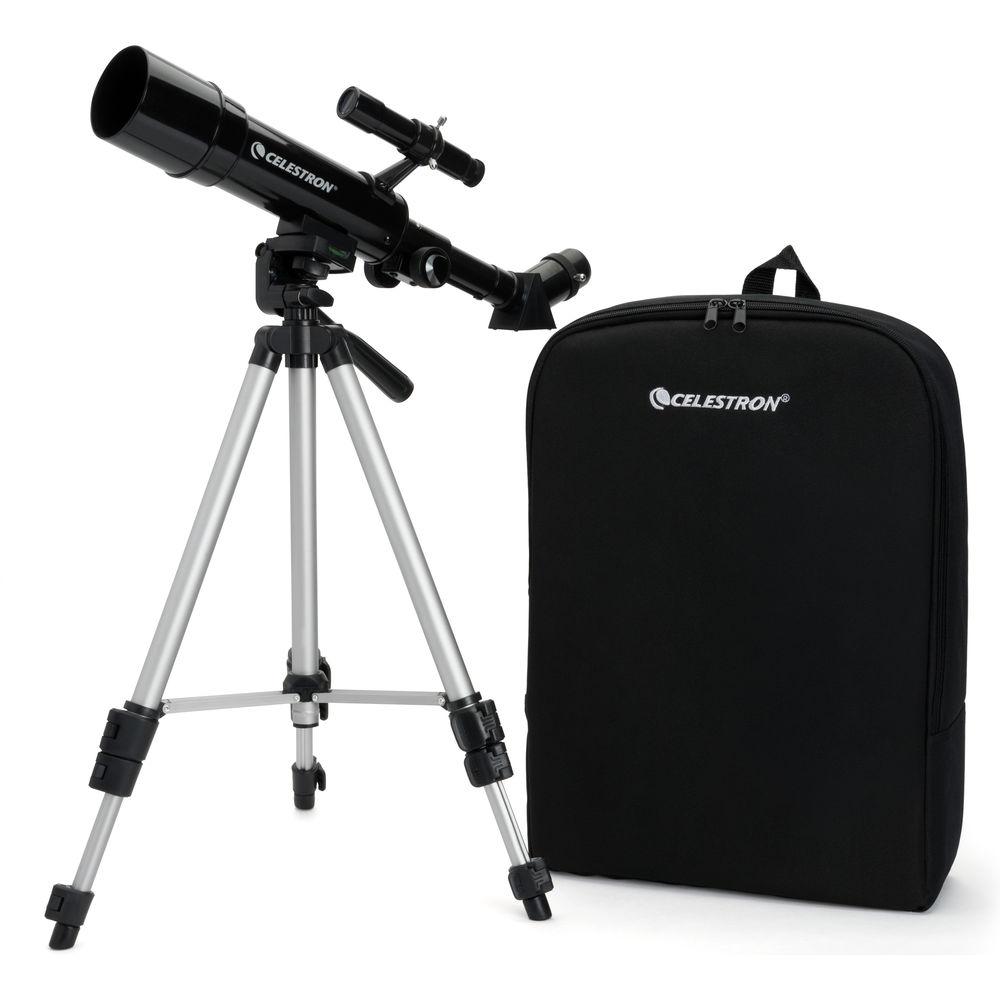

Backpack:- Water and tear-resistant canvas
- Holds scope, tripod, mount, and accessories
- Padded interior protects gear

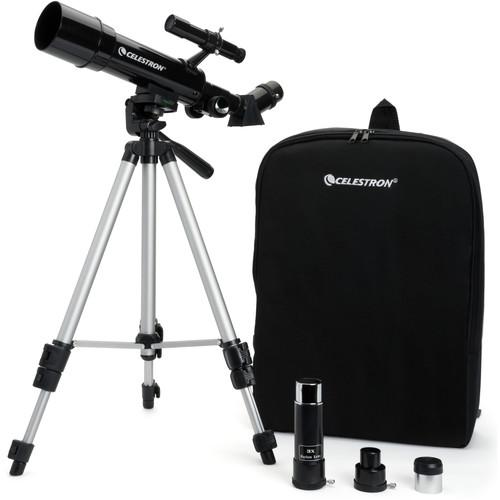

UPC: 050234210386 In the Box Celestron Travel Scope 50mm f/7.2 AZ Refractor Telescope Kit 2x20 Finderscope 3x Barlow Lens 45° Erect-Image Diagonal 20mm Eyepiece 8mm Eyepiece Tripod Backpack Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron Travel Scope 50mm f 7.2 AZ Refractor Telescope Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron Travel Scope 50 Specs | | | Optical Design | Refractor | | Focal Length | 360 mm | | Focal Ratio | f/7.2 | | Resolution | 2.66 Arcsec (Rayleigh)
2.28 Arcsec (Dawes) | | Eyepiece Barrel Diameter | 1.25" | | Finderscope | Yes | | | | Material of Tripod | Aluminum | | | | Package Weight | 5.8 lb | | Box Dimensions (LxWxH) | 18.1 x 14.0 x 7.0" |
