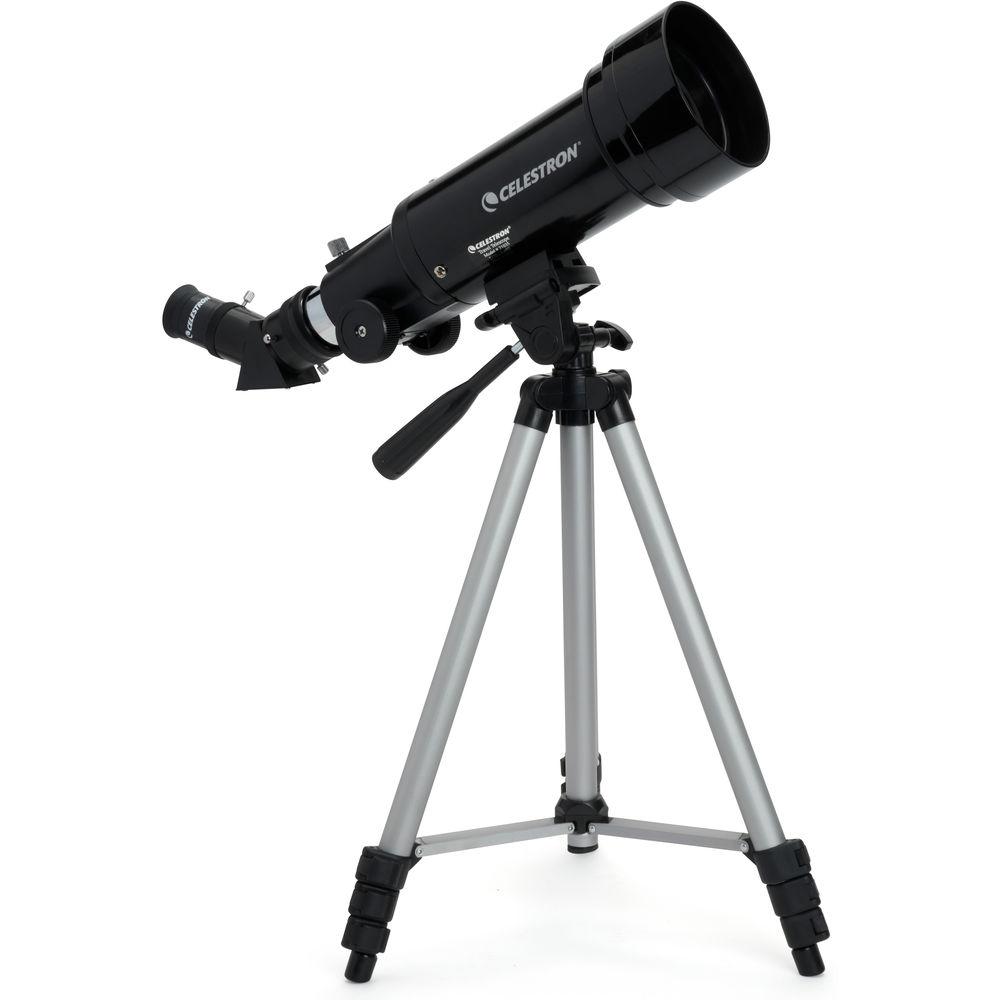

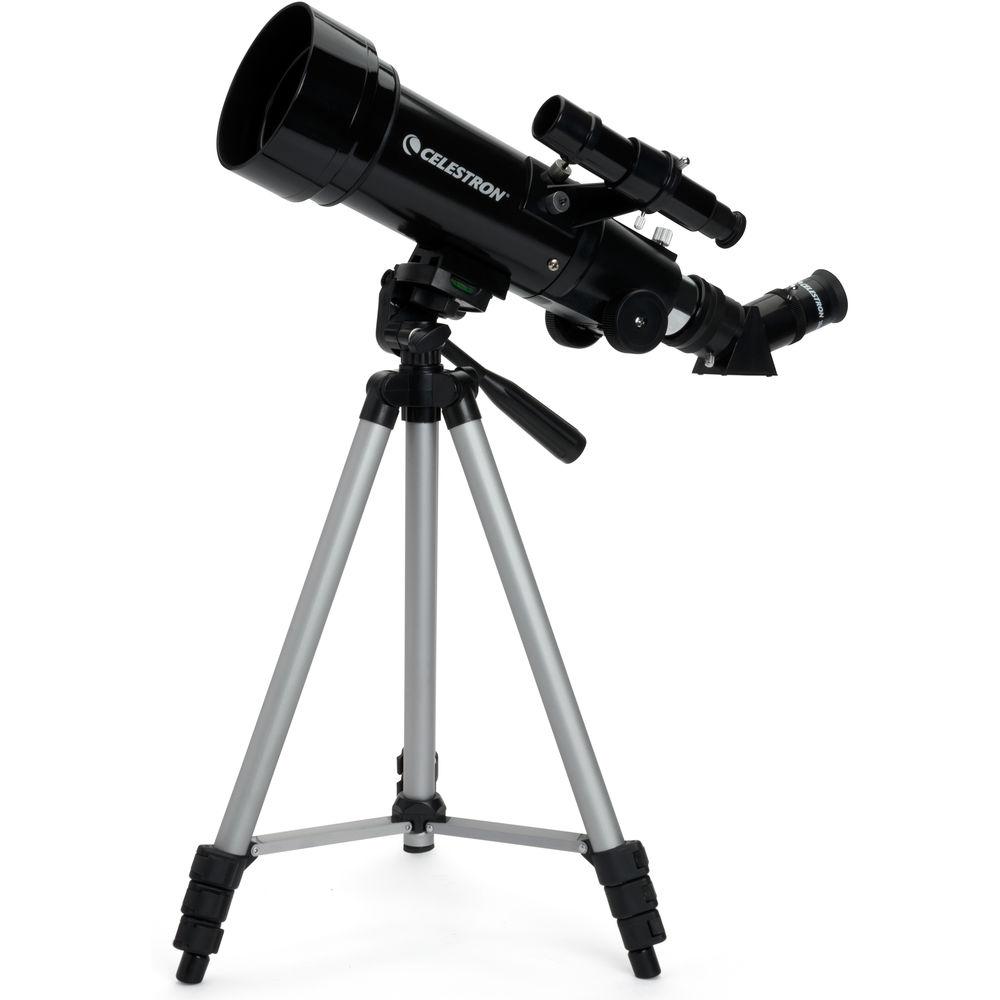

Product description The Celestron Travel Scope 70mm f/5.7 AZ Refractor Telescope Kit is designed for portability and ease-of-use for both astronomical and terrestrial use. Its refractor-style optical tube has a respectable aperture that gathers copious amounts of light, and a shorter focal length that produces a moderate magnification potential. A photo-style alt-az pan/tilt head easily mounts the OTA with a simple screw and has a single control handle that allows for smooth movement and locks the altitude in place for hands-free use to minimize vibration. Supporting it all is a photo-style tripod that collapses low enough for tabletop use and extends to full-sized height. The included erecting prism corrects views horizontally and laterally to the Travel Scope can be used as a conventional spotting scope, and it comes with to eyepieces offering 20x and 40x magnifications — although any 1.25" astronomical eyepiece may be used. Everything in this kit — OTA, tripod, head, and accessories — fits inside the included canvas backpack to make it as portable possible. - Optical Tube
-
- 70mm aperture
- f/5.7 focal ratio
- 400mm focal length
- Achromatic refractor optical design
- Anti-reflection fully coated optics improves light transmission, color rendition, sharpness, and contrast
- Resolution: 1.99 arc sec, Raleigh; 1.66 arc sec, Dawes
- 1.25" rack-and-pinion focuser
- Integrated dew shield prevents condensation at night, and minimizes glare during the day
- Mount and Tripod
-

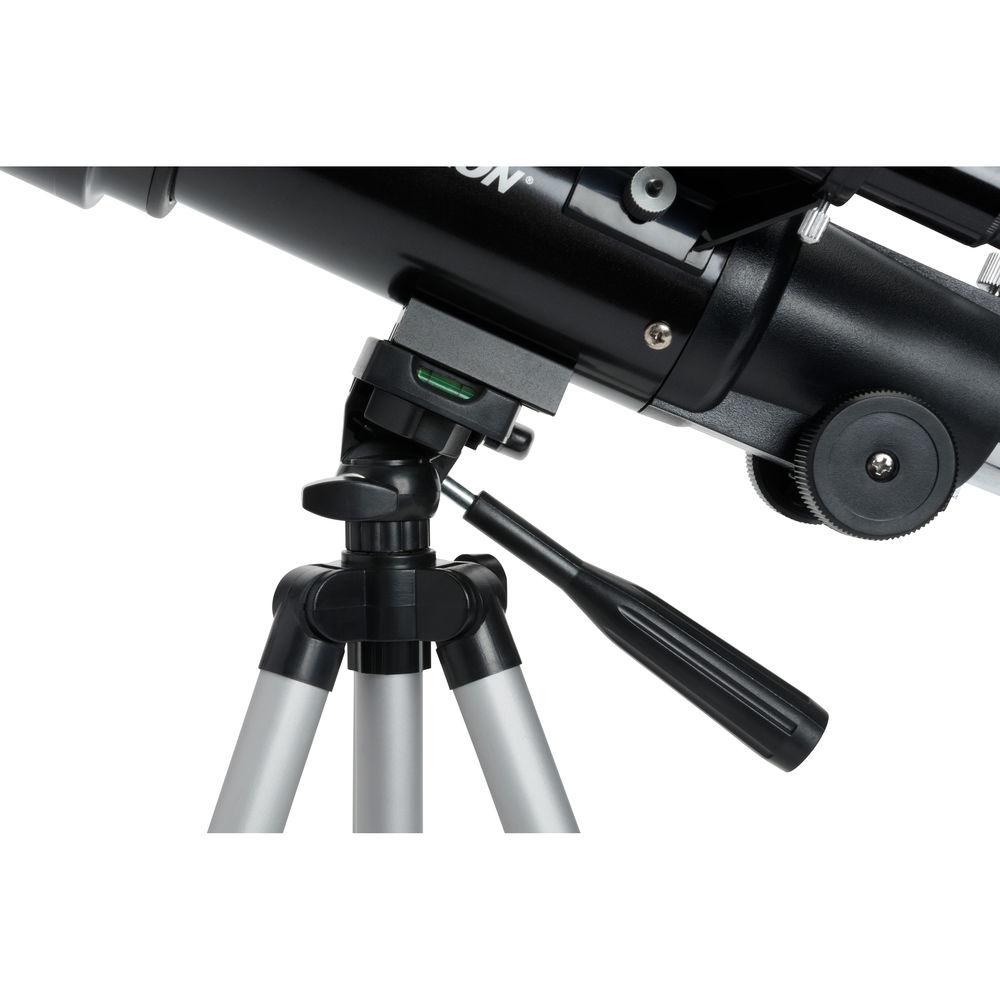

Mount:- Manual pan/tilt photo-style alt-azimuth
- Control handle for easier pan/tilt and subject tracking
- Locking handle sets altitude
- Integrated level

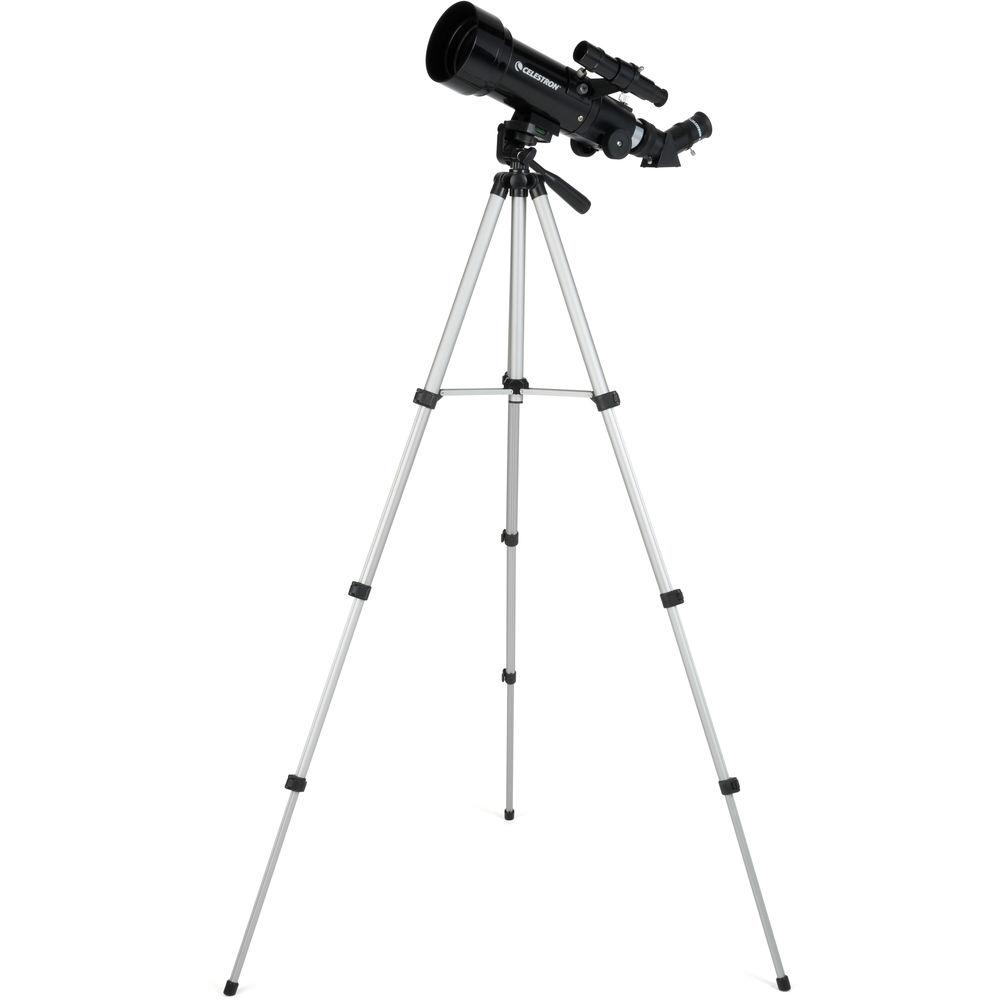

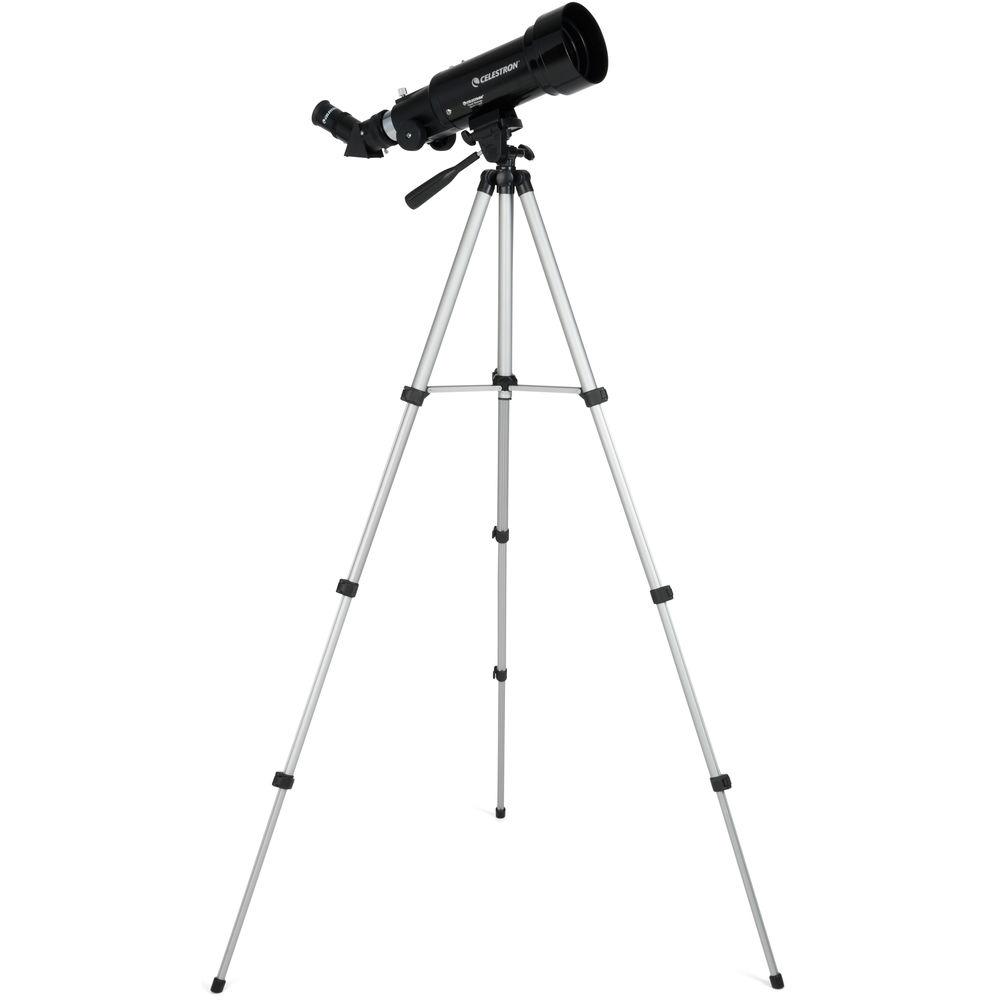

Tripod:- Easy-use photo-style
- Lightweight and durable aluminum legs
- Four leg sections allow it to be set on a table or extended to full-height
- Simple snap-locks allow for fast setup and breakdown
- Included Accessories
-
Eyepieces:- 1.25" diameter barrel accepts most astronomical filters
- 10mm produces 40x power, 50° apparent field of view, 67' field of view at 1000 yards (22m @ 1000m)
- 20mm produces 20x magnification, 50° apparent field of view, 131' field of view at 1000 yards (44m @ 1000m), 19' (5.8m) close focus distance

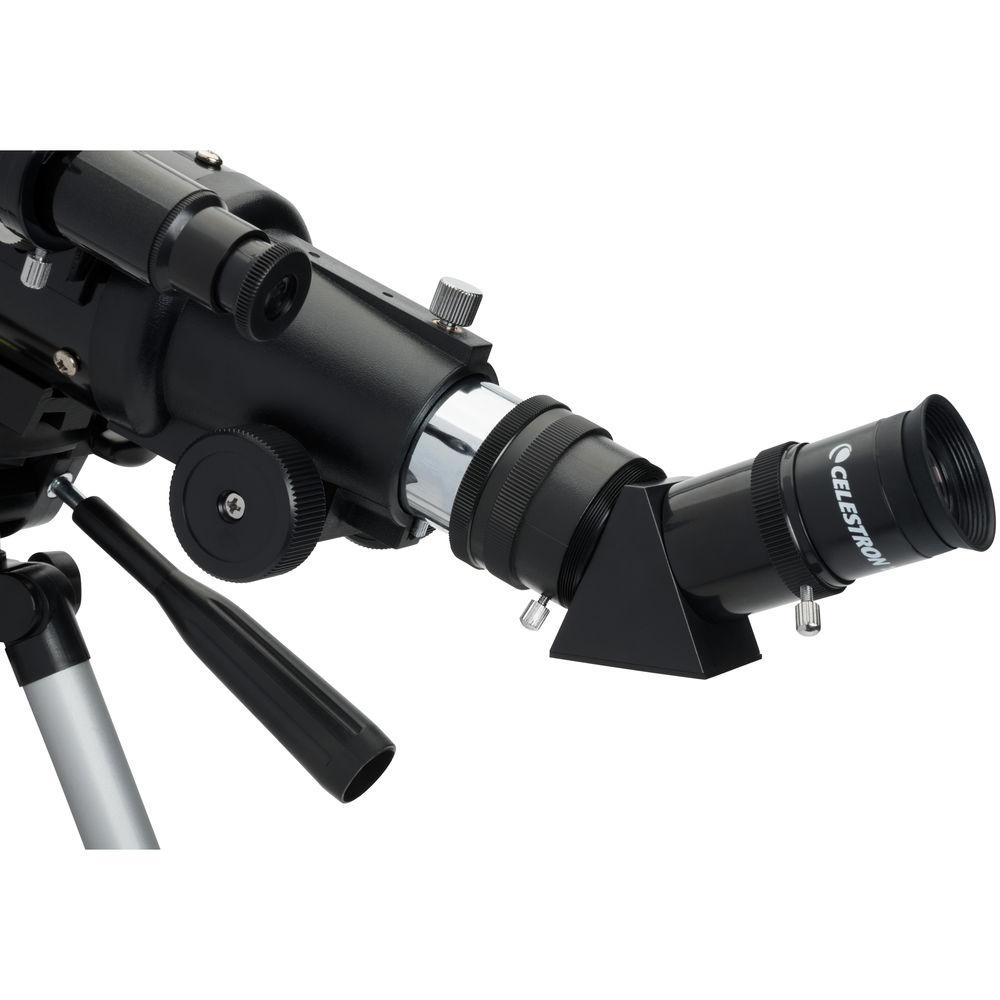

Diagonal:- 45° angle puts head in comfortable position for celestial and terrestrial viewing
- Integrated erecting prism corrects view horizontally and vertically for land use
- 1.25" diameter eyepiece holder accepts many eyepieces and accessories
2x24 Finderscope:- 5x magnification produces a wide field of view to make finding subjects easy and star-hopping navigation faster
- Straight-through viewing

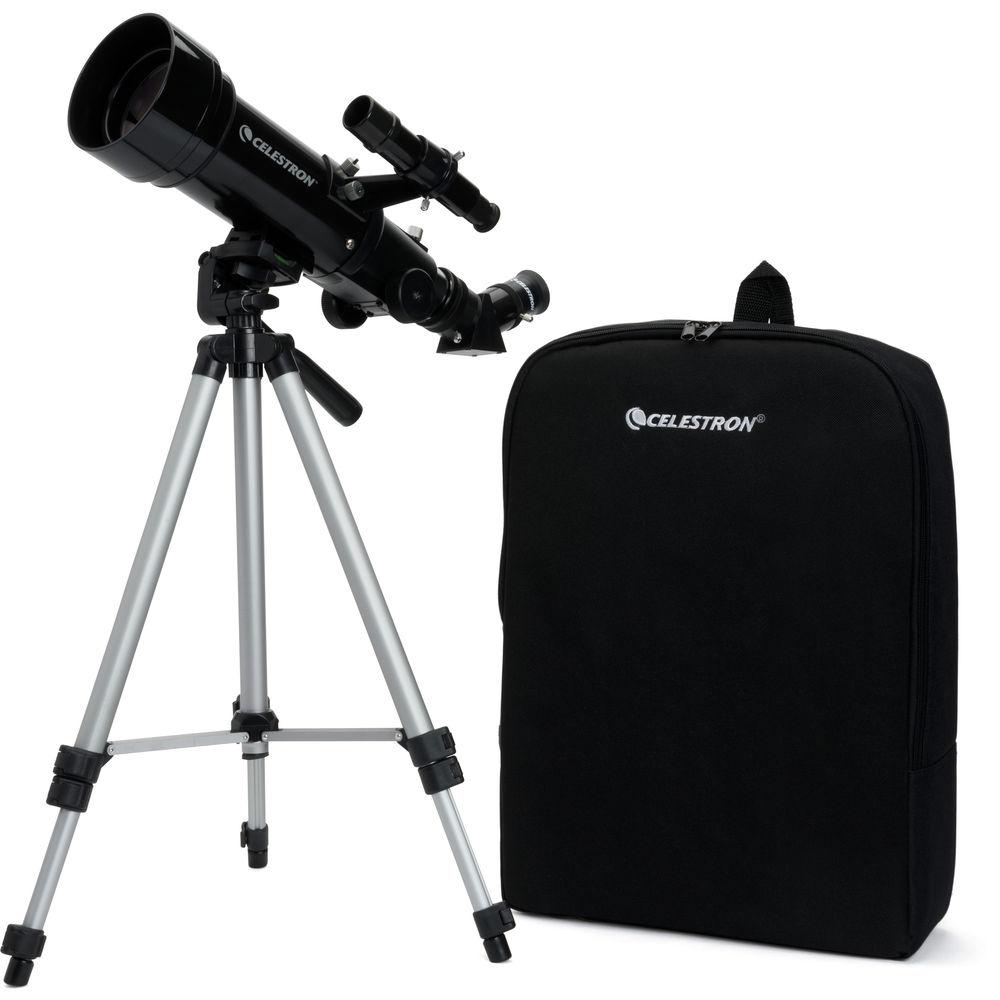

Backpack:- Water and tear-resistant canvas
- Holds scope, tripod, mount, and accessories
- Padded interior protects gear

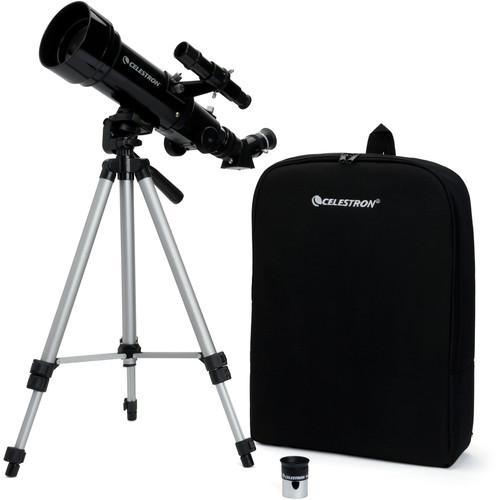

UPC: 050234210355 In the Box Celestron Travel Scope 70mm f/5.7 AZ Refractor Telescope Kit 5x24 Finderscope 45° Erect-Image Diagonal 20mm Eyepiece 10mm Eyepiece Tripod Backpack SkyX CD-Rom Limited 2-Year Warranty User Manual PDF 3.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron Travel Scope 70mm f 5.7 AZ Refractor Telescope Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron Travel Scope Specs | | | Optical Design | Achromatic Refractor | | Aperture | 70 mm / 2.8" | | Focal Length | 400 mm | | Focal Ratio | f/5.7 | | Resolution | 1.98 Arcsec | | Focuser | Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 45
