Product description

The DACport HD from CEntrance Inc builds on the legacy of the original DACport and features audiophile quality, stereo digital-to-analog (DAC) conversion, and a Class-A headphone amplifier with a digital volume control that ensures proper left and right balance at any listening volume. The unit is bus powered and works plug 'n play with Mac and Linux, while a Windows driver is provided for PC users.

The DACport HD is DSD compatible and works with high resolution files with sample rates up to 384 kHz at 32-bit. The headphone amp utilizes 18V rails, which can power the most advanced headphones available. The military-spec clock ensures precise performance with oscillators capable of 10 ppm precision and 1 ps of jitter. The lightweight and durable chassis is crafted from anodized aluminum. The DACport HD is designed and assembled in the USA.
    • Audiophile-grade AK4490 D/A converter plays HD music with bit-perfect accuracy
    • Amp designed for listening without fatigue, offers clarity, sound-stage and detail

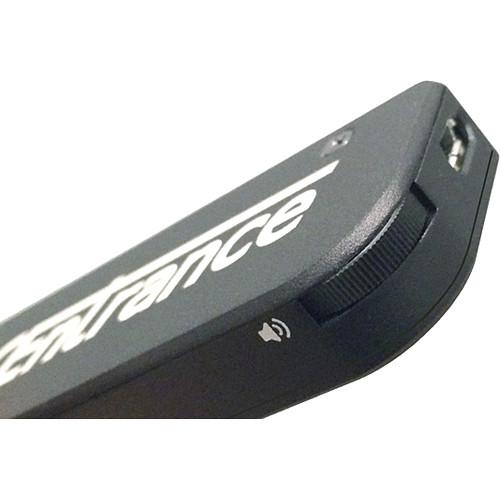

    • Ergonomic, side-mounted rotary volume control for single-handed adjustment
    • Volume control with perfect tracking, so your L/R channels are always in balance
    • Plug 'n play operation with Mac and Linux. Driver available for Windows
    • No Power Adapter or Batteries: DACport uses USB power from your laptop
    • Aircraft aluminum chassis, anodized for extra scratch protection and durability
    • 1/8-inch headphone jack drives the most advanced headphones on the market
    • Bit-4-Bit Digital Audio: DACport is a 24-bit device, ensuring that Windows sends it audio with no changes, "bit-for-bit", at all supported sample rates
    • Precision Clock Oscillator: The art of digital-to-audio conversion is in the quality of the clock. CEntrance's clock management system uses military spec clock oscillators with 10ppm precision
    • Class-A Headphone Amp: DACport's Class-A audio circuit is direct-coupled (capacitor-free), maintaining audiophile quality all the way to the line output or to the headphones
    • 18V Internal Power: DACport's advanced, low-distortion Class-A amplifier circuit runs on super-clean 18V rails (±9V, bipolar supply). Higher voltage means more headroom and more output power to drive any headphones
    • RoHS Compliant: DACport is RoHS, FCC and CE-compliant, which ensures safety and protects the environment
    • Made in America: DACport HD are designed and assembled by CEntrance in USA from components sourced from around the world
UPC: 899862001245 In the Box CEntrance Inc. DACport HD - USB Digital Audio Converter (DAC) + Headphone Amp
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the CEntrance Inc. DACport HD - USB Digital Audio Converter Headphone Amp in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for CEntrance Inc. DACport HD - USB Digital Audio Converter Headphone Amp can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for CEntrance Inc. DACport HD - USB Digital Audio Converter Headphone Amp can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the CEntrance Inc. DACport HD - USB Digital Audio Converter Headphone Amp can be downloaded in PDF format at the link stated below.
    Download PDF user manual - CEntrance Inc. DACport HD - USB Digital Audio Converter Headphone AmpDownload PDF User Manual - https://www.search-manual.com/ upload/ centrance-inc-dacport-hd-usb-digital-audio-converter-headphone-amp-187319-user-manual.pdf
    (PDF file, 0.95 MB)


    Technical parameters

    CEntrance Inc. DACPORT HD Specs

    Sample Rate 44.1, 48, 88.2, 96, 176.4, 192, 352, 384 kHz
    DSD
    Resolution 32-bit (Also supports 16 and 24-bit)
    Interface USB 2.0, asynchronous
    Clock Military Spec Clock: 10 ppm precision, 1 ps jitter
    Compatibility Any computer running Mac, PC, Linux. Driver is available for Windows
    Frequency Response 20 Hz to 40 kHz; ±0.2 dB
    Dynamic Range 112 dB, re +14.5 dBu, max gain
    Total Harmonic Distortion/Noise 0.002% (FS, 1 kHz)
    Noise Floor 7 µV RMS (A-weight), max gain
    Audio Output Stereo 3.5mm (1/8") jack, headphone or line output
    Output Impedance 1 ohm
    Amplifier Type Direct Class-A, no caps in the signal path
    Maximum Level 4.1 V rms / +14.5 dBu
    Output Power 775 mW (total), drives 600 ohms headphones
    Input Power USB bus (no external power supply needed)
    Gain Control 20 dB range
    Internal Power Supply ±9V, dual, super-clean analog rails
    Dimension L x W x H 3.0 x 1.1 x 0.4" / 7.6 x 2.8 x 1.0 cm
    Weight 2.5 oz / 70.9 g
    Package Weight 0.5 lb
    Box Dimensions (LxWxH) 4.8 x 2.8 x 1.5"
