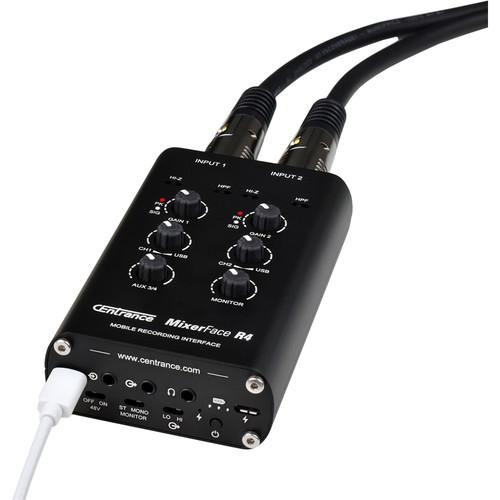

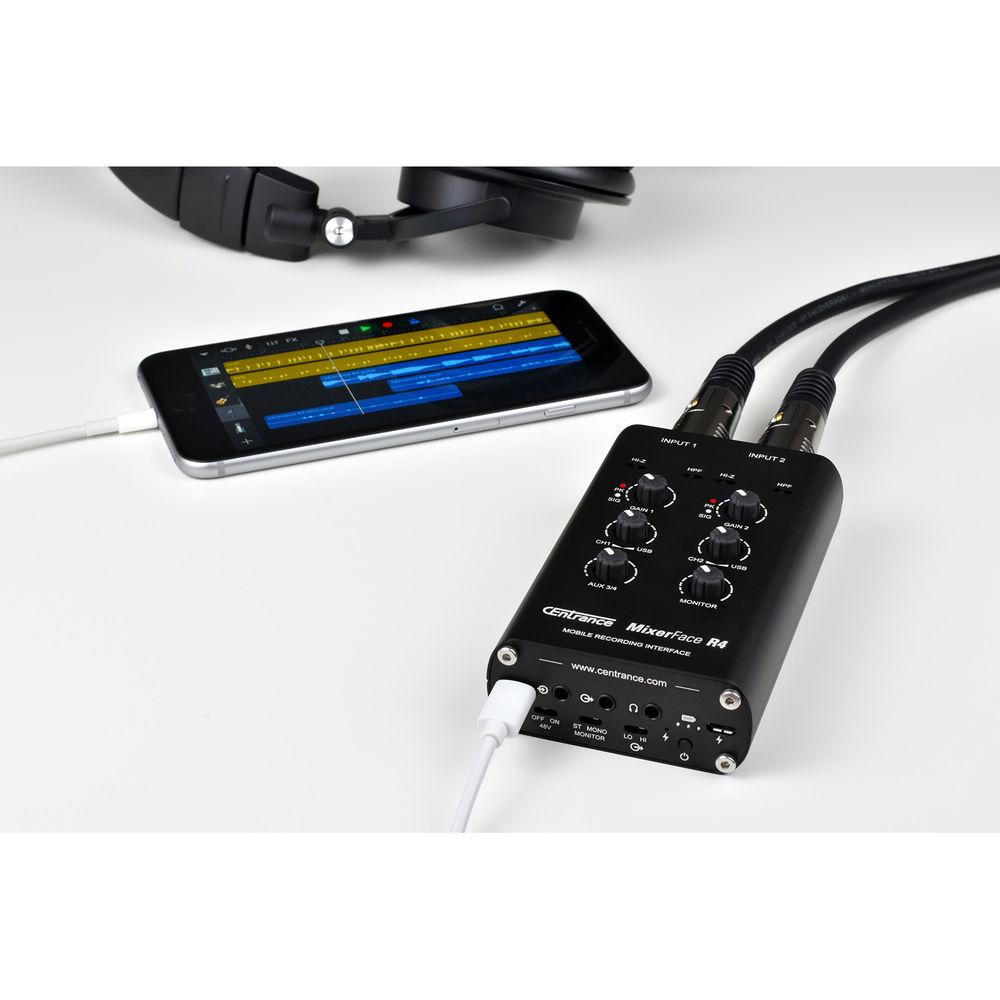

Product description The MixerFace R4 Mobile Recording Interface from CEntrance is a four-channel mixer with three outputs. It can be used when paired with a smartphone device by songwriters, musicians, videographers, podcasters, or anyone, to capture audio anywhere and anytime the moment inspiration hits.Featuring a rechargeable internal battery, two XLR inputs with 48V phantom power, and a USB input, the MixerFace R4 allows you to record audio by plugging it into your phone or tablet, then launching your favorite recording app. The custom-designed Jasmine mic preamps deliver a natural signal, and this interface is designed to capture every nuance of your performance.Furthermore, the rechargeable internal battery—no wall plug is needed—will work for up to eight hours before needing a charge, and a standard USB charger (not included) will charge it. Other features include: two Neutrik combo inputs that accommodate microphones, line level instruments, guitars, and basses, as well as balanced outputs, an unbalanced stereo output, and a headphone output.Finally, the top panel controls of the MixerFace R4 give you easy access to all the adjustments. No searching through menu pages; so, quick and easy control is at your fingertips. The R4 can work as a mixer even if you're not using it to record. - High dynamic range Jasmine mic pres offer plenty of clean gain
- Professional series A/D converters deliver high-audio quality, on the go
- Adjustable ZLM, Hi-Z inputs, and low-cut filters let you cover all bases
- Custom AmpExtreme headphone amp offers clarity, detail, and volume
- Aux input lets you mix in a stereo source for practice or performance
- Works with Android, iOS, Mac, Windows, and most phones and tablets
- Works with most smartphone and tablet recording apps
- Lithium-ion polymer battery lasts for a full session without refill
- Aircraft-grade aluminum chassis offers scratch protection and durability
- Balanced, unbalanced, and headphone outputs for true versatility

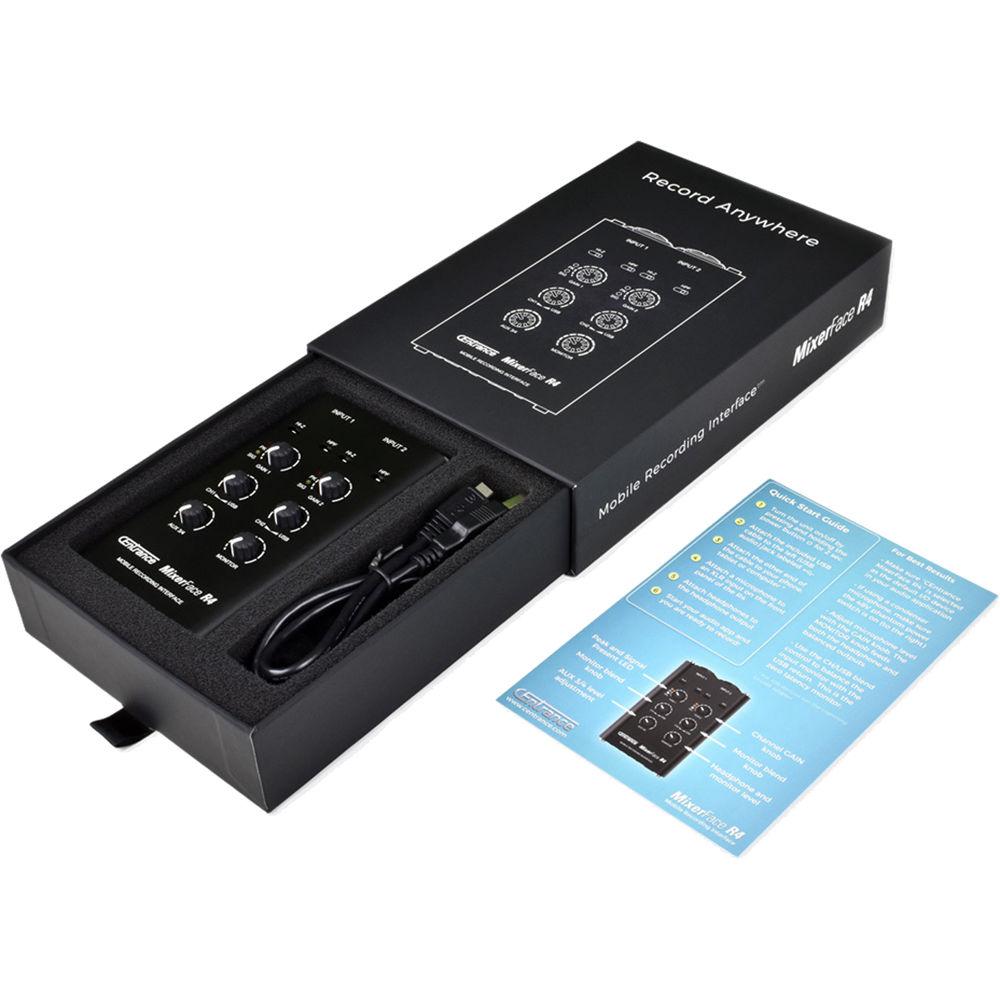

UPC: 899862001344 In the Box CEntrance Inc. MixerFace R4 Mobile Recording Interface Felt Carry Pouch Micro-USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CEntrance Inc. MixerFace R4 Mobile Recording Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCEntrance Inc. MIXERFACE R4 Specs | | | Phantom Power | 48 V ±1% | | Mic Preamplifier Gain | +10 dB to +55 dB | | Mic Input Impedance | 1 kOhm | | Line Input Impedance | 10 kOhms | | Hi-Z Input Impedance | 1 MOhm | | High Pass Filter | 100 Hz, 3 dB/octave rolloff | | Frequency Response | 20 Hz to 20 kHz ±0.5 dB | | Signal to Noise Ratio | -113 dBu, no weighting | | Total Harmonic Distortion (THD) + N | 0.002% | | Crosstalk @ 1 kHz | -111 dB | | Aux | 3/4 Nominal Input Level: 2.9 Vrms / +11.3 dBu | | Nominal Line Level | Output @ 1 kHz: 2.9 Vrms / +11.3 dBu | | Balanced Output Level | Nominal: 2.9 V rms / +11.3 dBu | | Output Impedance | 0.4 Ohms (headphone output) | | Output Power | Headphone Output: 500 mW (total) at 32 Ohms | | Supported Headphones | 16 to 600 Ohms | | Gain Switch | 20 dB of gain reduction (set low to feed DSLR) | | | | Resolution | 6-bit, 24-bit, and 32-bit | | Sample Rate | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.2 kHz, and 192 kHz | | Clocking | Two custom, mil-spec clocks, 10 ppm precision, 1 ps jitter | | Compatibility | iPhone, iPad, Android, Mac, Linux, Windows. Driver is available for Windows | | USB Input | USB 2.0, fully compatible with USB 3.1 | | | | Mic Preamps | Custom designed Jasmine technology, dual-stage analog preamplifier | | Headphone Amplifier | Custom designed AmpExtreme technology with bipolar power supply | | AC Adapter | Supports standard 5 V chargers/adapters with a micro-USB cable | | DC Current Requirements | +5 V from adapter, such as iPad charger. 2A or more recommended | | Power Supply | Analog: Battery-isolated, triple-filtered ±11 V analog power supply rails
Digital: Five independent, high-efficiency switch mode power supplies | | Rechargeable Battery | Li-Po, 8 hours play/record time (varies with phantom-powered mics) | | Dimensions (L x W x H) | 4.8 x 2.8 x 1.4" / 12.1 x 7.0 x 3.6 cm | | Weight | 4.2 oz / 120.0 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 8.0 x 5.25 x 1.75" |
