User Manual for CEntrance Inc. MixerFace R4R Mobile Audio Interface SD Recorder Click to enlarge the picture
Contents of the user manual for the CEntrance Inc. MixerFace R4R Mobile Audio
- Product category: Audio Interfaces CEntrance Inc.
- Brand: CEntrance Inc.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CEntrance Inc. Audio Interfaces
 |
User manual for the CEntrance Inc. MixerFace R4R Mobile Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CEntrance Inc. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CEntrance Inc. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CEntrance Inc. product will considerably shorten its lifespan!
|

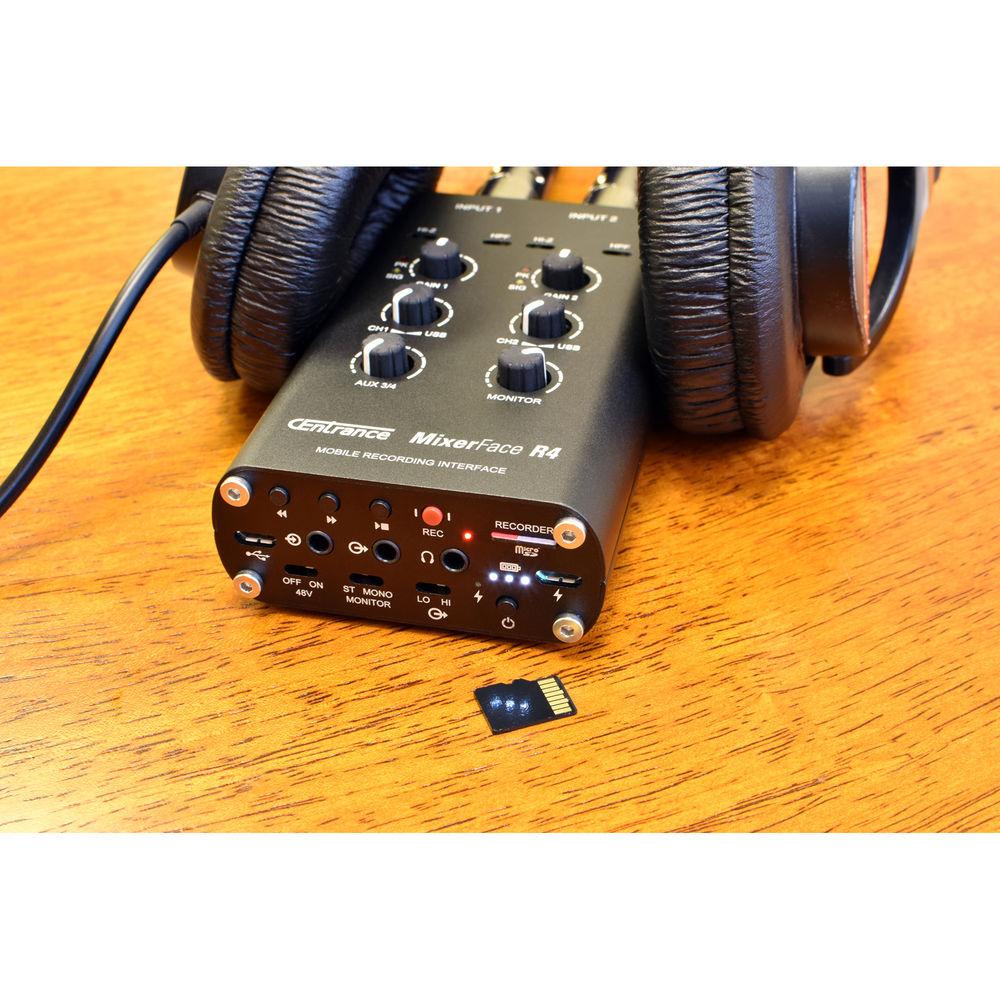

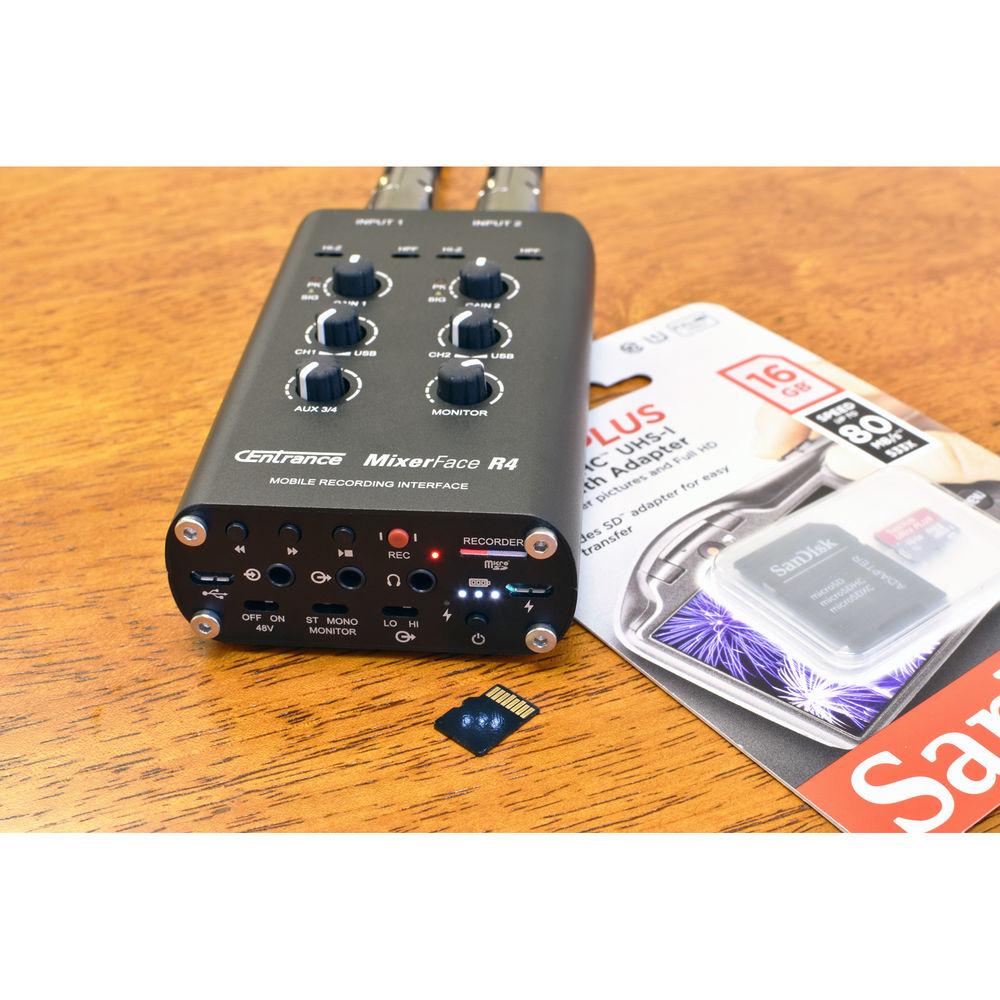

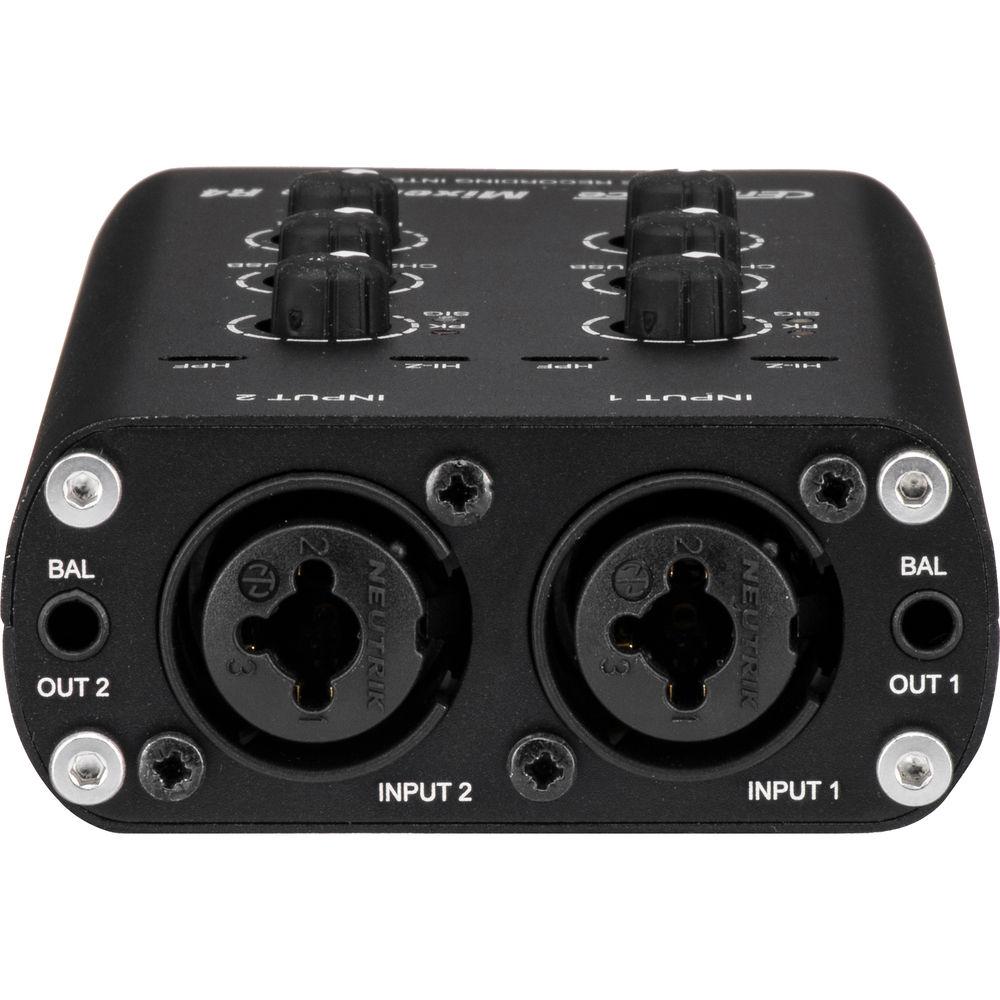

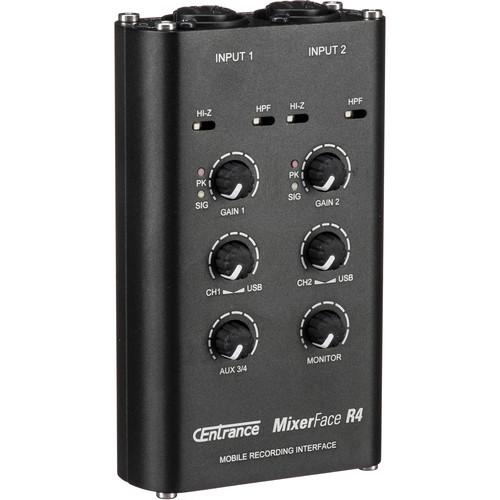

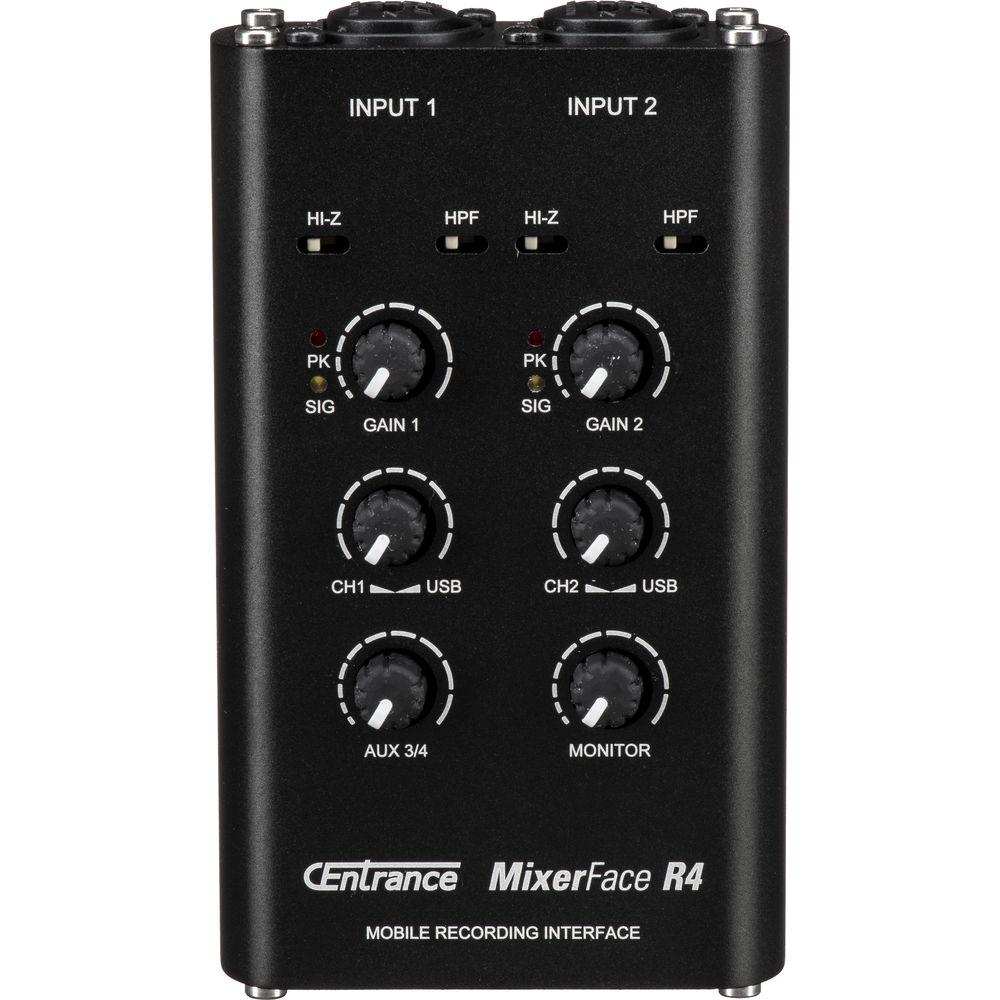

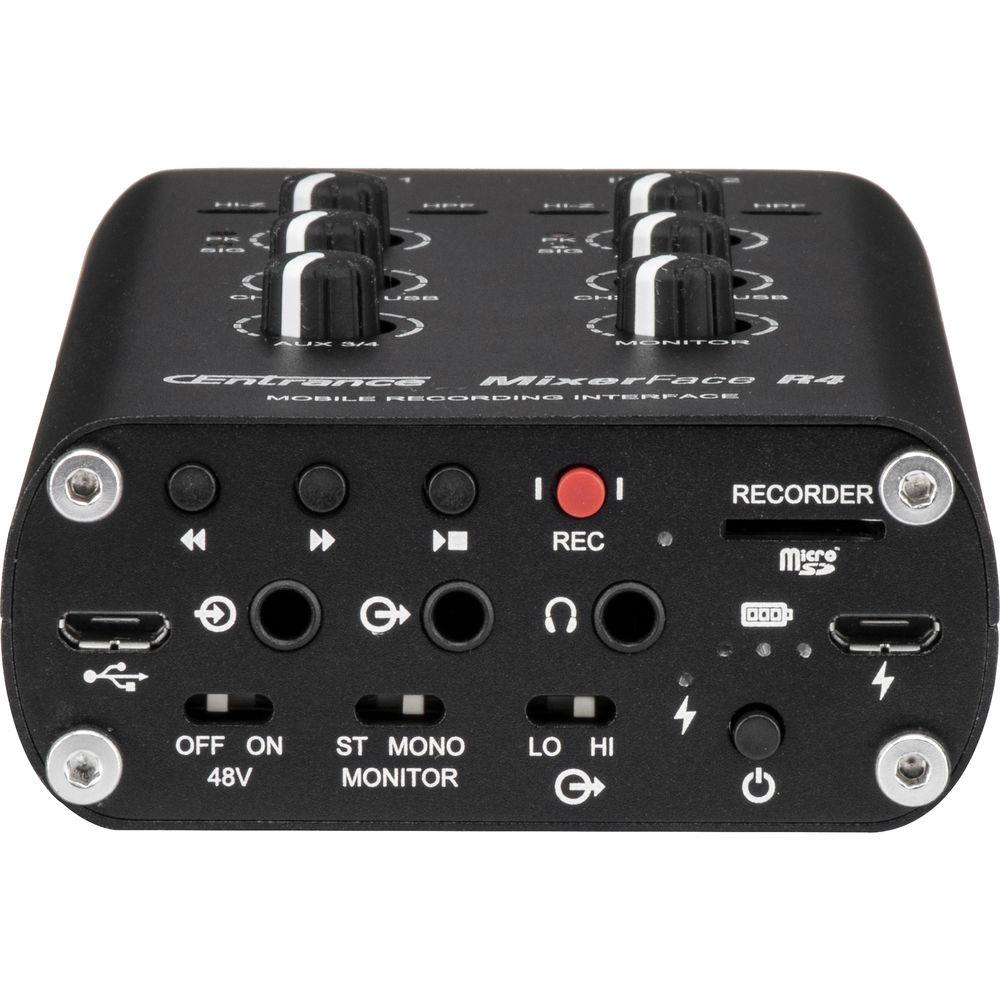

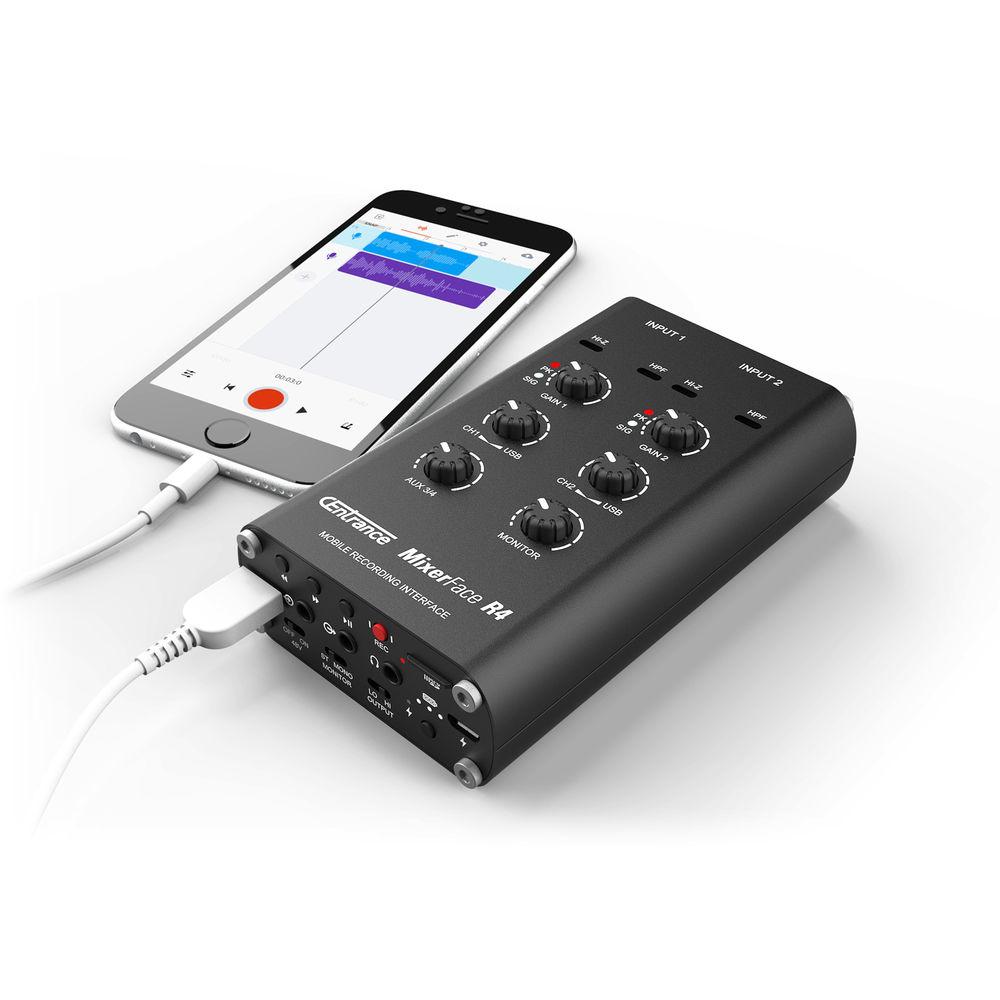

Product description The MixerFace R4R Mobile Audio Interface + SD Recorder from CEntrance is a four-channel mixer with three outputs and a built-in micro SD card recorder. It can be used to record to an SD card or to a smartphone device by songwriters, musicians, videographers, podcasters, or almost anyone, to capture audio anywhere and anytime the moment inspiration hits.Featuring a rechargeable internal battery, two XLR inputs with 48V phantom power, and a USB input, the MixerFace R4R allows you to record audio by plugging it into your phone or tablet, then launching your favorite recording app; recording to the built-in SD card, or together for extra safety. The custom-designed Jasmine mic preamps deliver a natural signal, and this interface is designed to capture every nuance of your performance.Furthermore, the rechargeable internal battery—no wall plug is needed—will work for up to eight hours before needing a charge, and a standard USB charger (not included) will charge it. Other features include: two Neutrik combo inputs that accommodate microphones, line-level instruments, guitars and basses, as well as balanced outputs, an unbalanced stereo output, and a headphone output.Finally, the top-panel controls of the MixerFace R4R give you easy access to all the adjustments. No searching through menu pages; quick and easy control is at your fingertips. The R4R can work as a mixer even if you're not using it to record. - Built-in micro SD card recorder allows you to record to smart phone or to SD card, or together for extra safety
- High dynamic range Jasmine mic pres offer plenty of clean gain
- Professional series A/D converters deliver high-quality audio on the go
- Adjustable Zero Latency Montoring (ZLM), Hi-Z inputs, and low-cut filters let you cover all bases
- Custom AmpExtreme headphone amp offers clarity, detail, and volume
- Aux input lets you mix in a stereo source for practice or performance
- Works with Android, iOS, Mac, Windows, and most phones and tablets
- Works with most smartphone and tablet recording apps

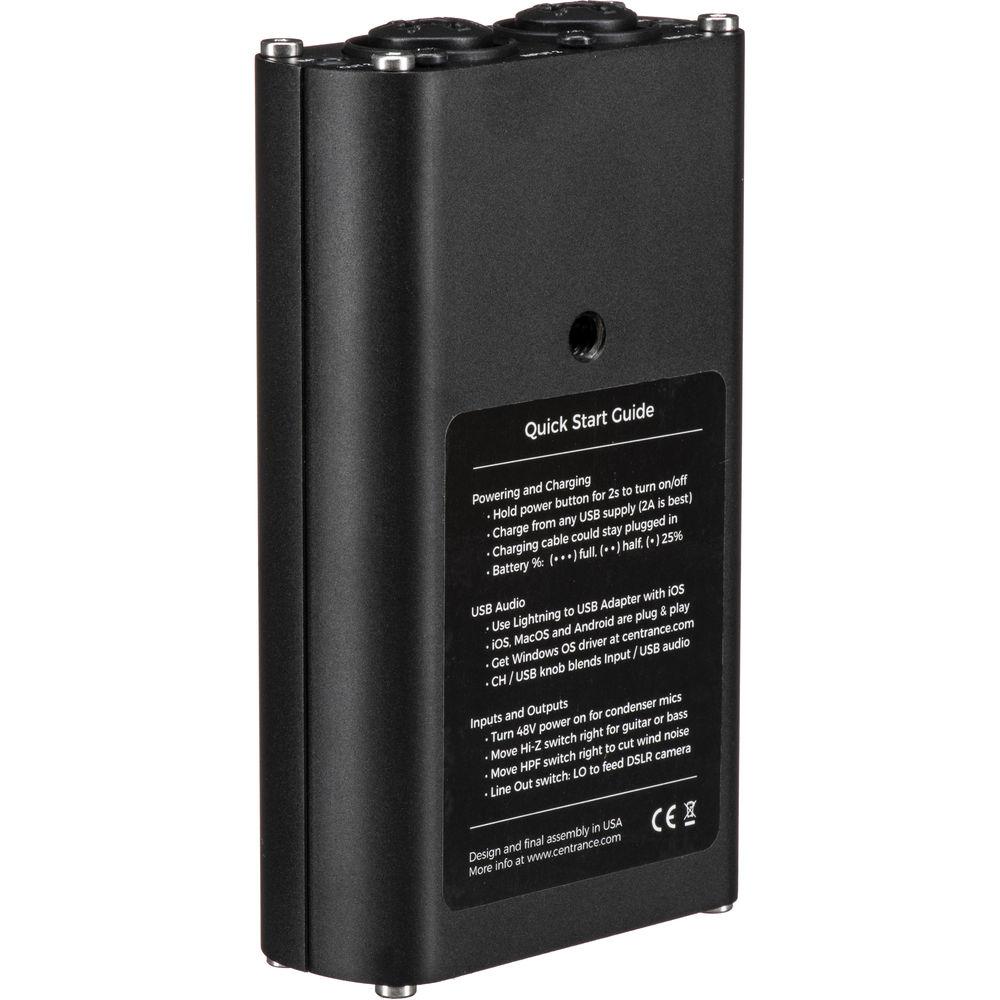

- Lithium-ion polymer battery lasts for a full session without refill
- Aircraft-grade aluminum chassis offers scratch protection and durability
- Balanced, unbalanced, and headphone outputs for true versatility
UPC: 899862001351 In the Box CEntrance Inc. MixerFace R4R Mobile Audio Interface + SD Recorder Felt Carry Pouch Micro-USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CEntrance Inc. MixerFace R4R Mobile Audio Interface SD Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCEntrance Inc. MIXERFACE R4R Specs | | | Phantom Power | 48 V, channels 1 & 2 | | Mic Preamplifier Gain | +10 dB to +53 dB | | Mic Input Impedance | 1 kOhm | | Line Input Impedance | 10 kOhms | | Hi-Z Input Impedance | 1 MOhm | | High-Pass Filter | 130 Hz, 6 dB/octave rolloff | | Frequency Response | 20 Hz to 20 kHz ±0.5 dB | | Signal to Noise Ratio | >103 dB, no weighting | | Total Harmonic Distortion (THD) + N | 0.002% | | Crosstalk @ 1 kHz | -95 dB | | Aux | 3/4 Nominal Input Level: .2 Vrms / +9.2 dBu | | Nominal Line Level | Output @ 1 kHz: 2.9 Vrms / +11.3 dBu | | Balanced Output Level | Nominal: 3.5 Vrms / +13.1 dBu | | Output Impedance | 1 Ohm (headphone output) | | Output Power | Headphone Output: 400 mW (total) at 32 Ohms | | Supported Headphones | 16 to 600 Ohms | | Gain Switch | 46 dB of gain reduction (set low to feed DSLR) | | | | Resolution | 6-bit, 24-bit, and 32-bit | | Sample Rate | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.2 kHz, and 192 kHz | | Clocking | Two custom, mil-spec clocks, 10 ppm precision, 1 ps jitter | | Compatibility | iPhone, iPad, Android, Mac, Linux, Windows. Driver is available for Windows | | USB Input | USB 2.0, fully compatible with USB 3.1 | | | | Mic Preamps | Custom designed Jasmine technology, dual-stage analog preamplifier | | Headphone Amplifier | Custom designed AmpExtreme technology with bipolar power supply | | AC Adapter | Supports standard 5 V chargers/adapters with a micro-USB cable | | DC Current Requirements | +5 V from adapter, such as iPad charger. 2A or more recommended | | Power Supply | Analog: Battery-isolated, triple-filtered ±7 V analog power supply rails
Digital: Five independent, high-efficiency switch mode power supplies | | Rechargeable Battery | Li-Po, 8 hours play/record time (varies with phantom-powered mics) | | Dimensions (L x W x H) | 4.8 x 2.8 x 1.4" / 12.1 x 7.0 x 3.6 cm | | Weight | 1 lb / 455 g | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 7.9 x 5.0 x 1.6" |
