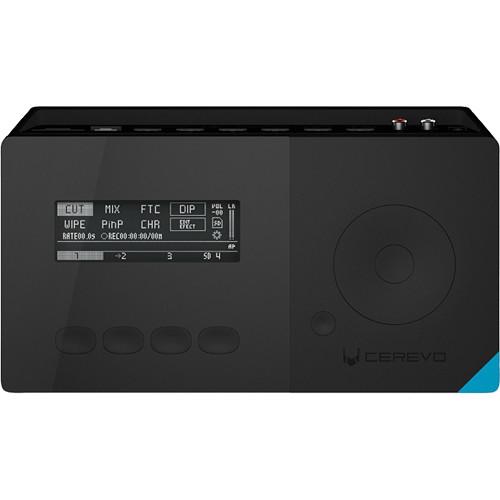

Product description Combining a switcher, mixer, and streaming encoder, the Cerevo CDP-LW01A LiveWedge HDMI Switcher features 4 HDMI inputs, a program and preview output, and is compatible with HD/NTSC/PAL/computer signals. The unit features an integrated jog wheel and control buttons that provide on-unit control and a built-in LCD menu interface screen. However, the unit is most flexibly controlled by using the free downloadable app for your iPad that provides a visual interface.

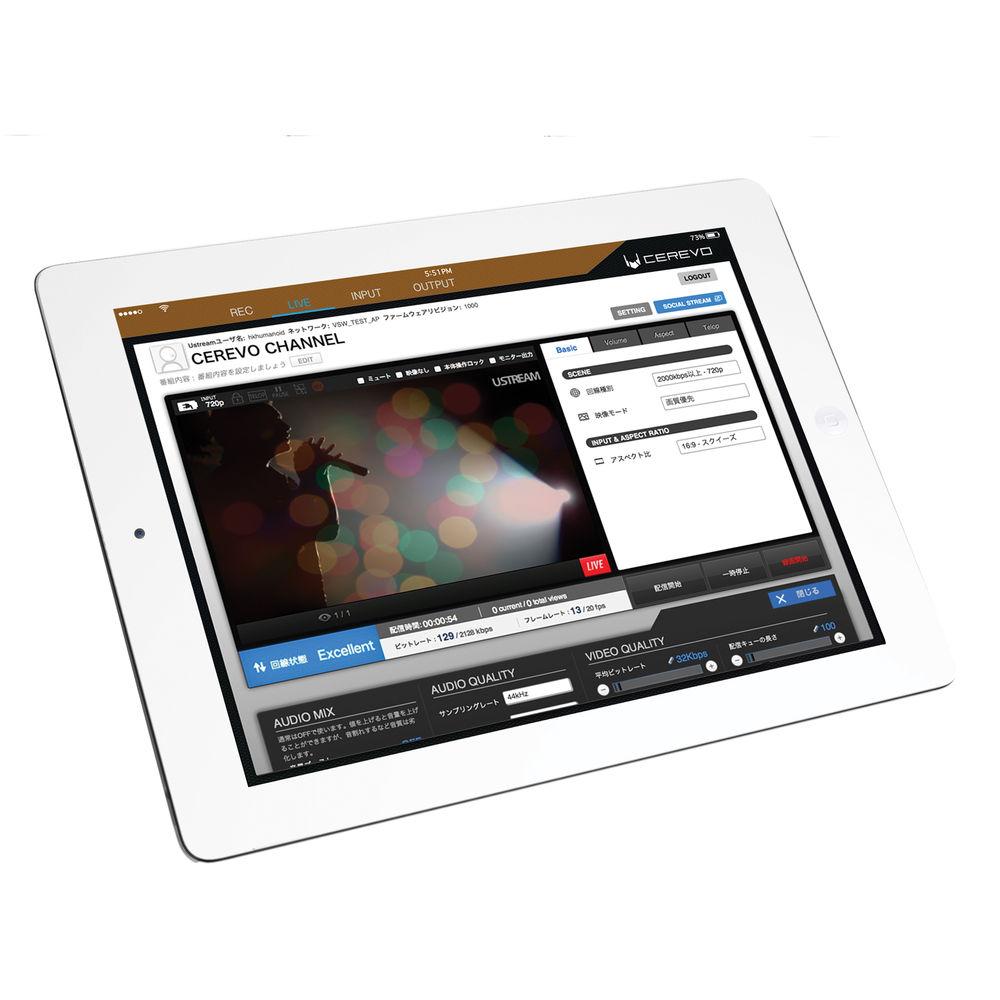

Incorporating 9 effects channels, the switcher supports cut, mix, wipe transitions, fade to black, DIP, PNP, and chroma keying. The switcher features separate preview and program HDMI outputs supporting NTSC, PAL, and HD video. You can input jpegs with resolution up to 1280 x 720 from an SD card; larger resolutions will be automatically resized to 1280 x 720. The switcher can simultaneously output video over HDMI and stream to a variety of streaming services via its Ethernet connector. - Control via App

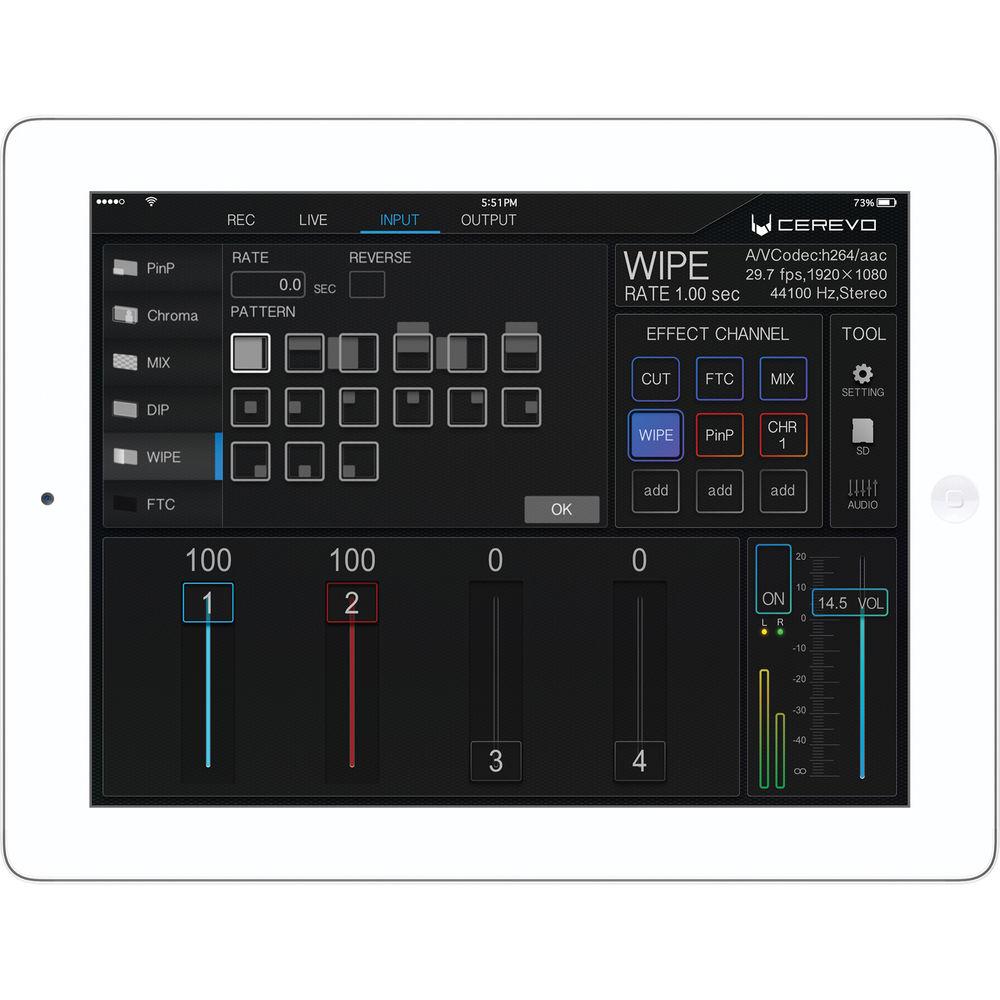

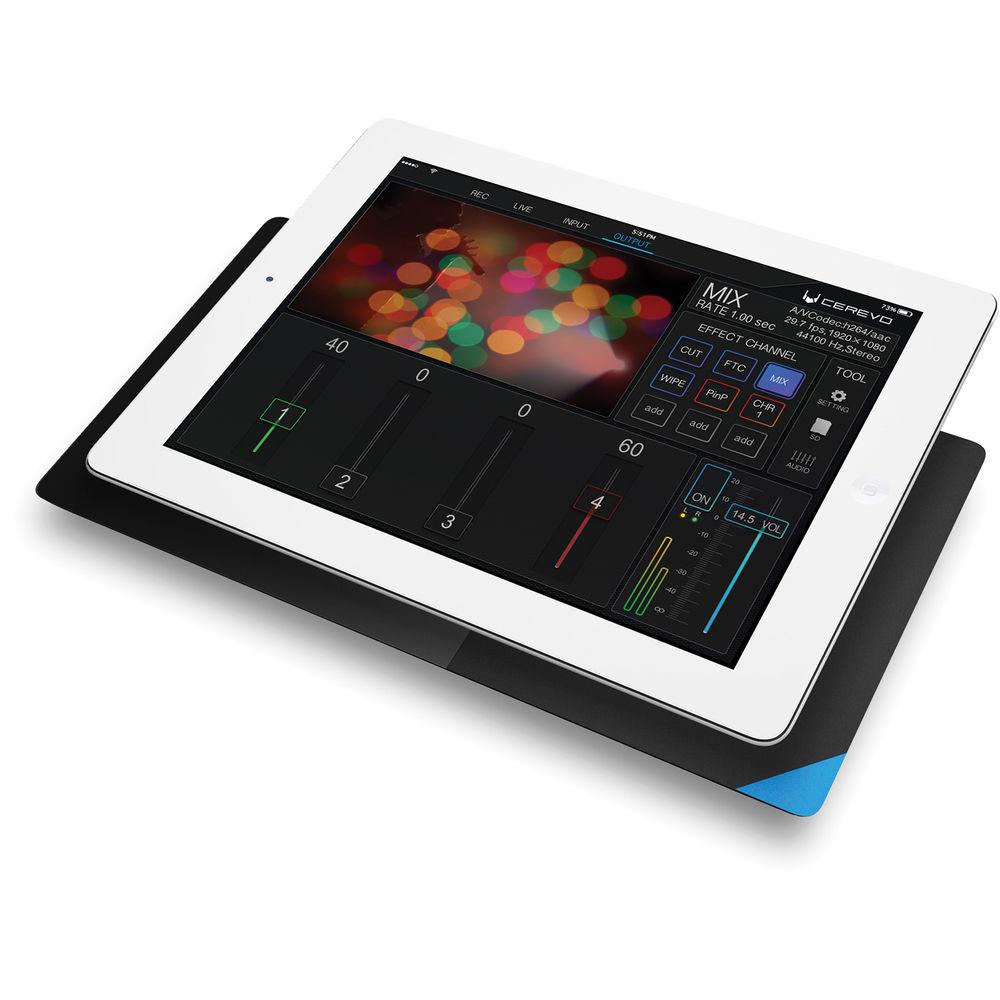

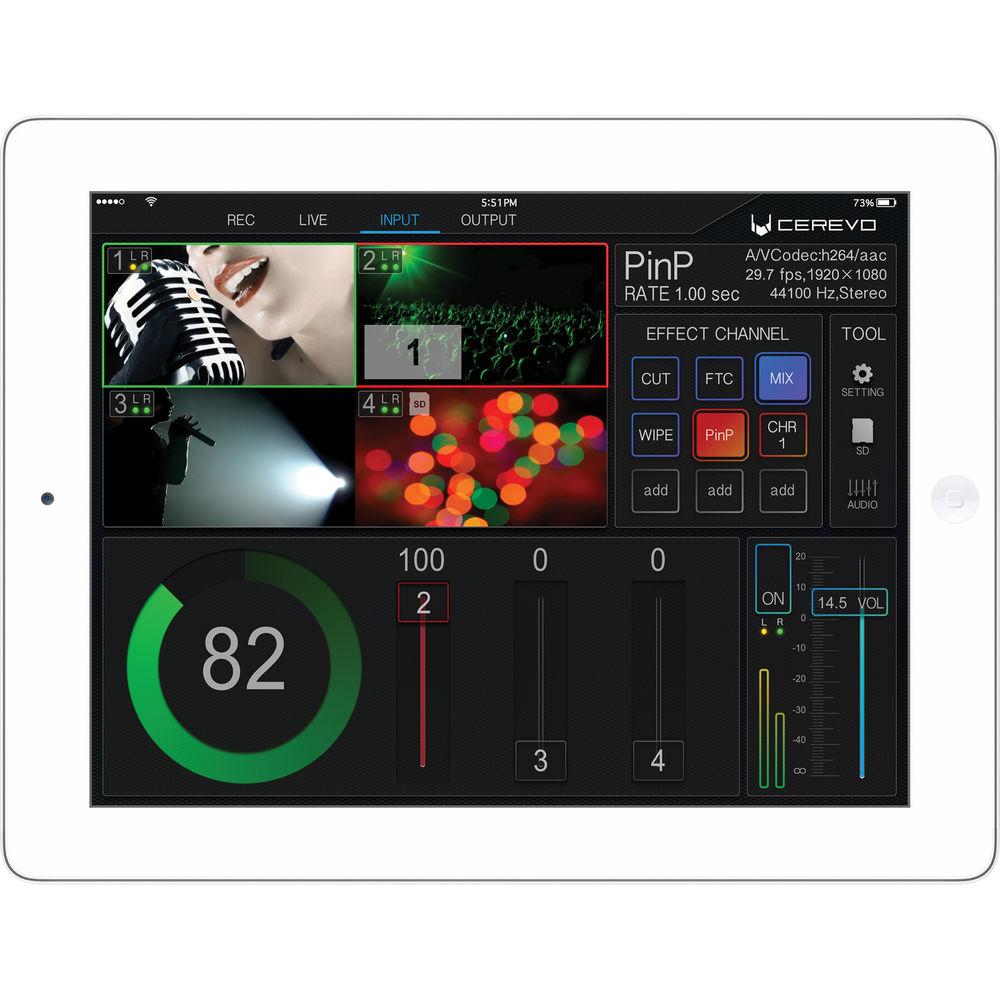

- The app is a free download for your Apple iPad and allows you to monitor and control the 4 HDMI inputs, allowing you to switch between live, input, and output. It displays the current operation, current settings and network connectivity. From top left to bottom left the items displayed are network connectivity, frame rate, network speed and live streaming time.
The app also allows you to assign a maximum of 9 effects. Cut, mix, and fade to black are assigned to the right side of the effect channel and cannot be changed. - Switching Operation
-
- Cut
- Mix
- Wipe
- PnP
- DIP
- Fade-to-black
- Chroma key
- Media Card Slot
- The unit incorporates an SD card slot, which allows you to import and use jpegs in your program.
In the Box Cerevo USA CDP-LW01A LiveWedge HDMI Switcher AC Adapter Set of Rubber Feet Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cerevo USA CDP-LW01A LiveWedge HDMI Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCerevo USA CDP-LW01A Specs | Input Format | HDMI Video
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50
576i/p: 50
480i/p: 59.94
1366 x 768: 60 Hz
1280 x 1024: 60 Hz
1280 x 768: 60 Hz
1024 x 768: 60 Hz
800 x 600: 60 Hz
640 x 480: 60 Hz
HDMI Audio
Linear PCM: 32 kHz, 44.1 kHz, 48 kHz, 16-bit, 2-channel | | Output Format | HDMI Video
1080p: 59.94/50
720p: 59.94/50
576p: 50
480p: 59.94
HDMI Audio
Linear PCM: 48 kHz, 16-bit, 2-channel
Live Streaming
H.264 High
Main
Baseline Profile (max. 720/30p 10 Mbps)
AAC-LC (max. 256 kbps) | | Processing | Video: 4:4:4 (24-bit)

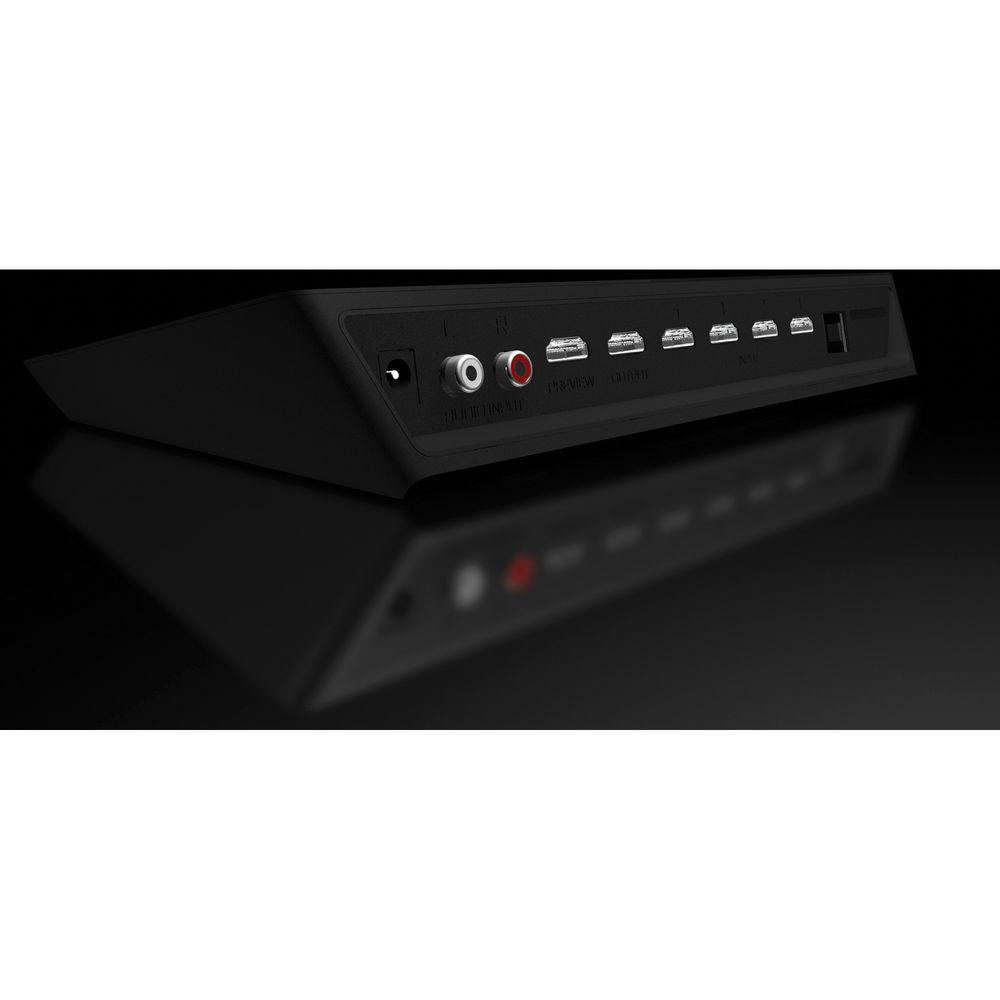

Audio: 48 kHz, 16-bit | | Inputs | Video: 4 x HDMI type-A
Audio: 1 x pair, RCA type (R/L), impedance 47 kOhms | | Outputs | Output: 1 x HDMI type-A
Preview: 1 x HDMI type-A
Media Card Slot: SD (for future use)
Streaming: 1 x RJ-45 Ethernet | | Power | Voltage: 12 VDC
Consumption: 52 W | | Dimensions | 10.6 x 6.1 x 1.6" / 270.0 x 155.0 x 41.0 mm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 3.38 lb | | Box Dimensions (LxWxH) | 17.75 x 10.0 x 3.2" |
