User Manual for Cerwin-Vega CVE Series 15" Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Cerwin-Vega CVE Series 15" Powered Loudspeaker
- Product category: PA Speakers Cerwin-Vega
- Brand: Cerwin-Vega
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cerwin-Vega PA Speakers
 |
User manual for the Cerwin-Vega CVE Series 15" Powered Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cerwin-Vega product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cerwin-Vega user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cerwin-Vega product will considerably shorten its lifespan!
|

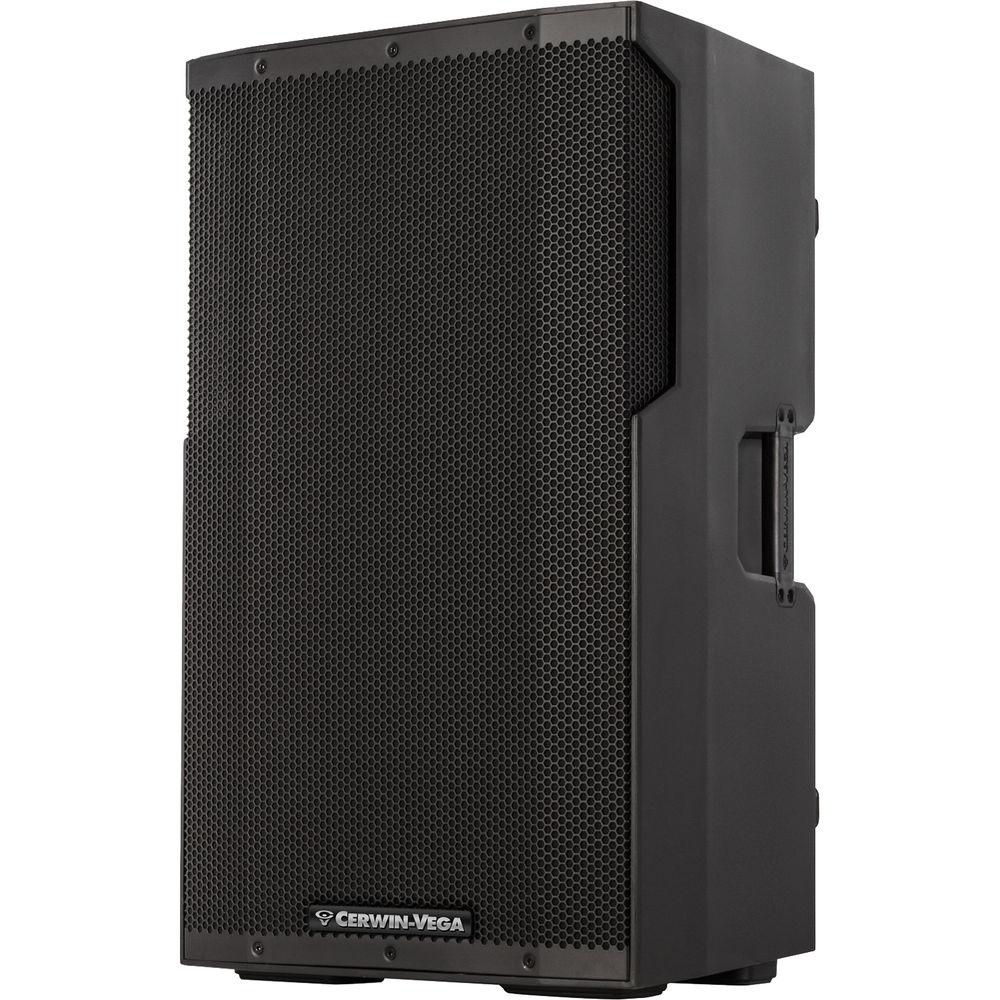

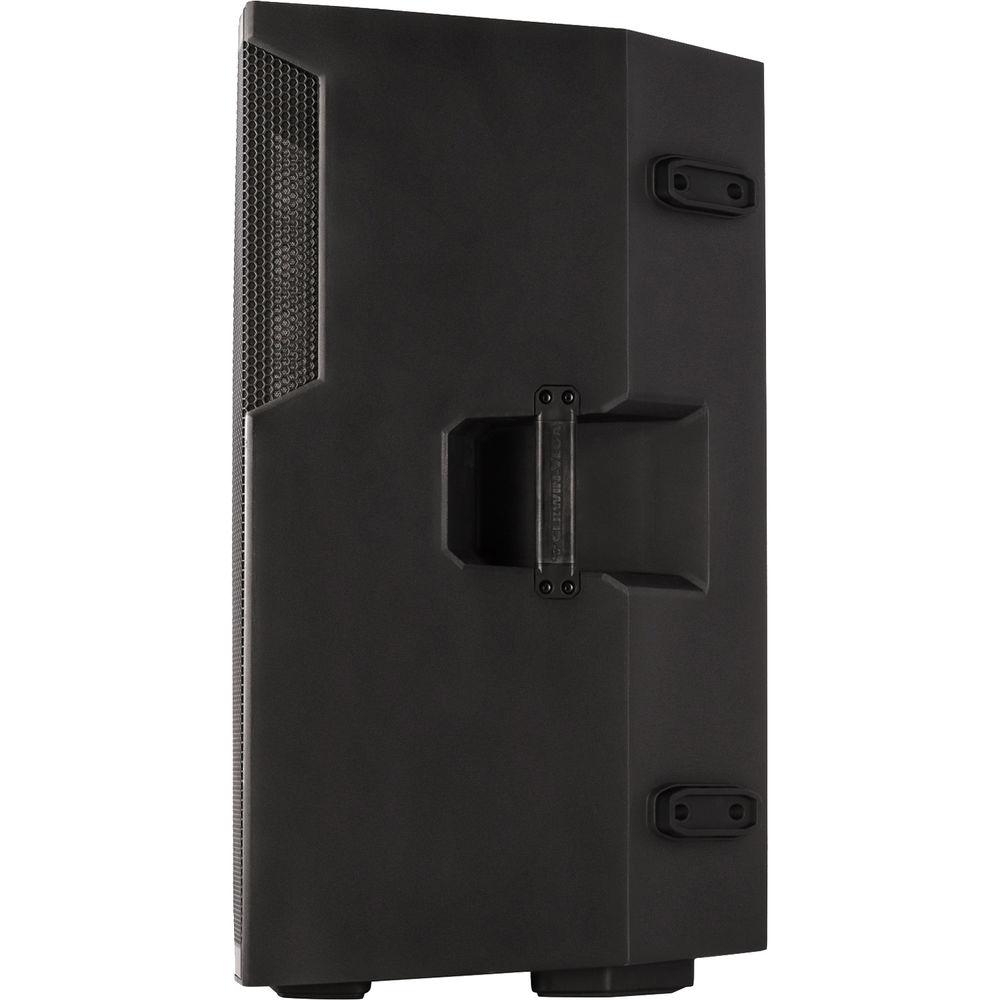

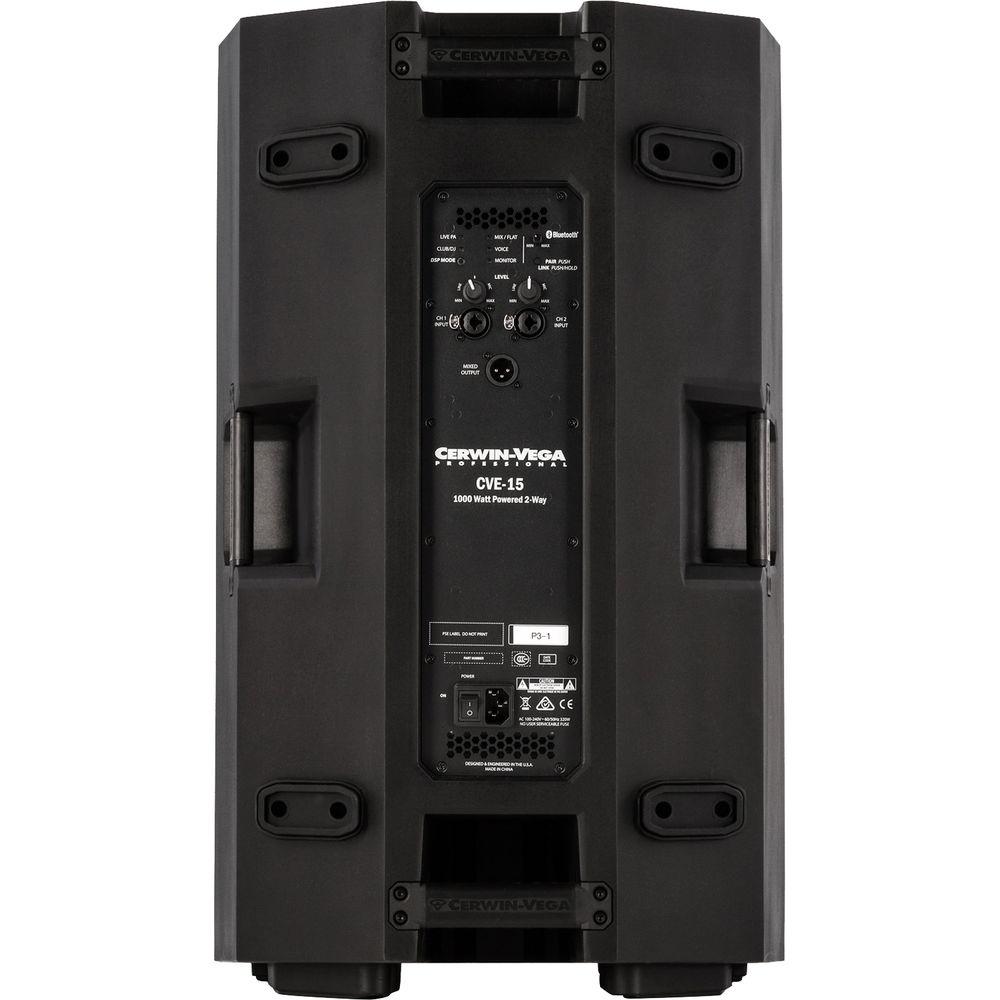

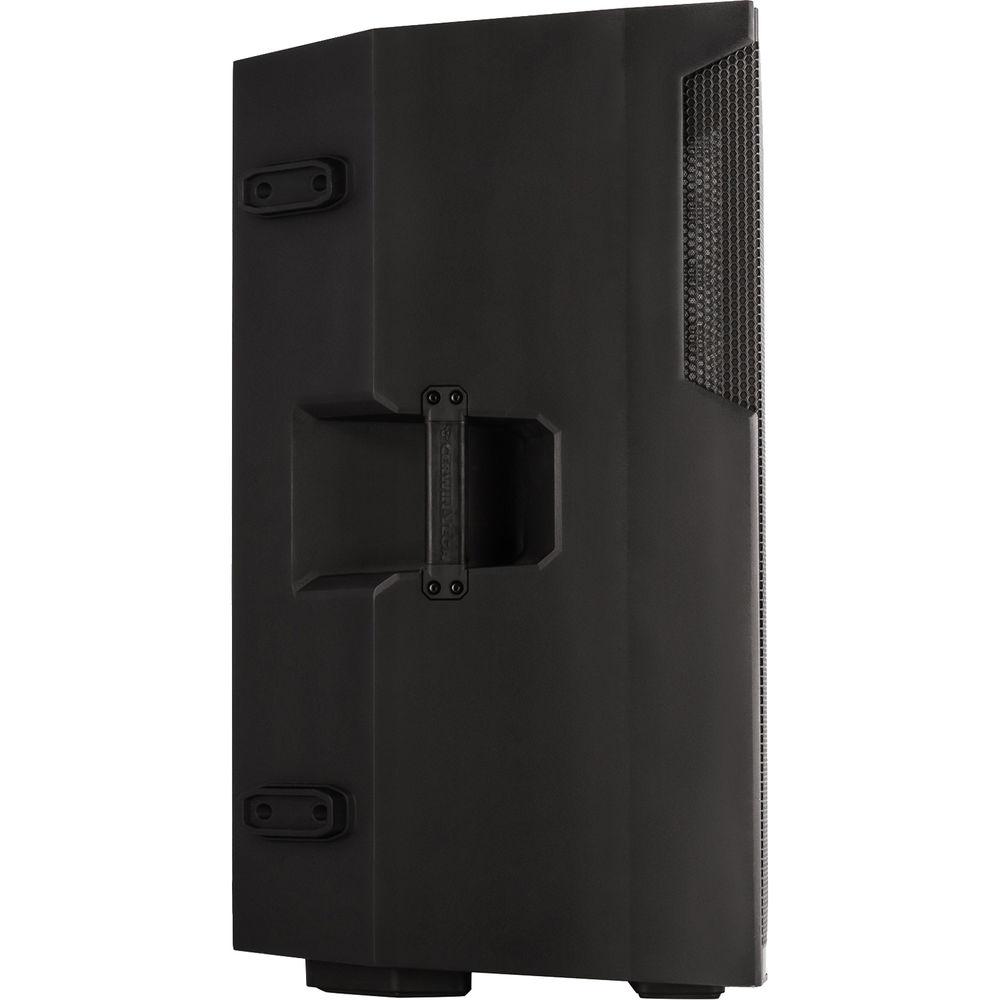

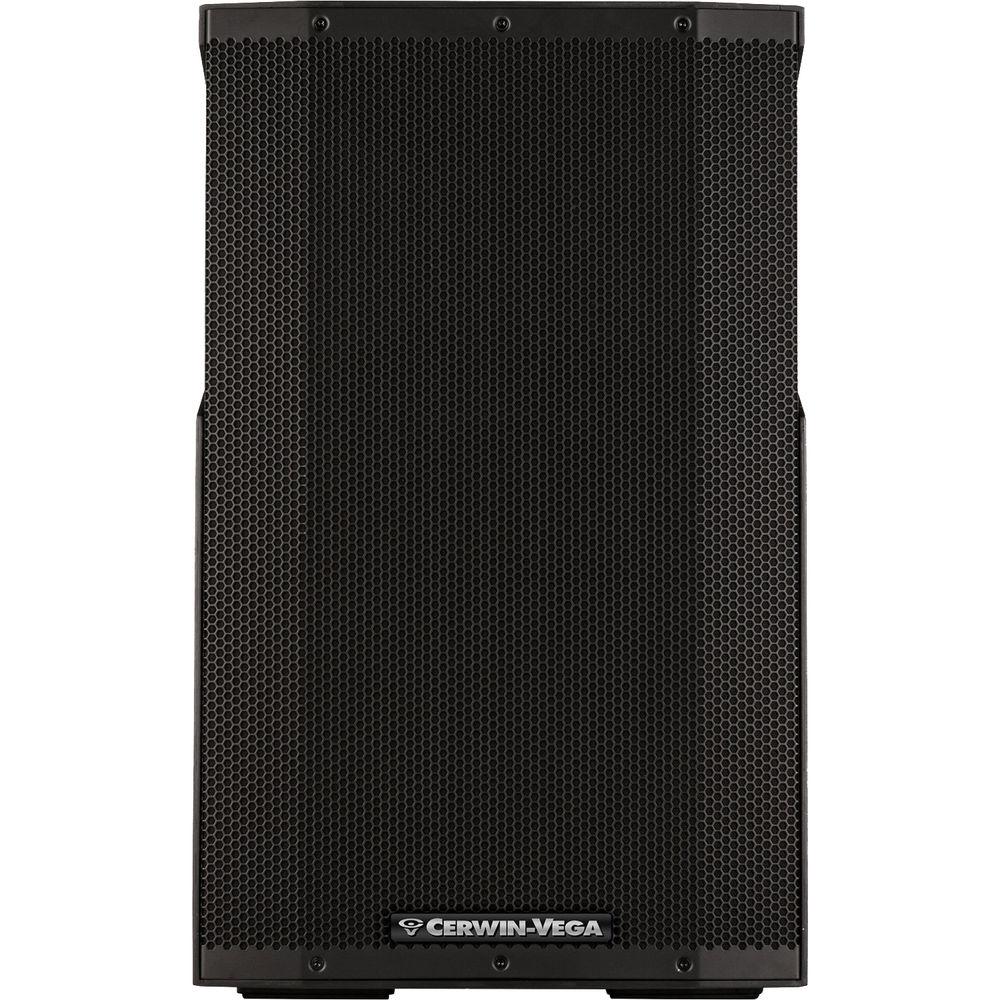

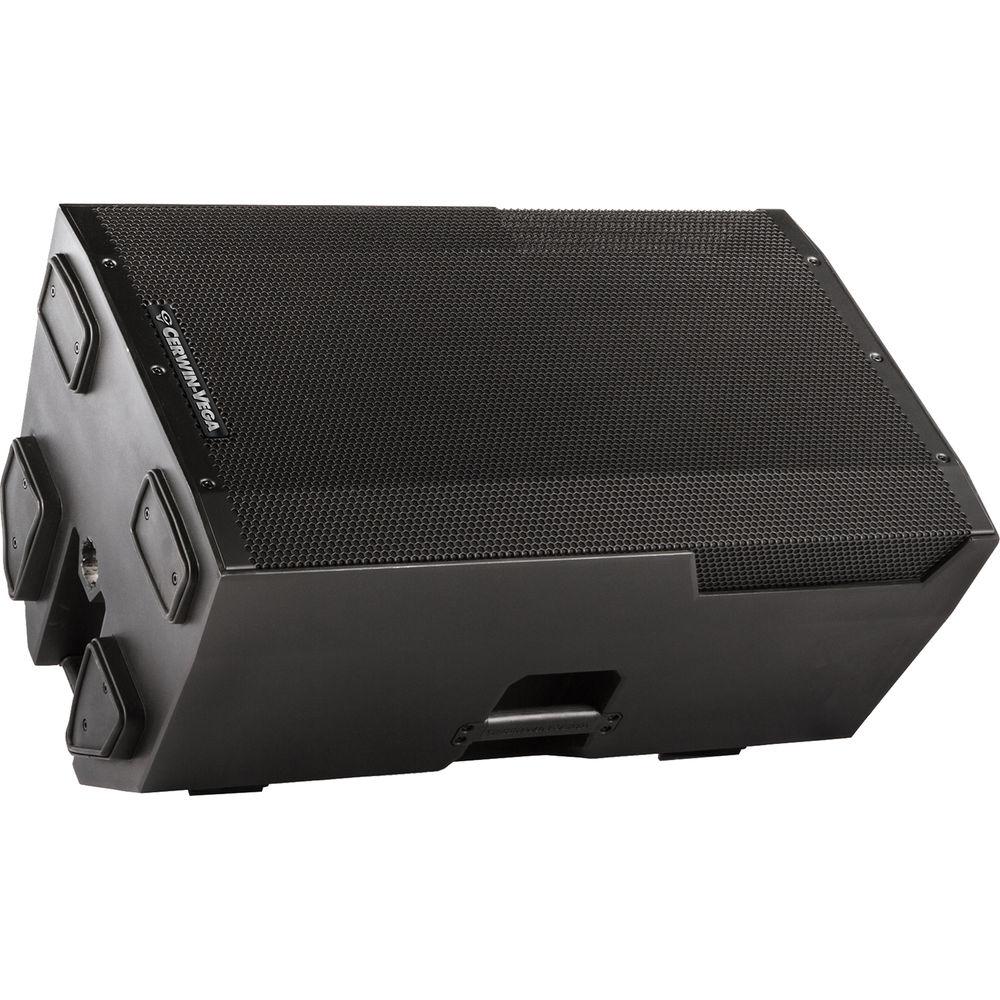

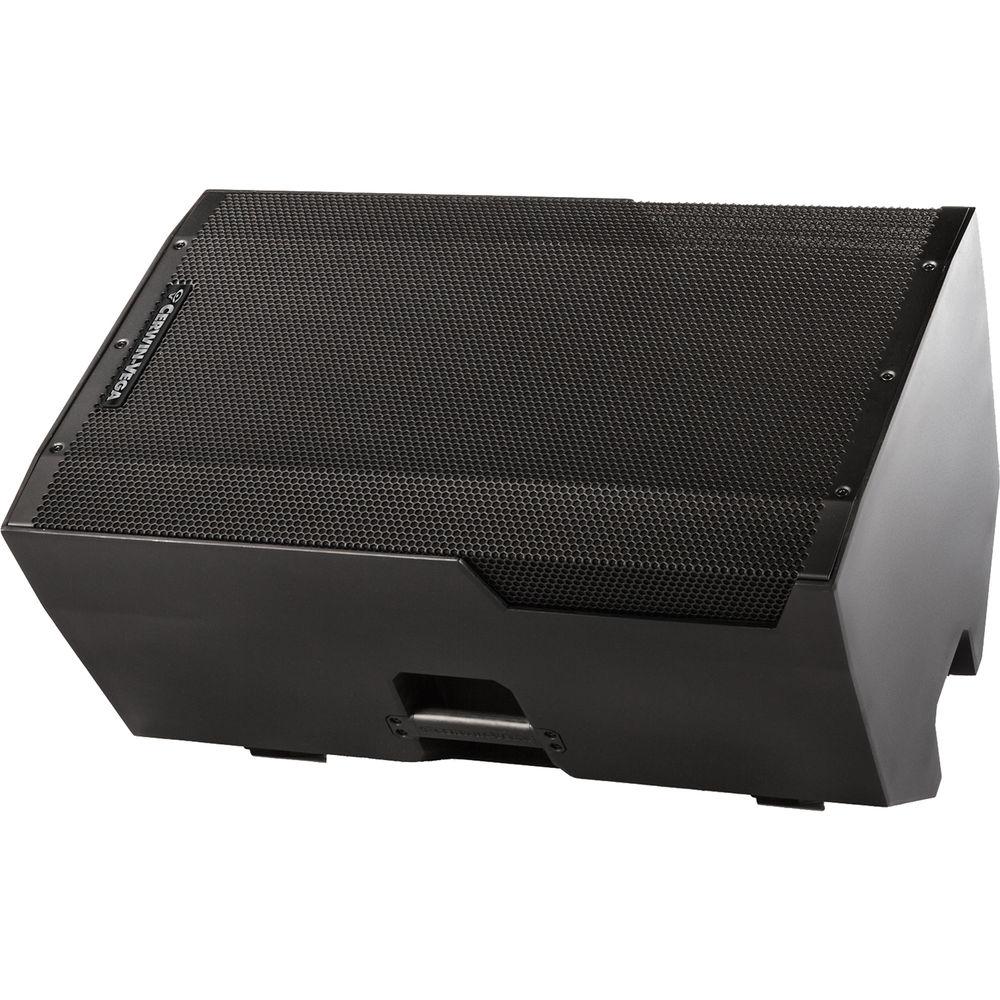

Product description The CVE Series 15" Powered Loudspeaker from Cerwin Vega features 1000W of Class-D Power, a 15" woofer, and a 1" exit high-frequency compression driver. It is equipped with two combo XLR-1/4" inputs, one XLR output, and five easy-to-use DSP driven modes to tailor your sound. In addition, each CVE speaker allows audio streaming via Bluetooth from any smartphone or tablet, mono or even stereo paired. With lightweight polymer enclosure design combined with 128 dB of headroom, this loudspeaker is suitable for live applications, mobile DJs, houses of worship, clubs, restaurants, conference rooms, and more. -
- 1000W Class-D amplifier for reliable operation
- Five selectable sound Settings on all tops to fit any environment
- Thermal protection circuitry
- Universal switching power supply (100/110/240 VAC, 50/60 Hz)
- 2-channel Neutrik combo line/mic inputs
- Proprietary CV Loud Limiter to prevent distortion
- Bluetooth pairing and wireless linkage
- 90° wide dispersion coverage
- Lightweight, durable cabinets
- Black textured finish
UPC: 743658019221 In the Box Cerwin-Vega CVE Series 15" Powered Loudspeaker Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cerwin-Vega CVE Series 15" Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

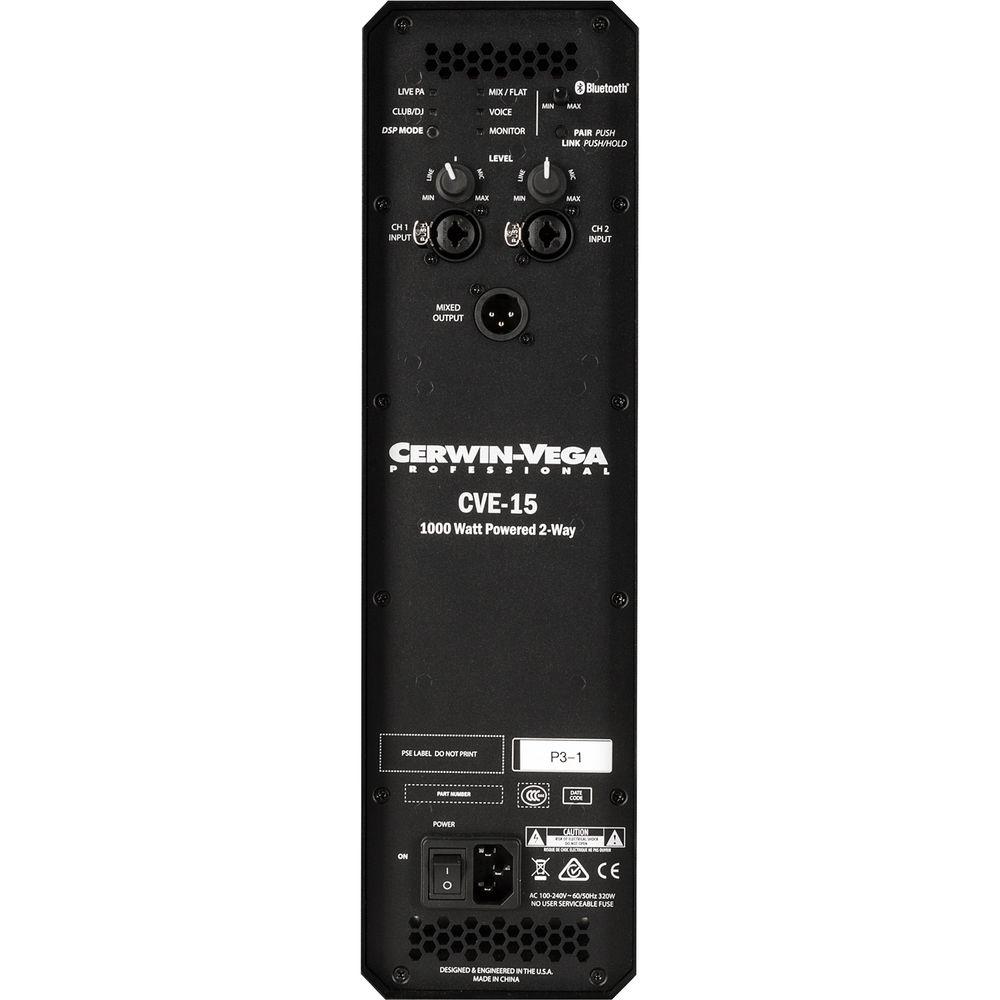

Technical parametersCerwin-Vega CVE Series Specs | Power Rating | 1000 W | | Amplifier Class | Class-D | | Frequency Response | 45 Hz to 18 kHz (±3 dB) | | Frequency Range | 41 Hz to 23 kHz (±10 dB) | | Max SPL | 128 dB | | HF Driver | 1" (2.5 cm) | | LF Driver | 15" (38.1 cm) | | Dispersion | 90 x 60° | | Input/Output | 2 x combo XLR-1/4" (6.3 mm) inputs
1 x XLR output | | Controls | DSP mode switch
Bluetooth pair/link switch
Channel volume knob
Bluetooth volume knob | | Switches | EQ mode select (5 modes)
Bluetooth pair/link | | Construction | Enclosure: Polymer | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Dimensions | 27.2 x 16.5 x 15" (69.2 x 41.9 x 38.1 cm) | | Weight | 34 lb (15.4 kg) | | | | Package Weight | 49.85 lb | | Box Dimensions (LxWxH) | 30.0 x 19.0 x 17.9" |
