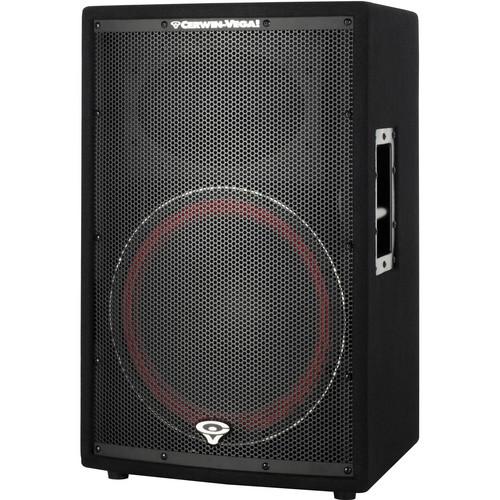

User Manual for Cerwin-Vega CVi-152 15" Passive Portable PA Speaker Click to enlarge the picture
Contents of the user manual for the Cerwin-Vega CVi-152 15" Passive Portable PA
- Product category: PA Speakers Cerwin-Vega
- Brand: Cerwin-Vega
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cerwin-Vega PA Speakers
|
User manual for the Cerwin-Vega CVi-152 15" Passive Portable PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cerwin-Vega product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cerwin-Vega user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cerwin-Vega product will considerably shorten its lifespan!
|
Product description The CVi-152 15" Passive Portable PA Speaker from Cerwin-Vega is a portable, full range, 15" 2-way main loudspeaker system designed for live music and playback applications. The CVi-152 features a high power, cast frame, 15" transducer with a 2.5" voice coil to handle the low and low/midrange frequencies and a 34mm PETP (polyethylene terephthalate) diaphragm compression driver mounted to a 80° H x 50° V hemi conical horn for smooth, accurate on and off axis high frequency performance. Advanced crossover network designs are employed for coherent cross-band summation throughout the coverage pattern. The efficient drivers, signature crossovers, and intelligent enclosure design effectively lower distortion, while maintaining the signature thump and high SPL output. - High Frequency Drivers - PEPT Film (Mylar) compression driver provides natural sounding instruments and vocals and the Hemi-Conical Waveguide (80° x 50°) gives smooth on and off axis frequency response.
- Advanced crossover network designs are employed for coherent cross-band summation throughout the coverage pattern.
- Low Frequency Drivers - Cast frame 15" Reflex loaded woofers.
- An 18 gauge, perforated steel grill protects the entire front of the enclosure. The polypropylene fiber covered, internally-braced structural wood housing is durable, light, and strong.
- The CVi-152 finds application in outdoor stages, portable live sound PA, auditoriums, fill monitor, DJ system PA, and clubs.
UPC: 743658901274 In the Box Cerwin-Vega CVi-152 15" Passive Portable PA Speaker Limited 5-Year Warranty Data Sheet PDF 1.7mbvwuabrsvdbvwueycbzbrwbfdytaubeq Table of Contents
|
Upload User Manual
Have you got an user manual for the Cerwin-Vega CVi-152 15" Passive Portable PA Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCerwin-Vega CVi-152 Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 250 W RMS
500 W Program
1000 W Peak | | System Impedance | 8 Ohms (Nominal) | | | | LF Driver | 1 x 15" / 38.1 cm Woofer | | LF Voice Coil | 2.5" / 63.5 mm | | | | Frequency Range | 45 Hz to 20 kHz -10 dB | | Frequency Response | 69 Hz to 12 kHz ±3 dB | | Maximum SPL | 129 dB SPL Full-Range | | Coverage Angle | 80° H x 50° V At -6 dB Points | | Speaker Sensitivity | 99 dB | | | | Audio I/O | 1 x 1/4" Input
1 x 1/4" Output
1 x speakON Input
1 x speakON Thru/Output | | | | Dimensions | 29.0 x 18.5 x 17.2" / 737.0 x 470.0 x 438.0 mm | | Weight | 59.5 lb / 27 kg | | | | Package Weight | 69.0 lb | | Box Dimensions (LxWxH) | 31.0 x 20.0 x 19.0" |
