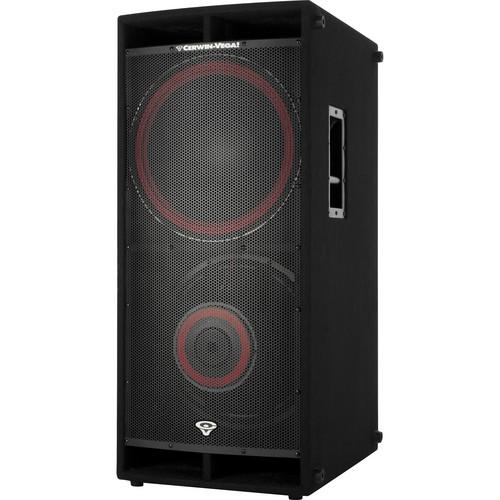

User Manual for Cerwin-Vega CVi-218S 18" Passive Portable PA Speaker Click to enlarge the picture
Contents of the user manual for the Cerwin-Vega CVi-218S 18" Passive Portable PA
- Product category: PA Speakers Cerwin-Vega
- Brand: Cerwin-Vega
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cerwin-Vega PA Speakers
|
User manual for the Cerwin-Vega CVi-218S 18" Passive Portable PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cerwin-Vega product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cerwin-Vega user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cerwin-Vega product will considerably shorten its lifespan!
|
Product description The CVi-218S 18" Passive Portable PA Speaker from Cerwin-Vega is a portable, dual 18" dedicated subwoofer system designed to extend and supplement the low frequency extension of CVi full range systems in live music and playback applications. The CVi-218S speaker features 2 high power, cast frame 18" transducers with a 3" voice coil for extended use during high SPL applications. Steel handles and a pole mount cup are also featured for use as a base for pole-mounted full range systems. This configuration allows the two drivers to work together in the same acoustic space to reduce distortion components caused by driver mechanical non-linearity when the system is driven at high levels. The result is cleaner, smoother low frequency reinforcement at higher SPL levels. - High Frequency Drivers
- PEPT Film (Mylar) compression driver provides natural sounding instruments and vocals and the Hemi-Conical Waveguide (80° x 50°) gives smooth on and off axis frequency response.
- Low Frequency Drivers
- The CVi-218S uses a unique inverted woofer design that boasts two high power 18" transducers with 3" voice coils. These contrary-loaded drivers effectively cancel mechanical and magnetic distortions when driven to high SPLs
- Steel Grill
- An 18 gauge, perforated steel grill protects the entire front of the enclosure. The polypropylene fiber covered internally braced structural wood housing is durable, light, and strong.
- Designed for Versatility
- The CVi-218S finds application in outdoor stages, portable live sound PA, auditoriums, drum monitor sub, DJ system PA, and clubs
UPC: 743658901434 In the Box Cerwin-Vega CVi-218S 18" Passive Portable PA Speaker Limited 5-Year Warranty Data Sheet PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cerwin-Vega CVi-218S 18" Passive Portable PA Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCerwin-Vega CVi-218S Specs | | | Configuration | Passive Subwoofer | | Total Power Capacity | 600 W RMS
1200 W Program
2400 W Peak | | System Impedance | 4 Ohms (Nominal) | | | | LF Driver | 1 x 18" / 46 cm Woofer
1 x 18" / 46 cm Inverted Woofer | | LF Voice Coil | 3" / 76.2 mm | | | | Frequency Response | 51 Hz to 200 Hz ±3 dB
36 Hz to 200 Hz -10 dB | | Maximum SPL | 134 dB SPL | | Coverage Angle | 80° H x 50° V At -6 dB Points | | Speaker Sensitivity | 100.5 dB | | | | Audio I/O | 2 x 1/4"
2 x speakON | | | | Dimensions | 46.5 x 20.8 x 26.8" / 1181.1 x 527.0 x 679.5 mm | | Weight | 150 lb / 68 kg | | | | Package Weight | 162.0 lb | | Box Dimensions (LxWxH) | 49.0 x 28.0 x 22.0" |
