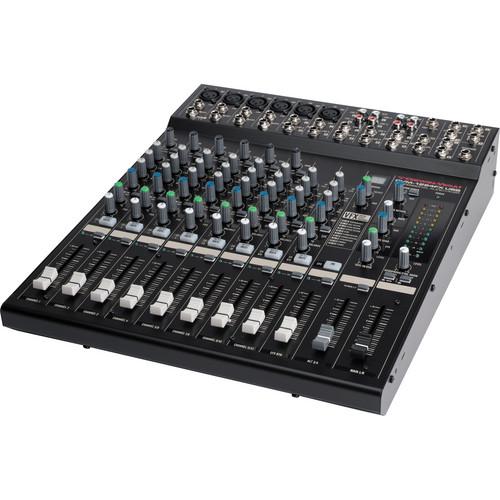

Product description Designed to support live mixing applications, the CVM-1224FXUSB 12-Channel Rack-Mountable Mixer from Cerwin-Vega delivers VEGA effects and fine level adjustment with the 60mm faders. This 12-channel mixer features 3-band equalization and AUX & EFX bus flexibility. - High grade components and signal paths deliver precision audio from all channels
- Tough, all-metal housing satisfies the demands of a reliable and durable product necessary for portability
- Easy to identify markings and color-coordinated knobs allow for intuitive operation
- Inserts and AUX/EFX sends opens the mixer to individual requirements
- Complete access to 100 VFX presets that digitally energize vocals and sounds
- Digital audio USB input/output support for laptop playback and recording
- Peak LED indicator to check on the signal input of each microphone channel
- Individual channel and main level control using 60mm faders
- Gain (trim) level control with sensitivity markings for both microphone and line inputs
- Low Cut (HPF) switch at 75 Hz to eliminate background microphone rumble 1
Please Note: Low-cut switch is available on the mic/line channels only close - AUX and EFX controls to adjust the level of the signal sent to the respective bus
- PAN control (mono channels) to position the signal across the master left and right bus
- BALANCE control (stereo channels) to adjust the level between left and right signals
- Switchable Phantom power (+48V) switch for safe and easy connection of condenser microphones
- Level control for headphone and control room connections
- PRE/POST switch to set the AUX signal as pre- or post-fader for foldback /monitoring mix or to preserve the wet-to-dry ratio on AUX sends
- PFL (pre-fade listen) switch with adjacent indicator to allow the engineer to listen to each channel before it reaches the main mix
- Built-in VEGA-effects 24-bit digital signal processor with 100 selectable programs including reverb, echo, chorus and flange
- 100mm VEGA-effects master fader and remote footswitch on/off control for effects return
- 16-bit, 44.1 kHz USB connection for computer playback and recording (class compliant)
- Detachable rack ears for mounting in a standard 19" rack enclosure
UPC: 743658002216 In the Box Cerwin-Vega CVM-1224FXUSB 12-Channel Rack-Mountable Mixer Rack Ears Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cerwin-Vega CVM-1224FXUSB 12-Channel Rack-Mountable Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCerwin-Vega CVM-1224FXUSB Specs | Mic/Line Inputs | 6 | | Line Inputs | 4 mono + 4 stereo | | Input Channels | Mixer: 12 | | Busses | Group: ALT3/4, AUX, EFX
Main: Stereo | | Maximum Output Level | 24 dBm | | Frequency Response | 20 Hz to 20 kHz (-1 dB) | | Total Harmonic Distortion (THD) | < 0.01% | | Crosstalk | > 70 dB | | Hum & Noise | EIN: > 127 dB
Residual: > 100 dB
Main, AUX output: > 80dB | | Equalization | High: 12 kHz ±15 dB
Mid: 2.5 kHz ±12 dB
Low: 80 Hz ±15 dB | | Digital I/O | USB B type, Audio 44.1/48 kHz | | Effects | Vega (VFX): 24-bit resolution, 100 program selection | | Power Source | 110 to 120 VAC / 60 Hz | | Rack Ears | Included, with mounting hardware | | Dimensions (W x H x D) | 12.9 x 2.5 x 16.5" (327.6 x 63.5 x 419.1 mm) | | Weight | 7.5 lb (3.4 kg) | | | | Package Weight | 16.85 lb | | Box Dimensions (LxWxH) | 20.9 x 20.1 x 7.0" |
