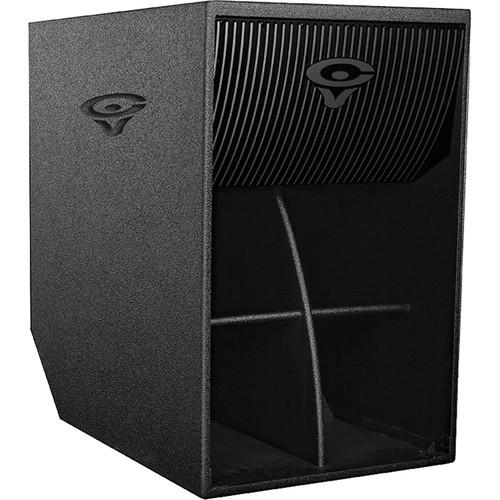

User Manual for Cerwin-Vega Earthquake EL-36DP 18" Folded Horn Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the Cerwin-Vega Earthquake EL-36DP 18" Folded Horn
- Product category: PA Speakers Cerwin-Vega
- Brand: Cerwin-Vega
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cerwin-Vega PA Speakers
|
User manual for the Cerwin-Vega Earthquake EL-36DP 18" Folded Horn contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cerwin-Vega product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cerwin-Vega user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cerwin-Vega product will considerably shorten its lifespan!
|
Product description The Earthquake EL-36DP from Cerwin-Vega is a powered subwoofer equipped with an 18" folded horn that delivers high audio performance with pure and powerful bass. It is able to produce a maximum SPL of 136 dB and delivers 2000W peak power. The woofer is enclosed in a durable Tour Shield coated cabinet and is able to achieve a thunderous bass extension down to 37 Hz. - 18" folded horn Earthquake bass system
- Durable Cerwin-Vega Tour Shield protective coating
- Frequency range from 37 to 673 Hz (+3/-10 dB)
- Thunderous bass extension down to 37 Hz
- Selectable crossover 100 and 180 Hz
- Acoustic impedance balancing reduces cone rocking
- Cast aluminum door functions as a heat sink
UPC: 743658901601 In the Box Cerwin-Vega Earthquake EL-36DP 18" Folded Horn Powered Subwoofer Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cerwin-Vega Earthquake EL-36DP 18" Folded Horn Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCerwin-Vega EL-36DP Specs | Output Power | Peak: 2000 W | | Frequency Response ± 3dB | 44 to 336 Hz | | Frequency Range | 37 to 673 Hz (+3/-10 dB) | | Maximum SPL | 136 @ 3.3' (1 m) | | Low Frequency Driver | 18" (46 cm) woofer | | Connectors | Combo (1/4" TRS/XLR) inputs and XLR outputs | | Enclosure | 0.7" (18 mm) plywood | | Finish | TourShield protective coating | | Dimensions (D x W x H) | 36 x 24 x 36" (91 x 61 x 91 cm) | | Weight | 172 lb (78 kg) | | | | Package Weight | 188.0 lb | | Box Dimensions (LxWxH) | 39.0 x 38.0 x 25.75" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
