User Manual for Cerwin-Vega INT-152 V2 15" 2-Way Full Range Portable PA Speaker Click to enlarge the picture
Contents of the user manual for the Cerwin-Vega INT-152 V2 15" 2-Way Full
- Product category: PA Speakers Cerwin-Vega
- Brand: Cerwin-Vega
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cerwin-Vega PA Speakers
 |
User manual for the Cerwin-Vega INT-152 V2 15" 2-Way Full contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cerwin-Vega product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cerwin-Vega user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cerwin-Vega product will considerably shorten its lifespan!
|

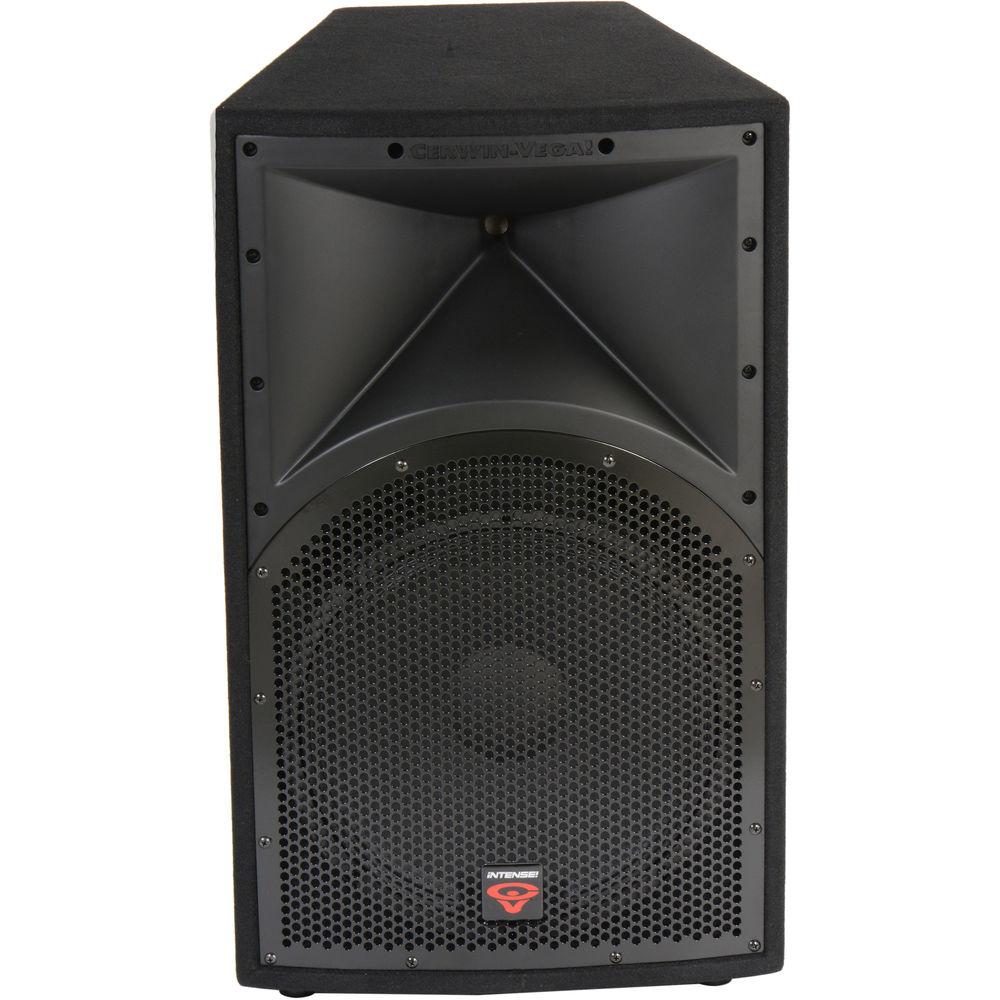

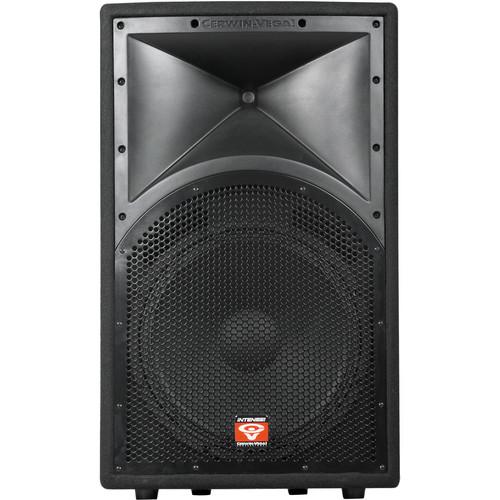

Product description The Cerwin-Vega INT-152 V2 15" 2-Way Full Range Portable PA Speaker from the Intense series is suitable for PA applications such as live sound, program playback, and DJ systems. It features a 15" woofer and is capale of up to 200W RMS power handling. It can be installed in facilities, venues, and clubs, yet is fully portable for sound on the go. The unit features strong drivers and a cabinet construction with internal bracing that offers enhanced durability. - Strong drivers with the addition of more steel
- Enhanced durability thanks to the cabinet construction with internal bracing
- Improved perrformance from previous generations is achieved by increasing the size of the magnets on the compression drivers
- Dependability from a positive temperature coefficient (PTC) thermistor that protects the tweeter; this component acts as a self-repairing fuse allowing the speaker to return to normal operation once the input fault is corrected

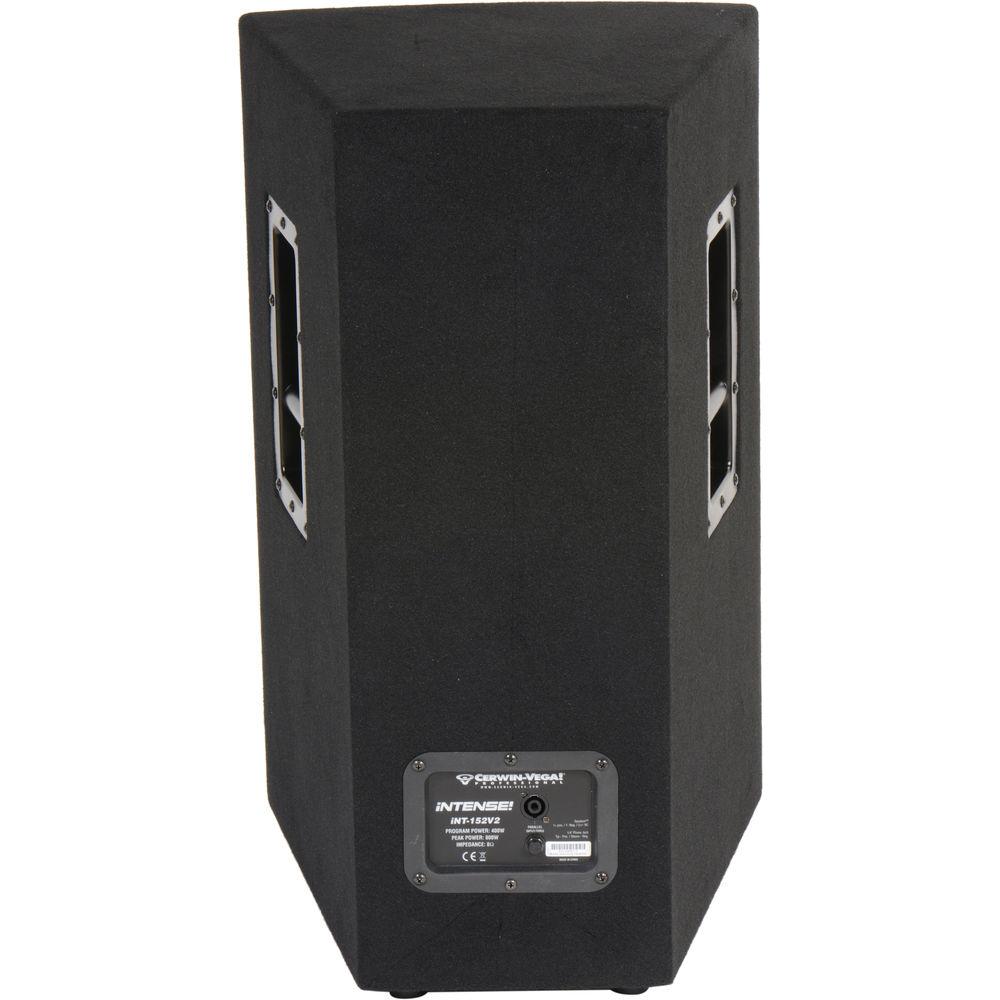

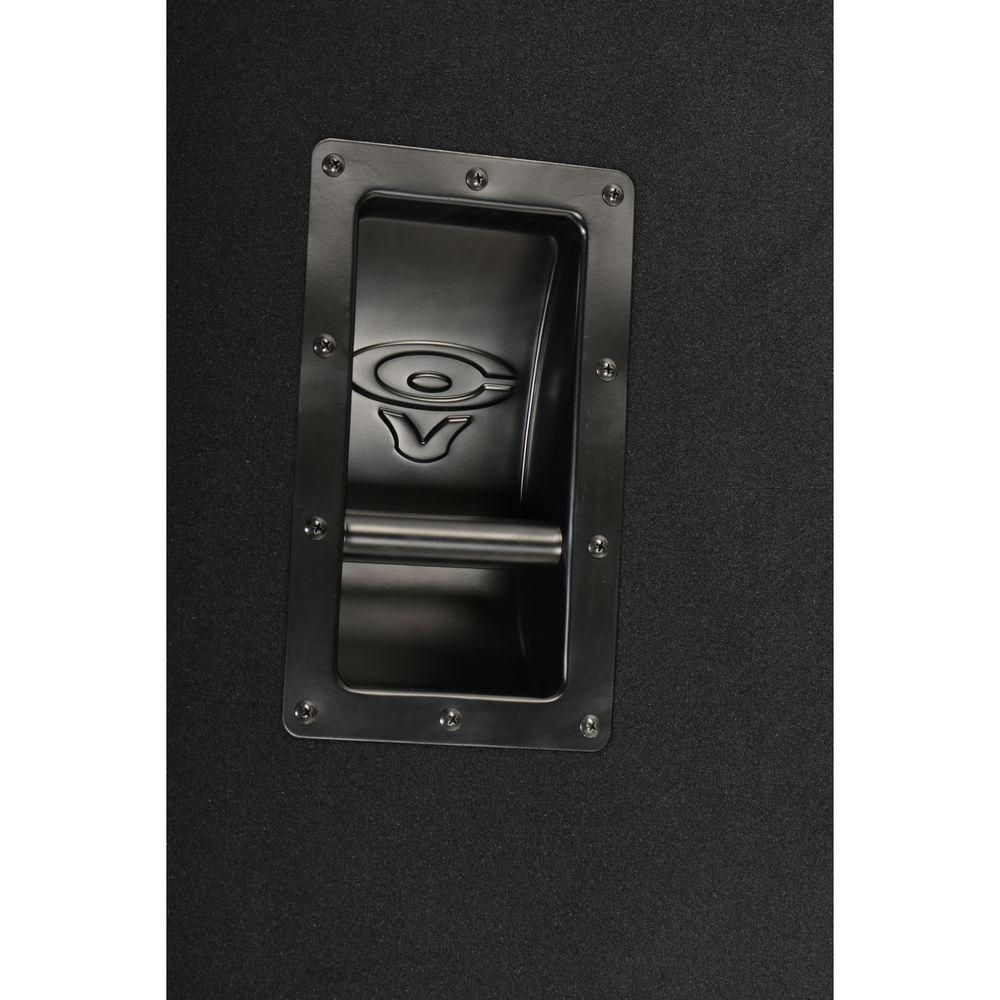

- All metal handles with stamped CV logo
UPC: 743658901403 In the Box Cerwin-Vega INT-152 V2 15" 2-Way Full Range Portable PA Speaker Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cerwin-Vega INT-152 V2 15" 2-Way Full Range Portable PA Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCerwin-Vega INT-152 Specs | Frequency Response | Frequency Response (1 W @ 1 m): 64 Hz to 19.8 kHz +/- 3 dB, -10 dB 46 Hz | | Nominal Impedance | Full range 8 ohms | | Sensitivity | Axial Sensitivity (dB SPL, 1 W @ 1m): Full range 95 dB | | Maximum Output | Calculated Maximum Output (dB SPL, @ 1 m): Full range 124 dB | | Power Handling | RMS: 200 W
Program: 400 W
Peak: 800 W | | Coverage Angle | Nominal Coverage Angles / -6 dB Points (Degrees):Horizontal: 90°Vertical: 50° | | Dimensions | 30.75 x 18.50 x 10.38 x 19.25" (78.11 x 46.99 x 26.37 x 48.90 cm) (H x WF x WB x D) | | Weight | 57.70 lb (26.17 kg) | | | | Package Weight | 69.2 lb | | Box Dimensions (LxWxH) | 33.0 x 21.0 x 20.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Cerwin-Vega INT-152 V2 15" 2-Way Full Range Portable PA Speaker
| Subject: Cerwin Vega INT-152 V2 Speaker Passive | | Date: 19.12.2021 11:11:28 | Name: Shane | Hi my name is Shane. I have two Cerwin Vega INT-152 V2 Speaker Passive. I don't know where to buy parts from. I live in Melbourn Australia. My Tweeter is dead and need a new one and I may might need components to repair my crossover. Or If I can't get parts for the crossover Where could I get a new one from. I have looked everywhere. Can you please help me.
Thank You So much.
Warm Regards
Shane.
shanepj@gmail.com | | Post reply |
